How to Build a Time Delay Off Relay Circuit Step-by-Step Guide

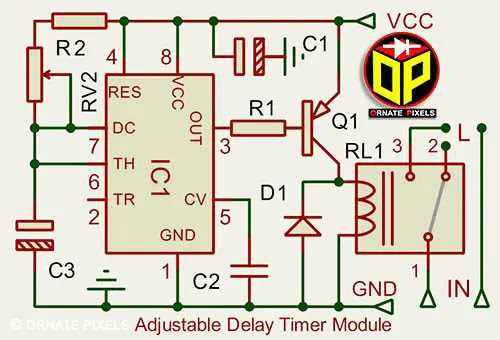

For applications requiring a controlled interval before disconnecting power, a 555 timer IC paired with a solid-state switch delivers reliable results. Configure the IC in monostable mode by connecting pin 2 to a trigger pulse–ensure the pulse falls below 1/3 of the supply voltage. The output (pin 3) activates the switching mechanism, holding it engaged for the duration determined by R₁ × C₁, where R₁ ranges between 10 kΩ and 1 MΩ and C₁ spans 1 µF to 1000 µF. Adjust these values to achieve intervals from microseconds to hours.

Avoid exceeding the maximum current rating of the 555 IC (200 mA); use a transistor driver (e.g., BC547 or MOSFET IRFZ44N) if the load exceeds this limit. For inductive loads, integrate a flyback diode (1N4007) across the coil to suppress voltage spikes. Test the configuration with a load resistance of at least 50 Ω to prevent false triggers from leakage.

To ensure stability, decouple the IC’s power pins (8 and 1) with a 0.1 µF capacitor near the chip. For longer intervals, opt for a tantalum capacitor in place of electrolytic–leakage in electrolytics can skew timing by up to 20%. If noise sensitivity is an issue, insert a 10 kΩ pull-down resistor on the trigger line to prevent floating inputs.

For dual-interval applications, cascade two 555 ICs: the first sets the initial delay, while the second extends it. This approach avoids the pitfalls of single-stage designs, where component tolerances accumulate, causing inconsistent operation. Validate the setup with an oscilloscope–verify that the output pulse width matches the calculated 1.1 × R₁ × C₁ before deploying under load.

Automatic Switch-Off Mechanism: Wiring and Configuration

For a reliable interval-based deactivation system, use a 555 timer IC in monostable mode with a 100μF electrolytic capacitor and a 1MΩ potentiometer. This setup achieves adjustable shut-down periods from 100ms to ~100 seconds. Connect the trigger pin (2) to ground via a push-button to initiate the cycle; the output (3) drives a TIP120 Darlington transistor controlling the load (up to 5A). Place a flyback diode (1N4007) across the load to protect against voltage spikes.

Component Selection Table

Function	Component	Typical Value	Notes
Timing capacitor	Electrolytic	10μF–470μF	Low-leakage preferred
Timing resistor	Potentiometer	10kΩ–2.2MΩ	Linear taper for smooth adjustment
Control switch	Push-button	SPST momentary	Debounce with 0.1μF ceramic cap
Power transistor	BJT/Darlington	TIP120/IRFZ44N	Choose based on load current

Avoid using carbon-film resistors in the timing chain–metal-film types (1% tolerance) improve stability. For extended ranges beyond 2 minutes, replace the 555 with a CD4060BE counter/divider IC; it divides the oscillator frequency by up to 16,384, enabling intervals up to hours without large capacitors. Always test the mechanism with a multimeter in voltage mode across the load to confirm full disengagement before connecting high-power devices.

Core Elements for a Basic Automatic Switch Mechanism

Select a 555 timer IC in monostable mode for precise control over interval durations. Use a TLC555 or NE555 variant, ensuring compatibility with your power supply–standard 5–15V DC suffices. Pair it with a 10kΩ potentiometer to adjust duration from milliseconds to minutes without recalibration. A 1N4148 diode protects the control input from voltage spikes, while a 10μF electrolytic capacitor smooths transient responses. For load handling, integrate a 10A SPST switch or IRFZ44N MOSFET for currents above 2A.

Critical Supporting Parts

Opt for a 100nF ceramic capacitor to stabilize the logic supply. A 1kΩ resistor limits base current when driving a transistor, while a 220μF capacitor on the output extends shutdown periods reliably. For AC loads, use a 10A solid-state device (e.g., MOC3041) to isolate high-voltage sections. Label components clearly–mark polarity-sensitive parts like capacitors and diodes to prevent reverse connection failures.

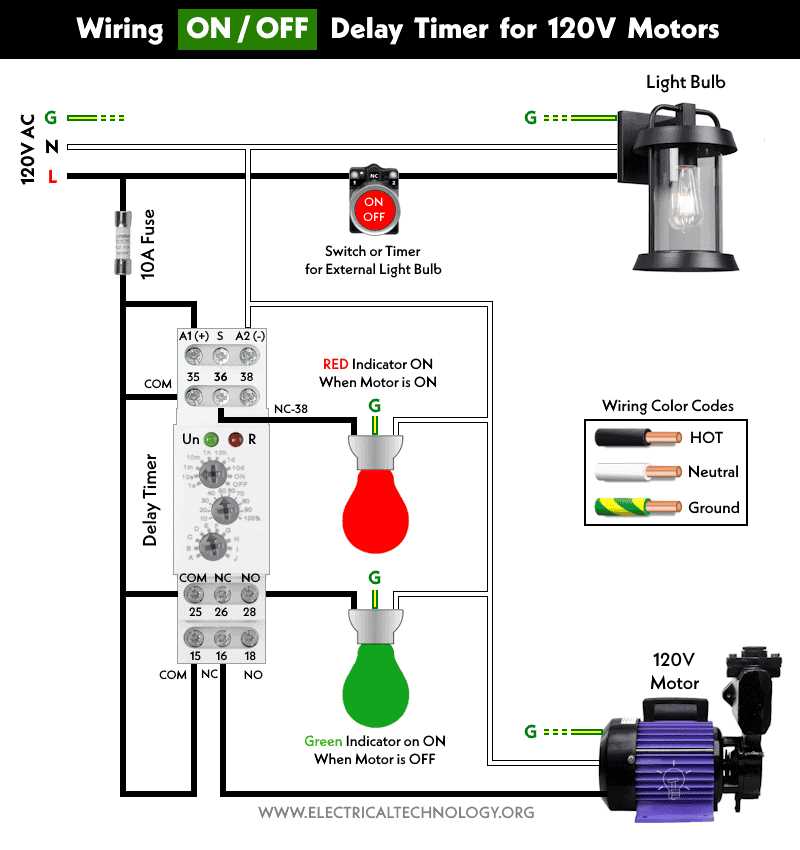

Step-by-Step Wiring Guide for Automatic Shutoff Mechanism

Select a control module with a preset deactivation interval matching your needs–typically 5 to 30 seconds for most applications. Verify the rated voltage (12V, 24V, or 110V) aligns with your power supply to prevent component damage.

Identify the input trigger point where the switching signal originates, such as a pushbutton, sensor, or logic controller output. Connect this point to the module’s activation terminal using 18-22 AWG wire, ensuring a secure crimp or solder joint. Avoid loose connections to prevent intermittent failures.

Route the power feed from the supply to the module’s V+ terminal, using an inline fuse (1A for low-power setups, 5A for heavy-duty). Strip only 5mm of insulation to minimize short-circuit risks. For AC systems, confirm polarity isn’t critical–most solid-state modules handle both directions.

Integrating Load and Ground Connections

Attach the load device (motor, lamp, solenoid) to the module’s output terminal, sized for the expected current draw. Use 14-16 AWG wire for loads under 10A; upgrade to 10 AWG for higher demands. Add a flyback diode (1N4007) across inductive loads to suppress voltage spikes that could damage the control module.

Ground the module’s common terminal to the system ground, preferably at a single star-point to avoid ground loops. For vehicles, bond to the chassis using a serrated ring terminal; in fixed installations, use a dedicated earth rod with 6 AWG copper wire. Test continuity with a multimeter to confirm resistance under 0.1 ohms.

Power up the system and activate the trigger once. The load should energize immediately and deactivate after the preset interval. If inconsistent, check for parasitic resistance (over 1 ohm suggests poor joints) or voltage drop (under 90% of supply indicates undersized wire). Adjust the interval by modifying the onboard potentiometer or replacing a timing capacitor if using an adjustable model.

Secure all connections with heat-shrink tubing or electrical tape, then enclose the setup in a waterproof junction box if operating in damp or outdoor environments. Label wires for future troubleshooting–mark trigger input (red), power feed (yellow), load output (black), and ground (green). Avoid zip ties near heat sources; use spiral wrap for bundled wires to prevent chafing.

Fine-Tuning Interval Duration with Passive Components

Select a resistor-capacitor pair where τ = R × C defines the switching period. For a 5-second interval, use a 100 kΩ resistor paired with a 47 µF capacitor (τ ≈ 4.7 s). Adjust R proportionally for longer spans: 220 kΩ extends τ to ≈10 s; 470 kΩ yields ≈22 s. Capacitor leakage current distorts precision–opt for low-leakage electrolytics or film types in environments exceeding 50°C. Keep wiring between the RC network and switching transistor under 5 cm to minimize stray capacitance interference.

• Under 100 ms spans: 10 kΩ + 10 µF (ceramic, low ESR).
• 1–5 s range: 47 kΩ–220 kΩ + 22–47 µF (tantalum for stability).
• 10–30 s spans: 470 kΩ–1 MΩ + 22–100 µF (film for accuracy).
• Parallel resistors trim tolerances–combine a fixed 470 kΩ with a 100 kΩ potentiometer for ±12% adjustment.
• Temperature drift correction: polypropylene capacitors drift

Verify interval consistency at ±10% supply voltage variance–use a Schmitt trigger buffer for clean transitions, avoiding false triggers from ripple exceeding 50 mV_pp.

Common Errors in Constructing Automatic Switch-off Mechanisms

Incorrect capacitor selection leads to unreliable interval control. Many builders choose capacitors based on voltage rating alone, ignoring capacitance tolerance and temperature stability. A ±20% deviation in capacitance can shift the deactivation period by seconds or even minutes, especially in long-range setups. Use low-leakage electrolytic or film capacitors with tight tolerances (≤±5%) for precise duration. Test components at operating temperatures before final assembly–ambient changes alter discharge rates unpredictably.

Faulty Transistor or MOSFET Pairing

Selecting an underpowered transistor causes premature failure or erratic behavior. A common 2N3904 handles currents up to 200mA; exceeding this burns the junction, shortening the interval or preventing activation entirely. For higher loads, switch to a logic-level MOSFET like IRLZ44N, ensuring it fully saturates at the trigger voltage. Verify datasheet parameters: gate threshold voltage must be below the control signal to avoid partial conduction, which generates heat and disrupts timing.

Neglecting diode placement across inductive loads invites voltage spikes. A single flyback diode (1N4007) protects the switching element but fails if positioned incorrectly–place it directly across the coil terminals, cathode to positive. Omitting it or reversing polarity exposes sensitive components to transients exceeding 1kV, instantly damaging transistors or ICs. For AC loads, use a bidirectional TVS diode rated at 150% of peak voltage to absorb both polarities.

Overlooking power supply decoupling creates false triggers. A 0.1µF ceramic capacitor near the control IC’s power pins filters noise that mimics activation signals. Without it, RF interference or ripple induces phantom pulses, resetting the interval unexpectedly. Ground loops also corrupt timing–use a star grounding scheme, connecting all grounds at a single point to prevent voltage differentials that skew reference levels.

Misaligned potentiometer scaling misrepresents user adjustments. Linear taper pots distort perceived range; a 1MΩ pot set to mid-position may yield 10 seconds instead of the intended 30 due to non-linear resistance curves. Choose logarithmic taper pots for smoother control or pre-calibrate fixed resistors for predictable intervals. Label the front panel with exact durations based on measured values, not approximations–human expectation rarely matches electrical reality.
