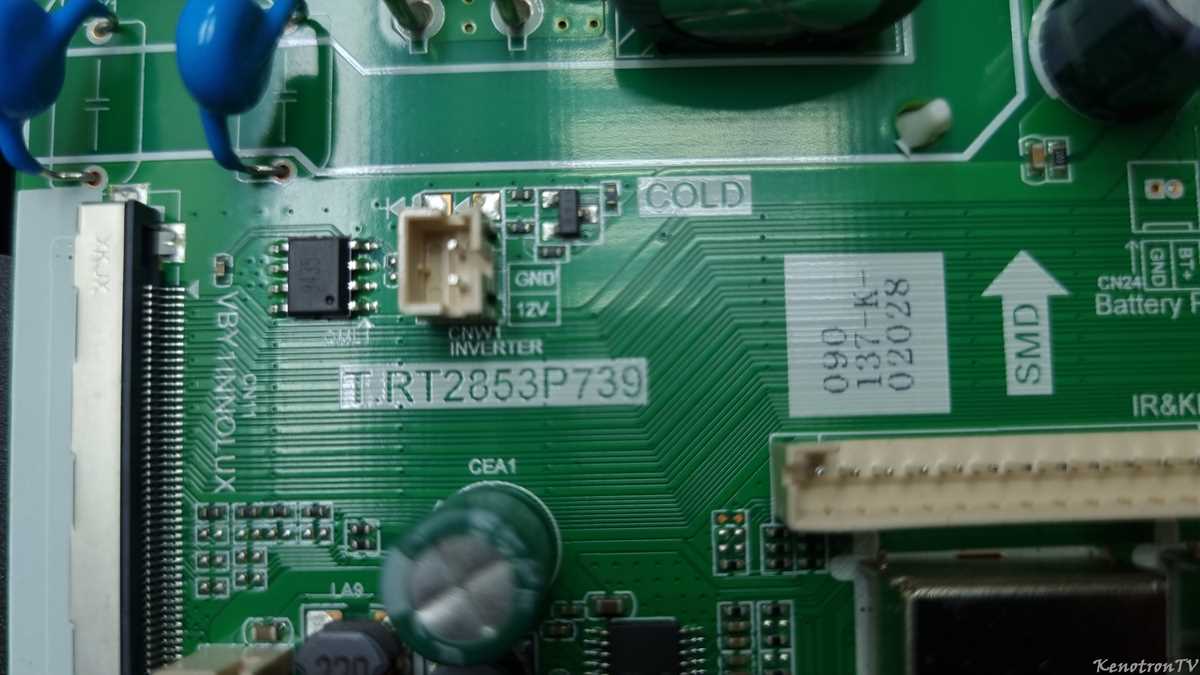

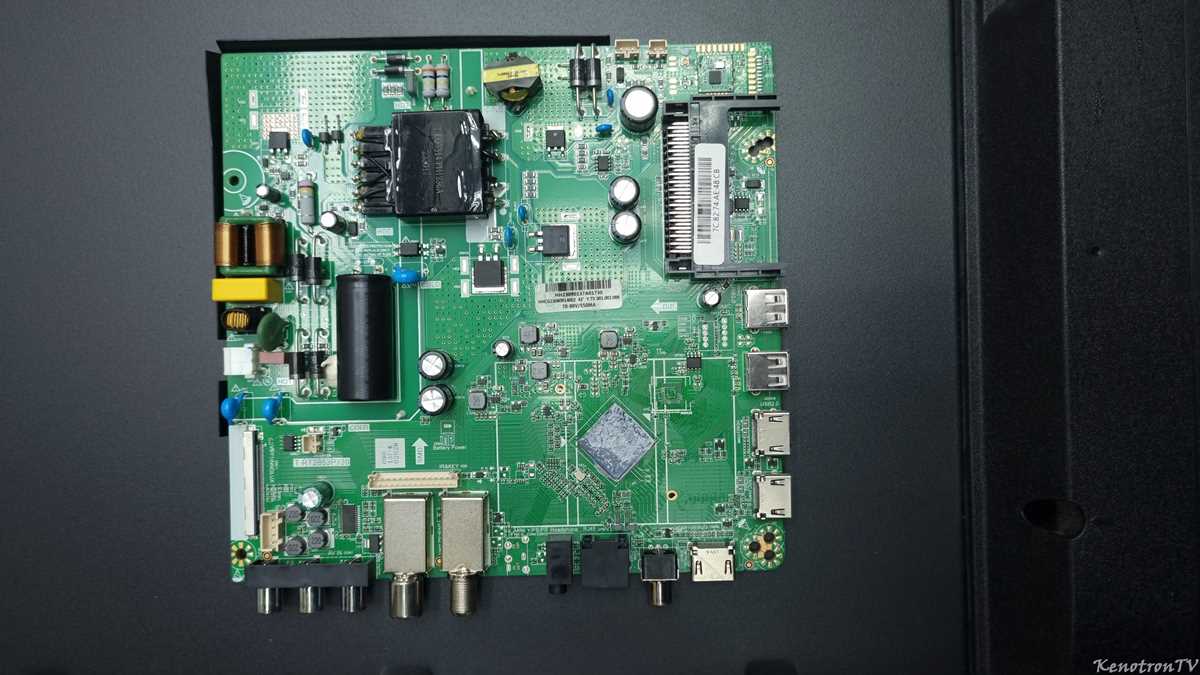

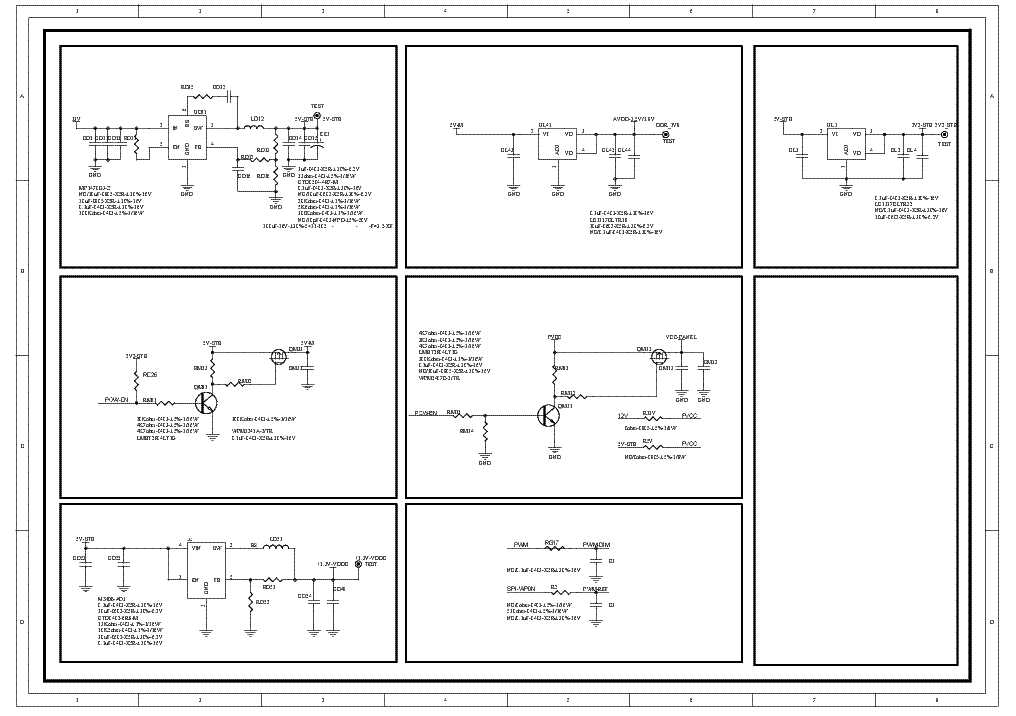

Detailed Schematic Guide for Tp vst59s pb817 Transistor Circuit Analysis

To accurately interpret this photocoupler circuit, begin by identifying the primary components: an NPN transistor (2SC1815) paired with a phototransistor (TLP817C). The emitter of the optical receiver connects directly to ground through a 1kΩ resistor, while its collector receives a 5V supply via a 10kΩ pull-up. This configuration ensures rapid switching with minimal propagation delay–critical for isolating digital signals in high-speed interfaces.

Trace the current path first: when the emitter LED (GaAs infrared type) is forward-biased at ~1.2V, sufficient photons induce base current in the phototransistor. Verify the base-emitter junction of the output transistor remains unbiased unless the isolator conducts. A 470Ω resistor in series with the LED limits current to approximately 8mA, preventing thermal damage while maintaining a typical CTR (Current Transfer Ratio) of 50% at 25°C.

For reliability testing, measure V_CE(sat) across the output transistor under full load conditions (5mA collector current). Values exceeding 0.4V indicate insufficient drive strength–replace the 10kΩ pull-up with a lower-value resistor (e.g., 4.7kΩ) to improve response time. Always decouple the 5V rail with a 0.1µF ceramic capacitor placed within 5mm of the device pins to suppress transient noise.

Reverse-engineering this layout reveals a deliberate Miller compensation technique: the 22pF capacitor between the collector and base of the NPN transistor stabilizes high-frequency oscillations, particularly in noisy industrial environments. If ringing occurs at frequencies above 1MHz, increase this capacitance incrementally to 47pF while monitoring rise/fall times–distortions beyond 500ns compromise signal integrity.

When prototyping, use a Thermal Pad beneath the main IC to dissipate heat from the LED driver stage. Excessive junction temperature (>85°C) degrades CTR by 0.5% per °C–refer to the manufacturer’s derating curves for precise thermal management. Replace generic through-hole components with SMD equivalents (e.g., 0805 resistors) to reduce parasitic inductance in high-frequency applications.

Critical Circuit Flow Evaluation for TLP592P-B1 Isolation Configuration

Begin analysis by isolating the optocoupler stage–trace the input current path from the emitter resistor (typically 150Ω–1kΩ) through the LED to the base drive of the output transistor. Verify voltage drop across the LED segment: expected values range between 1.2V–1.5V at 5–20mA forward current. If deviations exceed ±0.1V, suspect degraded LED efficiency or incorrect resistor sizing. Compare measured values against the manufacturer’s forward voltage curves; discrepancies often indicate batch variations or thermal stress.

• Check the output transistor’s collector-emitter saturation voltage (V_CE(sat)): must remain below 0.4V at 10mA load to ensure proper logic-level translation. Exceeding this threshold suggests transistor aging or insufficient base drive current.
• Measure leakage current at the output stage: >5μA under reverse bias suggests contamination or moisture ingress in the isolation barrier. Replace if readings persist.
• Test switching response by applying a 1kHz square wave input; rise/fall times should not exceed 5μs. Prolonged transitions indicate capacitive loading or improper PCB trace design.

For PCB layout validation, confirm the following critical clearances:

1. Isolation gap between primary and secondary sides: minimum 8mm for reinforced insulation per IEC 60950. Reduce if application tolerates functional isolation only.
2. Thermal vias near the output transistor: place two 0.5mm vias within 2mm of the die to prevent thermal runaway at >70°C ambient.
3. Ground plane separation: avoid overlapping primary/secondary grounds to prevent noise coupling. Use a single-point star ground if necessary.

If modifying this design for higher-voltage isolation (3.75kV), substitute the default coplanar jumpers with solder mask-defined gaps ≥2mm wide. Verify creepage distances using IPC-2221 standards: for 240VAC mains, maintain ≥4mm between high-voltage nodes. For transient immunity, add a 100pF bypass capacitor across the isolation barrier if spikes >2.5kV/μs occur, but ensure capacitor voltage rating exceeds peak isolation voltage by 20%.

Key Components Identification in the Target Power Stage Layout

Locate the isolation optocoupler immediately downstream of the control IC–its datasheet markings (e.g., PS2561) must match the footprint. Verify the forward current transfer ratio (CTR) falls within 80–160% at 5mA; deviations indicate degraded silicon or misaligned bond wires. Check the anode-cathode resistance with a multimeter set to diode test mode: a healthy device reads 1.1–1.3V drop, while anything below 0.8V suggests leakage.

Critical Passive Elements and Their Tolerances

Component	Designator	Reference Value	Acceptable Deviation	Failure Indicator
Input filter cap	C1	47µF	±20%	ESR >1Ω at 100kHz
Gate resistor	Rg	22Ω	±5%	Thermal discoloration
Current sense resistor	Rsense	0.1Ω	±1%	Noisy waveform (>50mVpp)
Snubber RC	Rsn-Csn	470Ω-220pF	±10%	Ring frequency

Desolder the gate resistor if its surface shows carbonization; replace with a pulse-rated metal film unit matching the original footprint. Scrape solder mask around the current-sense resistor pads to expose copper, ensuring the Kelvin connection remains intact–oxidation here misrepresents voltage by 15–25%. Replace snubber components as a pair even if only one element tests within spec: phase shift between resistor and capacitor alters damping coefficient.

Trace the high-voltage MOSFET source to the feedback network–interruption here drops regulation bandwidth below 2kHz. Probe the control IC feedback pin (FB) during operation: a stable 2.5V ±2% confirms loop integrity; oscillations above 200mVp-p at 10kHz point to a compromised compensation capacitor (typically 4.7nF). Swap the IC if the soft-start pin fails to ramp within 5ms of VCC reaching 12V–latching behavior suggests internal EEPROM corruption.

Step-by-Step Signal Path Analysis in the Optocoupler Circuit Layout

Begin at the input LED terminal marked ANODE. Trace the current flow through the emitter by identifying the series resistor (typically 47Ω–1kΩ) connected directly to the LED’s positive side. Verify the resistor’s value matches the expected voltage drop (e.g., 1.2V for standard IR LEDs) using Ohm’s Law: I = (V_IN – V_F) / R. If the current exceeds 20mA, reduce the resistor to prevent LED degradation.

Follow the path to the LED’s CATHODE, ensuring it connects to the driver’s ground reference. Confirm the absence of parasitic resistance (e.g., cold solder joints) between the cathode and ground–measure with a multimeter in continuity mode. If resistance exceeds 1Ω, rework the joint to maintain signal integrity.

Phototransistor Stage Breakdown

Locate the detector’s COLLECTOR (usually tied to +5V or +12V via a pull-up resistor, 1kΩ–10kΩ). The phototransistor’s switching speed depends on this resistor: lower values increase speed but reduce sensitivity. Cross-reference the layout with the datasheet’s ton/toff specs–adjust the resistor if rise/fall times deviate by >10%.

Trace the EMITTER to the output node, noting any capacitive loads (e.g., 10–100pF). If the output exhibits ringing, add a 100Ω–1kΩ series resistor or a small capacitor (10–47pF) to dampen oscillations. Validate isolation by measuring leakage current between input and output grounds–it should remain

Common Pin Configuration Errors and Troubleshooting Tips

Check the power supply pins first–reverse polarity or insufficient voltage causes instant failure in optocouplers. Use a multimeter to verify the input voltage matches the datasheet specifications (±5% tolerance). Pin 1 (anode) should show a forward voltage drop of 1.1–1.4V; deviations indicate a faulty LED or incorrect resistor value upstream.

Misaligned emitter-base connections in transistor outputs (e.g., collector swapped with emitter) distort signal isolation. Confirm the output stage by measuring resistance between the collector and emitter–open-circuit suggests proper configuration, while low resistance (

Accidental swaps between signal and ground pins corrupt data transmission. Probe the PCB traces with a continuity tester to ensure no cross-connections exist between digital I/O and adjacent ground planes. For SMD variants, magnify the silkscreen–misaligned solder masks often obscure correct pin numbering, leading to miswiring. Reflow suspected cold joints with flux and a fine-tip iron.

Noise coupling from switching regulators overwhelms high-impedance outputs. Add a 0.1µF ceramic capacitor between VCC and ground, placed 1µF), which slows response times.

Thermal drift alters saturation voltages over prolonged operation. Log the collector-emitter drop (VCE) at 25°C and 85°C–deviations >10% require heatsink or derating. For batch replacements, sample-test 10% of units for VCE consistency; outliers signal manufacturing defects in die attachment or epoxy inconsistency.

Recommended Test Points for Voltage and Continuity Checks

Begin with the input power terminals–measure between the live and neutral lines to confirm the incoming supply matches the expected voltage range (e.g., 220-240V AC for mains). Use a multimeter set to AC voltage mode, probing directly at the connector pins before any filtering components. If readings deviate by more than 5%, inspect the fuse or surge protector upstream.

Key Nodes on the Primary Side

• Rectifier output: Check DC voltage after the bridge rectifier, typically 300-320V for a 230V AC input. Probe the positive rail (anode of the first smoothing capacitor) against the negative rail (GND). Lower values indicate a faulty diode or capacitor.
• Smoothing capacitor terminals: Verify ripple voltage with the multimeter in AC mode. Expect less than 5V ripple for proper filtering. Higher ripple suggests capacitor degradation.
• Switching transistor collector/drain: For MOSFETs, measure V_DS during operation (should oscillate between 0V and ~310V). Absence of switching indicates a failed driver IC or open transistor.

On the secondary side, prioritize these test points:

1. Output rails: Measure each regulated voltage (e.g., 12V, 5V, 3.3V) at the inductor or diode cathode. Tolerances should not exceed ±5%. If voltages are low, check the feedback path (optocoupler/Zener diode) or load conditions.
2. Feedback loop: Probe the optocoupler transistor side (collector/emitter) for a voltage drop corresponding to the regulation setpoint (e.g., 0.5V for a 3.3V rail). No voltage change suggests an open feedback path.
3. Ground continuity: Verify continuity between secondary GND and primary-side earth with the circuit powered off. Resistance should be under 1Ω. Higher values indicate a broken trace or poor solder joint.

For high-frequency circuits, use an oscilloscope on the following nodes:

• Switching node (transistor drain/source): Confirm a clean square wave (e.g., 60-100kHz) with minimal overshoot (peak). Ringing indicates parasitic inductance or insufficient snubbing.
• Current sense resistor: Measure voltage across the resistor (typically 0.1-0.5Ω). Expect a sawtooth waveform (0.1-0.5V peak) proportional to load current. Flatline suggests a shorted transistor or failed current limit.

Diagnose fault conditions with these steps:

• No power output: Test the start-up resistor (usually 100kΩ-1MΩ) by measuring voltage drop across it. Zero volts indicates an open resistor; expected drop is ~V_in – V_CE of the startup transistor.
• Overvoltage protection: Force the feedback loop open (e.g., disconnect the optocoupler) and check if the primary side enters hiccup mode. If not, suspect a damaged PWM controller.
• Short-circuit: Measure resistance between output rails and GND with power off. Less than 10Ω suggests a dead short; isolate by removing loads sequentially or using thermal imaging to locate hot components.

Verify auxiliary circuits last:

• Standby voltage (e.g., 5VSB): Check at the standby regulator output. This rail should remain active even when main outputs are disabled.
• Bias winding: Measure voltage at the bias diode cathode (typically 10-15V). Zero volts indicates an open winding or failed diode.
• Protection circuits: Short the overvoltage protection (OVP) pin to GND (if specified in documentation) and confirm the output disables. Similarly, short the undervoltage lockout (UVLO) pin to simulate low input–observe if the circuit latches off.
