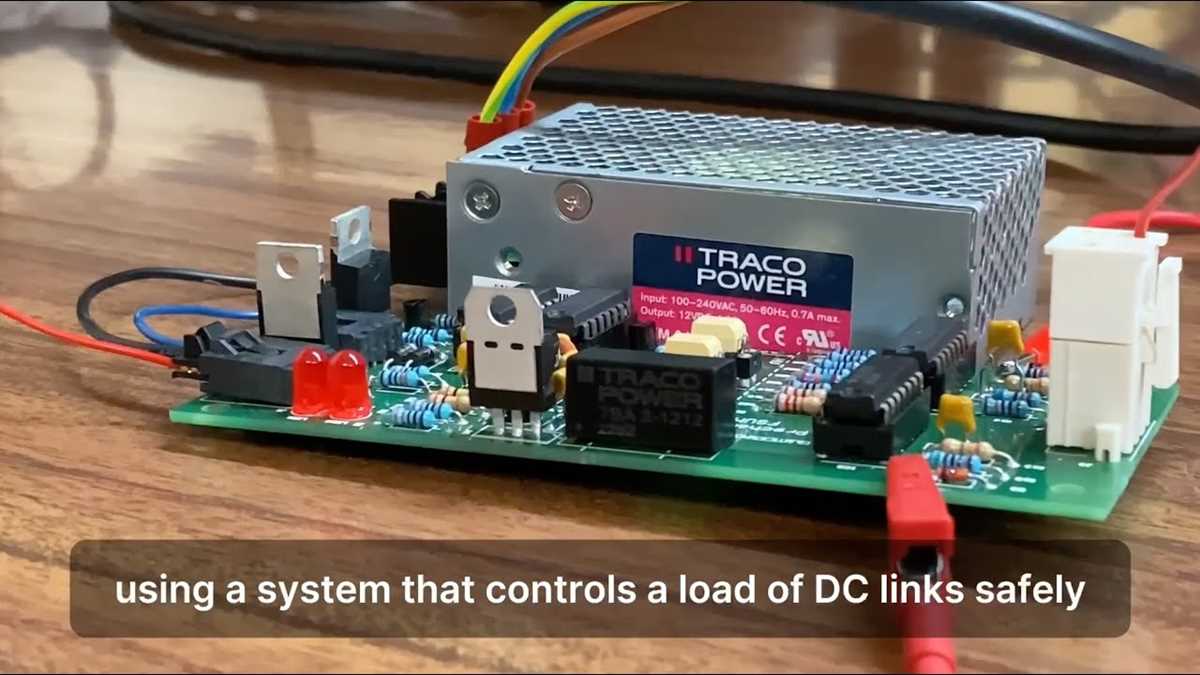

Traco Power DC-DC Converter Circuit Design and Full Schematic Analysis
Begin with a two-stage input filter to suppress high-frequency noise from switching components. A differential-mode choke (100-220 µH) paired with X/Y capacitors (0.47-1 µF) reduces conducted emissions by 40% before the primary MOSFET stage. Bypass capacitors–ceramic (1-10 µF) and electrolytic (22-47 µF, low-ESR)–must be placed within 2 mm of the input and output pins to prevent voltage droop during transient loads (
Use Kelvin sensing traces for feedback loops to eliminate ground shift between the secondary output and control IC. Trace width calculations should account for 20°C temperature rise per inch of 1 oz copper at 1 A/mm²; for 3 A, maintain a minimum of 2.5 mm width. Isolate primary and secondary grounds with a creepage distance of 6 mm (reinforced insulation) for 600 VDC safety compliance. Ground planes must never overlap–split them with a 3-5 mm gap beneath the transformer core.
Select aluminum polymer capacitors (16-35 V, 150-330 µF) for the output stage to handle ripple currents >2 A without derating. For synchronous rectification, drive FET gates with 10-15 V/µs slew rates to minimize body-diode conduction losses (target snubber circuit (RC: 10 Ω, 1 nF) across the primary switch reduces voltage spikes to
Thermal vias (0.3-0.5 mm diameter, 1.5 mm pitch) under the MOSFET pad must connect to a 4-layer PCB internal plane (2 oz copper) to dissipate 3-5 W for TO-220 packages. Air gaps in the transformer core (EF25 or RM12 geometries) should align with 1.5T flux density limits at 200 kHz switching frequency–exceeding this risks saturation and halving efficiency. For adjustable outputs, use a 20-turn trimpot (10 kΩ, 25 ppm/°C) in the feedback loop, bypassed with a 0.1 µF capacitor to prevent oscillation.
Validate the layout with a time-domain reflectometry (TDR) test to identify impedance discontinuities in high-speed traces. Stray inductance in gate drive paths (short, symmetric traces. For EMI compliance, route switching nodes away from feedback traces–separate them by ≥5 mm or a ground shield. Post-assembly, measure output noise (oscilloscope probe (10:1, bandwidth >50 MHz) and a 20 MHz RC filter to isolate switching artifacts.
DC Voltage Regulation Module Circuit Layout Essentials
Begin with the input filter stage–place a 10µF ceramic capacitor across the Vin and GND terminals for transient suppression. Follow with a 2.2µH inductor to mitigate high-frequency noise from the source. This setup prevents voltage spikes from damaging downstream components, particularly in 12V-to-5V buck configurations.
For feedback regulation, position the TL431 shunt regulator adjacent to the module’s output, connecting its cathode to the feedback node via a 2kΩ resistor. Pair this with a 1nF compensation capacitor between the REF and ANODE pins to stabilize loop response. Avoid exceeding 1.5MHz bandwidth–use a 47Ω series resistor on the output to dampen oscillations in high-load scenarios.
Thermal and Grounding Considerations
Isolate the ground plane for high-current paths: route the input and output grounds separately, merging only at a single star point near the module’s case. Apply 2oz copper pours under the device to improve heat dissipation, especially for units handling >10W loads. For SMT assemblies, use thermal vias (0.3mm diameter, 0.05mm plating) spaced ≤5mm apart beneath the pad to reduce θJA by up to 30%.
Place 0.1µF X7R capacitors on all IC power pins within 2mm of the device to counteract parasitic inductance. For dual-output modules (±15V), cross-couple outputs with a 10µF tantalum capacitor to suppress cross-regulation errors. If EMI exceeds 80dBµV at 150kHz, add a ferrite bead (600Ω @ 100MHz) in series with the input–verify impedance match with a network analyzer before finalizing layout.
Test load regulation with a pulsed 1kHz 50% duty cycle signal at 80% nominal current to expose hidden instabilities. For isolated designs, maintain ≥2mm creepage distance between primary and secondary traces–use UL 94V-0 rated solder mask to prevent arcing. Document trace widths: 5A paths require ≥1.5mm on 1oz copper, or 3mm for 2oz.

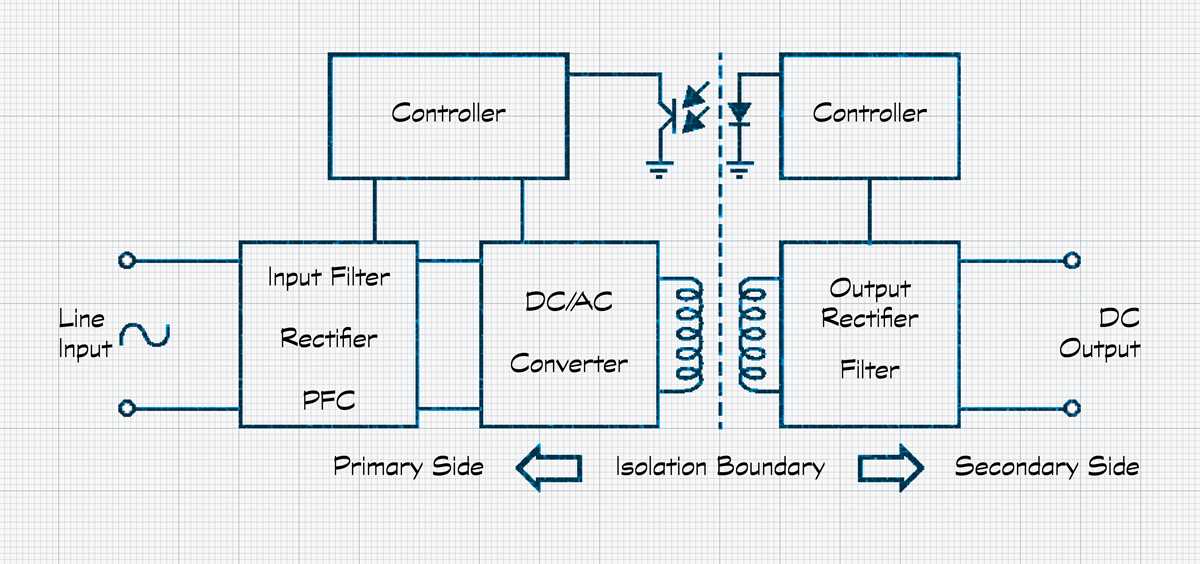

Key Components in Isolated Voltage Regulator Circuit Blueprints
Ensure the input filter capacitor matches the minimum voltage rating of the source supply plus 20% headroom; undersized components lead to premature failure in quasi-resonant topologies. Typical values range from 22 µF to 100 µF for 24 VDC systems, while 48 VDC setups demand 47 µF to 220 µF polypropylene or ceramic capacitors to suppress switching noise.
Select a transformer core with a saturation flux density exceeding 0.3 T and a temperature grade suited to the ambient environment–ferrite materials like 3F3 or 3C90 excel in 85 °C environments, whereas Nanocrystalline cores handle transient loads without core loss escalation. Primary-to-secondary leakage inductance must stay below 5% of magnetizing inductance to prevent voltage spikes across output rectifiers.
Gate drivers require isolated supply rails–use bootstrap circuits for half-bridge configurations or dedicated isolated DC sources (e.g., 12 V/100 mA) for full-bridge setups–avoid shared grounds between primary and secondary sides. Optocouplers with CTR ≥ 200% and rise times
Output rectifiers demand Schottky diodes with reverse recovery times under 50 ns and VRRM ratings 50% above nominal output voltage–e.g., MBRB2545CT for 5 V outputs tolerates 45 V reverse voltage. Synchronized rectification using MOSFETs (e.g., IRLML6401) reduces forward drop losses by 40% but requires precise dead-time control to avoid shoot-through.
Feedback loops integrate error amplifiers (TL431) with compensation networks–set bandwidth between 1/10th and 1/5th of switching frequency to balance stability and transient response. A type-III compensation network (two zeros, three poles) flattens phase shift near crossover, critical for wide-input-range designs.
Snubber circuits across switching elements (RCD networks) clamp voltage overshoot–dimensions derive from Vclamp = Vin + Vout + 30% and trr . X7R or NP0 ceramic capacitors (50–200 pF) prevent ringing at frequencies above 1 MHz.
Thermal management mandates heat sinks sized for θja ≤ 25 °C/W in forced-air environments–extruded aluminum profiles with 6063 alloy offer optimal thermal conductivity. Verify solder joint thermal resistance (θjc ) using thermal vias (minimum 8 mil diameter) under critical components.
EMI suppression begins with differential-mode chokes (e.g., 2.2 mH @ 1 MHz) and common-mode filters (Z ≥ 1 kΩ @ 150 kHz); Y-capacitors (4.7 nF) across isolation barriers must comply with IEC 60950 leakage current limits (
Step-by-Step Wiring Guide for Isolated Voltage Modules
Begin by verifying the input voltage range on the product datasheet–most units accept 9–36VDC or 18–75VDC. Connect the positive lead of the source to the “+Vin” terminal and the negative to “-Vin” without twisting wires; use AWG 18–22 stranded copper for currents above 2A. If the source impedance exceeds 50mΩ, add a 100µF electrolytic capacitor directly across the input terminals to suppress transients.
For output connections, match the load polarity strictly–reversing +Vout and -Vout can destroy both the module and the attached circuitry. Install a diode (Schottky 40V/3A) in series with +Vout if back-feeding is possible. Below is a reference for torque values when securing screw terminals:
| Terminal Size | Recommended Torque (Nm) | Wire Strip Length (mm) |
|---|---|---|
| M2.5 | 0.4–0.5 | 6 |
| M3 | 0.6–0.7 | 7 |
| M4 | 1.2–1.4 | 8 |
Grounding and Noise Mitigation
Isolate the primary and secondary grounds unless the application explicitly requires a common reference. When common ground is unavoidable, route return paths away from high-current traces using a star topology. Solder a 1nF ceramic capacitor (X7R dielectric) between +Vout and the local ground plane within 20mm of the module output to reduce high-frequency ringing.
Remote On/Off and Trim Adjustments
Activate the enable pin by pulling it above 2.5V relative to -Vin using an open-collector drive (
Common Pinout Configurations in Industrial DC-DC Modules
Most isolated switch-mode units follow a standard 5-pin arrangement: pin 1 for +Vin, pin 2 for -Vin/GND, pin 3 left unconnected or used as a trim/remote on/off, pin 4 for -Vout, and pin 5 for +Vout. THT variants often extend this to a 7-pin layout, adding sense lines on pins 6 and 7 to compensate for voltage drops across long cables. Verify the datasheet–smaller SIP packages (e.g., THN 3W) condense these to 4 pins, merging input GND and output return on a single terminal.
Non-isolated buck regulators (e.g., TEQ 3W series) simplify further: input positive on pin 1, common ground on pin 2, and output positive on pin 3. Always check for reversed pin assignments in 1″ x 1″ metal cases–some models swap +Vout and GND to optimize thermal vias. For paralleling outputs, align sense pins within 0.5 V of the load; exceeding this tolerance risks triggering overvoltage protection, cutting output until reset.
Troubleshooting Faulty Connections in DC/DC Voltage Regulation Layouts
Start by verifying solder joints on input/output terminals with a multimeter in continuity mode. Cold solder joints often exhibit high resistance or intermittent contact, causing voltage drops under load. Heat the joint with a soldering iron while applying fresh solder to restore a solid bond. For surface-mount components, use a hot-air rework station at 350°C for 3-5 seconds to avoid pad detachment.
Inspect the PCB for hairline cracks near high-current traces. Flex the board gently while monitoring output voltage–fluctuations indicate a fractured trace. Reinforce suspect areas with a jumper wire sized for the expected current (e.g., 18 AWG for 5A). Use a magnifying glass to spot microscopic cracks near via transitions or component leads.
Common Failure Points in High-Frequency Designs
- Input capacitors: Replace electrolytic types showing bulging or leaking electrolyte. Tantalum capacitors fail short-circuit, causing overcurrent shutdown. Test with an ESR meter; values above 3Ω indicate degradation.
- Feedback resistors: Check for drifted values. A 5% deviation in the voltage divider ratio alters output by ±0.25V. Replace resistors with 1% tolerance thin-film types.
- Inductor saturation: Excessive ripple current (>40% of rated) overheats windings. Verify with an oscilloscope; distorted waveform peaks confirm saturation. Upgrade to a core with higher saturation current.
Measure ground reference integrity using a differential probe. A 50mV potential difference between input and output grounds suggests a broken return path. Scrutinize chassis connections–oxidized ring terminals introduce resistance. Clean with contact cleaner or replace crimped connectors.
Check for reverse polarity protection failures. MOSFET body diodes in synchronous designs may conduct if the control IC fails, causing backfeeding. Replace faulty protection ICs (e.g., LM74700) and add a series Schottky diode rated for 1.5× input voltage. For self-powered units, verify startup sequence with a load step test: apply 50% load after power-up; abnormal voltage dips indicate compromised soft-start circuitry.
Thermal and Mechanical Stress Indicators
- Inspect thermal pads under switching components. Gaps increase junction temperature by 20-30°C, accelerating failure. Reapply thermal compound (e.g., Arctic MX-6) and tighten screws to 0.5Nm torque.
- Look for discolored solder masks near heat sinks. Brown or blackened areas signal thermal runaway. Replace adjacent capacitors (typical lifespan: 5,000 hours at 85°C).
- Press on connectors during operation. Audible clicking or voltage spikes indicate loose crimps. Re-terminate with gold-plated contacts.
For isolated layouts, verify transformer winding resistance (primary: 0.1-0.5Ω, secondary: 0.05-0.2Ω). Asymmetrical readings suggest shorted turns–rewind or replace the core. Check optocoupler CTR (current transfer ratio) decline (>50% drop mandates replacement) using a curve tracer. Isolate coupling capacitors (Y-rated types) for leakage with a Hi-pot tester at 1.5kV for 60 seconds.
