Complete Guide to Connecting 6 Pin Trailer Wiring with Diagram

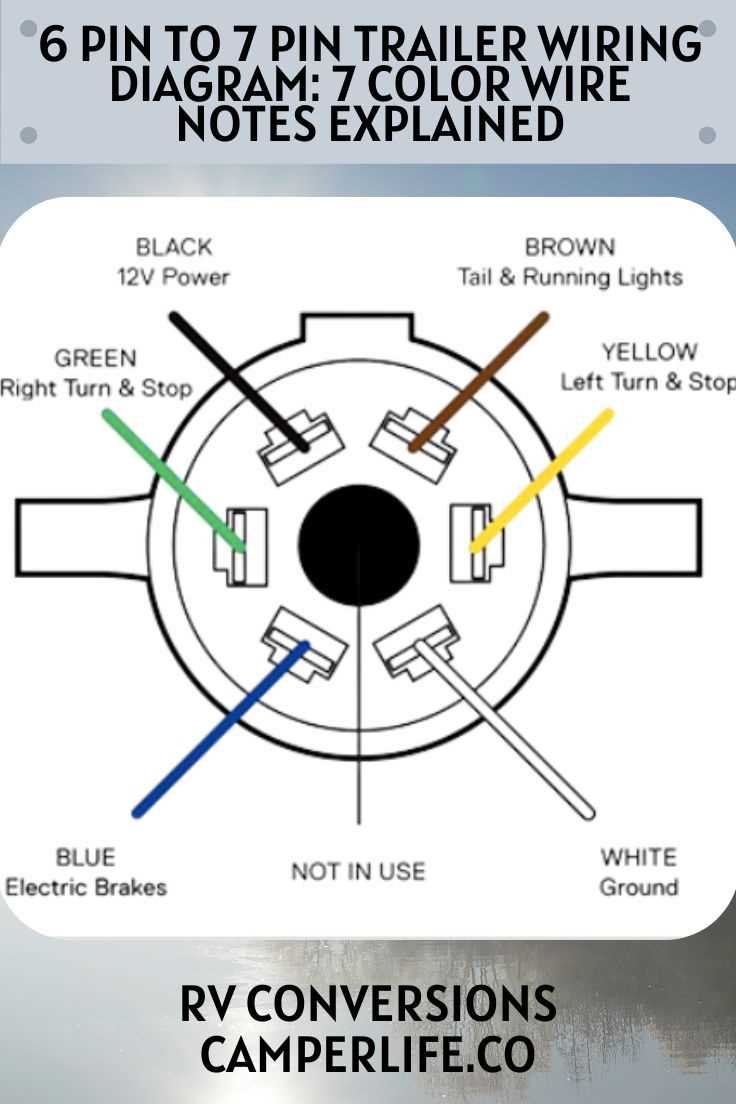

Begin by securing a multimeter to verify voltage on each connection point before attaching any components. The standard 6-way auxiliary socket follows a color-coded scheme: yellow (left turn/brake), green (right turn/brake), white (ground), brown (running lights), blue (electric brakes), and black (12V power). Failure to match these leads directly to brake malfunctions or short circuits.
Mount the socket bracket to a rigid surface–never directly to the frame without a protective backing plate. Corrosion from road debris will degrade terminals within weeks if not sealed with dielectric grease. For trailers exceeding 3,500 lbs, integrate a brake controller with separate fused power (minimum 30A) from the towing vehicle’s battery. Skip the relay, and risk voltage drop severe enough to disable lighting during critical moments.
Test functionality in reverse order: confirm brake actuation first, followed by turn signals, then marker lights. A single faulty connection can cascade into total system shutdown–check continuity on each lead before finalizing crimps. Use heat-shrink tubing over soldered joints; regular vinyl sleeves will crack under vibration. Replace any connector showing fraying on the outer jacket immediately–exposed copper strands invite moisture intrusion.
For adaptive braking systems, wire the blue lead through a momentary switch under the dash. This allows manual brake override during steep descents without relying on the vehicle’s proportioning valve. Always route auxiliary power (black lead) through a breaker panel, never split it from the running light circuit–peak current draw can exceed 20A during simultaneous lighting and braking.
Connecting a Vehicle’s Electrical Plug to a Light Duty Hauler
Begin by locating the standard color-coded leads from the tow vehicle’s socket. Match each wire to the corresponding function on the hauler using a multimeter set to continuity mode. Black typically carries 12V power directly from the battery, brown handles running lights, yellow manages the left turn signal, green controls the right turn signal, white grounds the system, and blue activates auxiliary circuits like electric brakes or reverse lights.
Use heat-shrink tubing for every splice to prevent corrosion from moisture intrusion. Crimp connectors should be soldered for durability, especially in high-vibration environments. A compact circuit tester can verify each connection before finalizing the assembly, ensuring no shorts remain undetected. Avoid twisting wires together without a connector, as this leads to intermittent failures.
Install an inline fuse (15-30A) on the power lead to protect against overloads. Position it within 7 inches of the battery terminal to comply with automotive safety standards. For haulers exceeding 3,000 lbs, integrate a brake controller into the auxiliary blue circuit. Adjust its gain setting to achieve smooth deceleration without wheel lock-up, typically between 2.5 and 6.0 depending on hauler weight.
Common Issues and Troubleshooting
| Symptom | Likely Cause | Solution |
|---|---|---|
| No brake lights but turn signals work | Ground wire loose or corroded | Clean connection points, re-secure with dielectric grease |
| All lights dim when brakes applied | Insufficient gauge on power lead | Upgrade to 10 AWG wire for haulers over 2,000 lbs |
| Intermittent left turn signal | Loose connector in socket | Apply electrical contact cleaner, tighten terminal screws |
| Electric brakes engage unintentionally | Short in blue circuit | Inspect harness for chafed wires, repair or replace damaged sections |
Route all wires through a protective loom to shield against debris and abrasion. Secure them at 18-inch intervals using nylon zip ties, avoiding sharp edges that could wear through insulation. For haulers exposed to extreme weather, apply silicone dielectric grease inside connectors before mating them to repel moisture. This reduces the risk of oxidation, which commonly causes intermittent failures.
Test the entire setup using a dedicated hauler light tester or a second vehicle. Activate each function–parking lights, turn signals, brakes, and auxiliary circuits–individually to confirm proper operation. Document the final configuration, noting any deviations from standard color codes, to simplify future maintenance or upgrades.
For haulers equipped with surge brakes, ensure the breakaway switch is connected to the auxiliary circuit. This device requires a fully charged battery to engage the brakes if the hauler detaches while moving. Test the switch monthly by pulling the pin to verify brake activation. Replace the battery annually to maintain reliability.
Advanced Modifications
For haulers with multiple light circuits, add a relay to the running light circuit to reduce voltage drop. This prevents dimming when additional loads (e.g., work lights) are activated. Use a 30A relay with a dedicated fuse to handle the increased current draw without overloading the existing wiring.
How to Decode Every Conductor in a 6-Socket Vehicle Connector
Start by securing a multimeter–set it to continuity mode or the lowest resistance setting (200 ohms or less). Probe each terminal against a known ground point on the tow hitch chassis to isolate the earth lead first; it typically connects to the frame via the thickest, bare or green-sheathed conductor. This wire will register near-zero resistance and must never carry current when tested under load.
Locate the primary brake feed next: a red or yellow jacket often marks the electric braking circuit. Under light brake pedal pressure (engine off), voltage should rise steadily to 8–12 volts DC; any deviation suggests a faulty brake control module or corroded splice upstream. Verify polarity by probing the socket terminal–negative must align with chassis ground, positive to the brake switch fuse.
The clearance light loop is usually a brown or amber cable ending in a single filament. Switch on the parking lamps and scan all exposed lenses–the conductor responsible will illuminate every side marker and tail lamp simultaneously. If one lamp remains dark, inspect resistance along the entire loop; acceptable readings hover between 3–5 ohms per lamp.
Identify the left-turn-and-stop filament: when either function activates, voltage spikes to 12–14 volts DC on the same terminal, distinct from the brake circuit. Trace this lead (commonly yellow with a stripe) back to the flasher relay; a quick flash test confirms proper switching–steady blink rate around 90 pulses per minute indicates correct relay timing.
Right-turn-and-stop lighting shares identical logic but uses a separate lead–typically green with a stripe. Test both sides independently with the hazard switch engaged; equal brightness and synchronized pulses on both lenses verify the conductor’s integrity. Any lag or brightness difference points to a corroded socket terminal or frayed splice inside the harness jacket.
Auxiliary circuits, often labeled “12 V constant” or “charge,” appear as blue, blue-striped, or rarely purple cables. These deliver uninterrupted battery voltage for onboard winches or livestock trail feeds. Probe while engine off: 12.4–12.8 volts indicates healthy alternator output and surface corrosion-free lugs at the fuse block.
Label every discovered conductor with heat-shrink tubing before securing the socket backplate. Annotate each sleeve with permanent marker–ground, brake feed, left turn/stop, right turn/stop, clearance lamps, 12 V constant–and include voltage readings taken during testing. Archive these notes inside the vehicle’s fuse box for future troubleshooting.
How to Securely Link a 6-Port Vehicle Plug: A Practical Walkthrough
Start by identifying the power source cable on the towing vehicle–typically color-coded yellow or white with a distinct stripe. Strip 5mm of insulation from the end, exposing the copper strands without nicking them. Twist the strands clockwise to prevent fraying before crimping a ring terminal onto the wire. Secure the terminal with a 10mm bolt to the vehicle’s grounding point, ensuring no corrosion exists on either surface.
Locate the brake control circuit, often marked red or blue. Route this wire through the frame’s existing loom to avoid interference from moving parts. Use a multimeter to confirm a steady 12V when the brake pedal is pressed; fluctuations indicate a faulty relay or corroded fuse. If voltage is absent, bypass the relay with a direct–though temporary–connection to the fuse box using a 20A fuse holder.
Attach the turn signal circuit (green or brown) next. Split the wire into two paths if the tow hitch requires separate left/right indicators. Verify synchronization with the vehicle’s existing lights using a test lamp; a delay longer than 500ms suggests insufficient ground integrity. Solder all splits for permanence, covering joints with adhesive-lined heat shrink tubing to block moisture.
Install the reverse light circuit (usually purple). Connect it to the vehicle’s backup light switch, not the main harness, to prevent overload. Test by engaging reverse gear–both the tow hitch and vehicle lights should illuminate simultaneously. If only one activates, inspect for a blown bulb or misaligned diode in the splitter.
For auxiliary circuits (black or gray), match the amperage to the accessory–LED clearance lights typically draw 1.5A, while a winch may require 30A. Use a relay if the draw exceeds 10A to protect the connector’s tiny contacts. Route wires through grommets where they pass through metal chassis sections, securing them with nylon ties every 15cm to prevent vibration-induced abrasion.
Ground the system last. Attach a dedicated cable (minimum 10-gauge) from the connector’s ground port to a paint-free chassis point. Scrape away rust or undercoating with a wire brush, then apply dielectric grease to the connection. Misgrounding causes erratic behavior, often misdiagnosed as a faulty controller–recheck this step if lights flicker.
Seal the connector housing with a silicone gasket and tighten the retaining nut to 25Nm. Apply corrosion inhibitor to each port before inserting the plug. Use a torque wrench to avoid over-tightening, which can warp the plastic threads. Store spare fuses and heat shrink in the vehicle’s toolkit–one failed connection can disable the entire setup.
Final verification requires two people: one operates the brakes, signals, and gear shifts while the other inspects the tow hitch lights. Patterns must mirror those on the towing vehicle precisely. If discrepancies occur, recheck diode packs–cheap splitters often omit these, causing feedback loops that blow fuses within minutes.
