Complete Guide to Wiring Electric Brakes on Your Trailer Step by Step

Begin by identifying the power source–typically a deep-cycle battery rated at 12V with a minimum 20Ah capacity to handle inrush currents. Connect the positive terminal directly to a 30A circuit breaker, then route the line to a dedicated brake controller mounted within 18 inches of the tow vehicle’s dashboard for optimal response. Avoid splices; use a single continuous 10AWG wire (stranded copper, rated for 90°C) to prevent voltage drops exceeding 3%.

Ground the system at the trailer’s frame using a 8AWG wire bolted to unpainted metal with a star washer–reliance on chassis paint or corrosion will degrade performance. For multi-axle setups, parallel connections between actuators ensure balanced force distribution; series wiring risks uneven braking. Install a 15A fuse inline with each brake magnet circuit to isolate faults without compromising the entire system.

Test the setup with a multimeter before first use: measure 12V at the magnet leads when the controller applies full force, and confirm voltage drops below 10V during activation (indicative of worn magnets or undersized wiring). Recalibrate the controller if response exceeds 0.4 seconds–delayed engagement increases stopping distance by up to 15% on 6% grades.

Use heat-shrink tubing with adhesive lining around all splices, and secure wires every 12 inches with UV-resistant clips to prevent chafing. For ambient temperatures above 38°C, derate wire capacity by 20% or switch to 8AWG to account for reduced conductivity. Document the layout with a labeled schematic noting wire colors, gauge, and termination points for future troubleshooting.

Connecting Auxiliary Stopping Systems: A Clear Schematic Guide

Begin by locating the primary control unit–typically mounted near the tow vehicle’s rear or integrated into the fuse panel. The 7-way connector must align with SAE J2863 standards, ensuring pin assignments match: blue for actuator output, white for ground, and red/brown for stop signals. Verify continuity with a multimeter before securing connections; resistance above 3 ohms indicates corrosion or improper crimping. Use heat-shrink terminals rated for 14-10 AWG to prevent moisture ingress, a common failure point in older assemblies.

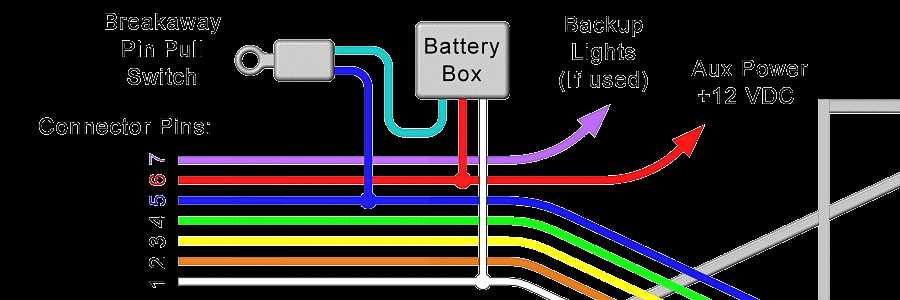

For tandem-axle setups, distribute load evenly across both magnet circuits–parallel wiring ensures balanced activation. Connect the breakaway switch directly to the battery via 12-gauge fused cable, avoiding shared circuits that could drain power during emergencies. Test the system under load (simulate weight with a 1,500 lb resistance) to confirm current draw stays below 2.5 amps per hub; excess draw suggests magnet wear or misadjusted controllers.

Troubleshooting Voltage Drop

Measure voltage at the magnet terminals during operation–expect 10.5-12.5V; drops below 9V cause delayed or inconsistent engagement. If voltage sags, inspect the break-away battery’s charge state (minimum 75% capacity) and trace wiring back to the controller for loose or oxidized connections. Replace any section showing green/white oxidation, as even minor resistance disrupts proportional braking algorithms.

Step-by-Step Guide to Connecting a 7-Way Vehicle Connector

Start by securing the towing vehicle’s wiring harness. Use a multimeter to verify voltage at each pin on the socket–ground (white), tail lamps (brown), left turn/brake (yellow), right turn/brake (green), auxiliary power (blue), and 12V hot lead (black). A reading below 12V suggests corrosion or a weak ground; clean terminals with a wire brush before proceeding.

Strip ¼ inch of insulation from each harness wire. Twist strands tightly to prevent fraying, then insert into the corresponding slot of the connector’s terminal block. Press firmly until a click confirms full engagement–never rely on visual confirmation alone. Misaligned pins cause inconsistent signals, risking overheating.

Attach the ground wire (white) first. Mount it to a bare metal surface on the chassis, away from paint or coatings. Use a star washer between the terminal and metal to ensure permanent conductivity. Loose grounds account for 70% of flickering lights; torque the bolt to at least 15 ft-lbs.

Route the blue wire (if equipped) directly to the surge protector. Skip splices–even soldered connections degrade under vibration. For trail systems with integrated braking, link this wire to the controller using 12-gauge wire; thinner cables overheat under sustained load.

Testing and Troubleshooting

Activate the hazard flashers and verify all signals on the towed unit. Each bulb should pulse at 60–120 cycles per minute; slower flashes indicate a weak battery or insufficient current. If missing, swap the yellow and green wires at the socket–manufacturers occasionally invert pin assignments.

Load-test the 12V hot lead (black) with a 40-amp draw. Voltage should remain above 11.5V; a drop signals undersized wiring or a failing alternator. Replace any section showing discoloration–heat damage reduces conductivity by up to 40%.

Seal all connections with adhesive-lined heat-shrink tubing. Regular electrical tape fails within 18 months; the adhesive-lined alternative resists moisture for over five years. Avoid silicone grease–it collects dust and creates resistive buildup.

Recheck the socket’s retention clip after 100 miles of towing. Snap-in designs loosen under vibration; if the connection wobbles, replace the entire receptacle. A single loose pin can disable safety systems in under 30 highway miles.

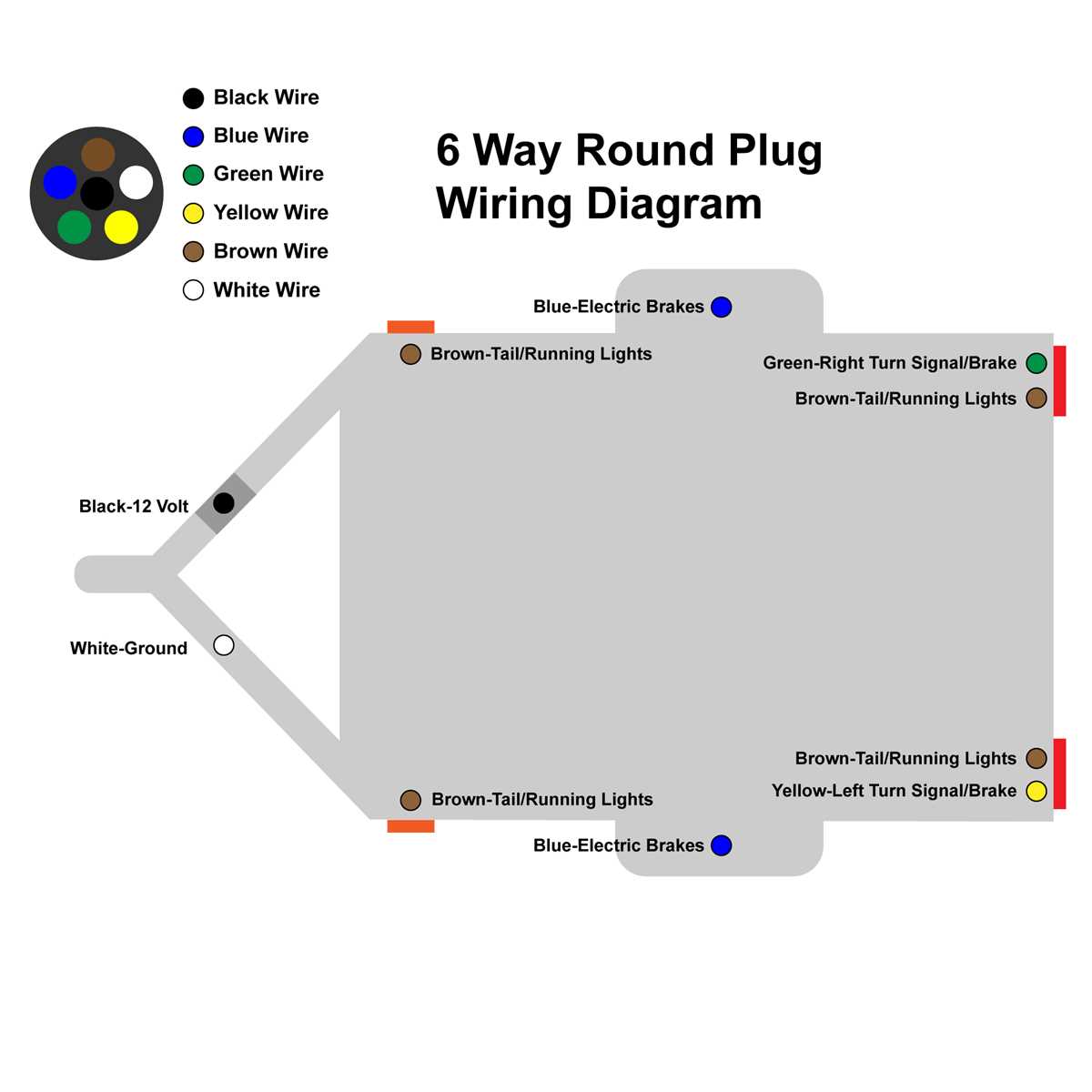

Standard Conductor Hues for Auxiliary Braking Systems

Always verify manufacturer specifications before making connections. Most towable units follow a consistent scheme for auxiliary stopping circuits, but deviations exist depending on the year, region, or OEM. Below are the dominant color assignments:

• Blue: Output from the brake controller, carrying modulated voltage to engage actuators.
• White: Ground reference for all braking components.
• Black: 12V positive feed from the tow vehicle’s battery to power the controller.
• Red: Dedicated fuse-protected ignition feed for controller activation.
• Green: Left signal and hazard flasher input.
• Yellow: Right signal and hazard flasher input.
• Brown: Tail lamps, marker lights, and running light circuit.

European-built models sometimes substitute brown for grey (marker lights) and white for earth-repurposed conductors. Older North American units may omit the red ignition wire, relying solely on the black battery feed. ISO 3732 specifies distinct amber hues for signal circuits, while SAE J286 requires a minimum 1.5 mm² cross-section for braking outputs. Splice connections must use heat-shrink crimp terminals with adhesive lining to prevent moisture ingress.

Regional Variations

1. Australia (AS/NZS 4689): Mandates yellow/brown striped wire for auxiliary outputs in caravan setups.
2. South Africa (SANS 1054): Requires twin white conductors–one for earth, one for tail light return.
3. Japan (JASO C 302): Uses a pink conductor for controller-to-actuator feed instead of blue.
4. Brazil (ABNT NBR 14767): Specifies a red/black striped wire for brake controller positive instead of solid red.

Diagnosing Voltage Problems in Towing Control Systems

Check the auxiliary power source first–most steering modules require a minimum of 12.2V for consistent operation. Measure at the controller output terminal while activating manual override: readings below 11.5V under load indicate either insufficient battery charge, corroded connections, or excessive resistance in the circuit. Use a clamp multimeter at the connector housing to isolate voltage drops along the harness; anything exceeding 0.3V loss per 5 feet suggests defective or undersized conductors.

Test the brake actuator solenoid separately using a 12V power probe–listen for a distinct click. If absent, remove the unit and inspect the internal resistance with an ohmmeter: values outside 3.8-4.2Ω typically confirm coil failure. For intermittent functionality, trace the entire pathway from the main board to ground continuity points; even slight oxidation on aluminum terminals can create enough impedance to prevent activation.

Verify the voltage regulator output under full current demand–normal stabilized output should stay within ±0.5V of the nominal rating. If fluctuations occur, disconnect non-essential loads temporarily: many auxiliary lights or chargers tied into the same circuit can overload marginal regulators. The table below lists expected voltage ranges under different conditions:

Component	Idle Voltage (V)	Active Voltage (V)	Max Tolerable Drop (V)
Controller Out	12.6	12.0-13.0	0.4
Actuator In	12.4	11.8-12.8	0.2
Ground Reference	0.0	0.1	0.05

When replacing fusible links, ensure the new segment matches the original ampacity: 20A links should use AWG 10 wire, while 30A variants require AWG 8. Avoid soldering connectors exposed to vibration–crimp terminals with heat-shrink tubing instead. For circuits with recurring issues despite proper resistance readings, inspect the hydraulic modulator valve body for internal shorts using a pressure transducer; abnormal spikes during solenoid cycles often reveal micro-leaks or debris blocking proper operation.

Installing an Inline Brake Controller for Custom Towing Configurations

Mount the controller within 18 inches of the vehicle’s firewall to minimize signal interference from magnetic fields generated by the alternator or ignition system. Secure it to a non-mobile surface using vibration-resistant hardware–#10 stainless steel screws or adhesive-backed mounts rated for 15G dynamic loads. Avoid locations prone to moisture accumulation; condensation can corrode the PCB tracks, particularly around the PWM output stage. For vehicles with pulsed-width modulated stability systems, position the controller downstream of the stability module but upstream of any fused distribution block to prevent voltage drop across long runs.

Key Connection Sequence for Reliable Engagement

• Power source: Tap the fuse box at a 20A circuit–preferably the ignition-switched output–using a micro-blade fuse tap. Verify the circuit’s amperage under load with a clamp meter; sustained draws above 12A indicate a potential alternator issue. Solder joints if splicing into OEM wiring; crimp connectors introduce resistance over time.
• Ground reference: Connect directly to the chassis using an M6 bolt, removing paint or oxidation at the contact point. Star-washer connections reduce corrosion under cyclic loads. Test continuity with a megohmmeter; resistance above 0.5Ω requires re-cleaning the surface.
• Activation lead: Attach to the stop lamp circuit or a dedicated 12V trigger wire with a diode (1N4007) to prevent backfeed into the lighting system. For vehicles with adaptive cruise control, isolate the controller’s trigger from the radar module to avoid false braking inputs.
• Output to actuators: Use 12-gauge tinned copper wire for runs exceeding 10 feet. Route cables away from exhaust manifolds and suspension components, securing them every 12 inches with nylon zip ties or spiral wrap. Terminate connections with weatherproof butt splices sealed with adhesive-lined heat shrink tubing.

Adjust the gain setting post-installation by towing a dynamically weighted load (80% of the vehicle’s rated capacity) on a 5% grade at 35 mph. Gradually increase the controller’s sensitivity until the system engages smoothly without chatter–audible pulsing indicates oversaturation. For diesel-powered vehicles, factor in turbo lag; set the delay parameter to 0.2–0.4 seconds to synchronize engagement with engine torque onset. Log the final settings in the controller’s non-volatile memory if available.
