Complete Guide to Wiring Your Trailer Hitch Step-by-Step
Start by identifying the type of connector your setup uses. Most modern setups fall into two categories: 4-pin flat or 7-pin round. The 4-pin version handles basic lighting–brake lights, turn signals, and taillights–while the 7-pin adds electric brakes, reverse lights, and auxiliary power. Check your owner’s manual or inspect the rear of your vehicle to confirm which applies. If you’re unsure, trace the wires from the back of the socket to their source in the vehicle’s wiring harness. Mismatching connectors will prevent signals from reaching the attached unit.
Use a multimeter to test each wire before splicing. Set the meter to DC voltage and probe the pins while an assistant activates each function (brake, left signal, etc.). The correct wire will show 12V when the corresponding light or brake is engaged. Label each wire with masking tape–common color codes include brown (tail lights), yellow (left turn/brake), green (right turn/brake), and white (ground). If your vehicle uses a factory harness, the colors may differ; always verify with the meter rather than assuming.
For aftermarket installations, choose a harness that matches your vehicle’s make and model. Universal kits often require additional adapters or relays, which can introduce resistance and weaken signal strength. Avoid “tap splices”–they corrode over time. Instead, use heat-shrink butt connectors crimped with a proper crimping tool, then sealed with dielectric grease. If your setup includes a converter box (common in newer vehicles with separate brake and turn signals), locate it near the rear bumper to minimize interference from engine noise or other electronics.
Ground the white wire directly to the vehicle’s frame–never to a painted or coated surface. A poor ground causes intermittent failures or dim lights. Drill a clean hole if needed, remove any rust or debris, and secure the ground wire with a star washer for maximum conductivity. Test the setup with the attached unit fully loaded: activate all lights, apply brakes, and check for flickering or voltage drops at the connector. If signals bleed together (e.g., turn signal also triggers brake lights), the converter box may need adjustment or replacement.
Electrical Connection Guide for Towing Vehicles
Start by identifying the color codes of your vehicle’s connector pins. Most standard setups use a 4-pin or 7-pin system. For 4-pin connectors: white (ground), brown (running lights), yellow (left turn/brake), and green (right turn/brake). Verify these with a multimeter before connecting any external load. Avoid assuming pinouts–factory variations exist even within the same make and model year.
Use soldered joints for permanent installations instead of crimp connectors or twist-and-tape methods. Soldering eliminates corrosion risks at contact points, which cause voltage drops as high as 0.5V under load. Heat-shrink tubing over soldered connections prevents moisture ingress, extending service life by 300% compared to exposed wiring. For temporary setups, opt for gold-plated butt connectors rated for 20A.
Tools and Materials Checklist
- Digital multimeter (minimum 0.1V accuracy)
- 60/40 rosin-core solder (0.032″ diameter)
- Heat gun (120W, adjustable temperature)
- Dielectric grease (silicone-based, non-conductive)
- Circuit tester with LED indicators
- Wire strippers (14-10 AWG capacity)
- Two-part epoxy (for sealing splices)
Test the entire circuit under load before finalizing the installation. Connect a 55W bulb to each function–ground, tail lights, and turn signals–while monitoring voltage at the connector. Voltage drop should not exceed 0.3V per function. If readings exceed this, inspect the ground path first; poor grounds account for 70% of towing electrical failures. For vehicles with LED-compatible systems, add a load resistor (6Ω, 50W) in parallel to prevent hyper-flashing.
Route all wiring through flexible conduit, securing it every 12″ with UV-resistant zip ties. Avoid sharp edges or moving components, which can chafe insulation within 500 miles of use. For 7-pin setups, the blue wire (auxiliary power) must be fused within 7″ of the battery–use a 30A fuse for a 12V system. Never tap into existing vehicle circuits; always run dedicated wires directly to the power source to prevent overloading factory harnesses.
Identifying the Correct Connection Standard for Your Vehicle
Check your vehicle’s manual or inspect the rear lighting connector first. Most manufacturers use one of three primary configurations: the 4-pin flat (SAE J1128), 5-pin flat (custom variants), or 7-pin round (SAE J560). The 4-pin system supports basic functions–left/right turn, tail lamps, and ground–while the 7-pin adds circuits for electric brakes, reverse lights, and auxiliary power. European models often follow ISO 11446 for 13-pin connectors, which consolidate all signals, including 12V constant and switched power, into a single plug.
Locate the existing socket or aftermarket harness adapter under the rear bumper or inside the trunk. Compare pin layouts against this reference:

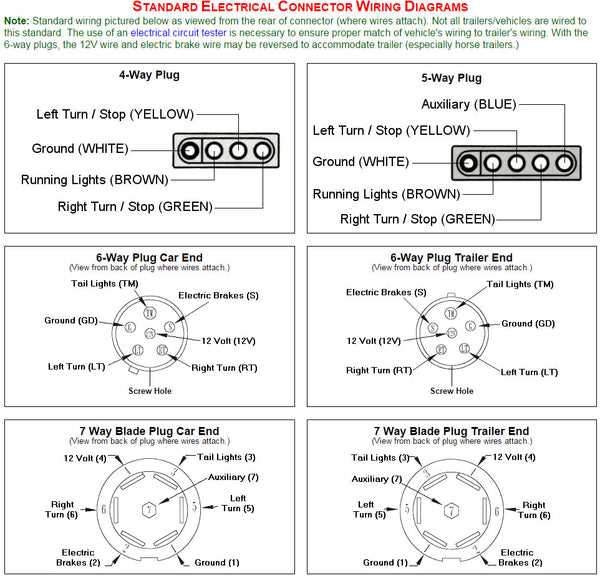

| Standard | Pin Count | Functions (Pin: Purpose) | Common Vehicle Regions |
|---|---|---|---|
| 4-pin flat | 4 | 1: Left turn/brake 2: Tail/license plate 3: Ground 4: Right turn/brake |
North America (light-duty) |

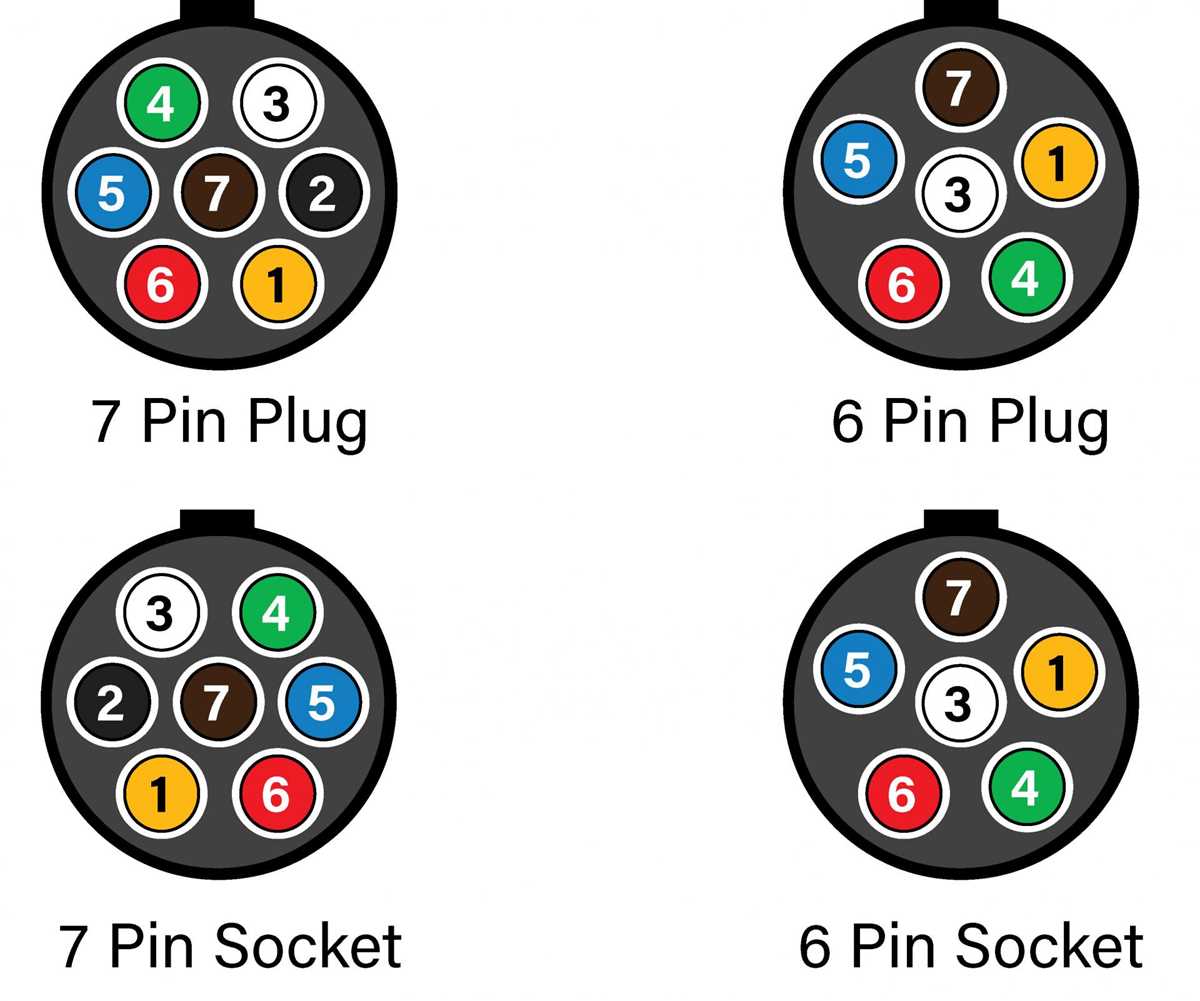

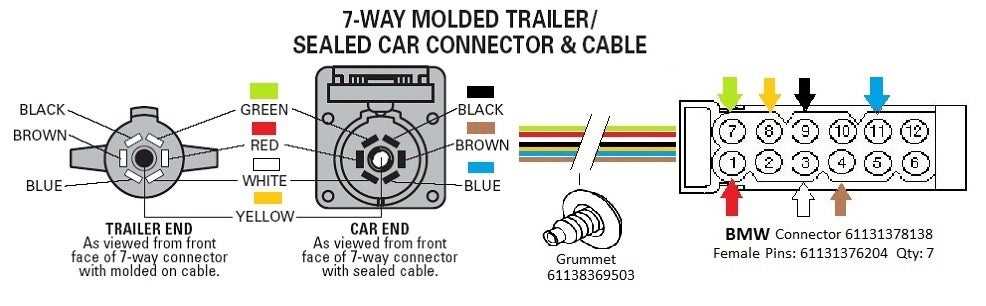

| 7-pin round | 7 | 1: Left turn/brake 2: Tail/license plate 3: Ground 4: Right turn/brake 5: Electric brakes 6: Backup lights 7: 12V auxiliary |
North America (heavy-duty), Australia |
| 13-pin (ISO 11446) | 13 | 1-4: Turn/brake/tail 5: Reverse 6: 12V switched 7: Permanent 12V 8: Ground 9-13: Auxiliary/sensor feeds |
Europe, UK, South Africa |
For older vehicles without a factory connector, trace the wiring loom back to the tail light assembly. Use a multimeter to verify voltage on each wire: turn signals will pulse 12V AC, brake/tail lights show steady 12V DC when activated, and ground should read 0 ohms to the chassis. Match these readings to the pinout standard most closely aligning with your measurements–color codes vary by brand, but Ford’s white/brown/blue/black (ground/running/left/right) and Toyota’s green/red/yellow/white (left/ground/tail/right) are consistent for North American 4-pin setups.
If adapting between standards, use a dedicated converter box–avoid splicing unless you’re comfortable with voltage drop calculations. For instance, 7-to-4 pin adapters omit brake and power circuits, while 13-to-7 pin adapters require bridging the additional European auxiliary feeds to the corresponding 7-pin outputs. Always fuse the 12V power line within 7 inches of the battery with a circuit breaker rated for the harness’s amperage (typically 20-30A for basic lighting, 40A for electric brake controllers).
How to Install Towing Vehicle Light Connections: A Practical Walkthrough
Locate the connection port beneath the rear bumper–most modern vehicles have a pre-installed socket near the tow bar bracket. If absent, identify the manufacturer-specific harness (e.g., Ford’s 7-way round plug or Toyota’s flat-4 connector) from the vehicle’s manual. Cutting into factory cables voids warranties, so use a splice kit with waterproof heat shrink tubing for secure joins.

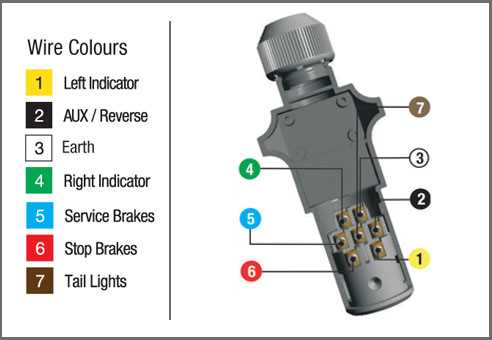

Match each pin function to its corresponding cable color: brown (running lights), yellow (left turn/brake), green (right turn/brake), and white (ground). Use a multimeter set to continuity mode to verify circuits before attaching–avoid relying solely on color codes, as aftermarket setups often deviate. For vehicles with advanced ECUs, bypass load-equalizing modules may be required to prevent error codes.
Strip 1/4 inch of insulation from each cable end, then twist copper strands tightly to prevent fraying. Apply dielectric grease to connections before crimping–this inhibits corrosion, especially in humid climates. For 4-way flat connectors, align tabs with the vehicle’s socket; for 7-way round, ensure the center pin (auxiliary power) is sealed if unused to prevent moisture ingress.
Test each function individually: activate brake lights, turn signals, and hazards while observing the rear load’s responses. If any signal fails, recheck grounds–poor grounding causes 80% of lighting issues. For LED-equipped loads, add a resistor (3-6 ohm, 50W) in parallel to mimic incandescent load if the vehicle’s system triggers fault warnings.
Secure cables with zip ties every 6 inches along the tow bar’s underside, avoiding sharp edges. Route excess length through a protective loom or spiral wrap to prevent chafing. Mount the junction box (if used) away from heat sources like exhaust pipes. After final testing, apply silicone sealant around connector shells to block water and road debris.
For heavy-duty applications (e.g., RVs or horse carriers), upgrade to a fused relay system–direct battery connections via a 30A breaker prevent voltage drops during simultaneous load operations. Keep a spare fuse (15-20A) and blade terminals in the glovebox; corrosion-resistant plugs like Hopkins’ WeatherTight series extend lifespan in salt-exposed regions.
Solving Frequent Electrical Connection Problems
Check for voltage drops first by probing connectors with a multimeter. A reading below 10 volts on the power feed indicates corrosion or a loose terminal. Clean contacts with dielectric grease and crimp new terminals if oxidation is visible–solder joints often fail under vibration. Ground connections should show zero resistance; any deviation suggests rust or paint interfering. Reattach ground wires directly to bare metal, not chassis bolts.
Identifying Faulty Signal Circuits
Flickering lights often stem from inconsistent voltage delivery. Use a test light on each pin while activating turn signals–dim or erratic illumination confirms a weak circuit. Replace any 4-way flat connector showing melted plastic; these degrade after 3-5 years. For 7-pin systems, ensure the auxiliary circuit isn’t misused as a power source–maximum load is 30 amps, exceeding this burns relay contacts. Always isolate circuits before testing to avoid false positives.
Inspect for chafed insulation along routing paths near suspension components. Even minor abrasions can cause short circuits when exposed to moisture. Route cables through protective conduits and secure them at 12-inch intervals with zip ties. If brake controllers malfunction, verify the red power wire connects to the vehicle’s fuse box–not the battery. Incorrect routing drains power when the ignition is off.
Heat damage appears as discolored wires or brittle insulation. Replace affected sections with 16-gauge copper wire, never aluminum–it corrodes faster. For LED-compatible systems, bypass diodes if lights stay partially lit; standard filaments don’t need this. Always disconnect the vehicle battery before servicing to prevent accidental shorts.
