Complete 5 Pin Trailer Wiring Diagram Guide with Connection Steps

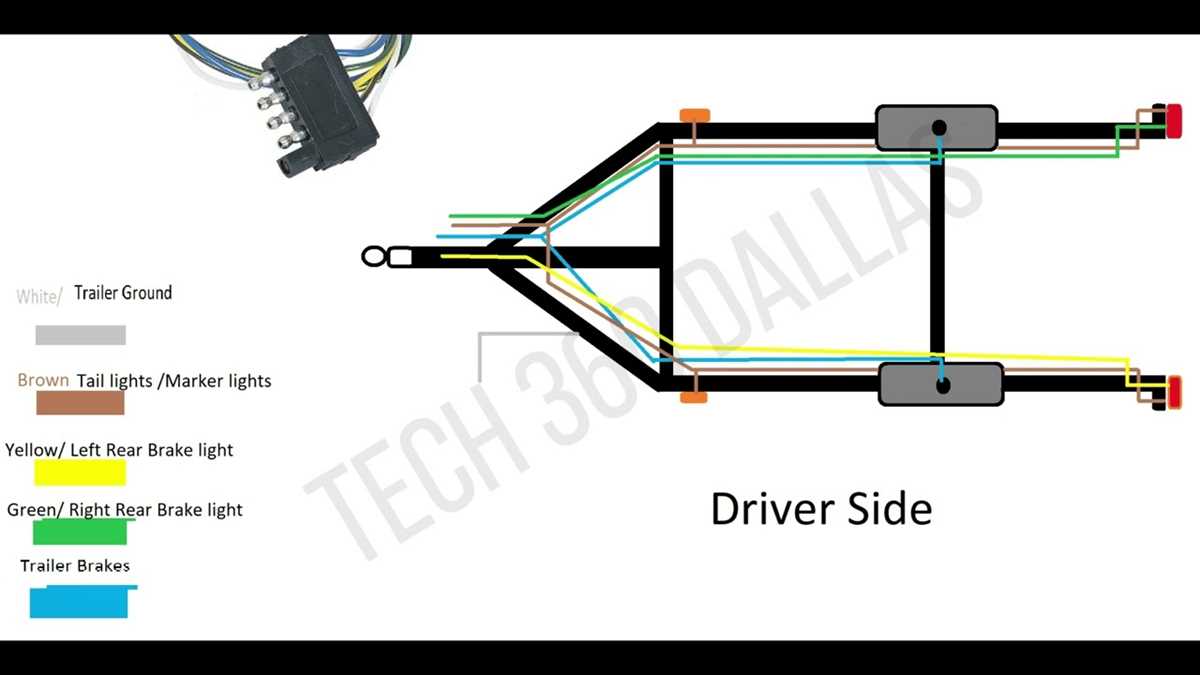

Start with a verified 5-way flat connector layout: white (ground), brown (running lights), yellow (left turn/brake), green (right turn/brake), and blue (auxiliary). Attach the ground wire directly to the tow vehicle’s chassis–no paint, no corrosion–using a self-tapping bolt. Secure the brown conductor to the tail lamp bus bar at the rear of the vehicle; this ensures all marker lamps activate simultaneously. Route yellow and green wires separately to the turn signal switch to prevent feedback loops; bypass any factory resistors to maintain full brightness.
Use 16-gauge insulated copper wire for all circuits–thinner strands risk overheating under continuous load, especially with LED conversions. Strip 6mm of insulation, twist tightly, and crimp with red insulated terminals (not solder–vibration loosens joints). Cover splices with heat-shrink tubing rated for 125°C; electrical tape fails within months under UV exposure. For auxiliary power (blue wire), connect through a 15-amp fuse inline within 15cm of the battery; omit this step and risk melting the harness if a short occurs.
Test resistance before final connections: ground-to-white should read near 0 ohms; any value above 0.3 ohms indicates a weak connection. Activate each function with a 12V test lamp–do not rely on dash indicators, as some vehicles have current-limiting circuits. For brake controllers, the blue auxiliary line must switch to +12V with the brake pedal depressed; if voltage remains constant, check the stop lamp switch continuity. Verify polarity with a multimeter: reverse connections on LED assemblies will permanently damage them.
Mount connectors away from heat sources: exhaust manifolds degrade vinyl insulation at 75°C. Use dielectric grease on terminals to prevent oxidation–oxidized contacts increase resistance by up to 30%. If adding reverse lights, tap into the reverse lamp circuit; never splice into the brown running light wire, as this violates DOT regulations. For reliability, route all harnesses through convoluted tubing to shield against rodent damage and road debris impingement.
Validate completed setup with a 5-minute road test: simulate full load conditions at highway speeds. Monitor brake controller temperature–above 60°C suggests insufficient grounding or excessive current draw. If flickering occurs, check for loose ground connections; intermittent shorts often disappear during bench tests but reappear under vibration. Document wire paths and fuse ratings for future troubleshooting–skipping this step extends diagnostics from minutes to hours.
5-Connector Electrical Schematic for Towing Setups
Use a multimeter to test each circuit before connecting the vehicle plug to avoid shorts or mismatches. The standard 5-terminal connector assigns functions as follows: tail lamps (brown), left turn/brake (yellow), right turn/brake (green), ground (-/white), and auxiliary power (+/blue). Verify the vehicle’s fuse box has a dedicated 15A circuit for the blue wire if supplying 12V to accessories; some models require relay installation.
Common Color Code Variations
- US/Europe: brown (running lights), yellow (left circuits), green (right circuits), white (common return), blue (charge line).

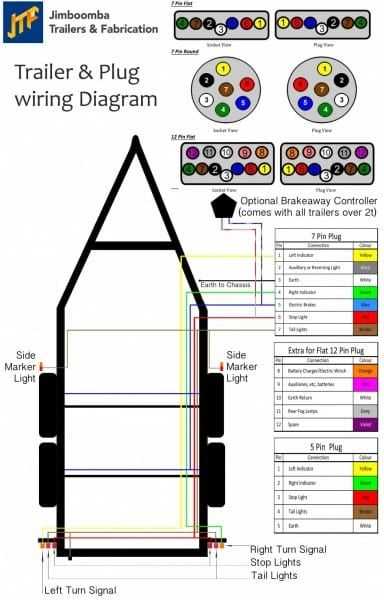

- Australia/NZ: red (stop lights), white (indicators left), black (indicators right), orange (park lights), green (earth).
- Volvo/Scania heavy trucks: purple (retractable ramps), grey (back-up alarm), pink (stability control).
Splice connections using heat-shrink butt connectors rated for 16-14 AWG wire; solder joints corrode faster under vibration. Route wires through a split-loom conduit secured every 18 inches with nylon ties, avoiding sharp edges or moving parts. Apply dielectric grease to both plug and socket faces to prevent moisture intrusion; grease also eases future disconnections.
If the towed unit lacks independent brakes, connect the blue wire to a brake controller output; most controllers require a dedicated 20A fuse within 7 inches of the battery. Mount the controller on a metal surface to dissipate heat; plastic dash mounts can cause overheating during prolonged braking. Adjust gain settings on a flat, empty stretch of road using 30% increments, checking for smooth proportional braking without wheel lockup.
- Align the vehicle plug with the towed unit socket and insert firmly; listen for a click to confirm full engagement.
- Operate each light function sequentially–tail, brake, turn signals–while observing reflections or using an assistant.
- Engage the auxiliary circuit (blue) and measure voltage at the socket with the engine running; should read 13.2–14.4V.
- Check ground continuity between the white wire and the towed unit frame; resistance should be below 0.5 ohms.
- Repeat the test sequence after a 2-mile drive to detect intermittent faults.
Decoding Wire Colors in a 5-Connector Vehicle Socket
Begin by examining the connector on the towing vehicle–most 5-way plugs follow a standardized color scheme, but variations exist. Use a multimeter to confirm functionality if colors differ from the norm. The primary five wires typically control essential lighting and safety circuits. Below is the most common configuration:
| Color | Function | Voltage (Typical) |
|---|---|---|
| White | Ground return | 0V |
| Brown | Running/position lights | 12V |
| Yellow | Left turn signal | Pulsing 12V |
| Green | Right turn signal | Pulsing 12V |
| Blue | Electric brakes or auxiliary circuit | 12V when activated |
If the blue wire carries brake current, expect a steady voltage when the brake pedal is pressed. Some setups repurpose this line for reverse lights or an independent power feed–verify with the vehicle manual. European models occasionally swap yellow and green functions, so check local standards. For aftermarket adapters, label each wire before cutting or splicing to prevent misalignment.
Testing proceeds in three steps: first, attach the ground probe to the white wire; second, probe each remaining conductor while activating the corresponding function (e.g., left signal); third, note readings–consistent 12V confirms functionality. Flickering or intermittent signals indicate corroded terminals or loose connections. Replace damaged connectors rather than taping exposed wires, as vibration exacerbates failures.
Uncommon colors like purple or black often designate auxiliary circuits, which may power winches or refrigeration units. Document any deviations in a small notebook stored in the glovebox for future reference. Always disconnect the battery before working on high-current circuits like electric brakes to avoid accidental engagement.
Step-by-Step Guide to Hooking Up a 5-Connector Vehicle Socket
Start by ensuring the tow vehicle’s electrical harness matches the ISO 11446 standard. Locate the color-coded cables behind the socket: yellow (left turn/brake), green (right turn/brake), brown (tail/running lights), white (ground), and blue (auxiliary/reverse lights). Verify compatibility with a multimeter–connect the ground clip to the white wire and probe each cable while activating the corresponding function (e.g., left blinker). Record voltages: 12V steady for lighting, pulsing for signals.
Secure Connections and Test
Strip 5mm of insulation from each wire, twist strands tightly, and crimp with waterproof terminals. Use heat-shrink tubing or dielectric grease to prevent corrosion. Attach to the socket’s screw terminals in this order:
- Ground (white) to the chassis or designated bolt.
- Signal cables (yellow/green) to matching marked posts.
- Brown wire to the lighting circuit post, typically marked “L” or “58”.
- Blue wire (for reverse/auxiliary) to the “R” or “A” terminal–check manufacturer specs.
After securing, plug in the tow module and activate each function sequentially. Confirm all lights illuminate without cross-interference–flickering indicates a loose connection or improper grounding.
Checking Power and Signal Integrity in 5-Connector Vehicle Lighting Systems
Use a multimeter set to DC voltage (20V range) to verify power at each contact while the corresponding lighting function is active. Ground the black probe to the vehicle’s chassis or common return line, then probe the colored feeds: yellow (left turn/brake), green (right turn/brake), brown (running lights), white (ground), and blue (auxiliary or reverse). A reading of 12.0–14.5V confirms correct output from the tow vehicle’s electrical module.
Switch the multimeter to continuity mode with the ignition off to test for unintended shorts or open circuits. Probe each contact against the white (ground) pin–audible beeps or zero ohms indicate a direct short, requiring immediate inspection of melted insulation, pinched wires, or corroded terminals. For brake and turn signals, connect one probe to the contact and the other to the corresponding fuse in the vehicle’s fuse block; silence or OL (overload) on the meter signals an open circuit.
Load-test each circuit by temporarily attaching a 35W bulb (or a dedicated test load) between the colored contact and ground while monitoring voltage drop. A drop exceeding 0.5V under load suggests high-resistance connections at crimp joints, oxidized terminals, or undersized wiring. Clean terminals with a wire brush and dielectric grease, or re-crimp connectors with a 12–10 AWG-rated tool to restore conductivity.
Cycle all lighting functions (brake, left/right signals, running lights) simultaneously for 30–60 seconds while monitoring for heat buildup along connectors and harness sections. Hot spots (>40°C) reveal poor contacts or inadequate gauge wires; replace suspect segments with tinned copper conductors of minimum 14 AWG for lighting and 12 AWG for brake circuits to prevent voltage sag under peak current (up to 15A per channel).
