Complete 6 Pin Trailer Wiring Guide with Color Codes and StepByStep Diagrams
Start by matching the vehicle’s harness plug pattern to the adapter’s layout–standard 6-socket configurations follow a strict color-coded sequence: yellow (left turn/brake), green (right turn/brake), brown (tail/marker lights), white (ground), blue (electric brakes or auxiliary), and red (12V power or battery charge). Verify the socket arrangement with a multimeter before attaching wires; incorrect polarity will damage LED clusters or brake controllers within seconds.
Use heat-shrink tubing or waterproof butt connectors for all splices–exposed copper corrodes rapidly, especially in road salt or coastal humidity. Crimp connectors firmly, then apply dielectric grease to seal the connection; vibration loosens poorly secured joints, causing intermittent failures. Route the cable away from sharp edges, exhaust pipes, and suspension components–even a small chafing point can sever a circuit under 100 miles of highway travel.
Test each function systematically: activate turn signals, brake lights, and running lamps separately, then combine inputs (e.g., brake + left turn) to confirm correct voltage behavior. If LED lamps flicker, bypass the converter box–cheap aftermarket units often misinterpret PWM signals from modern tow vehicles. For auxiliary circuits, limit current draw to 10A; exceeding this burns the 6-way connector’s thin-gauge pins.
Connecting a 6-Conductor Vehicle Plug: Key Details

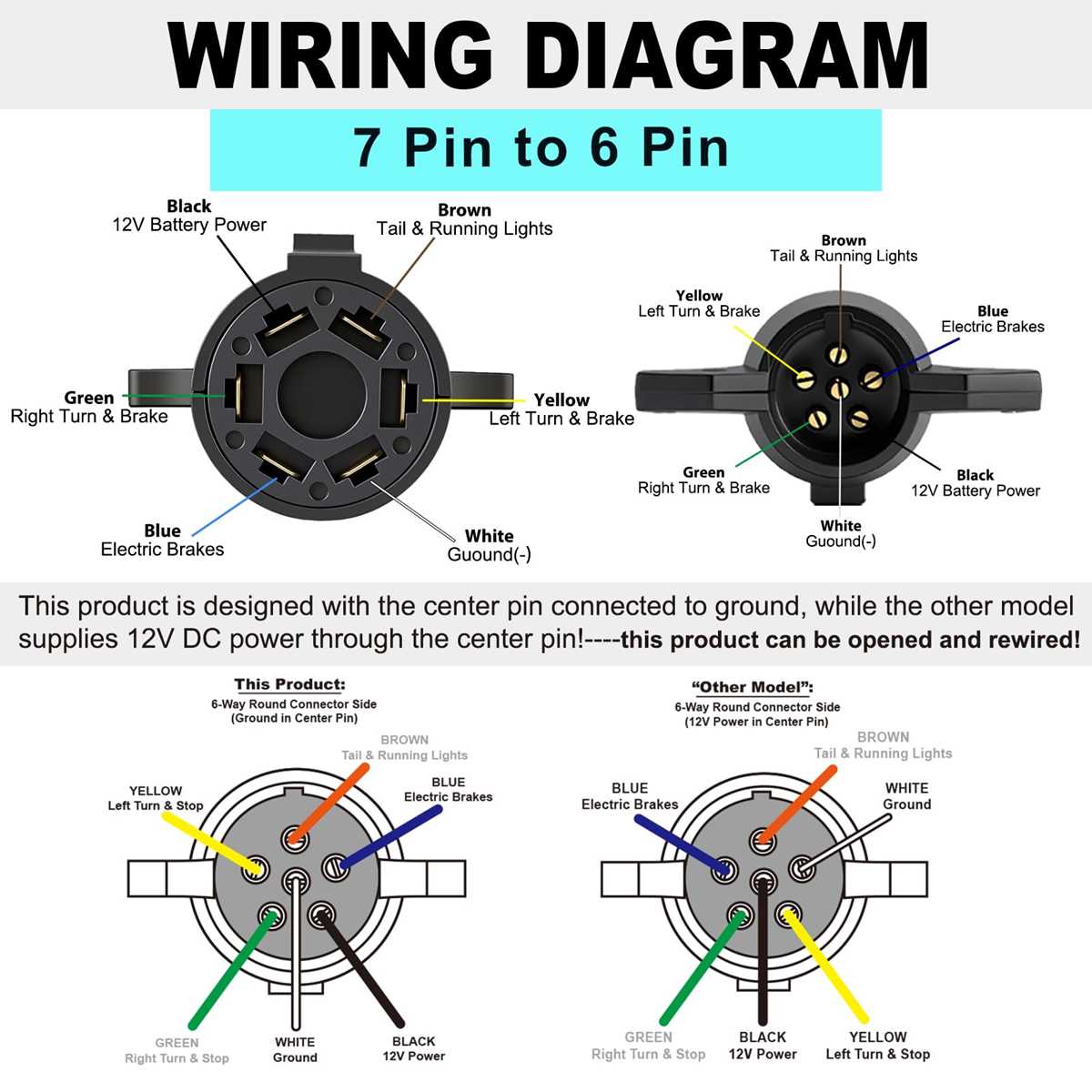

Start by matching the socket layout to the standard color coding: brown (running lights), yellow (left turn/brake), green (right turn/brake), white (ground), blue (auxiliary), and black (battery charge). Verify each circuit with a multimeter before attaching; voltages should read 12V for lighting functions and 12-14V for charging lines when the vehicle ignition is on. Secure connections with crimp terminals and heat-shrink tubing to prevent corrosion.
Ground the white conductor directly to the main frame or tow hitch–avoid bolting it to painted surfaces. A weak ground causes flickering lights or intermittent signals. For auxiliary circuits (blue wire), check manufacturer specifications; some systems use it for reverse lights or electric brakes. If the plug lacks auxiliary function, cap the wire with a weatherproof connector to prevent shorts.
Test all functions systematically:
- Running lights: solid 12V on brown wire when headlights are active.
- Turn signals: pulsed 12V on yellow (left) or green (right) wires.
- Brake lights: 12V on both yellow and green wires simultaneously.
- Charging line (black): 12-14V when engine runs.
- Auxiliary (blue): verify voltage only if equipped (often 12V for brakes or reverse).
Common Issues and Fixes
Flickering lights often indicate a poor ground–relocate the white wire to a bare metal surface near the plug. If signals work but brakes don’t, inspect the fuse or relay for the auxiliary circuit. For vehicles with separate brake and turn lights, use a bypass relay if the electrical system combines them incorrectly. Avoid splicing into existing taillight wires; tap into the main harness or fuse box for cleaner power.
Use dielectric grease on all connections to protect against moisture. For trailers with electric brakes, the blue wire must carry 12V from the brake controller–ensure the controller is properly calibrated (typically 3-5 ohms per magnet). If the charging line (black) isn’t providing power, check the vehicle’s alternator output and fuse; some trucks require a dedicated 30A circuit for heavy loads.
How to Match Each Cable in a 6-Way Vehicle Plug
Begin by locating the ground cable–typically a white or bare wire–attached to the connector’s metal casing. This lead ensures stable current return and must be securely fastened to prevent voltage drops. Use a multimeter in continuity mode to confirm grounding; readings near zero ohms indicate proper contact.
Identify the brake control line: usually red or yellow, this conductor delivers power directly from the towing vehicle’s brake system to the attached unit. Check for 12V when the brake pedal is pressed; inconsistency suggests a faulty relay or blown fuse. Label this cable immediately to avoid confusion with turn signals.
The right and left turn/brake lights share brown (sometimes green) and yellow (or red) wires, respectively. Activate each signal to observe which filament illuminates; cross-check with a test light to ensure polarity. Reverse connections will disable both functions, causing unsafe conditions.
Locate the 12V auxiliary supply–often black or blue–which powers interior lights, winches, or chargers. Verify voltage output at the plug’s terminal with the ignition on; if absent, trace back through the fuse box to identify interruptions. Proper insulation prevents shorts that can drain the battery overnight.
How to Connect a 6-Way Vehicle Connector: A Practical Approach
Start by gathering the required tools: a multimeter, wire strippers, crimping tool, heat shrink tubing (or electrical tape), and a pre-wired 6-way socket matching your vehicle’s harness. Ensure the ignition is off before handling any electrical components.

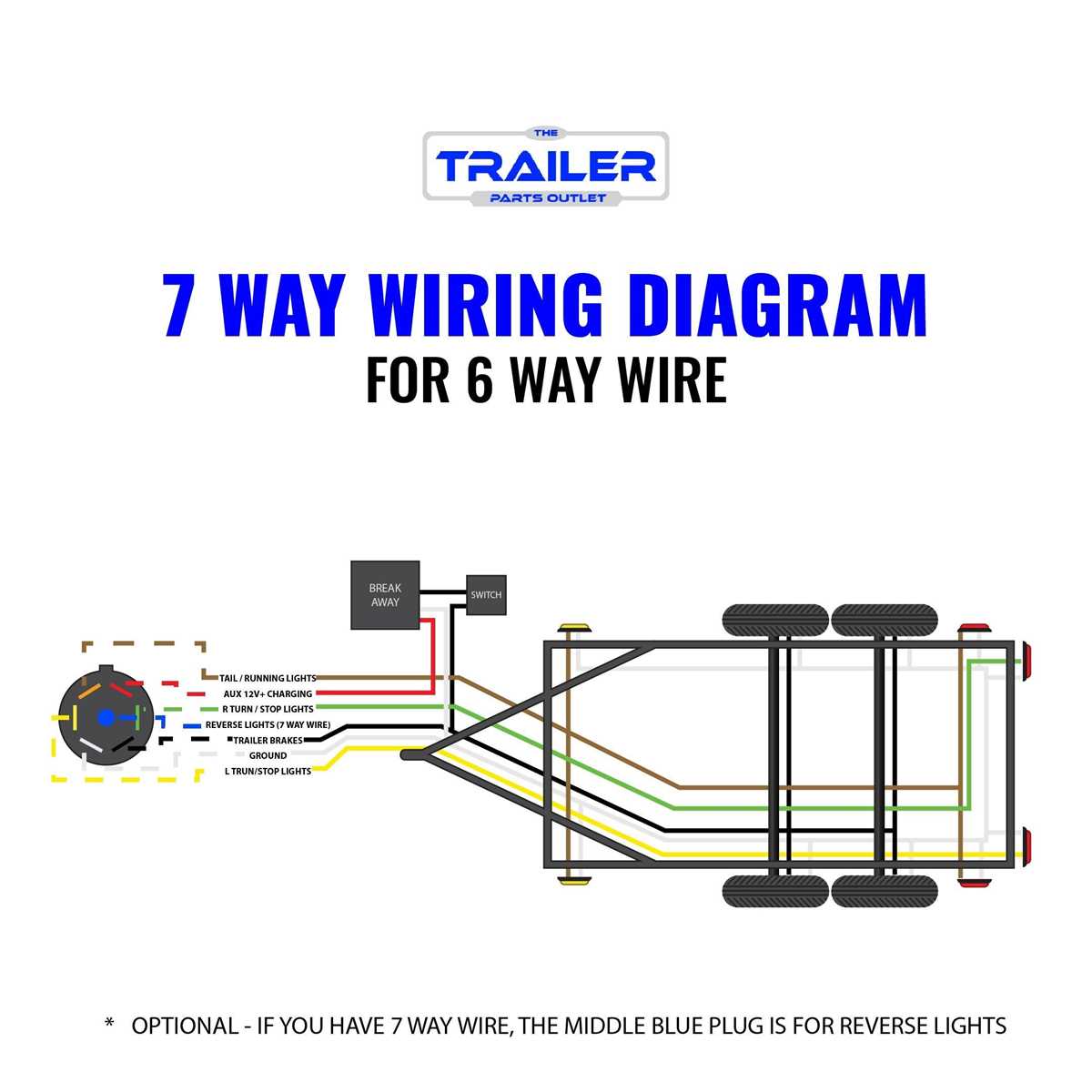

Identify the existing harness colors on your vehicle’s towing unit. Most manufacturers follow a standard color code, but variations exist. Use the table below as a reference–verify each wire with a multimeter before proceeding:
| Function | Typical Wire Color | Multimeter Test (Voltage) |
|---|---|---|
| Ground | White | 0V (continuity to chassis) |
| Tail/Running Lights | Brown | 12V when lights activated |
| Brake Signal | Yellow/Red (varies) | 12V during braking |
| Reverse Lights | Green | 12V when reversing |
| Auxiliary Power | Blue | 12V constant or switched |
| Left Turn Signal | Yellow | Pulsing 12V when activated |
Cut the socket’s pigtail wires to match the length needed for your setup, leaving extra slack for adjustments. Strip ¼ inch of insulation from each wire end, then twist the exposed strands tightly to prevent fraying. Slide a piece of heat shrink tubing onto each wire before joining–this prevents short circuits.
Align the vehicle’s harness wires with the socket’s corresponding colors (or verified functions). Use a crimping tool to attach bullet connectors or butt splices, ensuring a secure mechanical connection. Avoid twisting wires together without a connector, as vibrations can loosen them over time.
Apply heat shrink tubing over each joint (or wrap with electrical tape if tubing isn’t available) to insulate and protect the connections. Secure loose wires with zip ties or clamps to prevent chafing against metal edges–this reduces risk of wear and intermittent failures.
Test each circuit step-by-step before finalizing the installation. Activate the running lights, brake signal, reverse lights, and turn indicators individually. Use a multimeter to confirm correct voltage at the socket’s terminals. If a function doesn’t work, recheck the connections and polarity.
Mount the socket to the vehicle’s bracket using the provided hardware. Route any excess wire neatly, avoiding sharp edges or moving parts. For auxiliary power, ensure the circuit is fused (typically 10-15A) to prevent overheating. Reconnect the ground wire last–this simple step often resolves issues with non-functional lighting.
Common Issues and Troubleshooting for 6-Connector Vehicle Linkages
Corrosion at connection points often disrupts signal flow in older harnesses or after exposure to moisture. Inspect terminals for white or green oxidation–clean with a wire brush and apply dielectric grease during reassembly. If voltage drops persist, test each circuit with a multimeter while the plug is connected; readings below 11.5V across any contact indicate resistance buildup. Replace compromised cables instead of splicing, as repairs frequently fail under load.
Faulty Ground Circuits
Ground paths must carry the combined return current of all active circuits. A weak ground through the chassis or a loose mounting bolt creates intermittent faults, especially under brake activation or when multiple lights are on. Verify continuity between the ground terminal and battery negative with the connector unplugged–resistance over 0.5 ohms signals a bad ground. Relocate the ground point to a bare metal surface if rust prevents proper contact.
Misaligned or Bent Contacts
Insert a male tester plug into the socket–each prong should pass smoothly without force. Bent or misaligned receptacles prevent proper mating and cause short circuits. Straighten contacts with needle-nose pliers if needed, but replace the entire harness if damage is severe. Check for heat damage, indicated by discolored plastic; high resistance at connections melts insulation, leading to open circuits under load.
Equipment and Supplies for 6-Connection Electrical Setup
Begin with a multimeter (10A minimum, digital preferred) to verify voltage continuity before attaching connectors. Choose one with auto-ranging capability to simplify readings across different circuits.
Select crimp terminals rated for 16-14 AWG wire–avoid solder-only solutions as they fail under vibration. Use heat-shrink versions with adhesive liners for moisture resistance; generic vinyl splices degrade within months.
A ratcheting crimper ensures consistent pressure; budget models often crush insulation or leave weak joints. Pair it with a wire stripper offering 10-22 AWG notches–adjustable blades risk damaging copper strands.
Circuit Protection Components
Install a 6-way fuse block rated for 30A total current, with individual 10A or 15A fuses depending on load. Circuit breakers offer resettable protection but add bulk; fuses react faster for short-circuit events.
Use marine-grade tinned copper cable (minimum 1.5 mm² cross-section) for all external runs. Standard copper corrodes within 18 months in humid conditions; aluminum is unsuitable due to oxidation gaps.
Termination and Assembly Gear
A dedicated harness tester with LED indicators checks polarity and function–generic continuity testers miss intermittent faults. For DIY builds, a pigtail adapter with molded connectors speeds troubleshooting.
Apply dielectric grease sparingly to plug contacts–excess attracts dirt. Secure loose bundles with spiral wrap or nylon ties spaced every 15 cm; zip ties chafe insulation over time. Keep a torque screwdriver (0.5 Nm setting) for terminal screws to prevent loosening from vibration.
