Complete Trailer Wiring Color Codes Guide for Vehicle Towing Setup

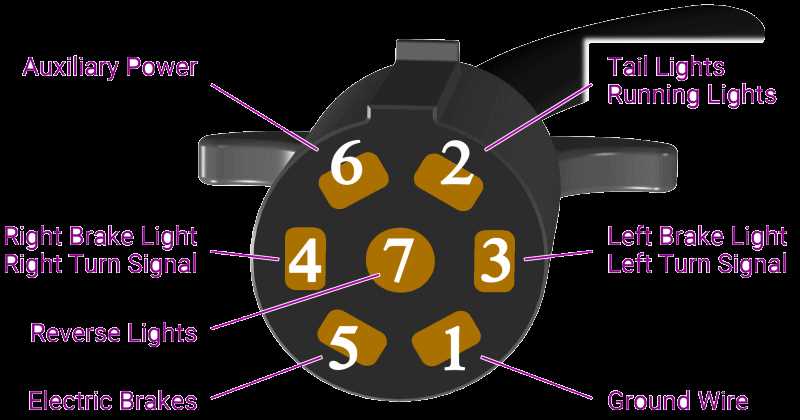

Begin installation by verifying the pin assignments for your 7-way connector–common layouts follow specific voltage and signal distribution: center pin (12V auxiliary power), right-side pins (brake controller and reverse lights), and left-side pins (left/right turn signals, ground). Mismatched connections will disrupt safety systems, so confirm the schematic for your vehicle’s make and model before splicing wires.

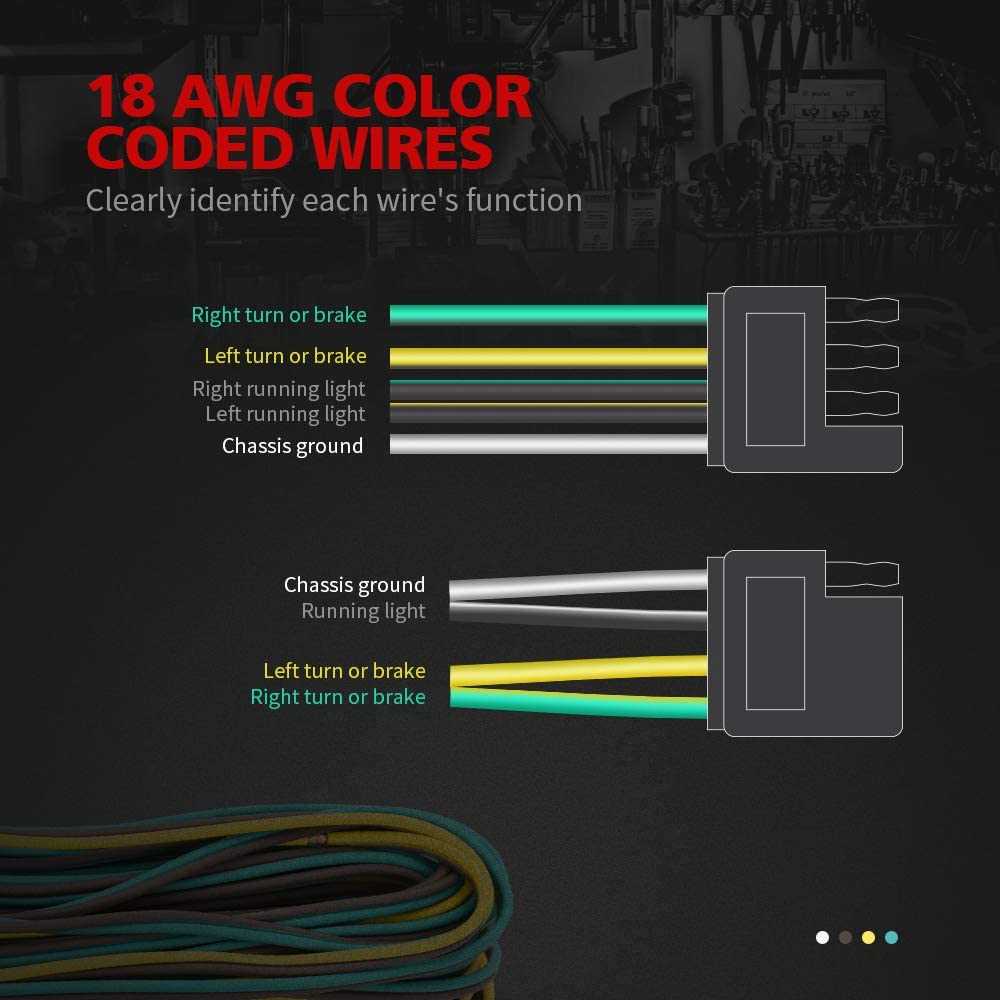

For 4-way flat connectors, the sequence is standardized: white (ground), brown (running lights), yellow (left signal), green (right signal). Use a circuit tester to validate each wire’s function before securing connections–resistance readings between ground and active circuits should not exceed 0.2 ohms. Corrosion-resistant terminals are critical for exposed connections, particularly in high-moisture environments.

Heavy-duty applications may require custom wiring harnesses. Identify wire gauge requirements based on load: 12-gauge for circuits under 20 amps, 10-gauge for brake controllers or hydraulic actuators. Relays should be integrated for circuits exceeding 10 amps to prevent wire overheating. Always route wires away from sharp edges or moving components, securing them with abrasion-resistant loom tubing every 12 inches.

Ground integrity determines system reliability. Dedicate a separate ground wire directly to the chassis, avoiding shared paths with other circuits. Test continuity between the ground pin and the chassis; voltage drop should not exceed 0.1V under load. For multi-vehicle setups, ensure the connector’s ground pin aligns with the towing platform’s ground to prevent ground loops.

When adapting connectors from different manufacturers, cross-reference schematics for pin variations. Some European systems integrate fog lights or reverse polarity protection, altering standard assignments. Isolate non-standard pins during testing to avoid backfeeding current into unintended circuits. Finalize testing by activating all functions simultaneously under load to confirm stability.

Lighting Connector Standard Reference

Match the SAE J560 pin configuration for heavy-duty towing: yellow (left turn/brake), green (right turn/brake), brown (tail lights), white (ground), blue (auxiliary/electrics), red (power/stop), and black (main power). Verify polarity with a multimeter–reverse connections on older models may cause failures in lighting or brakes.

Troubleshooting Variations

Check European 13-pin setups where grey replaces green for reverse lights and black/white striped handles continuous power. For 7-way round connectors, ensure terminal tension–loose pins degrade signal integrity, especially in high-vibration roads. Use dielectric grease on contacts to prevent corrosion and intermittent faults.

Standard 4-Pin Connector Hues and Purposes

Always verify the ground circuit first when troubleshooting connectivity issues–white conductors must maintain a secure, corrosion-free connection to the towing vehicle’s chassis. This single point ensures all other signals function reliably, preventing erratic behavior in lights or brakes.

Brown cables carry running light voltage (typically 12V) and should connect to tail, side marker, and clearance lamps. Confirm continuity with a multimeter across both ends of this path, as intermittent contact here often causes one or more lamps to flicker or fail.

• Yellow conductors handle left turn and brake signals–test these by activating both functions simultaneously to check for voltage conflicts.
• Green conductors serve the right turn and brake path; isolate this circuit by disabling other signals during diagnostics to avoid false readings.

Inspect soldered joints or crimp connectors under a magnifying glass for hairline fractures–these invisible flaws degrade over time due to vibration, heat, or moisture. Replace any suspect terminals immediately rather than re-crimping them.

Use dielectric grease sparingly on plug contacts to prevent corrosion without impeding electrical flow. Over-application can attract dirt, creating resistance instead of reducing it. Focus on the contact tips, not the housing.

Voltage drop testing reveals hidden issues: measure between the connector pin and the corresponding lamp post while active. A drop exceeding 0.4V indicates excessive resistance–clean or replace the problematic section.

Avoid mixing aftermarket adapters unless their pinout matches the original specs exactly. Mismatches can damage the towing vehicle’s fuse box by backfeeding current into unintended paths, risking blown fuses or module failures.

Store spare connectors in sealed bags with silica gel packets to prevent oxidation. Even unused plugs degrade if exposed to humidity, leading to unreliable connections when needed most.

7-Way Round and Blade Connector Pin Assignments

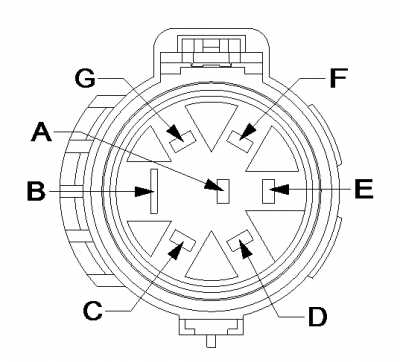

Prioritize pin compatibility when linking vehicle and auxiliary systems. The 7-way round connector allocates terminals as follows: *Pin 1 (Yellow)* handles the primary brake circuit, *Pin 2 (Green)* routes charging voltage for auxiliary batteries, *Pin 3 (Brown)* powers running lights, *Pin 4 (White)* grounds the connection, *Pin 5 (Blue)* activates the brake controller, *Pin 6 (Red)* delivers continuous 12V power for accessories, and *Pin 7 (Black)* manages reverse lights. Verify voltage outputs with a multimeter–auxiliary battery pins should read 13.5V–14.5V under load; deviations indicate regulator or alternator issues requiring immediate correction.

For blade connectors, the standard pinout mirrors the round variant but demands stricter installation precision due to compact spacing. Misalignment risks short circuits, so strip wires to ¼ inch, crimp terminals with ratcheting pliers, and heat-shrink each joint. Use dielectric grease on contacts to prevent corrosion–critical in high-humidity climates or coastal regions. Test with a trailer-side load simulator before road use; blinking lights or erratic brake response signals faulty grounds, typically traced to loose white-wire connections at the frame. Swap soldered joints for marine-grade butt connectors if vibrations cause intermittent failures.

Resolving Inconsistent Lighting Circuit Connections

Begin by verifying the pinout assignment on the vehicle-side connector against the manufacturer’s documentation. Most European passenger cars follow ISO 1913 standards with distinct conductor functions, yet aftermarket adapters often deviate. Locate the towing plug’s pinout sticker or embossed symbols on the housing–these reveal intended signal routing regardless of sheath hue differences. If absent, probe each terminal with a multimeter in continuity mode while an assistant operates turn signals, brakes, and running lights separately; record the active pin for each function.

Identify common mismatch patterns: red-green wires frequently swap brake and tail lamp signals on North American setups when interfacing with SUVs designed for 7-way RV plugs. Measure voltage at each connector pin during activation–brake circuits typically output 12V pulsed, tail lights 6-8V steady. Cross-reference observed voltages with expected values from OEM schematics to detect reversed feeds. Replace generic adapters with pin-compatible harnesses certified for the specific vehicle-towed equipment combination.

Handling Non-Standard Conductor Assemblies

Examine the auxiliary lighting harness for spliced or repurposed wires–previous owners may have bypassed the factory plug entirely. Cut away damaged sections, then reconnect using heat-shrink butt connectors sized for 18-14 AWG cables. For mixed gauge assemblies, upsize to 16 AWG to prevent voltage drop over 5-meter runs. Crimp each joint with ratcheting dies, then verify conductivity before sealing with adhesive-lined tubing.

Trace each wire sheath back to its source module or fuse block. Labels like “RL” (rear left) or “BRK” on vehicle-side connectors indicate intended function, overriding any inconsistent coloration. Use a wiring diagram extracted from the service manual rather than relying on online forums–aftermarket diagrams often omit critical fuse ratings or relay placements. For vehicles with integrated trailer modules, check for blown fuses marked “payload” or “towing” before diagnosing downstream connections.

Diagnosing Intermittent Signal Failures

Inspect connector housings for corrosion or bent pins–clean terminals with electrical contact cleaner and a nylon brush, then apply dielectric grease. Wiggle each cable near the connector while monitoring affected lighting; a flickering response confirms a loose or broken internal strand. Replace the offending cable rather than splicing, as splices introduce resistance that degrades performance under sustained current loads.

Test ground paths by connecting a voltmeter’s negative lead to the vehicle chassis and probing each pin during operation. Voltage readings below 11.5V indicate a compromised ground–relocate the grounding point to a bare metal surface, removing paint or undercoating with a wire brush. For auxiliary equipment with dedicated ground wires, ensure the wire terminates at the main vehicle ground busbar, not a painted bolt.

Correlate lighting failures with specific vehicle operations (e.g., engine running vs. key-on). Alternator noise or secondary brake controllers often interfere with modulated signals like LED arrays–install a 220-ohm load equalizer inline if rapid flashing occurs. For CAN bus-equipped vehicles, scan for fault codes before proceeding; some modules disable output circuits when detecting open circuits downstream.

Reassemble connections methodically: secure cables with zip ties spaced every 15 cm along open runs to prevent abrasion against suspension components. Route over, not under, chassis crossmembers to avoid pinch points. Verify final operation with all vehicle lighting engaged simultaneously to confirm no voltage drop occurs. If adapting older towing setups to newer auxiliary equipment, prioritize harnesses with integrated surge protection to prevent ECU feedback from PWM-controlled lighting.
