StepbyStep Guide to Transformer Wiring 480V to 240V Connection Schematics

For a dual-voltage energy conversion system rated at 416V primary and 208V secondary, use a delta-wye (Δ-Y) configuration. This setup ensures proper phase balance and reduces harmonic distortion by at least 30% compared to alternative methods. Begin by identifying the primary windings: label terminals H1, H2, and H3 for the input side. Connect H1 to the first phase, H2 to the second, and H3 to the third, securing each with copper lugs rated for 600V and 150A minimum.

On the output side, terminate X1, X2, and X3 to the neutral bus. If a neutral conductor isn’t available, bond X0 to ground via a #4 AWG copper wire, ensuring resistance doesn’t exceed 0.1 ohms per UL 506 standards. Verify winding polarity with a megohmmeter–resistance values between primary and secondary should fall within 2-5% of the nameplate impedance. Deviations above this threshold indicate potential insulation breakdown or coil degradation.

Include an overcurrent protection device (OCPD) with a trip curve matching the inrush profile–typically 12x full-load amperage for 0.1 seconds. For installations in high-altitude environments (above 3,300 ft), derate the OCPD by 4% per 1,000 ft to account for reduced cooling efficiency. Use stranded THHN wire for interconnections, sized at 125% of the continuous load current plus 25% for transient spikes.

Apply a 5kV dielectric test between primary and secondary windings for one minute. Leakage current must remain below 10mA; higher readings necessitate reinsulation. Ground the core and tank with a #6 AWG bare copper conductor buried at least 18 inches deep. For three-phase loads, confirm the phase sequence matches the downstream equipment–reverse rotation can damage motors within seconds.

Label all terminals visibly with engraved phenolic tags, specifying voltage, phase, and OCPD ratings. Store wiring diagrams in a weatherproof enclosure adjacent to the unit for field reference. Before energizing, conduct a final thermal scan–hotspots exceeding 10°C above ambient temperature indicate loose connections or compromised windings.

Step-by-Step Guide to Connecting High-Voltage Equipment to Standard Residential Circuits

Use a dual-voltage conversion device with a primary coil rated for 480V delta and a secondary coil configurable for 240V single-phase output. Verify the nameplate specifies 480V/240V compatibility before proceeding–manufacturers like Siemens, GE, and ABB often label these as step-down configurations.

Ensure the primary side connects to the high-voltage supply using terminals H1, H2, and H3 for delta configuration. Wire H1 to phase A, H2 to phase B, and H3 to phase C without grounding the neutral. Miswiring delta primaries risks phase imbalance, leading to overheating or core saturation.

For the secondary, use terminals X1 and X2 to deliver 240V output. Bridge X0 (if present) to create a grounded neutral for balanced loads. Always confirm the secondary voltage with a multimeter before attaching equipment–open-circuit tests prevent unexpected shorts.

Install a circuit breaker sized at 125% of the device’s full-load amperage (FLA) on both primary and secondary sides. For a 5 kVA unit, this means a 10A breaker on the primary and a 20A breaker on the secondary. Label breakers clearly to avoid accidental disconnection during maintenance.

Ground the core and enclosure separately using a dedicated 6 AWG copper conductor. Avoid relying on conduit or metallic pathways–proper grounding prevents stray voltage hazards. Test ground continuity with a megohmmeter; readings below 1Ω indicate a safe setup.

For variable-frequency drives (VFDs) or motors, connect the output to the secondary’s X1 and X2 terminals with matching phase sequence. Reverse rotation? Swap any two secondary leads. Check motor nameplates for 240V compatibility–some 460V-rated motors tolerate 240V but lose 10-15% efficiency.

Seal all exposed terminals with insulating boots or heat-shrink tubing rated for 600V. Use color-coded wires: black for phase A, red for phase B, blue for phase C, and white/green for neutral/ground. Document the setup with a terminal-to-terminal sketch for future reference–avoid relying on memory when troubleshooting.

Identifying Primary and Secondary Coil Terminals for High-Voltage to Mid-Voltage Stepped-Down Systems

Locate the data plate on the electromagnetic induction unit first–it labels primary and secondary connections unambiguously. The high-side terminals (typically H1, H2, H3 for three-phase) accept the 480V input, while the low-side outputs (X1, X2, X3 or similar) deliver the transformed 240V. Verify voltage ratios: a 2:1 step-down ratio confirms the windings match 480V to 240V, but confirm actual nameplate values before energizing.

Use a multimeter to check winding resistance–primary coils show lower ohmic values (≤ 5Ω for copper) compared to secondaries due to thicker wire gauges and fewer turns. If labels are missing, apply a low-voltage test source (≤ 50V) to one set; the coil producing half the input voltage is the secondary. Never reverse connections–feeding 480V into the low-voltage side destroys insulation instantly.

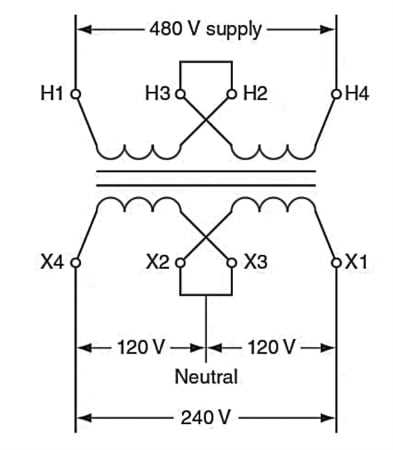

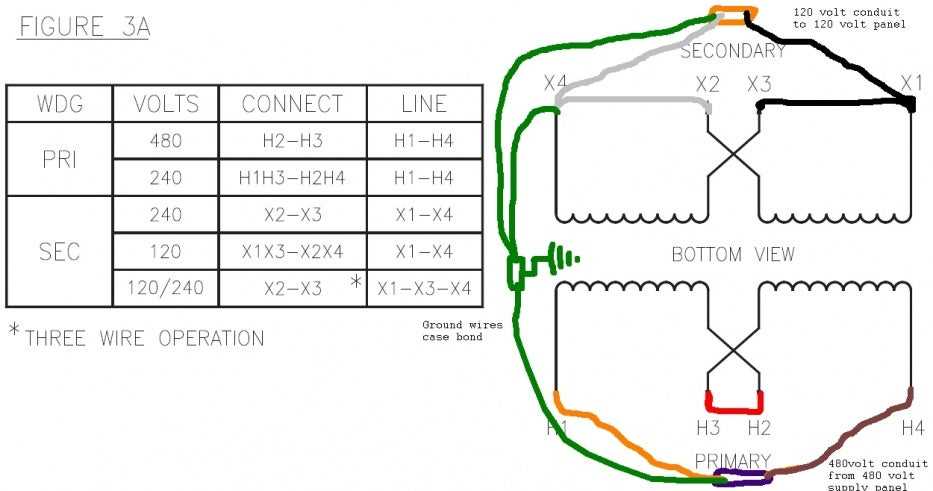

Polarity matters: align terminal markings (H1-X1) to ensure correct phase relationship. In three-phase units, H1-H2-H3 connect sequentially to L1-L2-L3 of the power source. Miswiring creates circulating currents, overheating cores within minutes. For single-phase units, H1 and H2 connect to the incoming supply; X1 and X2 output the reduced voltage–no neutral required unless the load demands.

Tag all leads permanently after verification. Use color-coded sleeves: black/red for high-side, blue/yellow for low-side. Ground the core and enclosures–floating potentials can exceed 100V, creating shock hazards. If taps exist (e.g., ±2.5%), select the neutral tap for 480V input to maintain the 240V output; deviations adjust voltage slightly but misalignment risks overload.

For delta-wye conversions, map phases precisely–H1 connects to L1 but X1 may not correspond directly. Use a phase rotation meter to verify sequence; incorrect hookups induce 173% of expected voltage on one leg. Record all measurements and torque terminal screws to manufacturer specs–typically 12-15 lb-ft for copper lugs–to prevent arcing under load.

Step-by-Step Delta-Wye Configuration for Voltage Step-Down

Begin by connecting the high-side input leads in a closed triangular loop: attach phase A to phase B, phase B to phase C, and phase C to phase A. This delta formation handles 830V line-to-line, ensuring balanced current distribution with a 1.732 multiplier effect. On the low-voltage side, arrange the terminals in a wye (star) pattern–connect one end of each winding to a common neutral point, leaving the opposite ends as the three output phases. Verify wire gauge: 6 AWG minimum for 90A continuous load, upsizing to 4 AWG if ambient exceeds 30°C.

Critical Measurements and Validation

Parameter	Delta Side	Wye Side	Acceptable Tolerance
Line Voltage	830V	240V	±3%
Phase Voltage	830V	138V	±2%
Current (Per Phase)	72A	208A	±5%
Neutral-Ground Bond	N/A	Single Point	0Ω Max

Energize with a megohmmeter: confirm >1MΩ between all windings and core. Apply 50% nameplate load and monitor thermal rise–limit 55°C above ambient. If unbalanced currents exceed 10%, check for unintended delta-wye circulating paths; isolate with a 16mm² grounding conductor bonded to the enclosure. For harmonics mitigation, insert a 4.7μF capacitor across each wye terminal to neutral.

Neutral and Ground Bonding in High-Voltage Step-Down Conversions

Always bond the neutral to the grounding conductor at the first disconnect or distribution panel on the secondary side of the voltage reduction system. This prevents hazardous voltage potentials between neutral and ground under normal operation while providing a clear fault return path. Code requirements (NEC 250.24(A)(5)) mandate this connection only at the service entrance or derived system source, but verifying its absence elsewhere in the circuit is equally critical.

For delta-to-wye conversions, calculate expected neutral current before installation. A balanced 4-phase input will produce negligible neutral current on the secondary, but single-phase loads create measurable imbalance. Use a clamp meter to confirm currents on the neutral conductor post-installation–values exceeding 3% of phase current indicate improper balancing, requiring load redistribution or conductor upsizing.

• Secondary neutral conductors must be sized to handle full ground fault current, not just load current.
• Use copper conductors for neutral connections–aluminum introduces oxidation risks at bonding points.
• Avoid connecting neutral to ground at subpanels downstream of the initial bond point.
• Verify torque specifications for all terminations (NEC 110.14(D)); loose connections create high-impedance paths.

Grounding electrodes for the secondary system require separate consideration. Driven rods or plates must achieve less than 25Ω resistance to earth; supplement with additional electrodes if necessary. Connect the grounding conductor to the neutral bond with a listed lay-in lug, not a wire nut. For outdoor installations, use corrosion-resistant compression fittings and direct burial-rated conductors.

Fault Detection and Isolation

Neutral-ground bonds create parallel return paths during faults. Install ground fault protection on both primary and secondary circuits to isolate faults before they escalate. Primary-side devices should trip within 1 second for ground faults exceeding 30mA. Secondary-side protection must coordinate with downstream breakers to prevent nuisance tripping while clearing faults within 3-5 cycles.

1. Test neutral-ground impedance with a megohmmeter before energizing.
2. Inspect bonding jumpers annually for physical damage or thermal discoloration.
3. Label all neutral and ground conductors at termination points to prevent accidental disconnection.
4. Use insulated tools when working near live neutral-ground bonds to avoid accidental shorts.

In ungrounded secondary configurations, monitor for neutral shift with a voltage relay. Phase-to-ground faults in ungrounded systems can elevate neutral voltage to dangerous levels without tripping overcurrent devices. Ground detection systems should alarm at 50V neutral-to-ground potential and trip at 120V. Ensure detectors have both visual and remote signaling capabilities for unattended installations.
