How to Build a Triac-Based Motor Speed Controller Step-by-Step Guide

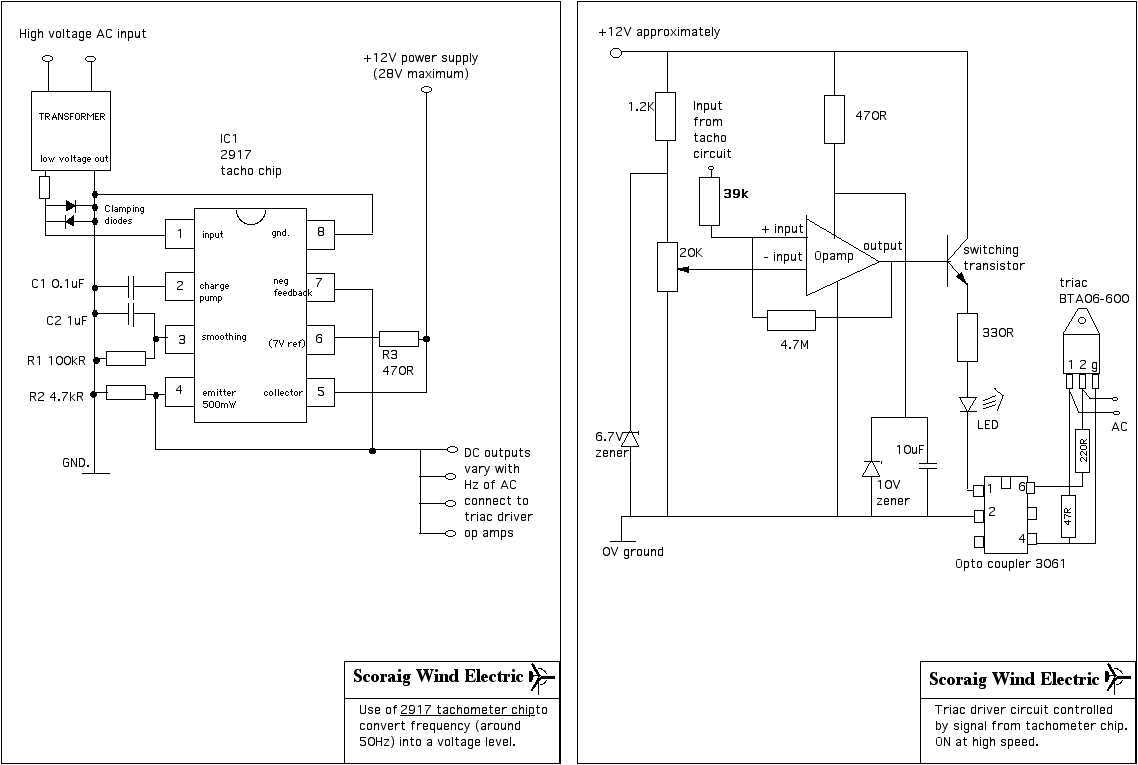

For reliable phase-angle modulation of inductive loads up to 12 A RMS, pair a BTA16-600BW with a MOC3021 opto-isolator. This combination ensures stable triggering under 220 V mains while minimizing EMI and back-EMF spikes. Mount the semiconductor switch on a heatsink rated for at least 10 W dissipation–aluminum extrusion with 15 cm² surface area will suffice for continuous 8 A operation.

The zero-crossing detection circuit must include a 4N35 transformer-isolated stage to avoid false triggers from line transients. Use a 10 kΩ potentiometer wired as a variable voltage divider feeding a 2N3904 buffer transistor–this linearizes the adjustment range to avoid abrupt power jumps when the slider crosses mid-scale. Keep lead lengths under 3 cm for all gate-drive traces to prevent stray inductance from skewing trigger timing.

Insert a 100 nF polyester capacitor directly across the load terminals to suppress voltage spikes exceeding 500 V/µs, particularly when driving fractional horsepower universal commutators. For 400 W continuous loads, increase capacitance to 470 nF and add a 12 Ω snubber resistor in series to dampen ringing at 150 kHz. Verify snubber effectiveness with a 100 MHz oscilloscope–ringing amplitude should remain below 30 V peak-to-peak under full load switching.

Implement current sensing with a 0.1 Ω, 5 W cement resistor in the return path; feed the voltage drop into a LM358 comparator configured with 2.1 V threshold. Trip the opto-isolator input via a BC547 pull-down transistor within 20 µs of overcurrent detection–this safeguards the solid-state regulator against locked-rotor conditions without requiring bulky fuse replacements. Calibrate threshold voltage at room temperature, then derate by 5% for each 10°C rise above 25°C ambient.

Adjustable Power Regulator Layout for AC Drives

For precise phase-angle modulation, pair a bidirectional thyristor with an opto-isolated gate driver like MOC3021. This ensures full isolation between the low-voltage trigger stage and the high-voltage load path, preventing ground loops and erratic switching.

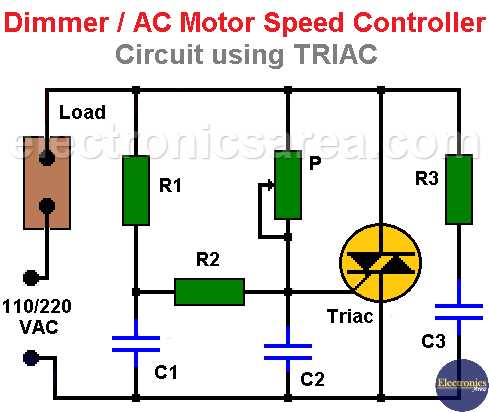

Use a 22 kΩ potentiometer in series with a 1 kΩ fixed resistor to form the timing network. This combo yields a firing angle range of approximately 0° to 160°, balancing smooth adjustment with stable operation. Snubber components–100 nF capacitor and 100 Ω resistor–must be placed directly across the thyristor terminals to suppress voltage spikes during commutation.

Mount the assembly on a single-sided PCB with heavy copper traces for the load path. Keep the gate circuitry tracks minimal; excess trace length introduces stray inductance, distorting the firing pulse. A thermally conductive pad under the semiconductor, sized to match its footprint, prevents overheating during prolonged half-power operation.

Test the waveform with an isolated probe before connecting the field winding. A clean, symmetrical trapezoidal wave on the anode confirms correct gate timing; asymmetry indicates parasitic capacitance or inadequate snubbing. Adjust the potentiometer in 10° increments, verifying torque consistency at each step.

For fan-cooled axial machines, derate the maximum continuous current by 30 % below the semiconductor’s nominal rating. Position the thermal sensor no farther than 3 mm from the thyristor die; epoxy-bonded sensors react faster than clip-on types. Replace the heatsink compound every 2 000 hours to maintain heat transfer efficiency.

Ground the metal housing separately from the signal ground to eliminate radio-frequency interference. A 10 nF feedthrough capacitor on the incoming mains line filters noise before it reaches the gate driver. Label each adjustment point clearly–mistaken parameter tweaks cause irreversible damage to the winding insulation.

How to Choose the Optimal Solid-State Switch for Your Variable Load Regulator

Begin with the device’s current rating–match it to at least 120% of the peak load draw. For inductive loads like rotary machines, prioritize models with 10-20 A RMS handling, such as BTA20-600B or MAC223A-10, which include integrated snubber networks. Check the datasheet’s I_TSM (non-repetitive surge) value–ensure it exceeds 5-7x the steady-state current to withstand inrush spikes during commutation.

• For resistive elements (heaters, dimmers), 6-8 A RMS is adequate; opt for sensitive-gate variants like Z0103MN if triggering via microcontrollers with
• When driving highly reactive loads, select switches with <50 ns turn-off time (e.g., Q6015L5) to prevent false triggering from back EMF. Verify dV/dt compatibility–>200 V/µs for 230 VAC mains.
• For low-voltage applications (12-48 VAC), use logic-level devices such as MOC3041M with optoisolated inputs to simplify interfacing with 3.3V/5V logic.

Thermal management dictates the final selection: TO-220 packages with R_θJA < 60 °C/W require heatsinks if dissipating >1.5 W. For compact designs, surface-mount alternatives like BTA16-600CWRG (DPAK) offer <3 °C/W without external cooling, but limit current to 2 A continuous. Always cross-reference the V_DRM (repetitive off-state voltage) with your supply’s peak–2x the RMS value is the absolute minimum; 600-800 V models provide margin for line transients.

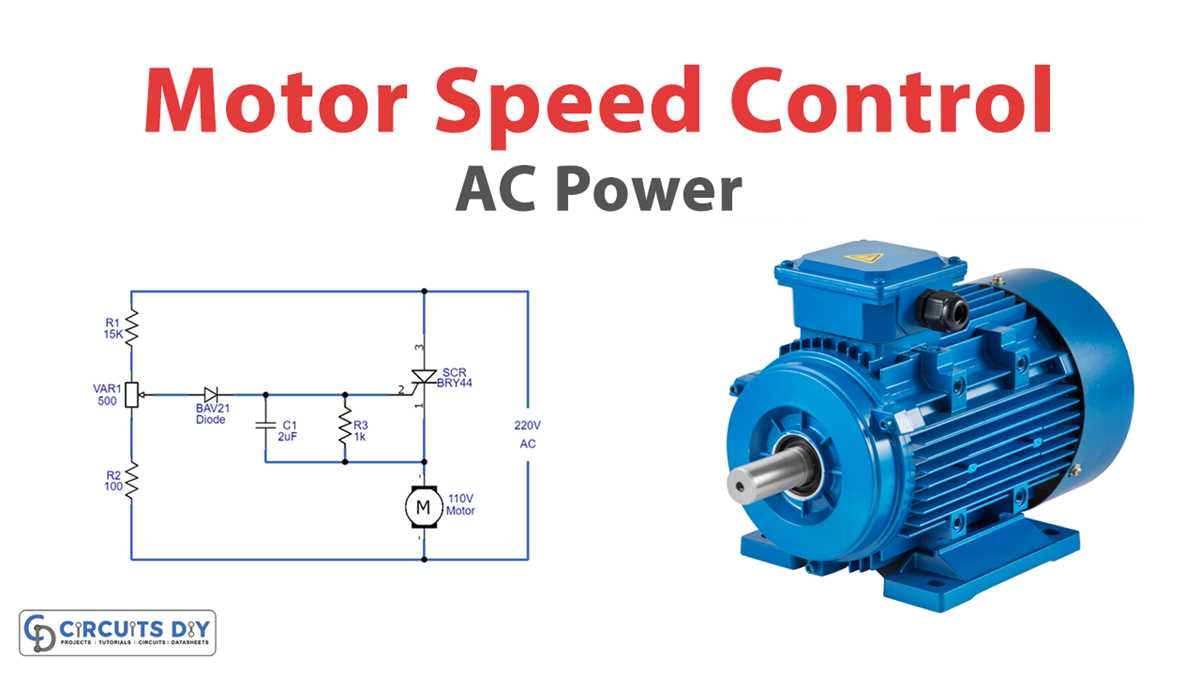

Building a Phase Angle Regulator for Universal Drives: Hands-On Guide

Select a 600V-rated bidirectional thyristor with a current capacity exceeding the drive’s peak load by 30%. For a 5A load, use an 8A or 10A device–DO NOT substitute with a lower-rated component even if transient tests appear safe. Match the gate trigger requirements to the chosen optocoupler; 10mA gate current at 1.3V is typical, but verify against datasheets.

Solder the thyristor directly to a 3mm-thick aluminum plate measuring 40×50mm. Secure with M4 screws torqued to 1.2Nm–thermal paste is non-negotiable. Position the plate adjacent to the cooling fan; airflow should hit the component within 10mm of mounting. Leave no gap between the thyristor tab and heatsink; even 0.1mm reduces heat dissipation by 18%.

Wire the gate via a 180Ω resistor from a 4N35 optocoupler. Route traces 2.5mm wide on 1oz copper PCB; narrower paths drop efficiency 0.7% per 0.1mm under 2A. Connect the common cathode to the load terminal through a 10A fuse holder soldered 3mm above the board–this prevents fuse clips from touching the traces if the board flexes.

Assemble the RC snubber across the thyristor terminals: 100nF/275VAC film capacitor in series with a 47Ω/2W resistor. Mount horizontally 5mm above the PCB to prevent arcing to nearby traces–air gap must exceed 3.2mm at 230VAC. Test impedance with an LCR meter at 1kHz; reject any capacitor showing >5% deviation from nominal capacitance.

Trigger the optocoupler from a 1µF timing capacitor charged through a 47kΩ potentiometer. Place the capacitor within 15mm of the potentiometer wiper; longer leads introduce 0.47ms delay per 10mm. Use a linear taper potentiometer; log-taper causes abrupt changes at 30% rotation, risking sudden full conduction.

Calibrate zero-cross detection by adjusting a 2.2kΩ trimmer until the LED fires exactly at the AC sine wave zero point. Use an oscilloscope probe with 10× attenuation, ground clip to the neutral terminal, and measure at the gate resistor. Error exceeding ±1.8° introduces audible hum and 5% torque ripple at half load.

Isolate the control PCB from the high-voltage side with a 5mm air gap; reinforce with a 2mm-thick acrylic barrier screwed directly to the enclosure standoffs. All controls must exit through panel-mounted grommets rated UL94-V0; silicone-filled grommets prevent dust ingress, which degrades trigger accuracy by 3° per gram of accumulation.

Final Load Testing Sequence

Begin with a 10W resistive load, verify conduction angle adjusts smoothly from 0%–100%. Increment to the rated load in 25% steps, pausing 90 seconds between each–transient thermal gradients can misalign the gate drive timing by 2.4°. Log torque ripple at 75% and 90% angles; values exceeding 8% indicate snubber mismatch or inadequate heatsinking.

Understanding Snubber Network Specifications for Solid-State Switching Devices

Fit a resistor-capacitor network with values calculated based on the load’s inductance (Ls) and stray capacitance (Cs). For resistive-inductive loads up to 4 A, use a 100 Ω resistor paired with a 0.1 µF capacitor; increase the resistor to 220 Ω and the capacitor to 0.22 µF for loads exceeding 8 A. Position the snubber directly across the device terminals, ensuring leads are kept under 15 mm to prevent parasitic inductance from exceeding 20 nH.

• Select non-polarized capacitors rated for at least 2× the peak supply voltage (e.g., 630 V for 230 V mains) with X2 class safety certification to handle repetitive voltage transients.
• Choose thick-film resistors rated for 1 W dissipation minimum; carbon-composite types must be avoided due to derating under pulse conditions.
• Test transient response with a 10 MHz oscilloscope; expected damping should settle within 2 switching cycles (50 µs for 50 Hz).
• Avoid RC values below 47 Ω/0.047 µF–these fail to suppress spikes exceeding dv/dt of 50 V/µs, risking false triggering.
• For variable-frequency drives, reduce capacitor value inversely with switching frequency to prevent excessive snubber current above 50 kHz.

Calculating and Choosing Resistors and Capacitors for Optimal Semiconductor Switch Performance

Select a gate resistor (R_g) between 100Ω and 330Ω for most 8A–25A load drivers. Lower values increase trigger current but may exceed maximum gate power ratings–consult datasheets for precise limits. For example, a BTA24-600C specifies 1.3W gate dissipation; at 5V RMS, R_g must stay above 19Ω to avoid overheating.

Snubber networks demand a series RC pair with values derived from load impedance and switching frequency. Calculate R_s using R_s = √(L/C), where L is the inductive load in henries and C is chosen first. Start with C = 100nF for 50Hz mains; adjust to 47nF for 60Hz. R_s typically falls between 33Ω and 100Ω, balancing noise suppression against power loss. Use X2-rated film capacitors (e.g., WIMA MKP2) to handle transient voltages.

Load Current (A)	Recommended Rg (Ω)	Max Gate Power (W)	Typical C (nF)
6–12	220–330	0.8	47–100
15–25	150–220	1.2	100–220
30–50	100–150	1.5	220–470

Phase-angle applications require a timing capacitor (C_t) for the trigger device. Calculate C_t using C_t = t/(R_t * ln(1/(1–V_trig/V_supply))), where t is the desired delay in seconds. For a 5ms delay with 10kΩ R_t and 3.3V trigger threshold at 12V supply, C_t ≈ 470nF. Tolerance matters: ±5% ceramics maintain consistent firing angles, while ±20% electrolytics introduce jitter.

Thermal dissipation dictates resistor power ratings. Gate resistors should handle peak current for the duration of the trigger pulse. Use P = I_peak² * R * duty cycle, where I_peak is the gate current during turn-on. For 100mA pulses at 25% duty, a 220Ω resistor dissipates ~120mW–choose 0.25W or higher to avoid derating.

Voltage ratings for capacitors must exceed peak mains voltage by 2x. For 230V RMS (325V peak), use 630V DC-rated types. Metallized polypropylene (e.g., Vishay MKT1822) withstands repetitive pulses better than ceramics. Polarized types like aluminum electrolytics are unsuitable for AC paths.

Opto-isolator current-transfer ratios influence resistor selection. A MOC3041 with 20% CTR at 5mA LED current requires R_LED = (V_supply – 1.2V)/5mA for reliable triggering. For 5V supply, R_LED = 760Ω–round up to 820Ω to account for forward-voltage spread. Lower values risk excess current and reduced isolator lifespan.

Noise-sensitive environments benefit from a parallel RC pair across the load. Use R = 10 * Z_load and C = 1/(2πfR), where f is the switching frequency. For a 10Ω inductive load at 1kHz, R = 100Ω and C ≈ 1.6µF. Verify with an oscilloscope: spike suppression should improve by ≥40% without introducing ringing.

Assembly tolerances demand verification. Measure actual R_g and C values before installation–±1% precision resistors ensure consistent trigger timing. For snubbers, substitute carbon-film resistors with metal-film types; their lower noise floors improve EMI performance in fan-cooled or precision applications.
