Complete Troy Bilt Pony Electrical Wiring Schematic Guide 2024
Locate the engine harness connector near the ignition module–its six-pin layout matches the colored wires precisely: red (12V ignition), black/white (ground), yellow (safety switch), blue (starter solenoid), brown (charging circuit), and green (neutral safety). Disconnect the battery before probing connections to prevent shorts. Use a multimeter set to ohms to verify continuity; readings above 1Ω indicate corroded terminals requiring cleaning with 600-grit sandpaper.
Trace the starter relay wiring back to the solenoid. The relay coil draws 3A at 12V; if voltage drops below 10.5V during cranking, replace the relay. Check the PTO switch–its two leads (black and purple) must show infinite resistance in the “off” position. Faulty switches often leak current, draining the battery overnight. Test by isolating the purple wire; if voltage persists, the switch is defective.
Inspect the voltage regulator–a three-wire model (white, orange, and blue) regulates output to 13.8–14.4V. Probe the orange wire at idle; readings below 13V signal a failing regulator. Replace with OEM part #794308–aftermarket units lack thermal protection and overcharge at 16V, damaging the battery. Secure all ground connections with star washers; loose grounds cause intermittent failures mimicking wire breaks.
For blade engagement circuits, the red/white wire supplies 12V to the clutch when the lever is engaged. No power? Check the inline fuse (10A, located under the seat). If blown, look for shorts in the yellow/black wire leading to the clutch. Measure clutch resistance–normal range is 5–7Ω. Higher readings mean carbon brush wear; replace the clutch assembly.
Engine Configuration Blueprint Reference
Locate the ignition module near the flywheel–it connects via a single male spade terminal to the magneto coil. Disconnect the spark plug wire before testing resistance: factory specs demand 3,000–5,000 ohms across the coil. Use a multimeter set to 20kΩ; readings outside this range indicate a faulty coil requiring replacement. Check the kill switch continuity: a closed circuit should read near zero ohms when engaged, while an open circuit verifies proper disconnection.
Circuit Path Breakdown
- Battery Terminals: Clean corrosion from 12V post connections with baking soda solution; tighten to 10 Nm torque. Inspect cables for fraying at stress points–the starter solenoid draws 200–300 amps during cranking.
- Charging System: The stator outputs 13.8–14.5V AC at 3,600 RPM. Test between the regulator’s red and white wires; voltages below 12.5V under load signal a failing alternator.
- Lighting Fuse: Replace the 10A fuse with a slow-blow type if lights flicker. Trace the taillight circuit to the brown wire harness connector–pin #4 should link directly to the bulb socket.
For solenoid bypass testing, jump the small trigger terminal to the battery post using a screwdriver–listen for a sharp click. No response necessitates solenoid replacement. Label wire harness connectors during disassembly: white/blue stripe governs the PTO clutch (7–9 ohms), while solid yellow triggers the hour meter. Secure ground straps under bolt heads with star washers; painted surfaces prevent conductivity. Reassemble components in reverse order, verifying all fasteners meet manufacturer torque specs.
Identifying Critical Parts in Your Garden Tractor Electrical Schematic
Begin by pinpointing the ignition switch at the top-left quadrant of the layout–marked as a multi-terminal component with labeled outputs for accessories, battery, and starter relay. Trace the red heavy-gauge lead from the switch to the solenoid; this path carries full voltage and demands 10-gauge wire to prevent resistance buildup. If corrosion is present at the connections, remove the wire and clean terminals with a brass brush, then apply dielectric grease before reattaching.
The fuse block typically resides near the battery box, often obscured by a plastic cover. Each fuse correlates to a specific system: 10A for headlights, 15A for the PTO clutch, 20A for the ignition circuit. Verify amperage against the manual–exceeding ratings risks melting the circuit board or starting electrical fires. Replace blown fuses immediately; use automotive-grade fuses, never improvised metal strips.
Relay and Solenoid Placement
Locate the starter relay adjacent to the engine block–distinguished by a cylindrical shape and four spade terminals. Disconnect the battery before testing; use a multimeter set to continuity mode to confirm closed contacts when energized. A faulty relay emits a faint clicking sound but fails to engage the starter; swap with a known-good 30A relay from an auto parts store for instant diagnosis.
Behind the dashboard, the voltage regulator sits as a small rectangular module with three wires: red (battery), black (ground), and white (generator field). If the tractor struggles to maintain a charge, test the regulator output–normal readings hover between 13.8–14.5 volts at full throttle. Lower readings indicate regulator failure; replace the entire unit rather than attempting repairs, as internal diodes degrade unpredictably.
Check the alternator output at the large stud protruding from its housing, typically 1/4-inch in diameter. Clip the multimeter probes directly to the stud and engine ground–expect 13.5+ volts at 2,000 RPM. If voltage drops below 12.6, inspect the alternator belt tension (deflection should measure 1/2-inch at midpoint) and slip rings for glazing. Polish slip rings with 400-grit sandpaper if shiny; never use steel wool as particles embed in the rotor winding.
Ground straps anchor to engine bolts, visible as braided copper wires terminating in ring terminals. Corrosion here mimics ignition issues–clean mating surfaces until bare metal appears, then secure with star washers to prevent loosening. For persistent electrical gremlins, run a secondary ground wire from the battery negative terminal directly to the engine block, ensuring a 6-gauge or thicker conductor for reliable current flow.

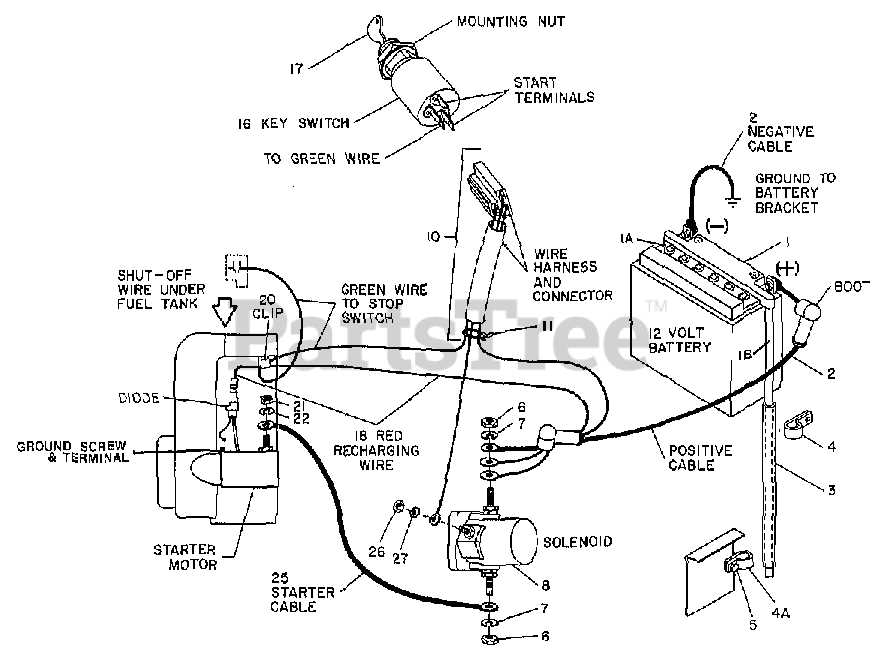

Step-by-Step Wire Connection for Ignition System
Locate the battery’s positive terminal and attach the red ignition cable using a ring connector, ensuring a torque of 8-10 inch-pounds to prevent corrosion. Route the cable through the engine’s protective conduit, avoiding sharp edges or moving parts–secure it with nylon ties every 6 inches. Connect the other end to the solenoid’s “B” post, matching the schematic’s color codes (typically red/yellow stripe). Verify the ground wire (black) is fastened to the engine block with a clean, unpainted surface for optimal conductivity.
Final Circuit Validation
Test the starter circuit by bridging the solenoid’s “S” post to the “B” post with a screwdriver–listen for a crisp, single click indicating solenoid engagement. If multiple clicks occur, inspect the battery voltage (must exceed 12.4V) and starter draw (expect 150-200A under load). Reconnect the ignition switch lead (purple) to the solenoid’s “I” post; confirm voltage drops to 0.5V or less when cranking. Secure all connections with dielectric grease to prevent moisture ingress, then recheck operation under load.
Resolving Electrical Faults in Compact Garden Motor Systems
Check ignition switch terminals for corrosion first. Disconnect the battery, clean contacts with fine-grit sandpaper (400-600 grit), then apply dielectric grease. If current still doesn’t flow, test continuity with a multimeter–resistance should read below 0.5 ohms. Replacement switches typically require an 18-22 AWG wire with crimped spade connectors.
Examine solenoid activation circuits by locating the starter relay near the voltage regulator. Bypass the relay momentarily with an insulated jumper cable–if the engine cranks, the relay or its ground connection needs servicing. Common failure points include pitted relay contacts or a loose ground strap to the engine block. Secure grounds with star washers to prevent oxide buildup.
Voltage Drop Troubleshooting
Measure potential differences across connections under load. A drop exceeding 0.3V between the battery post and starter terminal indicates resistance–clean or replace cables. For persistent no-start conditions, trace the voltage path to the magneto coil with the multimeter’s DC mode. A reading below 12.4V at the coil suggests a faulty rectifier or broken wire in the charging system. Replace aged wiring harnesses if insulation shows cracks under 1A current flow.
Decoding Color Standards in Garden Equipment Electrical Layouts
Always begin by isolating the battery’s red cable–it’s the primary power feed in most configurations. Confirm its path leads directly to the ignition switch without intermediate splices; deviations often indicate aftermarket modifications or errors. The black wire from the battery grounds through the frame, but some models use a brown or brown/white stripe for the engine block connection–verify against the service manual for your unit’s specific year.
Identify the solenoid’s terminals next. The large posts use heavy-gauge cables: one red (input), one purple or purple/yellow (output to starter). Smaller spade connectors on the solenoid follow a strict pattern–yellow (key switch), orange (safety interlock), and light blue (charging circuit). Cross-referencing these against the following table prevents misdiagnosis:
| Function | Primary Color | Stripe | Notes |
|---|---|---|---|
| Ignition feed | Red | None | Fused, 10A typical |
| Starter output | Purple | Yellow | Heavy gauge, avoid tapping |
| Safety PTO switch | Orange | None | Normally closed, broken when engaged |
| Headlight circuit | Dark blue | White | Voltage regulated, 12V only |
| Alternator field | Light blue | Red | Excitation coil, polarity matters |
| Ground reference | Black | White | Engine block, not frame paint-safe |
Trace each wire back to its source connector–every harness plug uses unique terminal spacing to prevent cross-connection. Plugs labeled A, B, and C on the main engine harness correspond to ignition, lighting, and auxiliary circuits, respectively. If a wire’s insulation shows heat discoloration or brittleness, replace it with the same gauge and temperature-rated cross-link polyethylene wire, never PVC.
For charging system troubleshooting, locate the light blue/red-striped wire exiting the alternator; it should register battery voltage (13.8–14.5V) at 3000 RPM with all loads off. A reading below 13.2V signals a failed diode trio or stator short–test components individually using an oscilloscope to discern AC ripple patterns. Static resistance checks alone miss intermittent faults.
Auxiliary circuits like the PTO clutch and headlights share a common power bus but use separate relays. The PTO relay coil (orange wire) draws 150mA when engaged; exceeding 200mA indicates coil winding degradation or mechanical binding. Headlight relays (dark blue/white) are prone to overheating if corroded–clean terminals with contact cleaner, not abrasives, to maintain low-contact resistance.
Disconnect all loads before testing continuity between the ignition switch and accessories. A multimeter set to 200Ω should read 5–20Ω across closed switches–any higher suggests faulty contacts or broken strands in the wire’s copper core. For switched circuits, probe the wire at both ends while toggling controls to catch voltage drops invisible in static tests.
Critical Color Deviations Across Model Years
2015–2018 models replaced the green/white seat switch wire with solid gray–this change coincided with a shift to a digital safety module. Earlier units grounded through the switch; later revisions use the module to sink current. Mismatching wires here prevents engine crank entirely–swap only with parts from the exact year code listed on the valve cover decal.
Harnesses assembled after Q2-2019 introduced a pink-striped wire for LED lighting platforms. This wire carries PWM signals from a dimmer module; never splice into it for accessory power, as voltage spikes can corrupt the module’s firmware. If lighting behaves erratically, replace the entire harness–individual wire replacement risks mismatched impedance.
