Complete Guide to Wiring a Dual Battery System in Your Truck
When configuring a secondary power source for commercial vehicles, prioritize a 24V isolated setup for auxiliary electronics. Connect the primary power supply directly to the ignition switch bypassing unnecessary relays to reduce voltage drop–critical for winches, inverters, or refrigeration units. Use a 100A marine-grade fuse between the main bank and auxiliary source to prevent overloads during high-demand operations.
For split-charge configurations, implement a voltage-sensitive relay (VSR) calibrated to engage at 13.4V. This ensures the secondary source only charges when the alternator output exceeds the resting voltage of a fully loaded system, typically 12.8V. Avoid diode isolators in high-amp applications–opt for a heavy-duty solenoid rated for 500A continuous current to minimize resistive losses.
Wire gauge selection must account for a 3% voltage drop over distance. For a 15’ run powering a 200A load, use 1/0 AWG copper wire with heat-resistant insulation (e.g., GXL or TXL). Ground both power sources to the chassis with 2/0 AWG cables, bonding at a single point to eliminate ground loops. Verify all connections with a thermal imaging scanner after installation to detect resistance hotspots.
Critical loads like engine control modules or lighting systems should tap into the primary circuit via a dedicated busbar. Reserve the auxiliary circuit for non-essential or intermittent loads to prevent deep-cycle damage–AGM or lithium iron phosphate (LFP) cells are recommended for secondary banks due to their 80% depth-of-discharge tolerance.
Installing a Secondary Power System for Heavy Vehicles
Start by connecting the primary and auxiliary power sources with a 2/0 AWG marine-grade tinned copper cable to handle high current loads. Use an isolator switch (e.g., Blue Sea Systems 7610) between the units to prevent parasitic drain–this component must be rated for at least 100A continuous duty. Position the auxiliary unit in a ventilated, secure location, preferably near the engine bay but away from excessive heat or moving parts.
For optimal performance, wire the solenoid to engage only when the ignition is active. A 30A fuse should be placed within 7 inches of the main power source, and a 100A circuit breaker installed in-line between the two units to protect against short circuits. Ground both units to the vehicle’s chassis using separate 4 AWG cables, ensuring each connection terminates at a clean, unpainted metal surface. Avoid daisy-chaining grounds, as this can introduce voltage drop.
To monitor system health, integrate a voltmeter with a shunt (e.g., Victron BMV-712) between the two power sources. The shunt should be placed on the negative terminal of the auxiliary unit, with the meter wired to display real-time amperage draw and state of charge. Below is a reference for cable sizing based on distance and load:
| Distance (feet) | Load (Amps) | Recommended Cable Gauge (AWG) |
|---|---|---|
| 5 | 50 | 4 |
| 10 | 50 | 2 |
| 15 | 100 | 1/0 |
| 20 | 200 | 4/0 |
When selecting connectors, use ANL or MIDI fuses paired with heat-shrink terminals to prevent corrosion. For high-draw accessories (e.g., winches or refrigerators), run dedicated 6 AWG cables directly from the auxiliary power source to bypass voltage sag. Avoid using the factory alternator as the sole charging method for the secondary unit; instead, install a DC-DC charger (e.g., Renogy 20A) to maintain a 14.4V float charge during operation.
Test the completed setup with a multimeter under load. The voltage drop between the two power sources should not exceed 0.2V during cranking or accessory operation. If the auxiliary unit discharges below 12.2V after 24 hours of inactivity, inspect the isolator switch and wiring connections for resistance. Always recharge AGM or lithium-ion units to 14.6V before prolonged storage to extend service life.
Selecting Optimal Power Sources for a Two-Unit Electrical Setup
Start with deep-cycle AGM (Absorbent Glass Mat) units for the auxiliary setup–they handle repeated discharges down to 50% without significant degradation, making them ideal for winches, fridges, or inverters. Pair them with a standard lead-acid starter for the primary circuit; it delivers high cranking amps (800–1200 CCA) at a lower cost while maintaining reliability in extreme temperatures.
Avoid mixing lithium and flooded-cell units in the same system–voltage discrepancies during charging can cause uneven current distribution or premature failure. If lithium is non-negotiable for the secondary circuit, use a dedicated charger with adjustable voltage settings to match the 14.4–14.6V range required for LiFePO4, while keeping lead-acid at 14.7V.
For cold climates, prioritize units with calcium-enhanced plates. They resist sulfation at sub-zero temperatures and require minimal maintenance compared to conventional flooded types. Check the manufacturer’s cold-cranking specs: a starter rated for -18°C (0°F) may lose 30% capacity at -30°C (-22°F).
- AGM: Low internal resistance, spill-proof, vibration-resistant–best for accessories.
- Lead-acid (flooded): Budget-friendly, repairable, but needs venting and fluid checks.
- Gel: Non-spillable, deep-cycle tolerant, but sensitive to overcharging.
- LiFePO4: Lightweight, 3x longer lifespan, but requires a compatible charging system.
Size the backup power source at least 50% larger than the combined load of connected devices. Example: A fridge drawing 60Ah daily needs a 120Ah reserve to avoid deep cycles. For lithium, account for the 80% depth of discharge; a 100Ah LiFePO4 delivers 80Ah effectively.
Charging Dynamics and Isolation
Use a solenoid relay with a 250A continuous rating to separate circuits–this prevents parasitic drains from auxiliary loads when the engine is off. For alternator charging, opt for a smart isolator that adjusts voltage based on unit chemistry, avoiding equalization settings (15V+) that damage AGM or lithium.
Test worst-case scenarios: Measure standby parasitics (e.g., alarms, GPS trackers) with a multimeter–total draw should not exceed 10–20mA. Higher values risk draining the reserve overnight. For lithium, install a low-voltage disconnect (LVD) at 11.5V to prevent irreversible damage.
Replace both units simultaneously, even if one still holds charge. Mismatched ages lead to imbalanced charging, reducing lifespan. After installation, log charge cycles for six months–AGM should recover to full voltage within 24 hours of a deep discharge; lithium typically reaches 100% in under 2 hours.

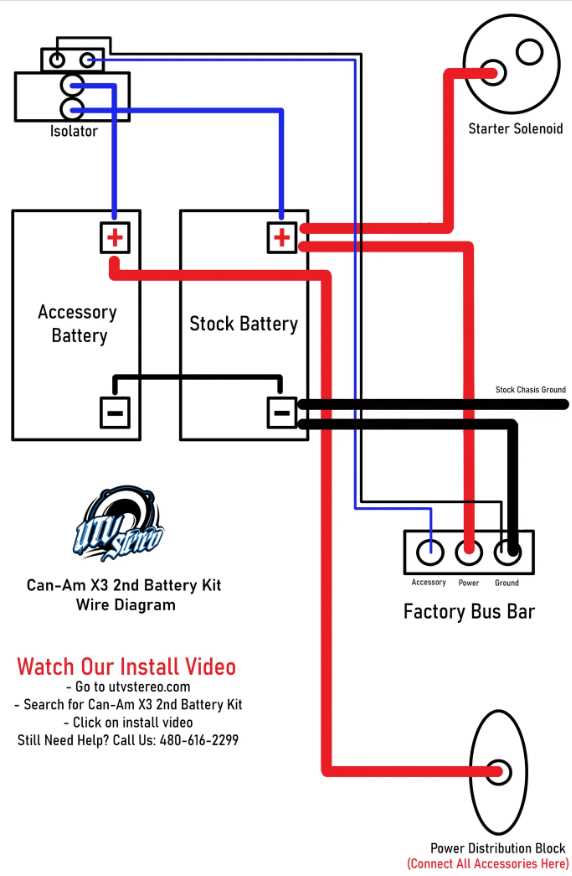

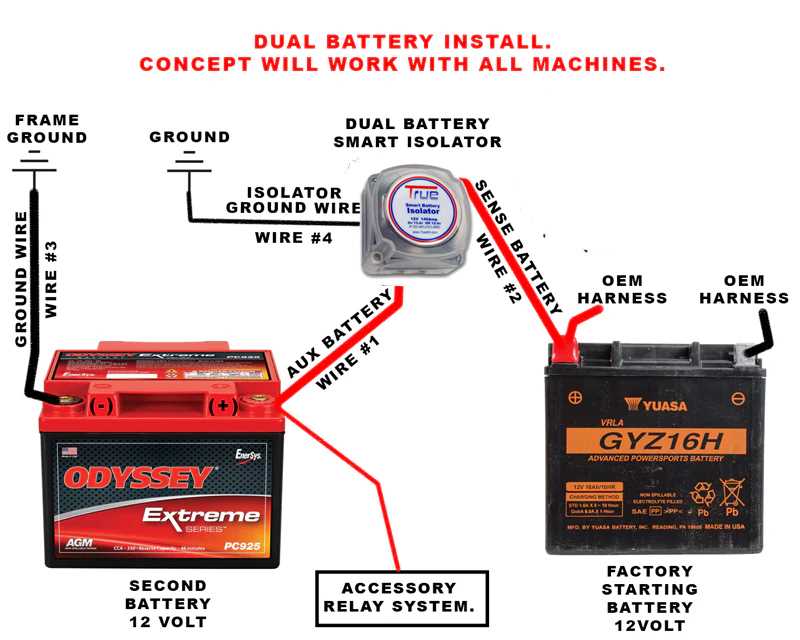

Step-by-Step Schematic for Isolator Installation
Begin by mounting the charge separator near the primary power source, ensuring the distance to the auxiliary unit does not exceed 1 meter. Use 4-AWG cables for the main connections to minimize voltage drop–any longer run requires upgrading to 2-AWG. Secure mounting with vibration-resistant brackets to prevent fatigue failure in high-impact environments.
Connect the isolator’s input terminal to the main power terminal using a 150A ANL fuse within 20 cm of the source. This protects against overcurrent conditions before the separator engages. Route the output to the secondary power source with identical cable gauge, terminating at a dedicated post or busbar to avoid shared paths.
Test the separator’s engagement threshold before finalizing connections. Apply a load drawing 3–5A from the secondary unit and verify the separator activates (typically at 13.2V). If delayed or failed, recalibrate the internal relay or replace the unit–no adjustments exist for failure-prone models like the Blue Sea 7601. Document voltage readings at both sources under load for baseline reference.
Ground the isolator directly to the chassis using a 2-AWG cable, avoiding common grounding points shared with high-current devices (e.g., winches, inverters). Corrosion at grounding sites generates resistance; clean connections with dielectric grease and tighten to 12 Nm torque. For marine-grade installations, use tin-plated lugs to resist oxidation.
Finalize by insulating all exposed terminals with heat-shrink tubing or adhesive-lined sleeves rated for at least 600V. Label each cable with its destination (e.g., “ISOLATOR OUT → AUX POST”) using UV-resistant tags. Validate the setup with a multimeter: no load should show less than 0.2V difference between the main and auxiliary sources at full charge.
Essential Gear and Supplies for Secondary Power System Installation
Gather 10–12 AWG marine-grade cables in red and black–never substitute automotive wire, as corrosion-resistant insulation prevents voltage drops in humid conditions. Pre-cut lengths to 30% beyond estimated routes to account for bends around engine blocks and frame obstacles. Include a 6-gauge ground strap for chassis connections, sized 20% larger than primary leads to handle surge currents.
Secure tinned copper ring terminals (M6, M8, and M10) with heat-shrink tubing containing adhesive lining. Avoid solder-only connections; crimping with a hydraulic crimper (12-ton capacity) ensures gas-tight bonds. For busbars, use nickel-plated copper rated 150A continuous, with 300A peak tolerance to match alternator output.
Install a bi-directional DC-DC converter (12V/24V, 30A minimum) to isolate auxiliary circuits from starter loads. Mount it on a non-conductive phenolic panel (6mm thickness) to prevent accidental shorts. Include a 4-circuit fuse block with 30A ANL fuses for branch circuits–each fuse sized at 125% of expected draw.
Use self-vulcanizing silicone tape for insulating splices in tight spaces; it bonds at –40°C and resists oil/UV degradation. For terminal protection, apply di-electric grease (NLGI #2) after torquing connections to 10 Nm–prevents galvanic corrosion between dissimilar metals. Keep a digital multimeter (True RMS, 0.5% accuracy) readily available to verify voltage at each junction before finalizing connections.
Prepare anti-vibration mounts (rubber grommets, Shore A 60-70) for all components to withstand 50Hz resonant frequencies. Route cables through braided nylon sleeving (expandable to 25mm diameter) to shield against chafing from body panels. Label every circuit with polyimide tagging tape (rated 260°C) for troubleshooting; use a thermal-transfer printer to ensure adhesion under temperature swings.
Store spare parts in static-resistant ESD bags–include 10% extra terminals, 5% additional cable length, and a spare 100A fuse. Before energizing, perform a Megohmmeter test (500V DC) on each cable segment to confirm insulation resistance exceeds 100 MΩ. Final torque checks must be done with a calibrated torque wrench (±3% accuracy) to prevent loose connections under vibration.
