How to Build a Truth Table Logic Circuit Step-by-Step Guide

Start by identifying every input permutation for your function. A three-variable operation yields eight distinct cases–list them vertically in ascending binary order from 000 to 111. Assign each row a clear output column reflecting the desired behavior; even minor omissions here propagate errors through later stages. Use graph paper or dedicated schematics software to maintain neat alignment, especially for complex expressions spanning multiple gates.

Next, group rows where outputs transition from 0 to 1. Circle adjacent pairs with a single differing input–this isolates the variable that changes between them. Repeat for clusters of four or eight, noting redundant variables. Each grouping translates directly into a minimized gate: an AND for the literals retained, OR for combining groups. Prioritize larger clusters first to minimize total gates; four-row clusters almost always reduce circuit footprint.

Label every gate with its resulting boolean term immediately. Mixing generic labels leads to tracing errors during implementation. For common functions–AND, OR, XOR–standard symbols suffice; custom gates or negation bubbles demand explicit notation. Translate each minimized term into a physical gate by connecting inputs where their variables remain unchanged. Insert pull-up resistors on open-collector outputs to avoid undefined states.

Finally, verify each path from inputs to final output against the original matrix. Toggle inputs manually or simulate step-by-step; discrepancies indicate incorrect gate logic or missed groupings. Document parasitic delays–especially between asynchronous transitions–to optimize timing. Store digital schematics as netlists for reuse; standardized naming conventions streamline troubleshooting.

Logical Operation Mapping in Hardware Layouts

Begin by listing all possible input combinations for your system. For a two-input configuration (A, B), generate four rows: 0-0, 0-1, 1-0, 1-1. Three inputs require eight rows, four inputs demand sixteen, and so forth. This enumeration forms the backbone of verification, ensuring no state remains unaccounted for during electrical pathway design.

Assign outputs for each input scenario using clear binary outcomes (0 or 1). For AND gates, only the 1-1 row yields 1; OR gates output 0 solely for 0-0. XOR exceptions mandate 1 only when inputs differ. Store these results in a structured chart to prevent misinterpretation later.

Convert your verification chart into a gate-level schematic by placing symbols for each operation type. Connect inputs directly to the first gate layer, then cascade additional operations as needed. Avoid overlap–keep signal pathways parallel to minimize interference. Label every connection with its corresponding state from your chart to maintain consistency.

Inputs		Output	Operation
A	B	Y
0	0	0	AND
0	1	0	AND
1	0	0	AND
1	1	1	AND
0	0	0	OR
0	1	1	OR
1	0	1	OR
1	1	1	OR

Simulate behavior using a logic analyzer before physical implementation. Feed each input combination into your layout and verify that the output matches your chart. Any discrepancy signals either a flawed enumeration or incorrect gate placement–revisit both until they align perfectly.

Optimize redundant pathways by merging identical operations where feasible. For instance, multiple OR gates with shared inputs can often be consolidated into a single symbol with a common bus, reducing both clutter and potential propagation delays.

Document every modification alongside your verification chart. Annotate why pathways were merged or separated, and which states each adjustment affects. This record becomes invaluable during troubleshooting, sparing hours of re-examination for complex multi-gate assemblies.

Inspect power requirements based on your finalized layout. AND gates drawing 5V for a 1 output may differ from OR gates under identical conditions. Calculate total current draw per state, and adjust supply rails or add buffers to prevent voltage drops that can skew results unpredictably.

Decoding Boolean Expression Charts for Logic Analysis

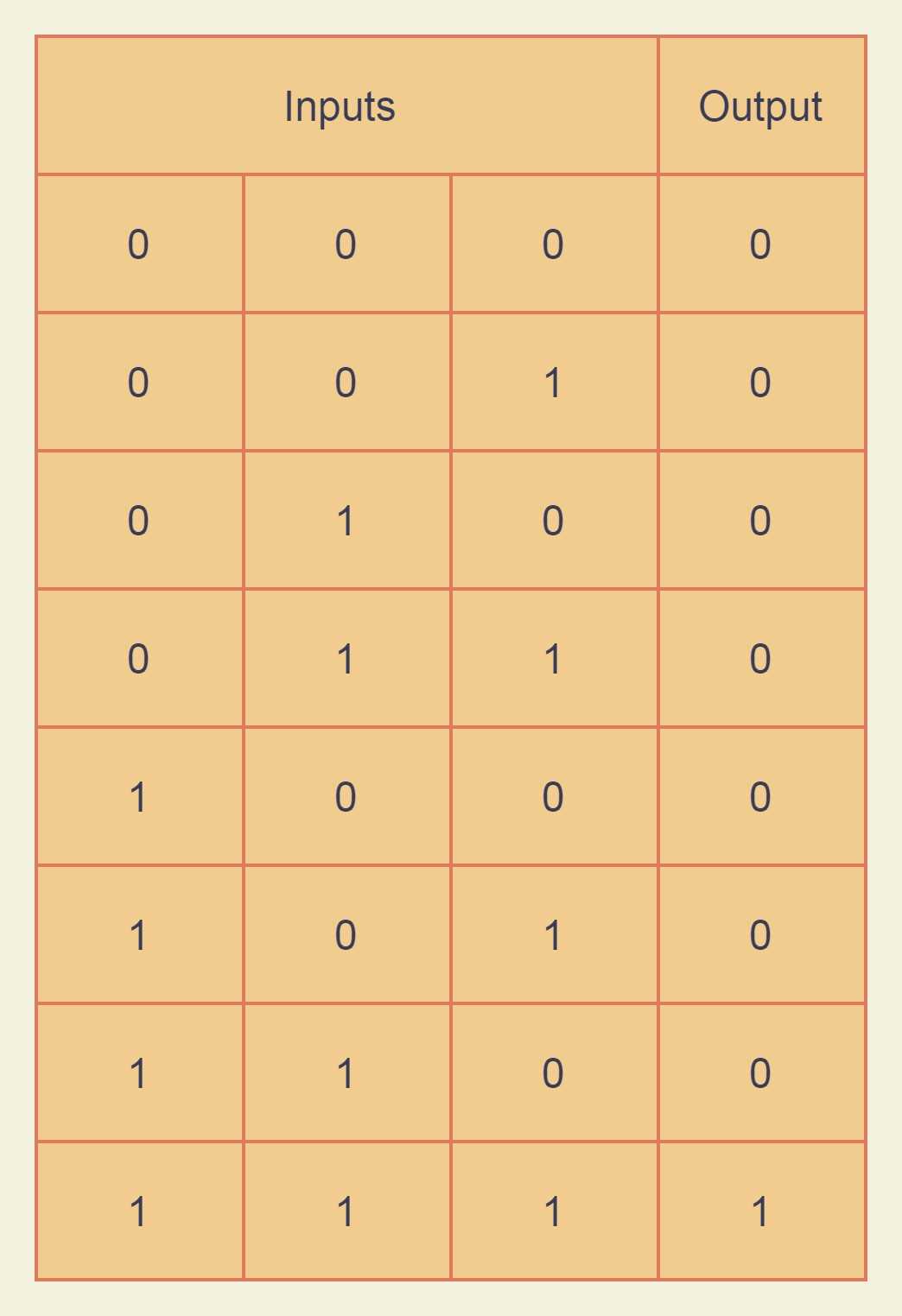

Begin by identifying the input variables at the top-left columns–each represents a binary signal (0 or 1). The rightmost column always lists the output state for every possible combination of inputs. For two inputs, expect four rows; three inputs generate eight, following 2ⁿ where n is the number of inputs.

Examine each row sequentially. Inputs on the left dictate the output on the right–match patterns to recognize fundamental gates: AND shows a single 1 (all inputs 1), OR outputs 1 if any input is 1, XOR returns 1 for an odd count of 1s. Inverters (NOT) flip a single input’s value in the output column.

Verify unexpected outputs by cross-checking inputs against known gate behaviors. A 0 output when both inputs are 1 suggests a NAND configuration; a 1 only when inputs differ points to XNOR. Use this method to reverse-engineer the underlying logic function without relying on symbols.

Isolate rows where the output shifts from 0 to 1 to pinpoint critical transitions–these reveal activation conditions. For example, a 1-to-0 change in a single input while others remain constant can expose dependencies, useful for troubleshooting undefined states in real implementations.

Compare charts for similar systems to detect redundancies or optimizations. A minimalist chart with fewer rows than 2ⁿ indicates don’t-care conditions, where outputs ignore certain input combinations to simplify hardware. Mark these rows–omitted combinations imply logical pruning.

Convert charts into Sum-of-Products or Product-of-Sums expressions by grouping rows with 1 outputs. Each group of 1s defines a product term (input literals); combining terms with OR generates the full expression. For instance, three rows with 1s at outputs A.B and A.B̅ yield A(B + B̅) = A.

Test edge cases by manually toggling inputs and observing outputs. A chart must cover all transitions–missing rows signal incomplete logic design. For multi-output systems, analyze each output column independently before merging results to ensure consistency across the entire system’s behavior.

Step-by-Step Guide to Constructing Logic Schematics from Boolean Matrices

Identify the output column requiring implementation. Extract minterms where the result equals 1 and group them by the count of high inputs. For example, in a 3-variable function F(A,B,C), minterms 1, 2, 4, 7 would cluster as follows: (001, 010, 100) and (111).

Apply Boolean algebra simplification by pairing minterms differing by one bit. Eliminate the variable that changes state, leaving only persistent signals. From the previous clusters, derive product terms: A'B'C, A'BC', AB'C', and ABC reduce to Σ(1,2,4) + ABC, further condensed to C'(A'B + AB') + ABC.

Selecting Gate Components

• OR gates merge consolidated product terms.
• AND gates encode each simplified product clause.
• NOT gates invert inputs where negated signals appear (e.g., C').
• XOR gates optimize pairwise comparisons when terms share complementary variables (e.g., A'B + AB' transforms to A⊕B).

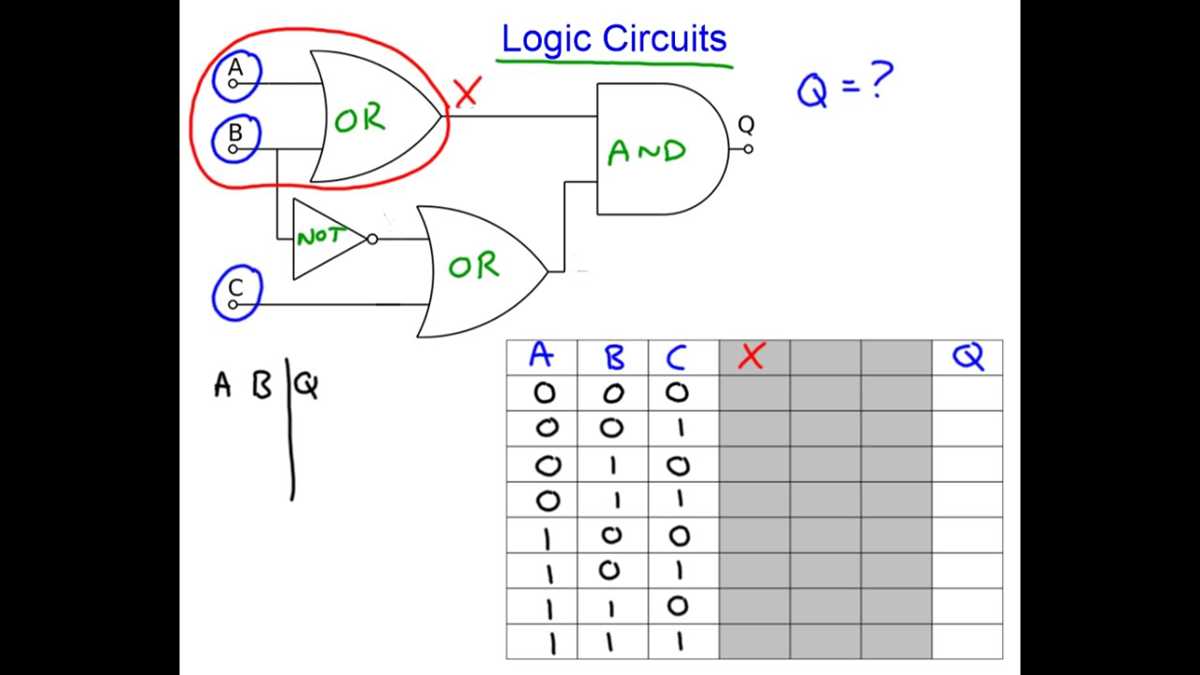

Map each reduced expression to physical components. Begin at the innermost gates–place NOT gates adjacent to inputs needing inversion. Cascade AND gates to form product clauses, then route outputs into a single OR gate. For F = C'(A⊕B) + ABC, wire inputs A and B into an XOR gate, feed its output and C' into an AND gate, then combine with ABC using a final OR gate.

Verification Through Simulation

1. Label every node with binary test vectors covering all input permutations.
2. Propagate signals through each gate stage, checking intermediate truth conditions.
3. Confirm the final output reproduces the original Boolean matrix’s expected states without phantom transitions or signal contention.

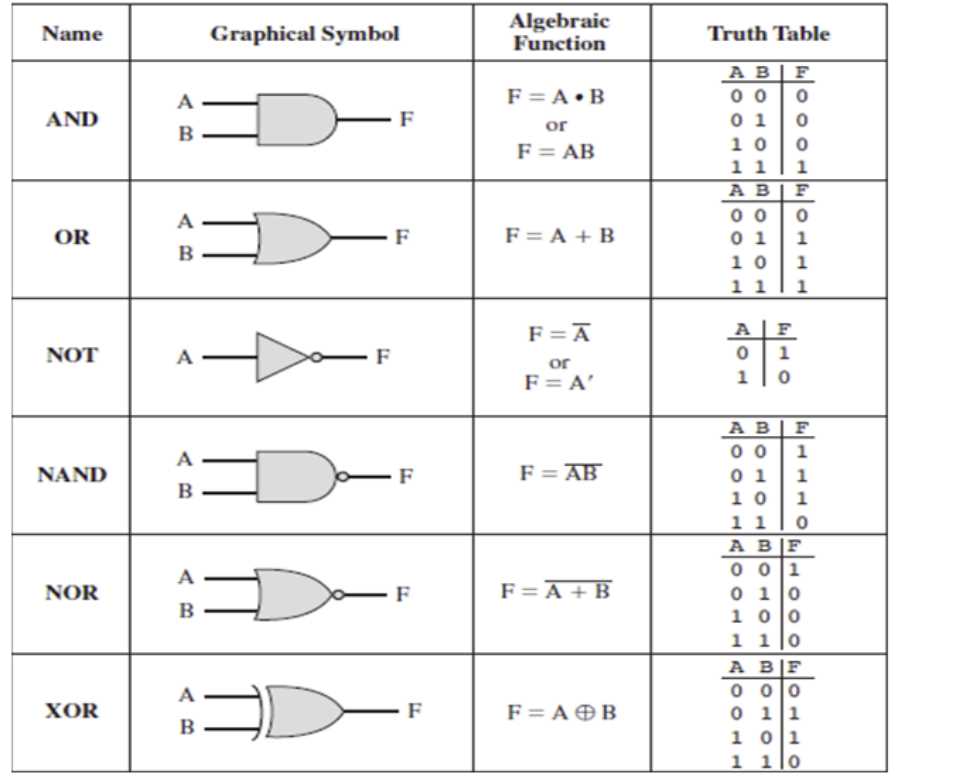

Key Logic Operators and Their Behavioral Matrices

Start by referencing the AND operator as the foundation for combined input processing–its output activates only when all inputs match the high state. For two inputs (A and B), the behavioral matrix presents:

• A=0, B=0: Output=0
• A=0, B=1: Output=0
• A=1, B=0: Output=0
• A=1, B=1: Output=1

Use this operator to filter noise in signal validation systems–combine it with a NOT gate for an inhibitory effect, blocking outputs when any input falls low. Prioritize high-quality gates with low propagation delays in time-sensitive applications to avoid signal corruption.

OR and XOR: Selective Signal Routing

Implement the OR operator for scenarios requiring redundant input detection–its output remains high if any input carries a signal. The behavioral matrix confirms this flexibility:

1. Both inputs low: Output inactive
2. Single input high: Output active
3. Both inputs high: Output active

Pair this with the XOR operator when exclusive routing is critical–the XOR activates only when inputs differ, making it indispensable for parity checking. Replace outdated 74LS-series XOR chips with modern 74HC variants for improved power efficiency while maintaining identical logic behavior.

For NAND and NOR configurations, invert the respective AND/OR outcomes–these dual-purpose operators simplify hardware layouts by consolidating two functions into one component. The NAND’s output grid mirrors:

• All inputs low or mixed: Output high
• All inputs high: Output low

Deploy NAND gates as universal building blocks for complex decision trees; their inverted outputs can cascade into multi-stage logic without needing additional NOT components. Standardize on CMOS technology for NAND gates to reduce heat generation in compact circuit assemblies.

NOT and Buffer Operators: Input Isolation Techniques

Apply the NOT operator strictly for signal inversion or phase correction–its single-input design delivers the inverse state at the output. The behavioral matrix reflects this single transition:

• Input low: Output high
• Input high: Output low

Couple this with a buffer gate (replicating input states) to amplify weak signals or introduce controlled propagation delays. Use Schmitt-trigger versions of NOT gates in noisy environments to prevent false transitions caused by voltage fluctuations.

When designing multi-layer logic networks, reference each operator’s behavioral matrix against the next stage’s expectations. Cross-verify input combinations against expected outputs using simulation software like Logisim–probe intermediate nodes if cascaded outcomes deviate. Document every input-output pair in a standardized format, noting propagation times and voltage thresholds to ensure consistent behavior across prototypes.
