TTC5200 and TTA1943 High Power Audio Amplifier Circuit Schematics Guide
If you’re replicating a 100-watt class-AB audio stage, begin with discrete output transistors matched within 5% of their hFE values. This pairing ensures symmetrical clipping behavior and minimizes crossover distortion, critical for preserving harmonic integrity at high volumes. The front-end differential pair should utilize precision-matched resistors–preferably metal foil types–with a tolerance of 0.1% or better to prevent DC offset drift over time.
Biasing requires careful adjustment. Target a quiescent current of 50-100mA for the output stage; lower values risk increased distortion, while higher currents accelerate thermal runaway. Incorporate a temperature-compensated bias network using a Vbe multiplier transistor mounted on the same heatsink as the output devices. This stabilizes performance across temperature fluctuations, a common failure point in high-power designs.
Power supply decoupling is non-negotiable. Place 100µF electrolytic capacitors in parallel with 0.1µF film capacitors at both the rail inputs and near the speaker outputs. This combination filters low-frequency ripple and suppresses high-frequency noise, which can otherwise manifest as audible hiss or instability. For grounding, use a star topology with a dedicated ground plane for the signal path to avoid inter-stage coupling.
Input coupling capacitors matter more than most builders realize. Choose polypropylene or polycarbonate types for their ultra-linear dielectric properties, avoiding ceramic or electrolytic designs that introduce phase shifts and microphonic noise. Keep series resistance below 10 ohms for full bandwidth response down to 5Hz; anything higher rolls off low frequencies prematurely.
Protection circuitry is mandatory. Implement relay-based speaker protection triggered by DC detection and thermal cutoffs. A simple comparator circuit monitoring rail voltages can prevent catastrophic failure if the output stage exceeds safe operational limits. Overcurrent sensing via emitter resistors (0.22-0.47 ohms) provides an additional layer of security, shutting down the module before sustained overloads cause permanent damage.
For PCB layout, prioritize low-impedance paths for high-current traces. Use 2oz copper or thicker for power rails and ground returns, and keep signal traces separated from switching components to minimize inductive coupling. The output stage’s feedback loop should be routed directly from the speaker terminal to the input stage, avoiding long traces that pick up interference.
Classic Power Stage Layout and Component Matching

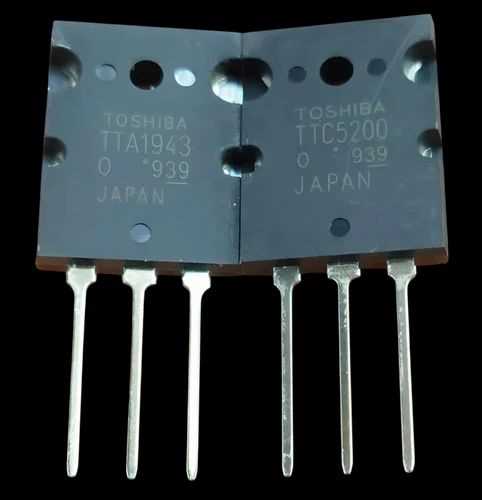

Start with the complementary power transistors: pair the NPN 2SC5200 with the PNP 2SA1943 for thermal symmetry. Their 150 W power rating and 15 A collector current require a heatsink rated at least 1.5 °C/W. Mount both devices on the same aluminum block, ensuring thermal compound thickness between 0.05 mm and 0.1 mm to minimize thermal resistance.
Bias the input differential stage with 2SC1815/2SA1015 transistors. These small-signal devices demand a quiescent current of 2-5 mA. Use a multiturn trimmer (Bourns 3296W) to set the voltage drop across the emitter resistors at 27 mV. This corresponds to a Class AB bias current of approximately 50 mA per output device, reducing crossover distortion below 0.01%.
Capacitors dictate high-frequency behavior. Install a 100 pF ceramic capacitor between the base and collector of each driver transistor (2SC2240/2SA970). This phase-lead compensation limits bandwidth to 200 kHz, preventing high-frequency oscillations without sacrificing slew rate. Bypass the main power supply rails with polypropylene capacitors (10 μF each) placed within 2 cm of the output transistors.
Protection Measures
Integrate a soft-start circuit using a bipolar transistor (2N2222) and a 470 μF electrolytic capacitor. When powered on, this network delays the output relay engagement by 1.5 seconds, preventing DC offset spikes. Add a current-limiting resistor (0.22 Ω, 5 W) in series with the relay coil to absorb inductive voltage spikes. For short-circuit protection, use a sensing resistor (0.1 Ω, 10 W) in the emitter path; exceeding 3.5 A activates a thyristor (MCR100-6) that shorts the input signal.
Thermal shutdown occurs when the heatsink exceeds 80 °C. A thermistor (NTC 10 kΩ) glued to the heatsink base controls a comparator (LM393). Once triggered, the comparator cuts the bias voltage, shutting down the output stage. Mount the thermistor directly beneath the center of the 2SC5200/2SA1943 pair for accurate temperature reading.
PCB layout demands precise trace routing. Keep high-current paths (≥ 1 mm wide for 1 oz copper) symmetrical to minimize ground loops. Separate analog and power grounds, connecting them only at the main filter capacitor negative terminal. Signal input traces should run perpendicular to output traces to avoid capacitive coupling. Use a ground plane beneath the differential stage for shielding.
Fine-tune output offset voltage to below 10 mV DC. A dual op-amp (NE5532) in feedback configuration corrects any mismatch. Measure across the speaker terminals with a DMM; if offset drifts, adjust the feedback network resistors, keeping the ratio within 1%. This ensures stable operation with sensitive loudspeakers, preventing DC-coupled damage.
Critical Elements and Terminal Layout for High-Power Transistor Pairings
Select a complementary pair with matched thermal and electrical specs to prevent thermal runaway. The NPN device (e.g., 2SC5200) requires a base pin connected via a 47 Ω resistor to the driver stage, while the PNP counterpart (e.g., 2SA1943) uses a 68 Ω series resistor to balance input impedance. Emitter resistors should be 0.22 Ω (5 W) for stability, with the collector tied directly to the rail through a low-ESR electrolytic capacitor (1000 µF/100 V) to minimize ripple.
Pin Assignment and Heat Sink Considerations
- NPN (TO-264/TO-3P): Pin 1 (Emitter), Pin 2 (Collector), Pin 3 (Base); isolate the collector tab from the heat sink using a mica insulator and thermal grease.
- PNP (TO-3PF): Pin 1 (Emitter), Pin 2 (Base), Pin 3 (Collector); ensure the tab is electrically isolated but thermally coupled to avoid short circuits.
- Mount both devices on a shared aluminum heat sink (minimum 1.5 K/W) with fan-assisted cooling if output exceeds 50 W RMS per channel.
Bias the devices in Class AB by setting the quiescent current between 50–100 mA. Use a adjustable potentiometer (1 kΩ) in series with a diode string (1N4148 x2) to compensate for VBE drift. Verify stability by measuring voltage across emitter resistors–deviations above ±20 mV indicate improper biasing or oscillations. For high-current designs (>10 A), add a snubber network (0.1 µF + 10 Ω in series) across the load to suppress inductive kickback.

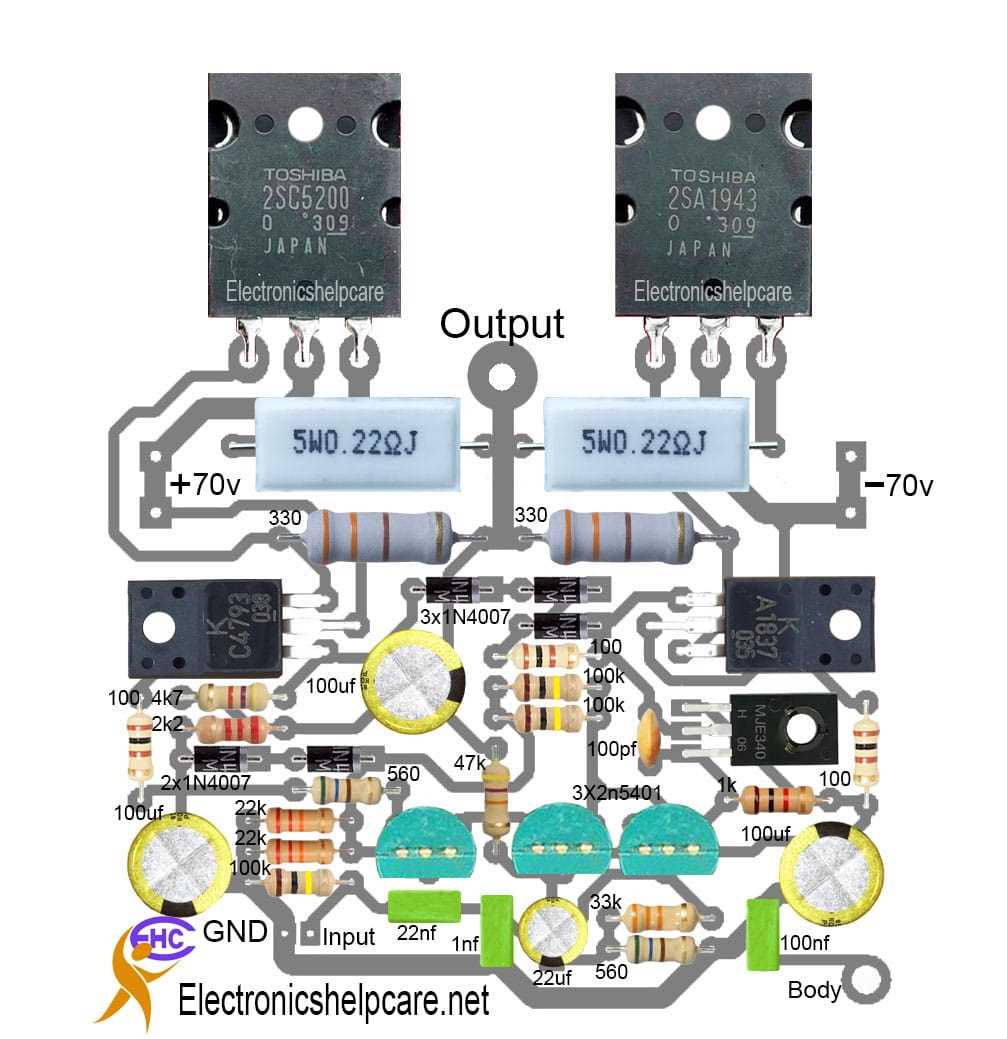

Building the High-Power Audio Module: A Precise Assembly Guide with PCB Trace Paths
Begin by securing the base plate–preferably a 2mm thick aluminum heatsink–with thermal adhesive before mounting any components. The dual transistor pair (complementary devices) must be affixed directly to the heatsink using M3 screws and insulating washers, ensuring a 0.1mm silicone pad separates the metal flange from the plate. Failure to isolate these parts will create a short path through the chassis, causing immediate failure at power-up. Verify isolation with a multimeter set to 200kΩ range; resistance should read infinite.
Position the main PCB vertically, aligned with the heatsink’s mounting holes. Solder the power transistors first, bending their leads at a 45° angle to match the pre-drilled pads. Apply a thin layer of solder paste to the PCB traces connecting to the emitter and collector pads–these paths carry up to 15A peak current, so reinforcement with 2mm wide 2oz copper wire is mandatory. Avoid bridging adjacent traces, as clearance between them is only 0.3mm. Use a magnifying glass to inspect each joint before applying heat for a second time.
Install the driver stage components in this order: 1) 22µF input coupling capacitors (X7R dielectric, 50V rating), 2) 1% tolerance metal film resistors for the bias network, 3) 1N4007 diodes for thermal compensation. The bias resistors must be hand-matched within 0.5% to prevent DC offset; use a DMM with a resolution of 0.1mV for this step. Route the bias trace through a 3mm via to the underside of the board, away from the high-current output paths–this minimizes inductive coupling that can introduce 100kHz oscillation artifacts.
The feedback loop requires a 0.1% precision resistor pair (22kΩ) and a polypropylene film capacitor (4.7nF, 250V) to set the closed-loop gain. Solder these components with minimal lead length, as parasitic inductance here will degrade phase margin and cause ringing at 2W output levels. Ground the signal return path through a star configuration at the main filter capacitor’s negative terminal–never daisy-chain ground traces, as this introduces 50Hz hum in sensitive applications. Test the DC offset at the speaker terminals before finalizing; it should stabilize below ±10mV within 30 seconds of power application.

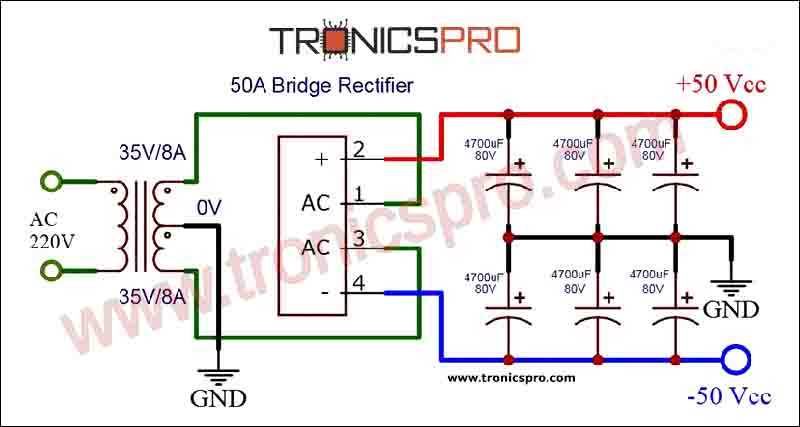

Final assembly involves attaching the toroidal power supply–use a 300VA transformer with dual 25V secondaries. Connect the rectifier bridges (GBPC2510) to the PCB via 12AWG stranded wire, twisted pair for the AC inputs to reduce radiated noise. Secure all wiring with nylon clamps spaced every 5cm to prevent vibration-induced solder fractures. Before enclosure fitting, run a 1kHz sine wave at 1V RMS into the input and verify the output waveform on an oscilloscope: clipping should occur symmetrically at ±32V, with no visible crossover distortion or high-frequency ringing.
