Step-by-Step LED Tube Type B Wiring Guide with Circuit Diagram
Choose single-ended power integration for ballast-free retrofits. This method eliminates dependence on legacy control gear while maintaining full compatibility with existing fixture housings. Ensure the replacement unit’s pins align with the G5 or G13 socket standard–most modern versions support both without modification.
Wire neutral (white) directly to the input side, securing it under the corresponding terminal. Attach the live (black) conductor to the designated switch leg or input line, verifying a tight connection with a torque screwdriver (1.2 Nm) to prevent loosening during thermal cycling. Ground (green/yellow) should bypass the internal circuit entirely–bond it securely to the chassis or housing for fault protection.
For dual-voltage models, identify the input selector–typically a jumper or dip switch–set to 120V or 277V based on local supply. Mismatched settings risk premature failure or flicker. Insulate all exposed connections with heat-shrink tubing rated for 105°C, not electrical tape, to withstand temperature fluctuations in enclosed fittings.
Before energizing, measure continuity across the neutral and live terminals with a multimeter (200 Ω range). Infinite resistance confirms open circuit; 0.2–0.5 Ω indicates correct internal routing. Verify earth continuity separately–readings above 0.1 Ω suggest a weak ground, necessitating retermination.
If dimming is required, use only 0-10V or PWM drivers; standard triac dimmers damage DC-based internals. Check the product datasheet for specific dimmer compatibility–some models tolerate 5% minimum load, others require 30% for stable operation. Always test dimming performance at multiple brightness levels before final installation.

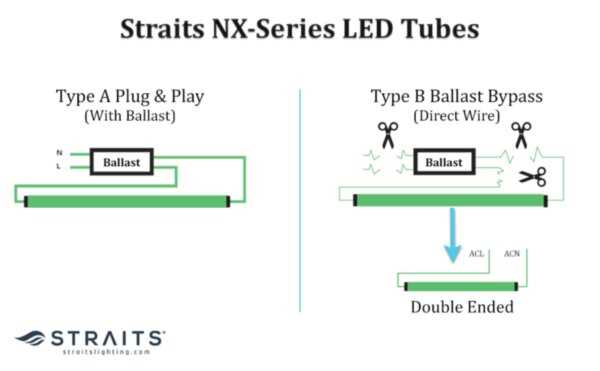

Direct Ballast Bypass Installation Guide for Fluorescent Replacements

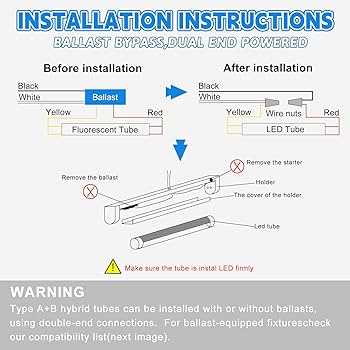

Verify compatibility by checking the luminaire’s label for “UL Type B” certification or “ballast bypass” approval. Non-shunted tombstones are mandatory–replace any shunted sockets before proceeding to prevent overheating. Disconnect power at the circuit breaker, not just the switch, and confirm dead voltage with a non-contact tester. Remove the existing linear source by twisting it free, then detach the ballast cover to expose internal connections.
Identify the input and output wires on the magnetic or electronic driver: black (hot) and white (neutral) on the line side; red, blue, or yellow on the load side. Cut these wires 1–2 inches from the driver, strip ½ inch of insulation, and cap them with wire nuts to isolate them permanently. Twist the incoming hot and neutral directly to the corresponding tombstone terminals–no splicing or jumper wires required. Polarity matters: match the tombstone’s marked terminals precisely.
For single-ended fixtures, route the unconnected end’s wires through the fixture’s channel and secure them with zip ties to prevent contact with metal edges. Double-ended models require an additional jumper between tombstones–use 18 AWG solid copper wire, insulated for 600V. Test continuity with a multimeter before re-energizing: probe each tombstone’s hot-to-neutral; an open circuit indicates installation errors. Reapply power only after securing all covers and verifying no exposed conductors remain.
Start with a 13W replacement in a 2×4 troffer to assess brightness and thermal performance before full retrofit. Opt for 5000K color temperature in workspaces to match natural daylight efficacy; warmer tones (3000K) suit hospitality settings. Confirm the fixture’s housing supports retrofit–vented housings improve heat dissipation, critical for 30W+ replacements. If flickering occurs, recheck tombstone tightness and ensure no residual ballast wires interfere with the new direct connections.
Label the fixture’s door or adjacent wall with “Direct Wire–Ballast Removed” to prevent future maintenance errors. Store the original driver and any removed parts for potential reversion, especially in leased spaces. Document the installation date and replacement specifics (model, wattage, color temp) for warranty claims–most manufacturers require proof of proper wiring for coverage.
Determining Bypass Voltage Specifications for Direct-Wire Linear Lighting
Measure the fixture’s input voltage before selecting compatible bulbs. Most linear fixtures operate at 120V or 277V in commercial spaces, while 208V or 347V systems appear in industrial settings. Use a multimeter across the ballast wiring leads–reading zero confirms a direct-wire setup. Voltage tolerance varies: ±10% for standard installations, ±5% where stability is critical. Check manufacturer specs for the bulb’s acceptable range; exceeding limits risks flickering or premature failure.
For retrofitting, match the bulb’s bypass voltage to the existing circuit. Common configurations include:

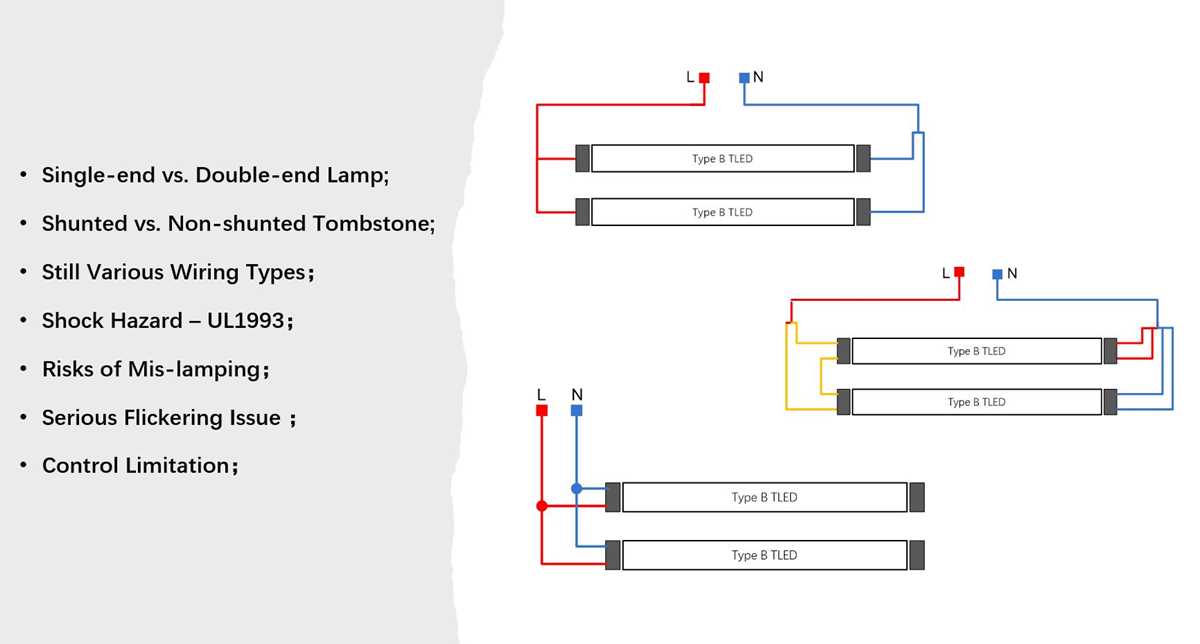

- Single-ended: 120–277V (non-shunted tombstones required)
- Double-ended: 120V or 277V (shunted or non-shunted tombstones)
- High-voltage: 347V (rare, verify fixture labeling)
Incorrect pairing causes:
- Dim output (undervoltage)
- Overheating (overvoltage)
- Ballast damage (if residual components remain)
Verify compatibility with the driver’s max wattage. A 20W linear unit on a 40W ballast circuit works, but a 40W bulb on a 20W circuit overheats. Locate the driver’s label–it lists min/max voltage and wattage. For mixed-use spaces (e.g., 120V/277V), install a dual-mode unit or separate circuits. Avoid universal drivers; their wide range sacrifices efficiency.
Test bypass performance under load. Wire the fixture per schematic, then apply power. Observe:
- No flicker at startup (indicates stable bypass)
- Consistent brightness (voltage drop
- Driver temperature
Log readings at 5-minute intervals for 30 minutes. A rise >5°C suggests mismatch. Replace shunted tombstones with non-shunted for double-ended units–reverse polarity here damages drivers instantly.
Step-by-Step Electrical Setup for One-Sided Power Distribution Linear Illumination Modules
Begin by confirming the fixture’s ballast compatibility–only instant-start or programmed-start models work with single-ended power configurations. Verify the voltage rating on the product label; most units support 120–277V, but deviations outside this range require isolation from the mains via a dedicated driver. Disconnect power at the circuit breaker before proceeding, then use a non-contact voltage tester to ensure zero current in the live wires.
Remove the existing fluorescent assembly by unscrewing the fixture cover and disconnecting the tombstones from the socket leads. Retain the tombstones if they match the G5 or G13 base pin spacing of the new module; otherwise, replace them with compatible holders. For single-ended power, identify the live (hot) and neutral terminals at one end of the channel–label them clearly with high-visibility tape to prevent cross-connection errors during reassembly.
Connect the live wire to the designated input terminal on the module’s built-in driver, typically marked with a line or “L” symbol. Secure the neutral wire to the opposing terminal, ensuring no exposed copper exceeds 1–2mm beyond the connector. Use UL-listed wire nuts or lever-style connectors rated for 600V; twist-and-solder joints are prohibited in recessed or enclosed installations due to heat dissipation risks. For added safety, apply a layer of liquid electrical tape over the connections before tucking the wires into the channel’s wireway.
| Wire Gauge | Max Current (A) | Recommended Terminal Type |
|---|---|---|
| 18 AWG | 7 | Push-in (disconnect) |
| 16 AWG | 10 | Lever or screw |
| 14 AWG | 15 | Screw or crimp |
Reinstall the module into the fixture, aligning the pins with the tombstones at the powered end–do not force the insertion if resistance is felt, as misalignment can damage the base. Snap the cover back into place, then restore power at the breaker. Test the installation with a multimeter set to AC voltage mode: probe the input terminals to confirm the expected supply voltage (e.g., 120V ±5%). If flickering occurs, recheck the neutral connection, as loose links are the primary cause of intermittent operation in single-ended setups.
For dimmable variants, connect the dimmer’s control wire to the module’s marked low-voltage terminal, respecting the 0–10V or PWM specifications listed in the datasheet. Avoid daisy-chaining modules in single-ended configurations–each fixture must be independently wired to the branch circuit for consistent lumen output. Document the setup with photos or a simplified schematic for future reference, noting wire colors and terminal assignments to streamline troubleshooting or upgrades.
Common Mistakes to Avoid When Connecting Ballast-Bypass Illumination Strips
Never omit verifying the fixture’s voltage compatibility before installation. Most retrofit lamps require 120-277V, but legacy systems with 347V or 480V demand specialized products. Using an incompatible voltage risks immediate failure or reduced lifespan. Always cross-check the manufacturer’s specifications against the existing circuit–misreading a single digit can void warranties or cause irreversible damage.
Failing to remove the old control gear entirely is a frequent oversight. Residual components left behind can create heat buildup or electrical interference, shortening the new product’s service life. After disconnecting power, strip the fixture down to its bare conductors, ensuring no fragments of the original module remain. Even a small capacitor fragment can disrupt performance.
Improper Polarity Handling
Reversing line and neutral connections during bypass procedures triggers flickering or premature burnout. While some modern lamps are non-polarized, others rely on correct polarity for optimal operation. Label wires before disassembly and use a multimeter to confirm correct pairing–guesswork here leads to time-consuming troubleshooting later.
Skipping the insulation resistance test is a costly error. After rewiring, measure between live conductors and the fixture’s metal housing; readings below 1MΩ indicate potential shorts. Neglecting this step risks ground faults that may not be evident during initial testing but manifest as intermittent failures under load.
Underestimating thermal management during bypass conversions often results in overheating. Many fixtures lack adequate ventilation, relying on the original gear’s lower heat output. Install heat sinks or limit installation to open fixtures–commercial troffers with sealed lenses require derating by 10-15% to prevent thermal stress.
Disregarding regional electrical codes during DIY conversions can lead to safety violations. Some jurisdictions mandate GFCI protection for bypass installations, while others require UL-certified components. Always check local amendments–what passes inspection in one area may trigger legal penalties or insurance issues elsewhere.
