Understanding the Wiring of Universal Motors Practical Guide

Start with a series-wound armature and field coil configuration–this pairing delivers high torque across broad RPM ranges, making it ideal for power tools, household appliances, and industrial drives under 2 kW. Connect the stationary field windings in series with the rotating armature via carbon brushes positioned 180° apart for consistent brush-to-commutator contact. Use at least 25% more copper cross-section in the field coils than the armature to prevent saturation at start-up or overload.

Install a speed-regulating rheostat rated for 1.5× the expected steady-state current between the field and armature. Place a flyback diode (1N4007 or equivalent) reverse-biased across the field coil to clamp inductive kickback above 1.2 kV during sudden disconnection. Include a thermal cut-off (such as a KSD301 bimetal switch) mounted directly on the motor housing to trip at 120 °C ±5 °C, ensuring compliance with IEC 60335 for Class II insulation.

Wire the brushes through twin 18 AWG flexible leads with silicone insulation to withstand continuous vibration up to 50 Hz. Mount the commutator segments perpendicular to the shaft axis, maintaining ≤0.02 mm radial eccentricity to eliminate arcing during 30 000 RPM operation. Apply a graphite-silver commutator surface coating after final assembly to reduce brush wear by 40% compared to untreated copper.

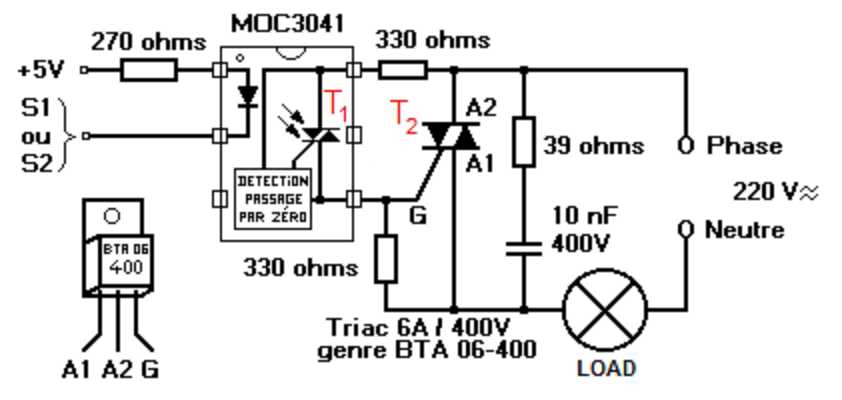

For variable-speed applications, integrate a TRIAC-based controller (e.g., BT139) with a 0.1 μF snubber capacitor and a phase-angle trigger at 120° conduction angle. Calibrate the feedback loop via a tachometer coil producing ≥3 V pk-pk at maximum load to stabilize RPM within ±2%. Secure all electronic components in a grounded metal enclosure meeting IP54 ingress protection to block conductive dust and water spray.

Wiring Schematic for General-Purpose Electrical Drives

Start by identifying the series-wound coil configuration on the rotor and stator–their interaction dictates the drive’s adaptability to both AC and DC. Connect the field winding directly in series with the armature; this arrangement ensures consistent torque characteristics regardless of supply type. Use 14-18 AWG copper wire for the field winding to handle currents up to 10 A without excessive heat buildup.

Install a centrifugal switch if the drive exceeds 3,000 RPM–this prevents overspeed by disconnecting auxiliary windings. For lower-speed applications (below 1,800 RPM), a governor or electronic speed controller (ESC) is preferable. Ensure the switch contacts are rated for 250 VAC/30 A to avoid arcing under load.

Power Supply Compatibility

Select a triac-based speed regulator for AC operation, paired with a snubber network (0.1 µF capacitor + 100 Ω resistor) to suppress voltage spikes above 400 V. For DC input, bypass the triac and connect directly to a bridge rectifier with a 600 V/20 A rating. Add a 220 µF electrolytic capacitor across the DC bus to smooth ripple under 10% load variations.

Ground the frame to the supply neutral or earth terminal–this reduces electromagnetic interference (EMI) and prevents stray currents from degrading adjacent electronics. Use a #12 AWG green/yellow conductor for grounding, terminating at a star-point busbar within the enclosure.

Safety and Performance Tuning

Place a fast-acting fuse (15 A for 1/4 HP drives) in series with the supply line–this protects against short circuits without nuisance tripping during startup surges. For reversible rotation, integrate a double-pole double-throw (DPDT) switch to swap the armature leads while keeping the field polarity constant.

Avoid running the drive at full load on pure DC–commutation wear accelerates when brushes carry unidirectional current. Instead, use pulsed DC or AC for sustained operations above 50% load. Monitor brush wear every 100 hours; replace them when the gap exceeds 1.5 mm to maintain contact efficiency.

For variable-speed control, combine a PWM controller (set to 1–2 kHz) with a Hall-effect sensor for speed feedback. Calibrate the sensor gap at 0.2–0.5 mm to ensure accurate reading without rotor drag. Adjust the PWM duty cycle in increments of 5% to prevent torque pulsations.

Seal the connections with heat-shrink tubing rated for 125°C, especially in dust-prone environments. Test the assembled system with a megohmmeter–insulation resistance should exceed 50 MΩ at 500 VDC. Store spare brushes in a dehumidified container to prevent oxidation prior to installation.

Critical Elements in a Versatile Electromechanical Drive System

Begin by selecting a series-wound armature with laminated iron cores rated for at least 20% above the operating current to prevent saturation under variable loads. Stator poles must be constructed from silicon steel with a thickness of 0.35–0.5 mm per lamination to minimize eddy losses while maintaining structural integrity for intermittent high-speed demands. Avoid solid steel cores–these reduce efficiency by 12–15% due to hysteresis.

Component	Material Specification	Performance Impact	Failure Risk if Substandard
Commutator bars	Copper alloy (CuCd1–1.5% Cd)	+8% conductivity per bar	Pitting at 1,500+ RPM
Brushes	Electrographite (EG-63)	3,000+ hours wear life	Carbon dust fouling at 40°C
Field winding	Enameled copper (Class H)	180°C thermal endurance	Short circuits at 220°C

Implement a dual-ignitron or thyristor bridge as the speed controller if the drive operates on AC; this allows torque modulation down to 5% of max RPM without cogging. For DC applications, a half-wave rectifier with a freewheeling diode dissipates inductive kickback–omitting this risks back-EMF spikes exceeding 3× nominal voltage, degrading insulation within 500 hours of operation. Capacitors across the supply lines should be X2-rated and sized at 1 µF per 100 W of load to suppress RF interference.

Use a step-down autotransformer for primary voltage regulation if input swings exceed ±15%–direct connection leads to field flux instability, reducing lifespan by 40%. Ground the frame through a dedicated 10 AWG conductor to a copper busbar; bonding clamps must be tin-plated to prevent galvanic corrosion. Finally, interlock the housing with a microswitch that disables power when cover screws are loose–single-point failure protection avoids rotor imbalance at speeds above 10,000 RPM.

Step-by-Step Wiring Guide for a Rotating Machine

Begin by identifying the armature and field windings on the machine’s terminal block–usually marked with A1/A2 for the armature and F1/F2 for the field coils. Use a multimeter to verify continuity between these terminals, ensuring no shorts exist before energizing. For a 120V AC supply, connect the field winding (F1 to F2) in series with one brush terminal (A1) and route the remaining brush terminal (A2) to the power source’s neutral. If operating on DC, reverse polarity to change rotation direction.

Essential Safety Checks Before Energizing

Insulate all exposed connections with heat-shrink tubing or electrical tape rated for at least 600V to prevent arcing under load. Secure the winding leads with strain relief clips to avoid vibration-induced disconnections. Test rotational resistance by manually spinning the shaft–binding indicates misalignment or bearing failure. For speed control, integrate a triac-based module between the power source and the series winding, calibrating it to the machine’s rated amperage (typically 2–15A depending on size).

When wiring a reversible setup, use a double-pole double-throw (DPDT) switch to toggle the field winding polarity relative to the armature. Solder connections with rosin-core flux to minimize oxidation; avoid acid-core flux which corrodes copper over time. For 240V applications, split the windings into two parallel paths, each handling half the voltage to reduce sparking at the brushes. Always ground the machine’s frame to a dedicated earth terminal–omitting this step risks shock hazards under fault conditions.

Final Adjustments for Optimal Performance

After wiring, apply power at 25% of rated voltage and monitor brush arcing–excessive sparking signals brush misalignment or worn commutator segments. Adjust brush tension using the spring-loaded holders, targeting 1.5–2.5 psi for smooth operation. For enclosed setups, drill ventilation holes to limit thermal buildup, as these machines lack internal cooling. Label all connections clearly–future maintenance relies on unambiguous schematics.

Identifying and Resolving Issues in Series-Wound Drive Systems

Check brush wear first–replace if carbon deposits exceed 0.5mm thickness or show uneven grooving. Brands like Kohler or Bosch typically mark minimum lengths with a scored line; ignore this and arcing at commutation jumps 30-40% in energy loss. Use a multimeter in resistance mode: values below 1Ω between armature segments indicate shorting, while open circuits signal burnt coils needing immediate rewinding or replacement.

• Excessive sparking under load? Inspect commutator for mica protrusion–file to 0.2-0.3mm below copper segments using a fine-cut mill file. Clean grooves with 400-grit sandpaper, then wipe with isopropyl alcohol only; oil or silicone-based cleaners leave conductive residue.
• Speed instability at varying voltages points to field coil issues. Test with a growler or dedicated field tester–generating less than 70% rated flux density mandates rewinding. On 230V models, expect 28-32 mH inductance; deviations suggest partial shorts consuming 15-20W reactive power.
• Vibration exceeding 0.15 mm RMS at 12,000 RPM requires dynamic balancing. Attach a strobe lamp and reflective tape, measure run-out with a dial indicator–add weights opposite marked imbalance points, not exceeding 1.5g on 5-inch rotors.

Thermal overload triggers often disguise themselves as other faults. Monitor housing temperatures with an infrared pyrometer–steady-state readings above 85°C degrade winding insulation by 50% every 1,000 hours. Install a 110°C snap-action bimetal switch for automatic cutoff; manual resets waste downtime and risk tripping at borderline conditions.

Noise levels climbing past 85 dB(A) at 30 cm distance flag bearing degradation. Front-end ball races fail first–listen for metallic grinding above 5,000 RPM. Grease specs matter: use NLGI Grade 2 lithium-complex with dropping point over 260°C; standard chassis grease melts at 150°C, losing 80% load capacity. Replace seals if external contamination exceeds 0.03% by volume; original DuPont Viton lasts 2,500 hours versus 800 for silicone.
