Building a Simple Unregulated Power Supply for DIY Electronics Projects

For intermediate voltage regulation applications–in applications like small electronics prototypes or lab bench configurations–a transformer, four diodes in bridge formation, and a smoothing capacitor form the minimal viable configuration. Select a step-down transformer with a secondary voltage 20% higher than the required output to compensate for forward voltage drops across diodes (typically 0.7V per silicon diode) and ripple attenuation. For instance, an 18V AC secondary will yield approximately 16V DC after rectification and smoothing when loaded with a 1A current draw.

Capacitor selection directly impacts ripple amplitude: use a minimum of 1000µF per ampere of load current to limit ripple to under 10%. ESR (Equivalent Series Resistance) values below 0.5Ω are critical to prevent excessive voltage sag during transient load changes. Avoid electrolytic capacitors with insufficient voltage ratings; a 35V capacitor is recommended for 24V DC outputs to allow margin for input AC surges (common in grid fluctuations exceeding 10% of nominal).

Diode ratings must handle peak inverse voltages (PIV) double the transformer’s secondary voltage. For a 24V secondary, 1N4007 diodes (with a 1000V PIV) provide adequate headroom, but Schottky diodes (e.g., 1N5822) reduce power dissipation where efficiency is critical. Thermal management for diodes is often overlooked: ensure surface-mount or through-hole diodes have sufficient copper pad area (at least 2 cm² per watt dissipated).

Fuse placement should interrupt current before components exceed derating curves. A 2A slow-blow fuse on the primary circuit protects the transformer from sustained overloads, while a 1.5× load current fuse on the DC side guards against output short circuits. Transient voltage suppressors (TVS) across the DC output clamp spikes exceeding 20% of nominal voltage–critical in environments with inductive loads.

Layout routing minimizes noise coupling: keep AC input traces distant from DC output paths, use a ground plane under the bridge rectifier, and avoid 90° trace angles (45° mitered bends reduce EMI). For multi-layer boards, dedicate the inner layer to continuous ground return paths to lower loop impedance. Double-check polarity markings on electrolytic capacitors; reversed polarity accelerates degradation and risk of catastrophic failure.

For adjustable variants, a trimpot in series with a fixed resistor allows fine-tuning of output voltage without compromising stability. Place the trimpot on the high-voltage side of the voltage divider to minimize quiescent current draw (target 10mA or less). Test under worst-case load conditions–full load with 10% undersized input voltage–to verify dropout margins before final assembly.

Designing a Raw Voltage Source Schematic

Start by selecting a transformer with a secondary winding matching your output needs–common ratings include 9VAC, 12VAC, or 24VAC for most low-current applications. Ensure the transformer’s VA rating exceeds the load’s maximum draw by at least 20% to prevent excessive voltage sag under load. For example, a 1A load requires a transformer rated at 1.2VA or higher. Avoid using transformers with unmarked outputs or those salvaged from unknown sources, as improper voltage can damage downstream components.

Component	Key Specification	Typical Value Range
Bridge rectifier	Forward current (IF)	1A–50A
Filter capacitor	Voltage rating	25V–63V (for 12VAC input)
Load resistor	Power dissipation	1W–10W (depending on current)

After rectification using a full-wave bridge (e.g., W04G or KBPC2510), calculate the reservoir capacitor’s size using C = (I_load × Δt) / ΔV, where Δt is half the AC period (8.3ms for 60Hz) and ΔV is the acceptable ripple–typically 5% of the DC output. For a 12VAC input, expect ~16VDC post-rectification; a 4700µF capacitor at 35V will yield ~1V ripple for a 1A load. Always place the capacitor as close as possible to the rectifier’s output to minimize trace inductance. Omit voltage regulators if ripple tolerance is high, but include a bleeder resistor (e.g., 1kΩ/1W) across the capacitor to ensure safe discharge when idle.

Building a Simple Voltage Source from Scratch

Select a transformer with an appropriate secondary voltage rating–typically 6V to 12V AC for low-voltage applications–to match the DC output needed after rectification. Ensure the transformer’s current rating exceeds the load’s maximum draw by at least 30% to prevent overheating and voltage sag. For example, if the load demands 500mA, use a transformer rated for 650mA or higher. Mount the transformer securely to the chassis or PCB, confirming the primary side connects to the mains input with proper insulation to meet safety standards like IEC 61558.

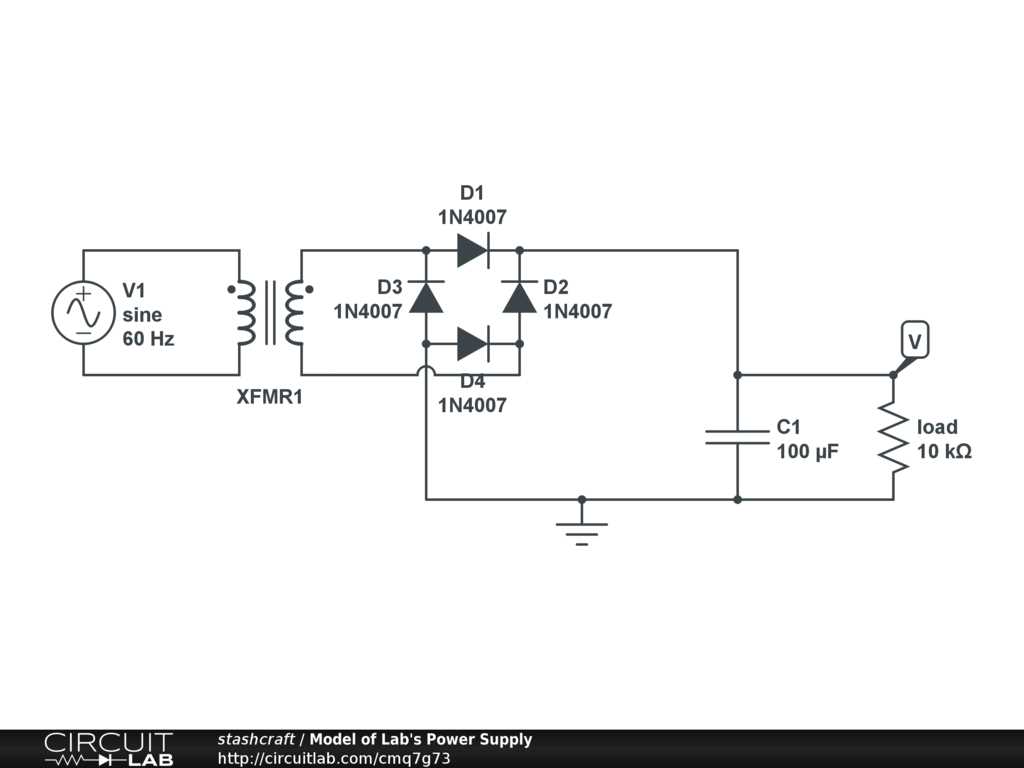

Connect a bridge rectifier–composed of four diodes arranged in a diamond configuration–to the transformer’s secondary winding. Use fast-recovery diodes (e.g., 1N4007 for general use or Schottky diodes like 1N5822 for lower forward voltage drop) to minimize losses. Solder the AC inputs of the rectifier to the transformer’s outputs, ensuring correct polarity: the marked pins on the rectifier’s AC terminals must align with the transformer’s phase. Add a 1000µF to 4700µF electrolytic capacitor in parallel with the rectifier’s DC output to smooth ripples, observing polarity–connect the positive terminal to the rectifier’s positive output and the negative to ground.

Test the assembly with a multimeter: measure the DC output under load conditions–expect 1.414 × AC secondary voltage (minus diode drops)–and check for AC ripple, which should not exceed 10mV peak-to-peak for stable operation. If ripple exceeds tolerance, increase the capacitance or add a smaller 0.1µF ceramic capacitor in parallel to filter high-frequency noise. Secure all components with thermal adhesive or mechanical mounts to prevent vibration-induced failures, and enclose the assembly in a ventilated housing if ambient temperatures exceed 40°C.

Core Elements and Their Functions in Direct Current Sources

Select a transformer with a turns ratio matching required output levels–primary coil ratings must align with mains voltage (e.g., 230V AC), while secondary windings should deliver 1.2–1.5× the target DC value. Core saturation thresholds matter: toroidal designs reduce flux leakage by 20–30% compared to EI types, but cost scales exponentially above 50VA. For safety, fuse the primary with a slow-blow device rated at 120% of nominal current; fast-acting variants risk nuisance tripping during transient surges.

Rectification Essentials

Bridge configurations halve ripple frequency but double forward voltage drop–Schottky diodes (e.g., 1N5822) cut losses to ~0.3V at 3A, outperforming standard silicon by 40%. For full-wave center-tapped setups, common cathode pairs simplify heat sinking but demand higher secondary voltages (+50%) to compensate for each diode’s reverse recovery time. Capacitive filtering involves tradeoffs: 1000µF per ampere yields 10% ripple, but ESR spikes above 50Hz necessitate low-impedance electrolytics (≤0.2Ω) to prevent thermal runaway. Always derate voltage by 30%–a 25V-rated cap suffices for 12V outputs, prolonging lifespan.

Thermal management dictates component spacing: place diodes and capacitors ≥5mm apart for convection cooling; forced air drops case temperatures by 15°C but adds noise. Avoid single-point grounds–star topologies centralize return paths, reducing ground loops by 6dB. For transient protection, MOVs must clamp at 1.5× peak AC voltage, while TVS diodes react in

Calculating Transformer and Diode Specifications for Secure Design

Begin by determining the required output voltage and current for your device. For a secondary winding voltage (V_sec), multiply the desired DC output by 1.414 (for full-wave rectification) and add 1.4V for diode forward drops. A 12V DC output demands a V_sec of approximately 18.4V RMS. Use this formula:

• V_sec = (V_out × 1.414) + 1.4V
• For a 5V output: V_sec ≈ 8.5V RMS
• For a 24V output: V_sec ≈ 35.3V RMS

Select transformers with at least 20% higher current ratings than the load’s peak demand. A 1A load requires a transformer delivering ≥1.2A RMS. For pulsed loads, apply derating factors–capacitive smoothing increases RMS current due to charging surges. Measure actual waveforms with an oscilloscope to confirm calculations. Overestimating prevents overheating; underestimating risks saturation or core degradation. Use this guideline:

1. Calculate RMS current: I_rms = 1.2 × I_load(max)
2. For 500mA loads: transformer must support ≥600mA
3. For 3A loads: ≥3.6A RMS required

Diode Selection Criteria

Choose diodes with peak reverse voltage (V_RRM) exceeding 2× the V_sec peak. A 18V RMS secondary requires diodes rated ≥51V (V_RRM = 18 × 1.414 × 2). For 1N4007 diodes, V_RRM is 1000V–sufficient for most low-voltage designs. Fast recovery diodes (e.g., UF4007) reduce losses but increase cost. Prioritize:

• Forward current (I_F) ≥ 1.5× I_load
• Reverse recovery time (t_rr) 50Hz
• Avoid Schottky diodes below 30V unless leakage current is tolerable

For transformers, match the core material to the application. Silicon steel cores (e.g., EI laminations) suit 50–400Hz; ferrite cores handle >1kHz but saturate at lower flux densities. Calculate VA rating using:

• VA = (V_sec × I_rms) + (magnetizing current × V_pri)
• Example: 12V/2A secondary with 230V primary → VA ≈ 27W

Verify temperature rise using datasheets. Transformers exceeding 60°C under load need derating or heat sinks. For class B insulation, limit winding temperatures to 130°C; class F allows 155°C. Use thermal fuses (e.g., 125°C cut-off) for fail-safe protection.

Safety Margins and Testing

Apply 25% safety margins to all calculated values. A transformer rated for 2A should handle 2.5A indefinitely. Test diodes by applying 80% of V_RRM and monitoring leakage current–it should not exceed 1mA. For transformers, measure primary current without load (magnetizing current) using a milliamp meter. Values above 5% of rated current indicate poor core quality. Final checks:

• Confirm diode case temperature
• Measure output ripple
• Short-circuit test: diodes and transformers must survive 5s at 3× load current
