Practical Guide to Building and Analyzing UPS Inverter Circuit Schematics

Start with a push-pull configuration if your goal is simplicity and efficiency for low-power applications. This setup uses a center-tapped transformer and a pair of switching transistors (MOSFETs or IGBTs) to alternate current flow through each half of the primary winding. For a 12V input, select transistors with a minimum 60V breakdown voltage and a current rating at least 1.5x your load requirements. Pair this with a 10A fast-recovery diode (e.g., 1N5822) on the secondary side to minimize voltage drop during rectification. Avoid generic bridge rectifiers–they introduce unnecessary losses at higher frequencies.

For systems requiring galvanic isolation, incorporate a high-frequency switching stage before the transformer. Use a PWM controller like the SG3525 or UC3843, operating at 50-100 kHz, to drive the switching elements. Ensure the transformer core material is ferrite (e.g., TDK PC40 or EPCOS N87) to reduce hysteresis losses. Calculate the primary inductance using L = (V_in × D) / (ΔI × f), where D is the duty cycle (typically 0.4-0.6), ΔI is the ripple current (aim for 10-20% of the peak input current), and f is the switching frequency. Undersized inductance causes saturation, leading to overheating and transistor failure.

Implement a snubber circuit across each switching element to suppress voltage spikes. A simple RC snubber (e.g., 10Ω resistor + 0.01µF capacitor) across the MOSFET’s drain-source terminals will clamp transients to 1.5x the input voltage. For higher power levels (above 500W), add a resonant clamp using a diode and a small inductor (10-50µH) to absorb energy stored in the transformer leakage inductance. Skip electrolytic capacitors on the primary side–opt for low-ESR film capacitors (e.g., WIMA MKP) rated for at least 2x the peak voltage. Place the output smoothing capacitor as close as possible to the load to reduce EMI.

Test the prototype under full load with an oscilloscope across the switching nodes. Verify the following:

• Rise/fall times of ≤50 ns for MOSFET gates.
• Peak-to-peak ringing on the transformer primary ≤20% of V_in.
• Efficiency ≥85% at nominal load (measure input vs. output power with a true RMS multimeter).

If efficiency drops below 80%, recheck solder joints, recalculate magnetizing inductance, or increase the winding gauge by 2 AWG sizes. For microcontroller-driven designs, isolate the logic ground from the power ground using a 60Ω resistor + 100nF capacitor to prevent noise coupling.

For redundancy, add a bypass relay (e.g., Omron G5LE) triggered by a voltage supervisor IC (TL7705) when the output deviates ±10% from the set point. Log faults via an optocoupler (e.g., PC817) to avoid back-feeding into control circuitry. In battery-backed systems, include a trickle-charge algorithm–limit charging current to C/20 (where C is battery capacity in Ah) and cut off at 14.4V for a 12V lead-acid battery to prevent sulfation.

Building a Reliable Power Conversion Schematic: Hands-On Steps

Start with a push-pull configuration if handling loads under 500W–it minimizes component stress while maintaining clean output waveforms. Select MOSFETs like IRF3205 (140A/55V) or IGBTs such as IKW40N65F5 (40A/650V) based on switching speeds and thermal dissipation needs. Pair them with ultrafast recovery diodes (e.g., MUR1560) to prevent voltage spikes during transitions. Always match transistor ratings to at least 2x your expected peak current to avoid overheating.

For the transformer core, use toroidal ferrite (e.g., TDK PC40) for frequencies above 20kHz; E-I laminations suffice below 10kHz but add weight. Wind primary and secondary coils with a 1:1.5 ratio for 12V-to-230V conversion, using multi-strand wire (e.g., 0.5mm² × 10 strands) to reduce skin effect losses. Secure taps every 5 turns to fine-tune voltage adjustment under load. Test core saturation by monitoring current–spikes indicate insufficient core size.

Implement a PWM controller like SG3525 (adjustable 100Hz–400kHz) or TL494 (dual output) to regulate switching. Set dead time to 500ns–1µs to prevent shoot-through; use a resistor-capacitor network (e.g., 10kΩ + 1nF) on the oscillator pins to stabilize frequency. Connect a 100kΩ potentiometer for voltage feedback to maintain 230V±5% under varying loads. Add optocouplers (e.g., PC817) to isolate control signals from high-power stages.

Heat sinks for semiconductors must align with thermal pads–APG or extruded aluminum with fins oriented vertically for convection. Apply thermal paste evenly (e.g., Arctic MX-6) between surfaces; secure screws with 0.3Nm torque to avoid uneven pressure. Include a 10k NTC thermistor on the heat sink to trigger shutdown at 80°C. Snubber circuits (e.g., 10Ω + 0.1µF polyester) across MOSFETs curb ringing, especially in long cable runs to the transformer.

Load-Specific Tuning and Safety

Capacitive loads (e.g., LED drivers) demand soft-start: use a 470µF electrolytic on the DC bus with a 10Ω series resistor briefly bypassed by a relay. For inductive loads (e.g., motors), add freewheeling diodes (e.g., BYV29-500) across outputs and a 0.1µF snubber to limit back-EMF. Test under 110% of rated load for 30 minutes; voltage sag >10% signals inadequate transformer capacity or resistive losses.

Fuse the DC input at 1.5x nominal current (e.g., 20A for a 300W system) and add a PTC resettable fuse on the AC output. Include varistors (e.g., V275LA40) across output terminals to clamp surges >1kV. Ground the chassis and transformer core separately to a dedicated earth rod–never rely on neutral for safety. Log waveforms with an oscilloscope (e.g., Rigol DS1054Z) at key nodes to verify switching harmonics stay below +3dB to avoid EMI interference.

Core Elements of a Reliable Power Conversion System

Begin with a robust battery bank–lead-acid or lithium-ion–sized for at least 20% more capacity than peak load demands. Avoid deep-cycle models marketed for marine use; they degrade faster under frequent charge cycles. Opt for absorbed glass mat (AGM) types if maintenance-free operation is critical, but lithium iron phosphate (LiFePO4) offers better efficiency and lifespan at 3-5x the cost.

Switching transistors form the heart of the energy transformation process. MOSFETs (IRFZ44N or similar) handle low-voltage, high-current scenarios well, but IGBTs (e.g., HGTG11N120BND) excel in higher-power designs due to lower switching losses. Always pair them with ultrafast recovery diodes (BYV29-400 or equivalent) to prevent backflow spikes that can fry components.

Oscillator stage dictates output waveform quality. A 555 timer IC in astable mode works for rudimentary setups, but a dedicated PWM controller (e.g., TL494 or UC3843) enables tighter regulation and smoother sine-wave approximation. For grid-simulated outputs, a microcontroller-based SPWM generation (using PIC16F877A or STM32) reduces harmonic distortion below 5%.

Transformer selection depends on input/output voltage requirements. A 12V to 230V toroidal transformer (e.g., 200VA) minimizes leakage inductance compared to EI-core types. Verify core material: grain-oriented silicon steel reduces eddy current losses, while amorphous metals cut no-load consumption by 30-40%. Windings should have

Protection mechanisms prevent catastrophic failures. Install a bidirectional TVS diode (P6KE200CA) across the battery terminals to clamp surge voltages, and add NTC thermistors in series with the battery to limit inrush current. Include a 10A fuse on the DC side and a resettable PTC (e.g., MF-R110) for AC outputs. Overcurrent sensing via a hall-effect sensor (ACS712) triggers shutdown at 120% of rated load.

Filtering components shape the final output. A π-filter (two capacitors and an inductor) removes high-frequency noise from PWM signals. Use film capacitors (10µF/400V) instead of electrolytics for AC coupling to avoid dielectric stress. For DC bus smoothing, opt for low-ESR capacitors (Nichicon UHE series) rated at twice the working voltage.

Cooling strategies impact long-term reliability. Passive heatsinks (e.g., extruded aluminum with >2°C/W thermal resistance) suffice for

Monitoring circuitry ensures safe operation. A simple comparator (LM393) with hysteresis monitors battery voltage, triggering alerts at 10.5V (lead-acid) or 3.0V/cell (LiFePO4). For advanced setups, an ADC (ADS1115) measures input/output voltage, current, and temperature, feeding data to a display (OLED SSD1306) or microcontroller for real-time adjustments. Isolate low-voltage sections with optocouplers (PC817) to prevent ground loops.

Decoding Power Conversion Blueprints: A Technical Guide

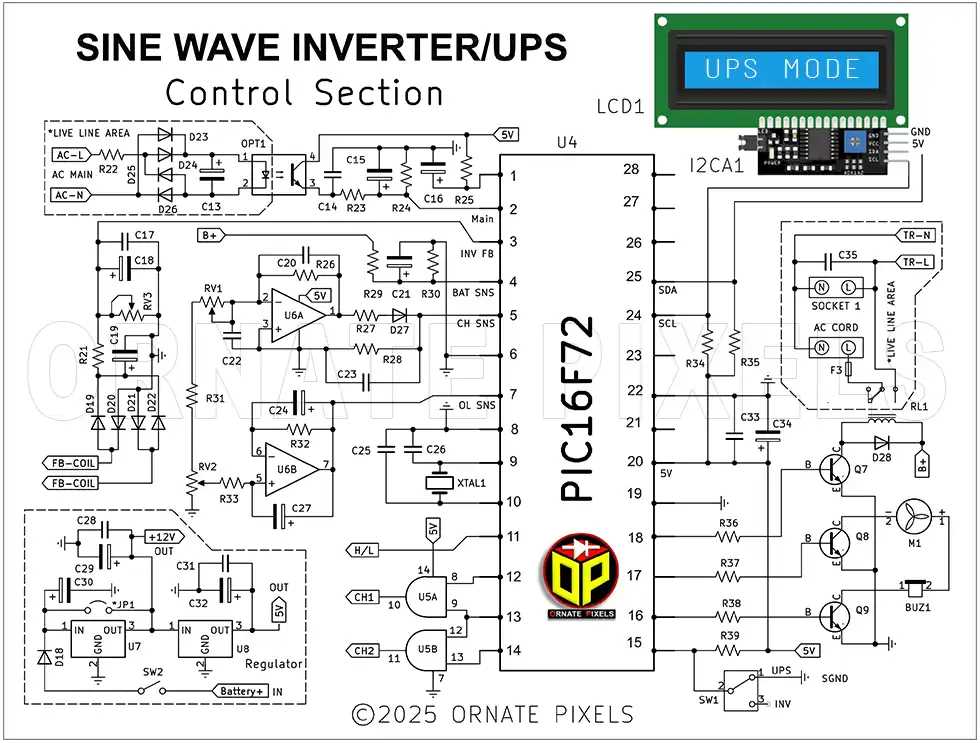

Begin by identifying the signal flow path from input terminals to output connections. Most schematics label DC source points with voltage ratings (e.g., 12V, 24V, 48V) near battery symbols or capacitor banks. Track the polarity–positive traces typically route through switching transistors or MOSFETs before reaching transformer primary windings. Look for current-sense resistors (often marked with values like 0.01Ω or 0.1Ω) positioned in series; these indicate critical monitoring nodes for protection triggers.

Component Interaction Mapping

Trace transformer windings using dot conventions–primary dots align with input polarity, secondary dots correspond to AC output phase. For high-frequency designs, locate gate drivers adjacent to switching elements; these may be ICs labeled with part numbers (e.g., SG3525, IR2110). Note PWM controllers’ feedback loops: voltage dividers from output stages usually feed error amplifiers, while optocouplers isolate low-voltage control from high-energy sections. If a schematic omits component values, cross-reference datasheets for typical ranges (e.g., 10kΩ–100kΩ for feedback resistors, 1µF–100µF for coupling caps).

Decode protection mechanisms by locating symbols for temperature sensors (thermistors), overcurrent trips (fuses or resettable PTCs), and under/overvoltage comparators (LM393, TL431). These elements often cluster near the controller IC’s auxiliary pins. For AC output stages, identify relay coils or TRIACs that switch between battery and grid paths–their control signals usually stem from logic gates or microcontroller ports marked “Bypass” or “Invert.”

Examine ground references critically: high-power grounds should tie to a central star point, not daisy-chain through sensitive components. Look for ground loops–separate analog, digital, and power grounds if the scheme includes isolated regulators (e.g., 7805 for 5V rails). In multi-layer layouts, schematic dots alone won’t reveal ground planes; annotate suspected splits directly on the blueprint to avoid misinterpretation during troubleshooting.

Signal and Waveform Interpretation

Locate test points–typically marked TP1, TP2, or with probe icons–where waveforms should match expected shapes: square waves at switching nodes, sine-wave approximations at output filters. Note frequency specifications on oscillators or resonant tank circuits (e.g., 20kHz–100kHz for switching supplies, 50Hz/60Hz for simulated mains). For pure sine designs, identify the filter network: inductors (often toroidal cores labeled with inductance values like 100µH–1mH) and electrolytic capacitors (220µF–1000µF) smoothing PWM into smooth AC. If the blueprint includes a boost stage, trace the inductor’s diode path to confirm energy storage and release cycles.
