Step-by-Step USB Charging Circuit Design and Wiring Guide
For consistent device powering, integrate a 5V voltage regulator like the LM7805 or AMS1117 at the input stage. This ensures stable output even with fluctuating voltage sources, such as a 9V-12V battery or 18W wall adapter. Place a 100μF electrolytic capacitor across the input and a 10μF ceramic capacitor at the output to filter noise and prevent voltage spikes. Avoid cheaper LDOs without proper heat dissipation–thermal shutdown can disrupt charging cycles.
Add a Schottky diode (1N5817) between the regulator output and the load to block reverse current, protecting sensitive components. For devices requiring fast power delivery, bypass the linear regulator with a buck converter (e.g., MP2307) operating at 500kHz or higher. This reduces heat loss by stepping down voltage efficiently, allowing higher input currents (up to 3A) without overheating.
Include a resettable fuse (PTC, 1.5A-2A) before the connector to prevent overcurrent damage. For data-capable ports, add pull-up resistors (15kΩ to 5V) on the D+ and D- lines to signal a standard power profile. Test the setup with a dummy load (5Ω resistor) to verify voltage stability under 1A draw–fluctuations above ±0.2V indicate poor regulation or inadequate decoupling.

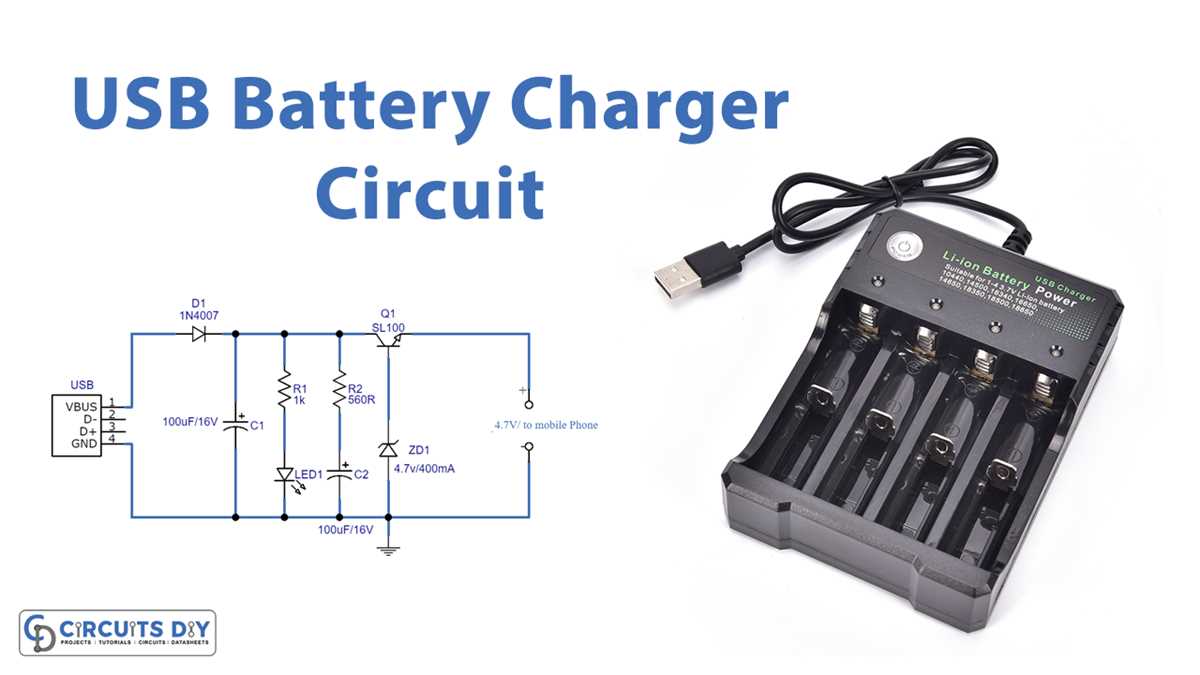

For lithium-ion battery-powered designs, incorporate a TP4056 module with overcharge (4.2V) and overdischarge (2.5V) protection. Use 22-gauge silicone wires for current paths and avoid jumper wires–resistance above 0.1Ω per 10cm path risks voltage drop. Document each component’s footprint (e.g., SOT-223 for regulators) to simplify PCB routing and avoid signal interference.
Building a Reliable Power Delivery Scheme: Step-by-Step
Begin with a Schottky diode rated for 1A minimum (e.g., 1N5817) to prevent reverse current from damaging the source. Connect the anode to the VBUS line and the cathode to a 5V linear regulator like the AMS1117 or MCP1700–both handle 1A continuous draw with thermal shutdown. For higher efficiency, replace the linear regulator with a switching converter (TPS62743 at 3.3V or TPS563201 at adjustable outputs). Ensure the inductor’s saturation current exceeds 1.5× the maximum load; a 10μH coil with 2A rating (SLF7032T-100M1R0) suffices for 5V/1A applications.
Component Selection and Layout
| Parameter | Recommended Value | Notes |
|---|---|---|
| Input Capacitor | 22μF (X5R/X7R, 10V) | Place within 2mm of regulator input pin |
| Output Capacitor | 10μF (tantalum or ceramic) | Critical for stability; ESR <100mΩ |
| Feedback Resistors | 10kΩ + 20kΩ (1% tolerance) | Adjust for 5V output; ratio = (Vout/Vref)-1 |
| PCB Trace Width | 2mm (1oz copper) | For 1A current; wider for higher loads |
Thermal vias under the regulator pad (0.3mm diameter, 2mm pitch) improve heat dissipation. For lithium cells, add a TP4056 module with overcharge (4.2V) and overdischarge (2.5V) protection. Test with a dummy load (e.g., 5Ω 10W resistor) while monitoring ripple (target <50mV pp) with an oscilloscope before connecting sensitive devices.
Key Elements of a Power Delivery Scheme for Portable Devices
Start with a 5V voltage regulator–either linear (LDO) or switching (buck converter)–to ensure stable output regardless of input fluctuations from a 9V or 12V adapter. Linear regulators like the AMS1117 dissipate excess energy as heat, so pair them with a 10-22μF output capacitor to prevent ripple at load currents above 500mA. Switching regulators, such as the MP2307, achieve 90%+ efficiency but require careful PCB layout: route the input capacitor close to the IC’s VIN pin and keep the inductor’s traces short to minimize EMI.
Integrate a current-limiting resistor or dedicated IC like the TPS25490 to protect against overcurrent. Values between 1Ω and 2.2Ω work for most applications, but calculate based on maximum desired load (e.g., 1.5A requires ~0.67Ω). For dual-port designs, use a multiplexer like the FDC6331N to toggle power between ports without exceeding total rated current.
Protection and Signal Integrity
Add a Schottky diode (e.g., 1N5819) in series with the positive rail to prevent reverse polarity damage if the power source is misconnected. For transient protection, fit a 6.8V TVS diode (SMBJ6.8A) across the input terminals–this clamps voltage spikes from sources like automotive outlets where transients can reach 60V. Data line resistors (27Ω) shield the host device from static discharge during insertion.
Include a 10kΩ pull-down resistor on the D+ and D- lines to force the device into a standard 500mA mode. For high-current modes (1.5A+), connect D+ and D- through a voltage divider to create a 2.0V differential–most smartphones detect this as a signal to draw higher current. Use precision resistors (±1%) to maintain the 2.0V threshold within ±0.2V tolerance.
Thermal protection is critical for enclosed designs. Attach a 10kΩ NTC thermistor near the power transistors or inductors; route its output to a microcontroller ADC or comparator. If temperature exceeds 85°C, trigger a shutdown via a MOSFET (e.g., Si2302) until the device cools to 50°C. This prevents solder melting and PCB delamination.
Output filtering demands at least two capacitors: a 22μF X5R ceramic capacitor (low ESR) placed within 5mm of the load, and a 100μF electrolytic capacitor for bulk energy storage. Avoid tantalum capacitors–they fail catastrophically under voltage spikes. For high-frequency noise suppression, add a 1μF film capacitor in parallel with the ceramics.
Advanced Features for Versatility
Implement a USB Type-C connector with a CC line pull-down resistor (5.1kΩ) to negotiate power delivery up to 15W. For reversible connectivity, use a FUSB302B PHY or similar controller to handle protocol communication. This enables compatibility with laptops and power banks requiring 9V/2A or 12V/1.5A profiles.
For battery-powered hubs, add a Li-ion charging IC like the MCP73831. Set the charge current with a single resistor: 1kΩ yields ~1A, sufficient for a single cell. Include a charge status LED (red/green) to indicate charging/full states. Always position the IC’s thermal pad over a ground plane to dissipate heat efficiently.
Building a 5V Power Delivery Adapter: Wiring Guide

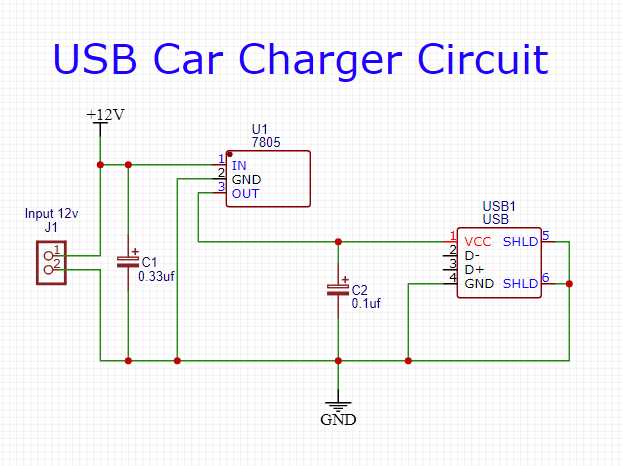

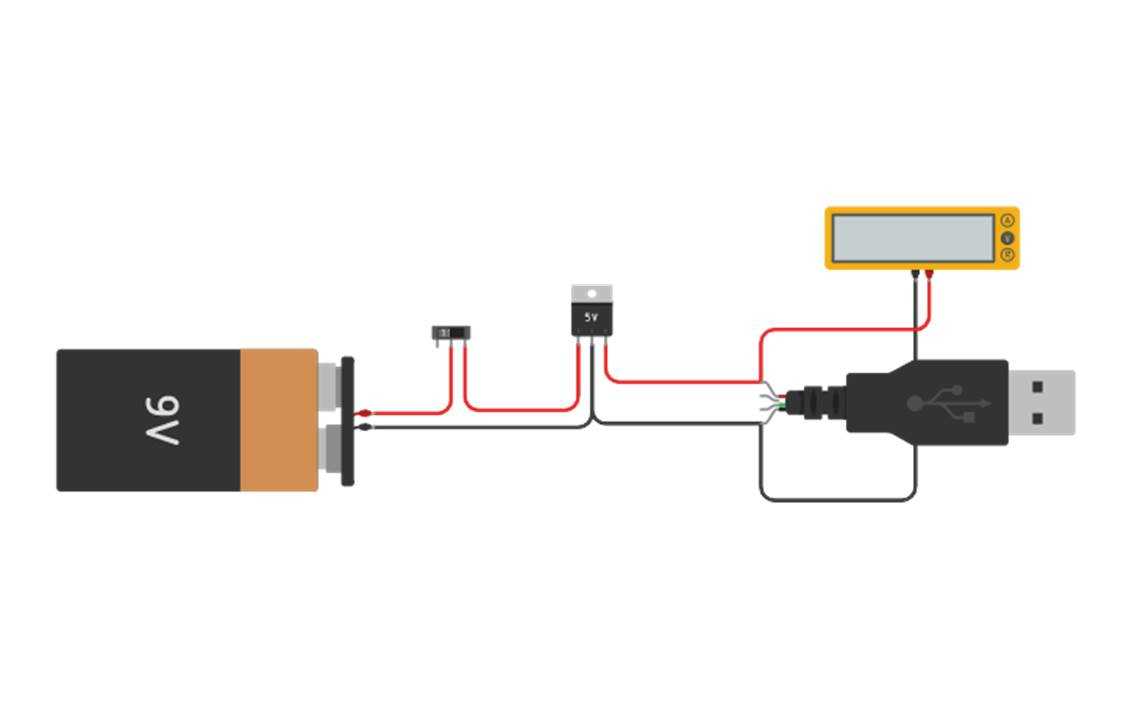

Begin by sourcing a 7805 voltage regulator–its TO-220 package simplifies heat dissipation for currents up to 1A. Connect the input lead to a 9V–12V DC source, such as a wall adapter or lead-acid battery, ensuring polarity matches the regulator’s pinout. The middle pin outputs stable 5V, while the third ties to ground.
Place a 1000μF electrolytic capacitor between the input pin and ground to suppress voltage spikes. On the output side, solder a 220μF capacitor in parallel to smooth ripple. Test with a multimeter–voltages outside 4.8V–5.2V indicate faulty connections or insufficient input.
For overcurrent protection, insert a 1A fuse in series with the positive input line. If higher amperage is needed, swap the 7805 for a LM2596 buck converter–adjust its potentiometer to 5V while monitoring output. Avoid exceeding 3A; switch to a heatsink-mounted LM7805 or a dedicated module like the MP2307.
Attach a Type-A female port to the output–center pins carry power (+5V, GND), while the outer data pins can short with a 27Ω resistor to signal “fast mode” to devices. For dual-port builds, replicate the wiring but isolate grounds with 1N4007 diodes to prevent backflow.
Secure all joints with 60/40 rosin-core solder–lead-free variants require higher temperatures. Wrap exposed conductors in heat-shrink tubing or electrical tape. If using perfboard, keep traces >2mm wide for 1A loads; PCB layouts benefit from ground plane design.
Verify transient response with a 10Hz–1kHz square wave generator–output should maintain . Devices drawing 2A+ adapters–upgrade to a TPS5430 or 60W GaN module.
Label the enclosure with input/output voltages and max current. For outdoor use, seal with silicone conformal coating. If connecting to a car’s 12V socket, add a TVS diode (P6KE12A) across the input to absorb load-dump spikes.
Replace passive regulators with synchronous buck converters (e.g., SY8201) for >90% efficiency. Flash custom firmware on a USB PD trigger board to negotiate 5V/3A outputs from power banks. Always power off before modifying live connections–capacitors retain charge.
Calculating Resistor Values for Current Limiting
Begin by determining the maximum allowable current for your load. For standard 5V power rails, a safe upper limit is typically 1.5A–exceeding this risks overheating or damage. Use Ohm’s Law (R = V / I) with a target current below this threshold. For example, if your device draws 0.8A, a resistor value of R = 5V / 0.8A = 6.25Ω ensures stability. Round up to the nearest standard value (e.g., 6.8Ω) to avoid precision issues in production.
Factor in resistor power dissipation to prevent failure. The formula P = I² × R calculates wattage; for 0.8A across 6.8Ω, P = 0.8² × 6.8 = 4.35W. Select a resistor with a power rating at least 50% higher (e.g., 7W ceramic or wirewound types) to handle transient spikes. Carbon film resistors under 2W are unsuitable for currents above 0.5A due to thermal runaway risks.
Key Parameters to Verify
- Tolerance: ±5% (e.g., 6.8Ω ±0.34Ω) is sufficient for most applications; tighter tolerances (±1%) are unnecessary unless precision is critical.
- Temperature coefficient: Choose resistors with TCR < 100 ppm/°C (e.g., metal film) if operating near ambient thresholds (0°C–60°C).
- Package size: For 7W dissipation, use at least a 12mm × 20mm axial or TO-220 package to avoid heat buildup.
Test the calculated resistor under real-world conditions. Connect an ammeter in series with the load and power source to confirm current remains within 10% of the target (e.g., 0.72A–0.88A for 0.8A nominal). If current drifts beyond this range, recheck solder joints, resistor tolerance, or parasitic resistance in wiring. For adjustable loads, replace the fixed resistor with a 10Ω potentiometer and fine-tune while monitoring current.
For multi-branch designs, isolate each branch with a dedicated resistor. Parallel loads sharing a single resistor will experience uneven current distribution–use Kirchhoff’s Current Law (ΣIin = ΣIout) to calculate individual resistors. Example: Two branches drawing 0.4A and 0.6A require resistors of R1 = 5V / 0.4A = 12.5Ω and R2 = 5V / 0.6A = 8.3Ω. Always prioritize derating by 20% for long-term reliability.
