How to Wire Utility Trailer Lights Step-by-Step Guide with Diagram

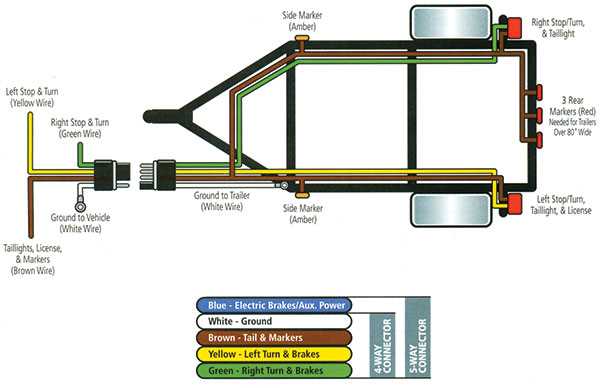

Start with a 4-way flat connector for standard setups. Use 16-gauge wire for basic signal and brake loads–it handles 10 amps continuous without overheating. For heavier-duty loads, upgrade to 12-gauge; it safely carries 20 amps, ideal for extended LED clusters or additional stop fixtures. Always match wire color to function: brown (running signals), yellow (left stop/turn), green (right stop/turn), white (ground). Ground must be solid; use a ring terminal crimped to a clean metal surface and secured with a self-tapping screw.
Mount a modular box between the towing frame and load platform. Inside, install a 6-way block with labeled slots: two extra slots for auxiliary loads like reverse sensors or license illumination. Route wires through split-loom tubing to prevent abrasion. Secure tubing every 18 inches with nylon ties. Use waterproof butt connectors for splices–crimp, solder, then seal with heat-shrink tubing containing adhesive liner.
A surge protector with a built-in diode is critical for LED loads. Install it inline on the 12V hot feed before the block. Diodes prevent backfeed that can damage towing vehicle fuses if loads exceed 60 watts total. Verify polarity with a multimeter–negative probe on ground, positive on hot wire; expect 12.6V with engine off, 14.2V running. Test each function with a circuit tester: turn signals should flash at 90 cycles per minute, brake loads illuminate instantly, and running beams stay steady.

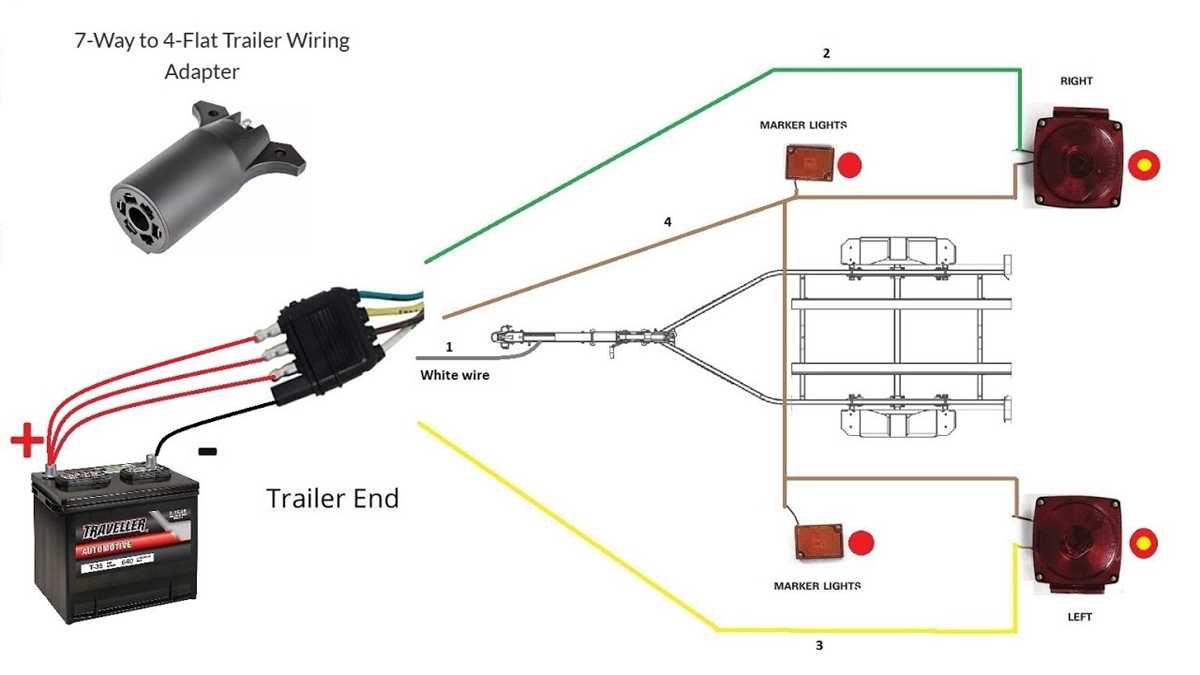

Extend circuits with a pigtail adapter for non-standard plugs. For 7-way round connectors, map pins as follows: center (auxiliary), top (main hot), right (reverse sensor), bottom-right (electric brakes), bottom-left (ground). Avoid splicing into towing vehicle wiring–draw power from a dedicated fuse slot rated 5 amps above total load requirement. Use a relay if total draw exceeds 25 amps; coil trigger from an existing circuit, load contacts from the battery’s main fuse block.
After connecting, spray all junctions with corrosion inhibitor. Wrap the block in waterproof tape, overlapping 50% per layer. Conduct a rain test: hose down at 45° angle for two minutes. Recheck voltage drops–acceptable loss is under 0.5V per circuit. If loss exceeds 1.0V, inspect terminals for poor crimps or loose connections. Seal the block cover with dielectric grease on the gasket.
Connecting Your Haulage Equipment Electrical System
Begin by identifying the primary junction point on your towing vehicle–typically a 4-pin or 7-pin connector located near the rear bumper. A 4-pin setup handles basic functions: running lamps (brown wire), left/right turn signals and brake lamps (yellow/green wires), and ground (white wire). For heavier loads, a 7-pin adds reverse lamps (purple), auxiliary power (blue), and electric brakes (black). Verify pin assignments with a multimeter before connecting; manufacturers occasionally swap color codes.
Use tinned copper wire (minimum 16-gauge) for all connections–standard copper corrodes quickly under road vibration and moisture. Crimp connectors with heat-shrink tubing for waterproof seals, then solder joints for longevity. Avoid twisted wire splices; they introduce resistance and fail under 12-volt systems. Route wires through protective loom secured every 18 inches with zip ties, avoiding suspension components and sharp edges. Ground each circuit directly to the frame at a bare metal spot, scraping paint first.
- Test each circuit individually before final routing. Turn signals should flash 60-120 times per minute; anything faster indicates high resistance.
- Load resistors (50W 6-ohm) prevent hyper-flashing when LED lamps replace incandescent.
- Relays (30/40-amp) isolate high-draw components like electric brakes, protecting the vehicle’s computer.
- Yellow: Left turn/brake
- Green: Right turn/brake
- Brown: Tail/marker lamps
- White: Ground
For European trailers, adopt ISO 1185 (7-pin) or ISO 3732 (13-pin) standards–yellow (indicator), blue (fog), red (brake), green (reverse). Convert pinouts with adapters, not rewiring; mixing systems risks computer faults. Check tow vehicle’s fuse ratings–most draw 5-15 amps per circuit, but brake controllers demand dedicated 20-30 amp fuses.
Document each connection with photographs before sealing junctions. Store diagrams specific to your vehicle make/model in a waterproof pouch under the driver’s seat. Replace all connectors every three years, regardless of visible wear–degraded contacts cause intermittent failures that strand roadside. Carry spare fuses (5A, 10A, 20A), a spare bulb kit, and a 12-volt test light for quick diagnostics.
Selecting the Optimal Harness Set for Your Cargo Hauler

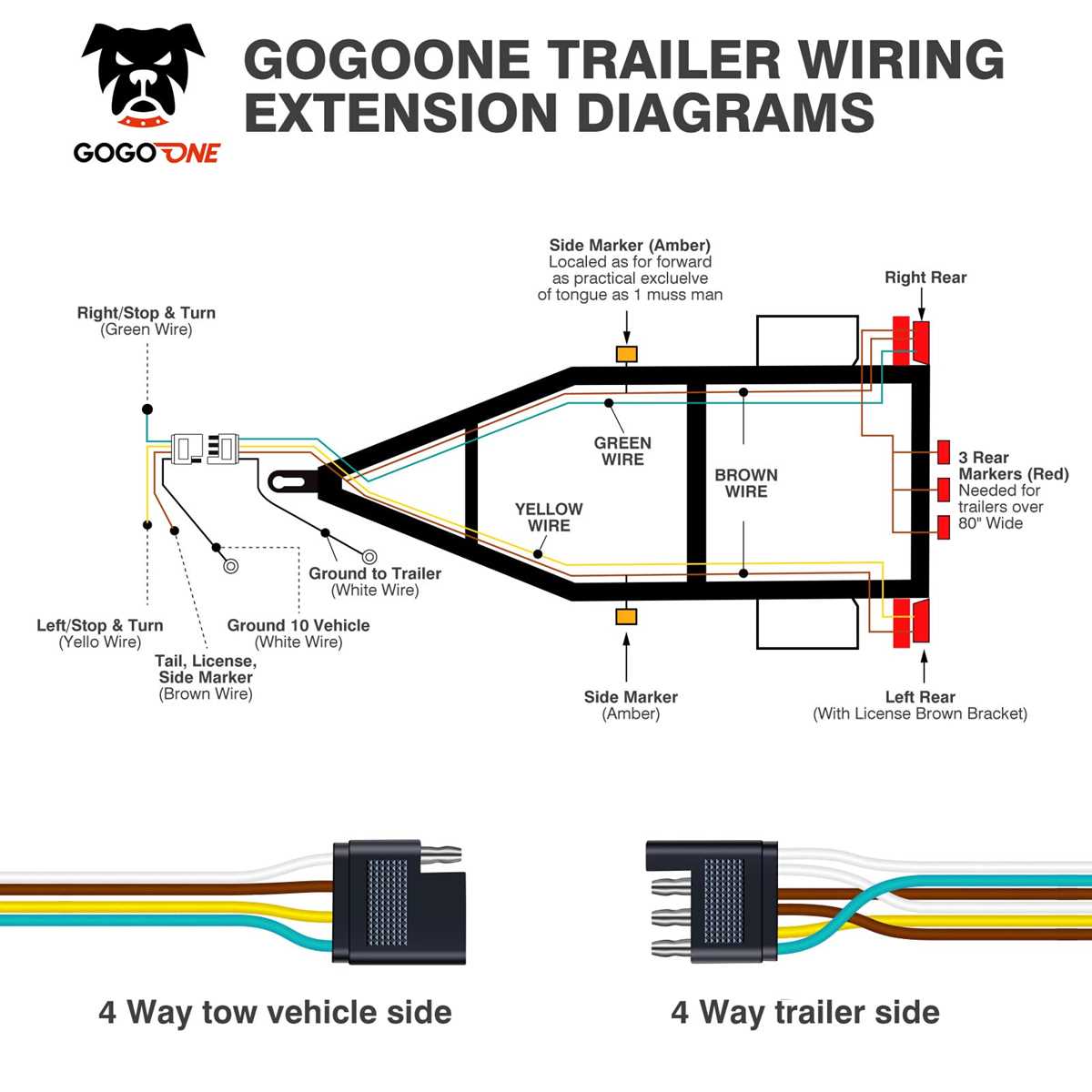

Start with a 4-way flat connector kit if your load carries basic signal functions–brake lamps, turn indicators, and running markers. Kits from reputable brands like Hopkins or Curt deliver corrosion-resistant terminals and pre-stripped wires (16-gauge minimum) sealed in UV-resistant thermoplastic tubing. Verify the included connectors match your tow vehicle’s factory plug: SAE J1128 covers 4-way flat, while SAE J1239 applies to 7-way round configurations. Avoid universal kits that require manual splices–pre-assembled lengths (12–25 ft) eliminate guesswork and reduce voltage drop over distance.
Comparing Key Kit Specifications
| Feature | 4-Way Flat | 7-Way Round |
|---|---|---|
| Wire Gauge | 16 AWG | 14 AWG (auxiliary circuits) |
| Max Amperage | 10A | 20A (battery charge circuit) |
| Typical Uses | Small enclosed loads, garden carts | Heavy-duty platforms, RVs, livestock carriers |
| Installation Time | 15–30 minutes | 45–90 minutes (requires relay for electric brakes) |
For haulers exceeding 3,500 lbs GVWR, upgrade to a 7-way round kit with integrated brake controller support. Pressure-test connectors at 10 psi to confirm IP67 waterproofing; submerged circuits fail within weeks. Opt for kits with color-coded wires adhering to FMVSS 108 (yellow: left turn/brake, green: right turn/brake, brown: tail/markers, white: ground). Replace any kit claiming “universal compatibility” without strain relief clamps–vibration-induced shorts account for 63% of field failures.
Step-by-Step Guide to Installing Haul Towing Plug Connectors
Begin by selecting a 4-way flat connector kit compatible with your vehicle’s electrical system. Most modern cars and trucks use a 7-pin or 4-pin setup, but ensure the chosen kit matches the tow rig’s existing socket. Check the manufacturer’s specifications for amperage ratings–typically 15-20 amps–to avoid overloading circuits.
Locate the tow rig’s harness behind the rear bumper or under the chassis. Use a multimeter to test the wires for voltage while activating turn signals, brake activation, and running lamps. Color codes vary by brand, but common standards include:
Trim frayed ends and strip ½ inch of insulation from each wire before attaching crimp connectors or soldering.
Securing the Connections
Use heat-shrink tubing over soldered joints or crimp connectors to prevent corrosion. Apply dielectric grease to the plug terminals before assembly to repel moisture. Align the connector’s male and female ends, ensuring pins seat fully–misalignment can cause intermittent failures during transit. Test each function (turn signals, brake activation, running lamps) with a helper while verifying no dashboard warning lights appear.
Mount the connector bracket to a secure point on the tow rig’s frame using self-tapping screws or existing holes. Avoid dangling cables where they can snag or drag. For added protection, route wires through a flexible conduit if exposed to debris or road salt. Label both ends of the connection with colored tape for quick identification during future maintenance.
If working with a heavier-duty setup (e.g., 7-way round connector), note additional circuits like reverse lamps or electric brakes. Match auxiliary wires (blue for brakes, purple for reverse) carefully–crossing these can damage the controller module. For European or Asian vehicles, verify pin assignments in the service manual; some models reverse the left/right turn signal wires.
Standard Color Codes for Auxiliary Hauler Illumination Systems
Connect the brown wire to the tail and marker circuits–this is the most consistent color across manufacturers for running and clearance lamps. Verify with a multimeter before splicing, as some European models may use grey for this purpose instead. If the brown lead shows no voltage, check for a fused circuit or corrosion at the plug.
Signal and Brake Circuits
The yellow cable handles left-turn signals and brake lamps, while green carries the right-side equivalents. Always pair these with the correct side of the towing vehicle’s harness; reversing them flips the blinker direction, creating a safety hazard. For dual-filament bulbs, the yellow and green wires share a ground (white) but split the hot feed–test both filaments separately to confirm.
White remains the universal ground reference across nearly all configurations. Attach it directly to the hauler’s frame using a ring terminal and stainless steel screw, avoiding paint or rust barriers. A second white wire may appear in 7-way connectors–this carries auxiliary power or reverse lamps; label it to prevent mixing with the primary ground.
Blue signifies electric brake control and should terminate at the brake controller output on the tow vehicle. Ensure no voltage bleeds into the yellow or green circuits; use a diode or isolator if the system lacks one. For haulers without brakes, cap the blue wire to avoid short circuits.
Auxiliary and Reverse Circuits
Red or purple typically serves dual roles: 12V auxiliary power (for Interior lamps or charging) or reverse lamps, depending on the connector type. On 7-way plugs, red supplies constant power; on 4-way systems, purple carries reverse lamp current. Always confirm with a wiring schematic–miswiring here risks draining the battery or damaging connected devices.
