DIY VGA to HDMI Converter Schematic for Analog to Digital Signal Conversion

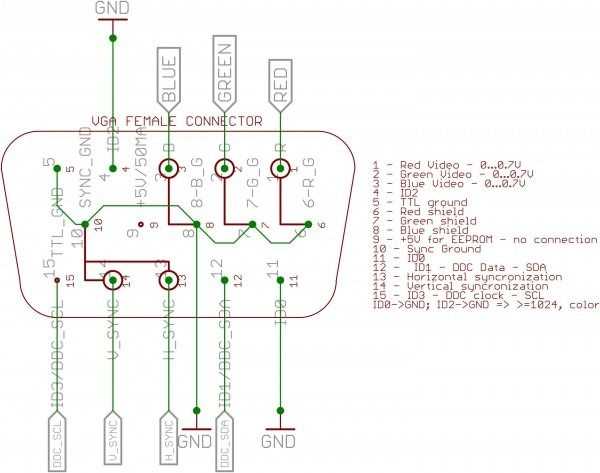

vga to hdmi converter circuit diagram

For a stable 15-pin analog-to-digital bridge, use a video decoder IC like the ADV7180 or TVP7002 to handle YPbPr separation. These chips tolerate ±5% voltage fluctuations and support resolutions up to 1920×1200 at 60Hz when paired with a 74LVX245 buffer for impedance matching. Ground isolation between input and output stages is critical–opt for a low-capacitance TVS diode (e.g., P6KE6.8CA) to suppress noise spikes above 2V.

Signal conversion requires precise timing synchronization. A 27MHz crystal oscillator (NC260 or equivalent) ensures stable clocking for the encoder, while a 1:1 pulse transformer (e.g., Pulse Electronics H1102NL) isolates the digital output ground. For RGBHV inputs, use a triple 8-bit ADC like the MAX11300 to maintain 0.5% color accuracy–bypass capacitors (0.1μF X7R) should be placed within 2mm of each ADC pin.

To prevent HDCP handshake failures, integrate a PIC16F1825 microcontroller (or similar) to emulate EDID data. Program it with a 256-byte array matching standard CEA-861-F resolutions (e.g., 1920×1080@60Hz, 16:9). Power the microcontroller via a TPS62160 buck converter to ensure 3.3V ±1% regulation under 300mA load. Avoid linear regulators–they introduce thermal noise.

Cable selection impacts signal integrity more than PCB traces. Use foil-shielded twisted pair (e.g., Belden 1694A) for analog inputs, and mini-coax (e.g., RG-178) for the TMDS lanes carrying digital output. Keep trace lengths for the SCL/SDA I²C lines under 15cm to prevent data corruption; series resistors (22Ω) dampen reflections. Test for crosstalk with a differential probe (1GHz bandwidth)–target -40dB or better at 100MHz.

Final validation should include a framebuffer stress test. Generate a 100% color bar pattern (sRGB) via software and measure bit-error rates (BER) using an Agilent 86100C. Any BER >1×10⁻¹² indicates insufficient shielding or ground plane issues. For field deployment, add a ferrite bead (e.g., Murata BLM18PG121SN1) on the +5V input to suppress conducted EMI from power supplies.

Designing an Analog-to-Digital Video Signal Translator

Opt for a TFP401 or ADV7611 decoder IC as the core component–these chips handle 15-pin RGBHV signals with embedded sync and output TMDS at 165 MHz, covering resolutions up to 1080p60. Include a 27 MHz crystal oscillator for pixel clock generation, paired with a 74ACT04 buffer to ensure stable timing skew under ±50 ppm. For EDID emulation, use a 24C02 EEPROM preloaded with a generic 1920×1080@60Hz profile to avoid handshake failures with modern displays.

  • Power the decoder with a dual-rail supply: 3.3V for I/O (LDO with 1% tolerance) and 1.8V for core logic (switching regulator with ferrite bead filtering); avoid linear regulators for core voltage to prevent thermal throttling.
  • Route the 15-pin input through a PI3HDMI412 passive switch to isolate signal pairs; add 22 Ω series resistors on all RGB lines to dampen reflections on standard 75 Ω coax.
  • Terminate the TMDS pairs at the output with 50 Ω pull-ups to 3.3V and AC-couple each lane via 0.1 μF 0402 capacitors–values below 0.01 μF risk high-frequency roll-off.

Debugging Common Pitfalls

1. Color banding: verify the 15-pin input sync signals adhere to TTL levels (0.8V–2.0V); clamp any excursions below 0V with a BAV99 diode array. 2. EDID resets: lengthen the SDA/SCL pull-ups to 4.7 kΩ if the display drops the connection during mode negotiation–low drives below 2 mA cause premature timeouts. 3. Audio passthrough: use a WM8804 codec between the decoder and serializer if embedding I²S; bypass the PLL loop filter capacitor (0.047 μF) with a 10 kΩ resistor to reduce jitter below 50 ps.

  1. Calibrate the serializer PLL by scoping TP1 (internal test point) with a 500 MHz passive probe–ringing exceeding 20% Vpp mandates reducing the TMDS trace length to ≤2.5 cm or inserting a pi-network (33 Ω series, 27 pF shunt).
  2. Validate HDCP compliance by looping DDC lines through a MAX7856 level shifter; omit this step if the sink device ignores content protection.
  3. House the assembly in a shielded enclosure with a ground plane stitching vias spaced ≤λ/20 (≈1.2 mm at 1.65 GHz) to suppress EMI radiated from the TMDS pairs.

Key Components for a Legacy Video to Modern Interface Adapter Build

Start with a TFP401A bridge IC–this digital receiver handles analog RGB signals up to 2048×1536 at 60Hz, decoding sync-on-green or separate H/V sync without external phase-locked loops. Pair it with a Sil9022 or ADV7511 transmitter chip, which encodes 24-bit color output via a TMDS link, supports 5V/3.3V logic levels, and includes built-in EDID emulation. For signal conditioning, use 75Ω coaxial terminators on each RGB channel, combined with 10µF tantalum capacitors on the +5V rail to suppress high-frequency noise from switching regulators.

  • Voltage regulation: Dual LDO setup–TPS73633 for the bridge at 3.3V, AP2204K for the encoder at 1.8V; add 0402 ferrite beads on input lines to filter transient spikes.
  • Clock generation: 27 MHz crystal with 18pF load capacitors, or a programmable oscillator like SI5351 for custom resolutions beyond 1080p.
  • EDID EEPROM: 24LC02B I²C memory preloaded with standard 1920×1080@60Hz timings; pull-up resistors 2.2kΩ on SDA/SCL lines.
  • Level shifting: TXB0104 bidirectional translator for mixed 3.3V/5V logic transitions if firmware requires GPIO toggling.
  • Connector shielding: HDMI Type A receptacle with 15µm gold-plated contacts; bond the connector shell to ground plane via

Omit EMI filters if board space is limited, but include common-mode chokes on TMDS pairs when cable lengths exceed 1.5m. Use 4-layer PCB with solid ground pours between signal layers; keep trace impedance at 50Ω single-ended, 100Ω differential. Flash firmware via SWD header (Cortex debug port) for field updates–store binary in onboard MX25L1606E SPI flash.

Step-by-Step Wiring Guide for Analog Video Signal Adaptation

Begin by identifying the 15-pin D-sub source connector’s critical paths: pins 1, 2, 3 (red, green, blue channels), 6, 7, 8 (ground returns), 13 (horizontal sync), and 14 (vertical sync). Map these to the digital interface’s TMDS lanes–red/green/blue channels occupy lanes 0–2, while sync signals merge into the data enable and clock lanes via a high-speed serializer. Use a 3.3V LVDS transmitter like the TFP410 or equivalent to bridge the impedance gap; bypass capacitors (0.1µF) near the transmitter’s power pins prevent ground bounce during transition. Ensure the serializer’s PLL operates within 25–150 MHz to maintain signal integrity for 640×480 to 1920×1080 resolutions.

Ground and Shielding Requirements

Isolate the analog common return (pin 5 on the source) from the digital ground plane using a 10Ω–100Ω ferrite bead to suppress high-frequency noise coupling. Route all signal traces as differential pairs with 100Ω controlled impedance, minimizing length mismatches to

Common Pitfalls When Bridging Analog and Digital Video Interfaces

Ensure signal grounding matches between the source and destination devices before powering the adapter. Isolated grounding loops often introduce interference, manifesting as flickering, color distortion, or complete signal dropouts. Use shielded cables rated for high-bandwidth applications and verify continuity between ground pins at both ends. A multimeter reading above 0.5 ohms indicates insufficient grounding, requiring cable replacement or additional shielding.

Active adapters demand external power–neglecting this leads to underpowered signal amplification, causing weak output or corruption. Check input voltage requirements (typically 5V or 12V) and confirm the power supply delivers the exact amperage specified in the datasheet. Passive adapters bypass this issue but limit resolution; expect artifacts when scaling beyond 1280×1024 if using unpowered solutions.

Resolution and Timing Misalignment

Mismatched resolution settings trigger sync loss or stretched images. Start with native resolutions (1920×1080@60Hz for modern displays) and adjust EDID data manually if automatic negotiation fails. Tools like PowerStrip or custom EDID overrides prevent incorrect mode switching. For retro setups, confirm the target display supports 15 kHz horizontal sync–many digital panels reject it, causing blank screens.

Audio embedding faults rank among the most overlooked errors. Analog sources lack built-in audio streams, yet many adapters advertise audio pass-through. Without dedicated L/R inputs, expect silent output. Verify if the adapter incorporates a 3.5mm jack for external audio routing; if absent, plan for separate audio wiring or consider adapters with integrated DACs, though latency may increase noticeably.

Heat buildup degrades signal integrity over time, particularly in compact adapters with inadequate ventilation. Measure surface temperature after 30 minutes of operation–readings above 60°C indicate potential overheating. Relocate the adapter away from other heat-generating components or add a small heatsink. Persistent overheating shortens lifespan, leading to intermittent failures or permanent damage to the scaler IC.

Finally, incompatible input/output modes create irreversible black-screen scenarios. Digital panels frequently reject interlaced signals (e.g., 480i), interpreting them as invalid formats. For legacy content, configure the source to progressive mode first. If forced interlacing is unavoidable, verify the adapter’s scaler supports deinterlacing at the hardware level–software-based conversions introduce lag and motion artifacts unacceptable for real-time use.
