Designing a Practical Vibration Sensor Circuit for Reliable Detection
For precise motion tracking, integrate an ADXL335 accelerometer with a 5V microcontroller. Connect the X, Y, and Z outputs to analog pins A0, A1, and A2, ensuring a 0.1µF decoupling capacitor between each output and ground to filter noise. Use a 3.3V voltage regulator if your board operates at lower logic levels–this prevents signal distortion. Calibrate threshold values by logging raw readings during controlled tests: typical baseline values range between 400–600 for stationary modes, while impacts generate spikes above 800.
Amplify weak signals with an LM358 operational amplifier configured as a non-inverting comparator. Set the reference voltage at 1.65V (half of 3.3V) using a voltage divider. The op-amp output will swing between rail voltages (0V or 3.3V) when deviations exceed ±150mV. For intermittent spikes, add a 10kΩ pull-down resistor to prevent floating inputs. Test with a 10Hz–1kHz frequency range to verify response consistency across varying forces.
Power efficiency matters for battery-operated setups. Replace linear regulators with a TPS62743 buck converter for 3.3V output, cutting quiescent current to 360nA. Use an ATtiny85 for low-power processing; its 8MHz clock and 1.8V Brown-Out Detection ensure reliable operation down to 2.7V. Store event logs in EEPROM or transmit via I2C to an ESP8266 for real-time monitoring. Shield sensitive traces with a ground plane to reduce electromagnetic interference from nearby motors or RF sources.
Validate performance by subjecting the assembly to controlled impacts: a 0.5J strike should trigger a 50ms high pulse on the output. For industrial applications, swap the ATtiny85 for a STM32F103 with DMA-enabled ADC sampling at 1MHz. This captures transient events lasting under 10µs. Isolate high-voltage sections with optocouplers if integrating with 24V machinery–use a PC817 with a 2.2kΩ input resistor and 1kΩ pull-up on the output side.
Building a Responsive Mechanical Detection Setup

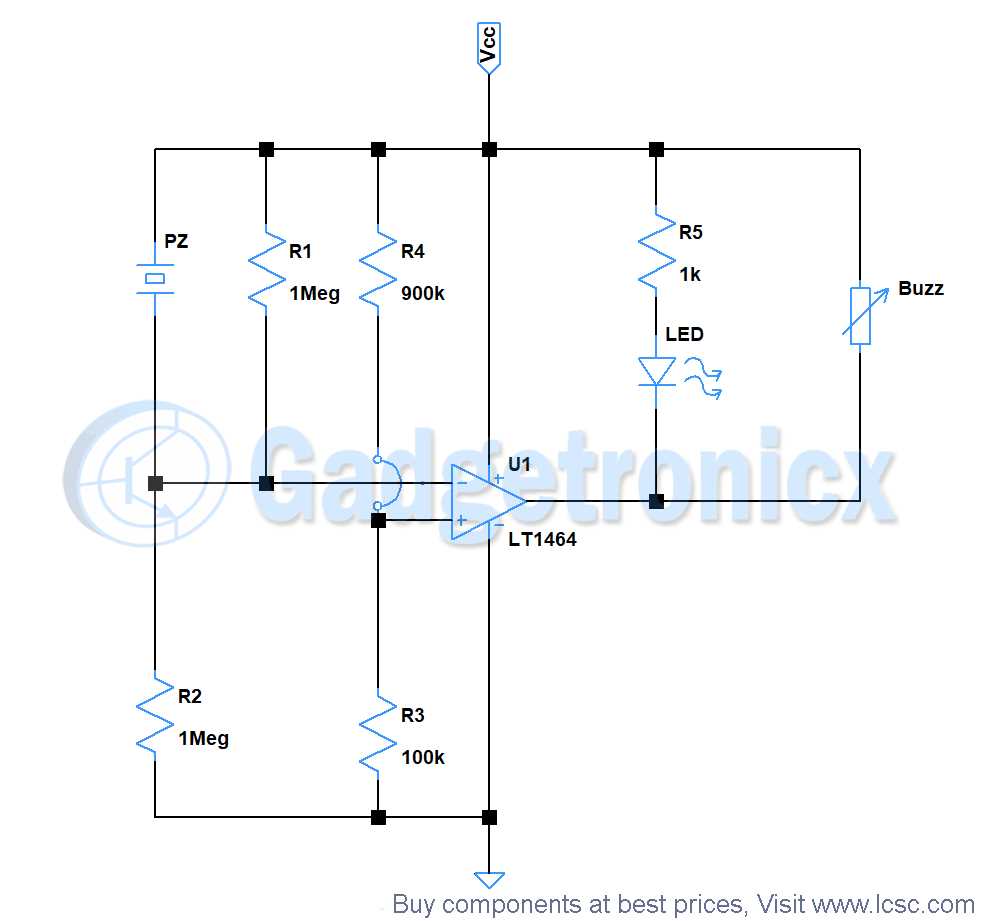

Start with a piezoelectric element as the core component–its sensitivity to kinetic disturbances makes it ideal for capturing rapid motion changes. A 22mm piezoelectric disc with a resonant frequency between 2-4 kHz ensures precise signal generation without external power. Connect the disc’s terminals to a 1MΩ resistor in parallel to dampen false triggers caused by electrical noise.
Amplify the raw output using an operational amplifier like the LM358 configured as a non-inverting stage. Set the gain to 50 with a 10kΩ feedback resistor and a 200Ω input resistor for optimal signal clarity. Capacitors–0.1µF at the input and 10µF at the output–filter high-frequency interference and stabilize voltage fluctuations. Place a diode (1N4148) across the amplifier’s output to protect against voltage spikes exceeding ±0.7V.
| Component | Value | Purpose |
|---|---|---|
| Piezoelectric disc | 22mm, 2-4 kHz | Primary kinetic detection |
| Resistor (input) | 1MΩ | Noise suppression |
| OP-AMP (LM358) | Non-inverting | Signal amplification |
| Feedback resistor | 10kΩ | Gain control |
For threshold adjustment, integrate a comparator (e.g., LM393) with a reference voltage set by a 10kΩ potentiometer. This allows customization–lower voltage (e.g., 1.5V) detects subtle movements, while higher thresholds (3.3V) ignore environmental noise. The comparator’s output triggers a transistor (2N2222) to activate a relay or LED, confirming detected activity.
Reduce false positives by isolating the detection module from structural resonances. Mount the piezoelectric element on a rubber gasket or foam pad to absorb non-targeted mechanical energy. Secure wiring with flexible silicone insulation to prevent microphonic interference from cable movements.
Power the setup with a regulated 5V supply, using a decoupling capacitor (100µF) at the input to smooth voltage drops during transient events. For battery-operated applications, add a sleep mode via a low-power timer (e.g., NE555) to conserve energy–configured to wake the system every 10 seconds for 50ms of active sensing.
Validate performance by tapping the target surface at varied intensities. Adjust the comparator’s threshold until the system reliably distinguishes between light touches and background disturbances. For extended range, replace the relay with a MOSFET (IRF520) to handle higher current loads, enabling integration with alarms or motorized responses.
Core Elements for a Fundamental Motion-Sensing Assembly
Start by selecting a piezoelectric disk as your primary transduction element. Models like the 7BB-20-6L0 offer an optimal balance between sensitivity (10 mV/g typical) and cost, making them ideal for detecting subtle oscillations. Ensure the disk’s resonant frequency aligns with the target bandwidth–common industrial applications often require 5–15 kHz, while structural monitoring may need sub-1 kHz response. Surface-mount variants simplify integration but may sacrifice amplitude fidelity.
Pair the transducer with a low-noise operational amplifier, such as the LMV321 or AD8605. Configure the op-amp in a non-inverting topology with a gain of 10–100, adjusting feedback resistors to match the disk’s output range (typically 5–50 mV for 1g inputs). For battery-powered setups, prioritize rail-to-rail, micropower amplifiers with quiescent currents below 100 µA. AC-couple the input to eliminate DC offsets, using a 0.1 µF capacitor to define the lower cutoff frequency (fc = 1/(2πRC)).
- Analog-to-digital converter (ADC): Choose a 12-bit or higher resolution module like the MCP3008 or ADS1115. Sample at ≥10× the highest frequency of interest (e.g., 10 kHz for a 1 kHz signal) to avoid aliasing. For real-time applications, opt for ADCs with dual buffers to prevent data loss during readouts.
- Signal conditioning filters: Implement a second-order active low-pass filter (e.g., Sallen-Key topology) with a cutoff 20–30% above the target frequency. For example, a 1.5 kHz cutoff suits machinery monitoring (bearing faults typically manifest at 1–1.2 kHz). Add a high-pass filter (1–5 Hz) to reject environmental noise.
- Power supply: Use a regulated 3.3V or 5V source with
Mount the piezoelectric element rigidly using cyanoacrylate adhesive or a threaded stud. Misalignment or dampening from soft adhesives (e.g., silicone) can attenuate readings by 30–50%. For high-impact environments, encapsulate the disk in a metal housing with a compliant isolation layer (e.g., 0.5 mm neoprene) to prevent false triggers from shear forces. Avoid mounting near electrical noise sources (e.g., motors, relays)–minimum 15 cm separation is recommended.
Calibrate the system using a reference exciter, such as a shaker table delivering 1g RMS at the target frequency. Measure the output voltage and adjust the op-amp gain to achieve 1V/g sensitivity. For fixed-frequency applications (e.g., 60 Hz mains monitoring), replace the general-purpose amplifier with a tuned amplifier circuit using a parallel LC network centered at the frequency of interest (e.g., 50 mH inductor + 100 nF capacitor for 60 Hz).
- Validate performance with transient tests: Apply a 10 ms, 1g impulse and verify the output decays within 5–10 cycles for critical damping. Overdamped systems delay alerts; underdamped systems generate ringing artifacts.
- For wireless transmission, couple the ADC to a Bluetooth Low Energy module (e.g., nRF52832) or LoRa transceiver (e.g., RFM95W) with a sampling rate ≥1 kHz. Transmit raw data only if latency
- Document the baseline noise floor in mV RMS across the frequency band of interest (e.g., 1–5 mV for well-shielded setups). Exceedances >3× baseline typically indicate meaningful disturbances.

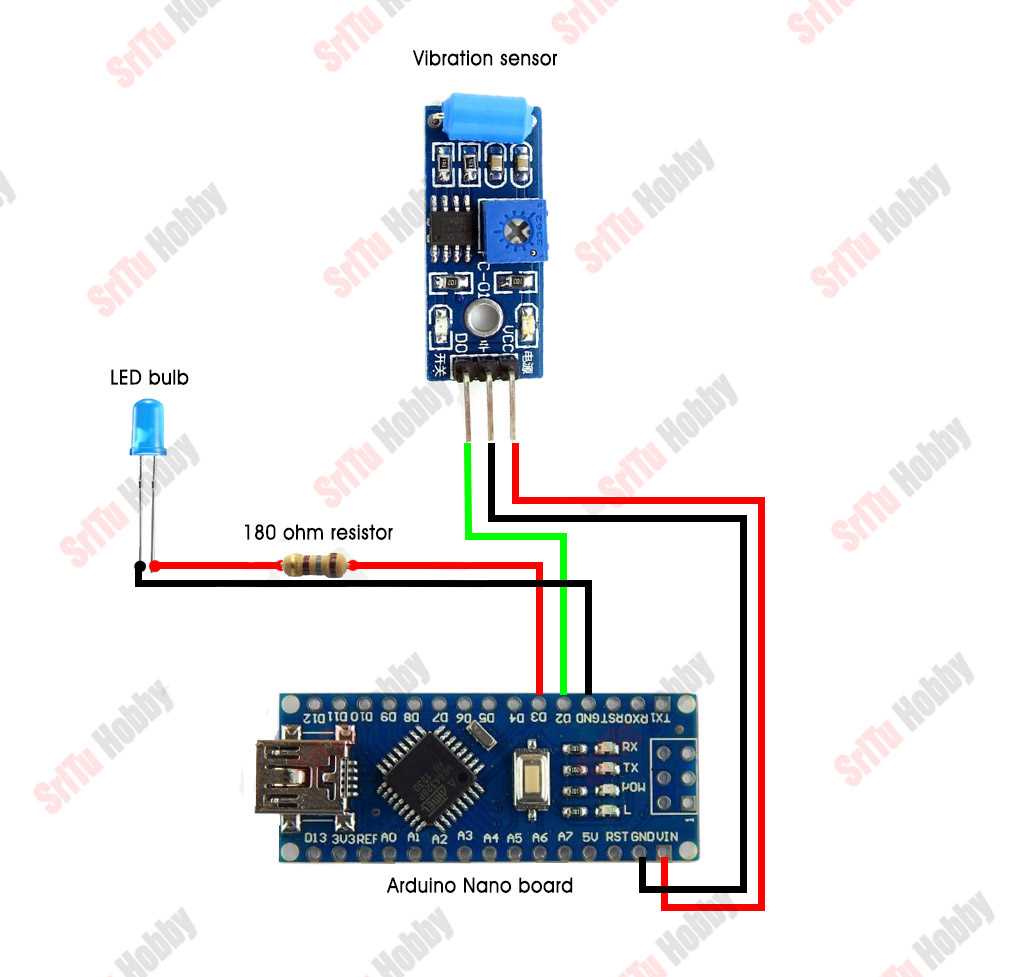

Step-by-Step Wiring Guide for the SW-18010P Detection Module
Connect the SW-18010P’s signal pin to a microcontroller’s digital input, such as Arduino’s D2, using a 10kΩ pull-down resistor between the signal pin and ground. Solder the module’s power pin directly to a 3.3V or 5V source–verify compatibility with your board’s voltage tolerances to avoid false triggers. For stable readings, route the ground wire to the nearest reference point on the PCB, minimizing noise from shared traces. Use twisted-pair cables for signal paths longer than 15cm, shielding them if ambient interference exceeds 50Hz.
Test the setup by lightly tapping the module’s sensing element; the microcontroller should register a high pulse lasting 50-200ms. Adjust sensitivity by fine-tuning the resistor value–lower ohms increase responsiveness but risk false positives. Log output states over serial at 9600 baud to debug edge-case anomalies (e.g., flickering signals). If triggering persists without stimulus, add a 0.1µF decoupling capacitor across the module’s power pins. For battery-powered applications, disable pull-up resistors in code to conserve energy when idle.
Adjusting Detection Levels for Specific Environmental Conditions
Begin calibration by setting the baseline threshold at 20 mV for quiet environments like laboratories or server rooms, measured with a 1 Hz sinusoidal input. Use a precision signal generator to simulate disturbances–start with a 0.5 G amplitude at 10 Hz, then incrementally raise the amplitude in 0.1 G steps while monitoring output voltage stability. Record deviations exceeding ±2 mV as the upper usable limit for that frequency range.
For industrial settings, shift the baseline to 50 mV to ignore background machinery hum. Apply controlled impacts via a force hammer (preload adjustable between 5–50 N) and adjust the trimmer resistor until transients peak at 3.5–4.2 V without clipping. Test cross-sensitivity by introducing lateral forces at 45°–ideal tuning maintains
- Residential applications: Target 10–30 mV for footsteps, 70–150 mV for door slams. Use a smartphone accelerometer app to cross-verify readings at 1 m distance.
- Vehicle monitoring: Require 200–500 mV for engine startups, 800 mV–1.2 V for pothole detection. Calibrate with the vehicle on a lift at 2000 RPM idle before road testing.
- Aircraft structures: Set 1–2 V threshold for airframe stress, tested with piezoelectric shakers at 0.2–10 kHz sweeps. Validate against strain gauge data (±1% tolerance).
Store calibration data in EEPROM if available, using a lookup table indexed by frequency. For analog systems, mark potentiometer positions with indelible ink based on empirical testing–include temperature compensation curves if operating above 60°C or below -10°C. Replace generic 100 kΩ trimpots with 20-turn 50 kΩ variants for finer resolution when sub-0.5 mV adjustments are critical.
