Step-by-Step Voltage Source Inverter Circuit Design and Schematic Guide

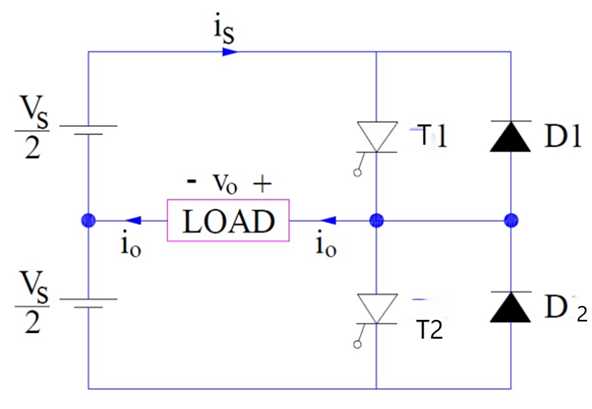

Begin with a three-phase bridge topology–six IGBTs or MOSFETs arranged in a standard H-bridge configuration. Ensure each semiconductor is rated for at least 1.5× the expected DC bus potential; overspecification here prevents thermal runaway under transient loads. Place freewheeling diodes antiparallel to each switch to clamp inductive kickback, choosing ultrafast recovery types (trr ≤ 50 ns) for switching frequencies above 20 kHz.
Position the DC link capacitor directly adjacent to the bridge legs. Use low-ESR film capacitors (typically 1–10 µF per kW output) in parallel with bulk electrolytic units. Calculate ripple current as Iripple = 0.4 × Iload × √(1 – D), where D is the duty cycle; undersized capacitors will degrade efficiency by 3–5%. For high-power applications (>5 kW), incorporate a snubber network (R-C series, R ≤ 10 Ω, C ≤ 1 nF) across each switch to suppress voltage spikes exceeding 1.2× the bus voltage.
Gate drive isolation necessitates optocouplers or isolated gate drivers (e.g., Infineon 1ED020I12-F2). Maintain isolation clearance ≥4 mm for 600 V systems and ≥8 mm for 1200 V. Drive signals must transition cleanly: rise/fall times
Thermal design constraints dictate copper pours under switching components. Allocate ≥2 cm² of 2 oz copper per watt dissipated. For air-cooled systems, target a heat sink thermal resistance θca ≤ 0.5 °C/W per kW. Mount temperature sensors (NTC 10 kΩ) on the hottest semiconductor; trip protection at 100 °C to avoid exceeding the die’s 125 °C absolute limit.
Grounding topology separates power ground (star-point at DC bus midpoint) from signal ground (floating, referenced to microcontroller GND). Use 1 mm trace separation between high-current paths (≥10 A) and control lines to prevent induced noise. Twist-pair gate drive wires and shielded cables for PWM signals reduce EMI emissions by ≥20 dB. Terminate all unused controller inputs via 10 kΩ resistors to stable potentials to avoid erratic behavior.
Designing a Solid-State Power Converter Schematic
Select a six-switch bridge configuration for three-phase aplicaciones to minimize harmonic distortion while ensuring efficient commutation. Use insulated-gate bipolar transistors (IGBTs) rated at least 1.5 times the peak load current; refer to the table below for component selection guidelines based on system power levels.
| Power Level (kW) | Recommended IGBT (VCE, A) | Gate Driver IC | DC-Link Capacitor (μF/kV) |
|---|---|---|---|
| < 5 | 600 V, 30 A | IR2130 | 1000 / 450 |
| 5–20 | 1200 V, 50 A | DRV8301 | 2200 / 800 |
| 20–50 | 1700 V, 100 A | IXDN609 | 3300 / 1200 |
Implement a dead-time interval between upper and lower switches within the same leg–typically 2–5 μs–to prevent shoot-through faults. Utilize space vector pulse-width modulation (SVPWM) with a switching frequency between 8–16 kHz to reduce electromagnetic interference and audible noise; adjust dead-band dynamically via microcontroller feedback for varying load conditions. Place snubber circuits (RC network: 10 Ω, 0.1 μF) across each IGBT module to suppress voltage spikes exceeding 20% of the bus potential, particularly in inductive load scenarios.

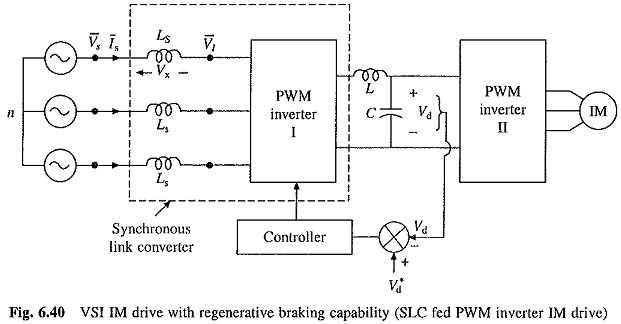

Critical Elements of a Power Converter and Their Operational Roles
Select switching devices with a breakdown rating at least 30% higher than the peak line potential to prevent avalanche failures. IGBTs dominate in applications above 2 kW due to superior saturation characteristics, while MOSFETs offer faster commutation below 1 kW. Always verify reverse recovery parameters–SiC variants reduce losses by up to 70% compared to silicon.
The DC-link capacitor bank must be sized for ripple current handling, not just capacitance. Film capacitors outlast electrolytics in high-temperature environments but require larger footprint. Calculate required ripple current using Iripple = 0.5 × Iload for six-pulse configurations–oversizing by 20% accounts for harmonic distortions.
- Gate drivers demand galvanic isolation–optocouplers introduce 5-10 μs propagation delays, unsuitable for PWM frequencies above 50 kHz. Transformer-coupled drivers eliminate this latency.
- Creepage distances on PCB layouts must comply with IEC 60664–minimum 8 mm for 690 V RMS isolation barriers.
- Dead-time between complementary switches prevents shoot-through–default 2-5 μs, but adjust based on gate turn-off speeds to avoid cross-conduction.
Snubber networks protect against voltage spikes but introduce power dissipation. RC snubbers reduce dv/dt by 40% yet increase losses by 15%; consider RCD variants for higher efficiency. Place snubbers physically close to switching terminals–trace inductance degrades their effectiveness.
Control logic determines modulation strategy. Space vector PWM improves DC bus utilization by 15% over sinusoidal PWM but requires more complex calculations. Analog hysteretic controllers offer sub-microsecond response times but suffer from variable switching frequencies. Microcontrollers with dedicated PWM peripherals (e.g., TI C2000, STM32 H7) balance flexibility and performance.
Heatsinks require thermal interface material (TIM) with thermal conductivity ≥ 3 W/m·K. Copper baseplates outperform aluminum for high-power dissipation but add weight. Forced-air cooling allows 2-4 kW dissipation per 100 cm²; liquid cooling achieves 10× higher density. Monitor junction temperatures–exceeding Tj,max by 10°C halves device lifespan.
- Pre-charge resistors limit inrush current during DC bus energization–10 Ω resistors for 400 VDC systems.
- Discharge resistors must bleed stored energy within 5 minutes to comply with safety standards.
- Current sensors (Hall-effect, shunt resistors) must reject common-mode noise–isolated amplifiers (e.g., AD215) provide ±50 mV/V accuracy.
Step-by-Step Construction of a Single-Phase Power Conversion Unit
Select a 300V DC bus for optimal performance when transforming to 230V AC. Verify the input matches the expected power rating of your load–overestimating by 20% prevents overheating. For household tools or small motors, a 500W to 1kW capacity suffices. Use a capacitor bank with at least 1000µF per 100W of output to smooth ripples.
Mount four N-channel MOSFETs (e.g., IRF640) on a heatsink with thermal paste–each should handle 20A continuously. Arrange them in an H-bridge configuration, pairing Q1/Q4 and Q2/Q3 for alternating conduction. Ensure gate drivers (e.g., IR2110) are isolated; improper grounding causes shoot-through. Space components 5mm apart to avoid arc flashes at high switching frequencies (20-50kHz).
Wire the gate resistors (10-47Ω) directly to the MOSFET gates to limit current surges. Bypass capacitors (0.1µF ceramic) must sit within 2cm of each MOSFET drain for stable operation. For PWM control, use a microcontroller (STM32 or Arduino) with dead-time insertion (1-2µs) to prevent cross-conduction. Connect a 12V auxiliary supply to power optocouplers (PC817) separating logic from the high-side drivers.
Attach a snubber network (0.1µF + 100Ω in series) across each MOSFET to suppress voltage spikes during switching. Position the network as close as possible to the transistor terminals–long leads increase inductance. Test the DC bus with a multimeter before connecting the load; confirm polarity and voltage stability (±5%).
Implement a soft-start feature by ramping the PWM duty cycle from 0% to 50% over 2 seconds to prevent inrush currents. Calibrate the output using an oscilloscope: adjust dead-time until the waveform is symmetric with
Insulate all exposed conductors with heat-shrink tubing or conformal coating. Label the input/output terminals clearly–misconnection damages components. Verify earth grounding for safety; a floating output risks shock hazards. For multi-kW applications, replace MOSFETs with IGBTs (e.g., HGTG20N60) and increase heatsink size (minimum 0.5°C/W thermal resistance).
Finalize the assembly by enclosing it in a ventilated metal chassis with EMI shielding. Route high-current paths (DC bus, load) away from control signals to minimize noise. Bench-test with a resistive load (e.g., 100W bulb) before attaching sensitive electronics. Document switch settings, component values, and waveform screenshots for troubleshooting.
Common PWM Control Techniques for Power Converters
Implement Sinusoidal PWM (SPWM) with a carrier frequency of 2-20 kHz for balanced harmonic performance and efficient switching in three-phase drives. Ensure the modulation index (ma) stays between 0.8 and 1.0 to avoid saturation while maintaining linear voltage control. For improved efficiency, select IGBTs with turn-off times under 500 ns and anti-parallel diodes rated for 120% of nominal current.
Space Vector PWM (SVPWM) reduces total harmonic distortion (THD) by 15-20% compared to SPWM in the same operating range. Use sector-based calculations with a 60° resolution for precise vector placement–optimize switching sequences to minimize dead-time effects (typically 2-5 μs). Pre-calculate lookup tables for real-time processing to reduce computational load on DSPs or FPGAs.
Advanced Techniques for Dynamic Loads
For motor drives under variable torque, deploy Hysteresis Current Control PWM with a tolerance band of ±5% of the rated current. Adjust the band dynamically when load fluctuations exceed 30% to prevent instability. Pair this with adaptive sampling (20-50 kHz) to track transient responses without overshoot.
In grid-tied applications, Selective Harmonic Elimination PWM (SHE-PWM) targets specific low-order harmonics (5th, 7th, 11th) through pre-programmed switching angles. Use Fourier series optimization to derive angles offline, then store them in non-volatile memory–ensure phase-locked loop (PLL) synchronization with
