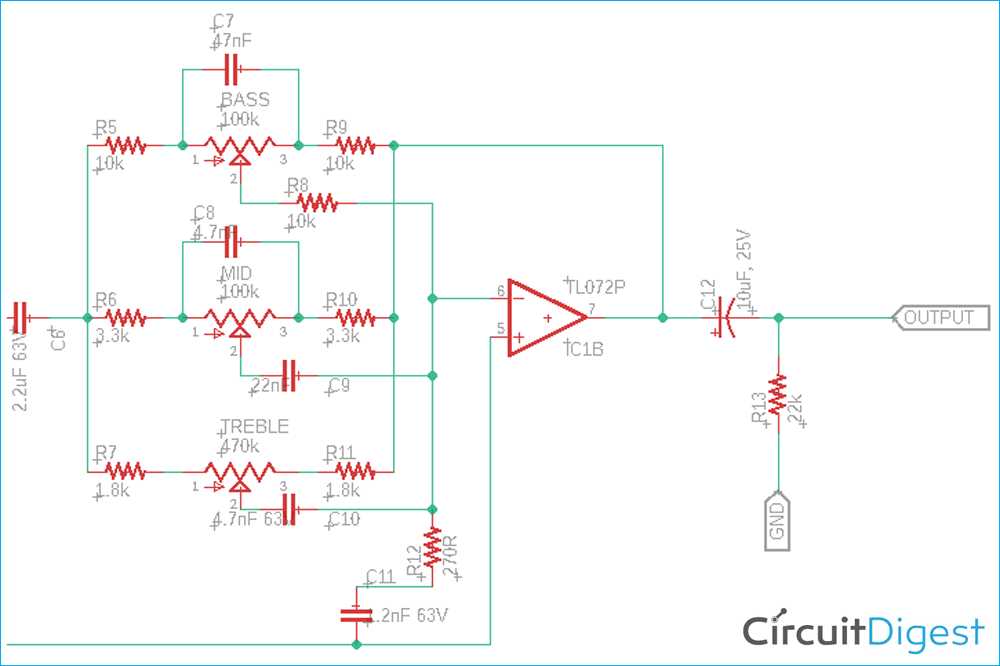

Simple DIY Volume Bass Treble Control Circuit Schematic Design
Begin with a dual-gang potentiometer rated at 10kΩ for consistent logarithmic taper response–this ensures smooth gain transitions across the frequency bands without abrupt jumps. For low-frequency processing, a 0.1µF coupling capacitor on the input stage blocks DC while permitting frequencies below 300Hz to pass; pair this with a 47kΩ resistor to define the cutoff slope. On the opposite end, a 330pF capacitor combined with a 56kΩ resistor sharpens the roll-off above 10kHz, effectively isolating mid-range signals from upper harmonics.
Place an operational amplifier such as the NE5532 or TL072 after each filtering stage to prevent impedance mismatch–these op-amps deliver a minimum slew rate of 9V/µs, eliminating phase distortion under load. Implement a virtual ground at half the supply voltage (single-rail configuration) using a 10kΩ resistor divider network to maintain symmetry in the signal path. The feedback loop of each amplifier should incorporate a 10kΩ resistor in series with a 220pF capacitor to suppress high-frequency oscillations while preserving transient response.
For precise control over tonal shaping, wire the potentiometers in reverse-parallel configuration–this balances the wiper’s travel so that turning clockwise increases emphasis uniformly across users. Verify frequency response with a signal generator at 1V RMS: sweep from 20Hz to 20kHz while measuring output; deviations exceeding ±1dB indicate insufficient decoupling or incorrect component values. Test under load conditions (8Ω, 4Ω) to confirm that the amplifier’s damping factor remains above 50; lower values introduce muddiness during complex audio passages.
Mount all passives on a single-sided PCB with ground pours star-connected to a central point adjacent to the power supply–this prevents ground loops that manifest as hum below 200Hz. Use 1% tolerance resistors and NP0/C0G class capacitors for thermal stability; even slight drift alters crossover points noticeably. When soldering, keep leads short (≤5mm) between active components to avoid stray capacitance exceeding 5pF, which rolls off highs prematurely.
Adjustable Tone and Loudness Control Schematic Guide
Select a TL072 operational amplifier for active filtering–it offers low noise and high input impedance, critical for preserving signal fidelity in audio adjustments. Pair it with 10kΩ potentiometers for independent low and high frequency shaping, ensuring minimal interaction between bands.
Use non-polarized capacitors (0.1µF for midrange clarity, 0.047µF for treble enhancement) to prevent phase distortion. Ground reference voltage should split at half the supply voltage (e.g., 4.5V for 9V input) via a voltage divider (two 22kΩ resistors).
For passive designs, combine a 47kΩ logarithmic taper potentiometer (loudness) with a 2.2µF coupling capacitor at the output to block DC offset–critical for protecting speakers from 40Hz+ frequencies. Avoid carbon-track pots; opt for conductive plastic for smoother response.
Integrate a 3-band Baxandall network for balanced equalization: low shelf (10kΩ + 0.1µF), mid-shelf (4.7kΩ + 0.033µF), and high shelf (2.2kΩ + 0.01µF). This configuration ensures -12dB to +12dB adjustment range per band with minimal Q-factor variability.
Isolate the preamp stage with a ferrite bead (e.g., Murata BLM18PG121SN1) on the power input to suppress high-frequency noise from switch-mode supplies. Place 10µF tantalum capacitors at IC power pins for transient response stability–ceramic caps cause microphonics.
Test frequency response with a sine wave generator at 1kHz, 100Hz, and 10kHz. Logarithmic pots should yield ±1dB precision at 50% rotation; recalibrate if deviation exceeds 3dB. Shield signal traces with ground planes on both PCB layers to prevent crosstalk.
For headphone outputs, add a Zobel network (10Ω + 0.1µF) to counteract reactive loads. If using a dual supply (+/-9V), bypass the virtual ground with a 470µF electrolytic capacitor to reduce ripple below -80dB.
Document component placement with KiCad net labels: mark input/output junctions, potentiometer wipers, and ground connections. Use Through-hole resistors (1% tolerance) for critical stages–surface-mount parts degrade with repeated adjustments.
Critical Elements for an Audio Tone Control Assembly
Select dual-gang potentiometers with linear taper (B-type) for precise signal adjustment. Logarithmic tapers distort low-level responsiveness, but B-type ensures consistent attenuation across frequencies. Recommended values: 10kΩ for midrange clarity, 50kΩ for extended low-end control, and 100kΩ for high-frequency nuance. Avoid cheaper carbon tracks–use conductive plastic or cermet for longevity and noise reduction.
Op-amps must have high slew rates (minimum 5 V/µs) and low noise figures (under 10 nV/√Hz). TL072 series fits most applications, but NE5532 outperforms in professional setups with its superior common-mode rejection (90 dB). For discrete builds, BC549/BC559 transistor pairs or LM394 matched pairs reduce crossover distortion in class-A stages.
Film capacitors in the 5%-tolerance range are non-negotiable for frequency shaping networks. Polypropylene (MKP) handles 20Hz–20kHz signals without phase shift; polyester (Mylar) suffices for budget builds but introduces microphonic noise under vibration. Values: 100nF for high-pass filters, 220nF–1µF for low-pass, and 4.7µF for bass boost coupling to avoid DC drift.
Precision resistors should be metal-film, 1% tolerance, rated for at least 0.25W. Carbon composition resistors drift with heat and introduce excess noise (1µV/V). For active filters, pair resistors with capacitors in 1:1 ratios (e.g., 10kΩ + 100nF) to achieve predictable ±12dB cut/boost per octave. Decoupling caps (100µF electrolytic + 0.1µF ceramic) near IC power pins suppress HF oscillations.
Grounding requires a star topology–connect all signal grounds to a single point near the power supply’s negative terminal. Daisy-chaining introduces ground loops, manifesting as 50/60Hz hum. Use a 10Ω resistor in series with input jacks to isolate cable capacitance (typically 100pF/m), preventing high-frequency roll-off in long interconnects.
For passive designs, L-pads (variable attenuators) replace potentiometers in high-power applications. A 10W wirewound rheostat with a 1:10 voltage divider ratio maintains impedance matching while dissipating heat. Active versions benefit from MOSFET buffers (e.g., IRF610) at outputs, isolating the tone stack from load impedance variations that cloud bass definition.
Test points at critical nodes simplify troubleshooting: solder a 10kΩ resistor in series with 0.1µF caps to create AC coupling for oscilloscope probes. Measure THD+N at 1kHz with a 1V RMS input–target
Step-by-Step Wiring Guide for Low and High Frequency Adjustments
Start by connecting the input signal wire to the center lug of a 100kΩ logarithmic potentiometer, ensuring the outer lugs remain unconnected at this stage. Solder a 10nF ceramic capacitor between the wiper of the potentiometer and the input of a TL072 operational amplifier, observing polarity if using electrolytic components. The TL072’s non-inverting pin (+) should receive this signal, while its inverting pin (−) connects to ground via a 22kΩ resistor for stable amplification.
| Component | Value | Connection Point |
|---|---|---|
| Potentiometer | 100kΩ log | Input to wiper |
| Capacitor | 10nF | Wiper to op-amp |
| Resistor | 22kΩ | Op-amp (−) to ground |
| Op-amp | TL072 | Non-inverting (+) input |
For high-frequency cutoff adjustments, wire a second 50kΩ linear potentiometer with a 2.2nF capacitor in series between its wiper and the output of the TL072. Ground the remaining lugs of the potentiometer. Test signal integrity at 1kHz with a 1V RMS input–output should measure within ±1dB of input amplitude. If distortion exceeds 0.1%, recheck solder joints and verify component tolerances (±5%). Use shielded cable for all connections longer than 10cm to prevent RF interference.
Calculating Resistor and Capacitor Values for Optimal Signal Shaping
Start with a target cutoff frequency (fc) of 80 Hz for low-end adjustment or 12 kHz for high-frequency sculpting. Use the formula fc = 1 / (2πRC) to derive component values. For 80 Hz, pair a 10 kΩ resistor with a 200 nF capacitor; for 12 kHz, use 4.7 kΩ and 2.7 nF. Confirm calculations with a multimeter–impedance mismatches above 5% degrade tonal consistency.
Adjust resistor tolerances based on application:
- ±1% metal film resistors for studio-grade precision
- ±5% carbon film for consumer equipment with acceptable drift
Avoid wirewound resistors above 10 kHz–their inductance introduces 15–20 dB roll-off artifacts. For electrolytic capacitors, ensure rated voltage exceeds supply by 30% to prevent leakage currents, which amplify harmonic distortion by up to 0.8%.
Compensating for Component Variability
Temperature drift alters capacitance by 0.2%/°C for X7R ceramics and 0.02%/°C for NP0 types. Use NP0 caps for fixed-frequency filters and film caps for variable stages–their dielectric absorption (DA) is 0.01% vs. 1–3% in ceramics. Replace electrolytics every 5,000 hours if operating near 70% of voltage rating; degradation boosts equivalent series resistance (ESR) beyond tolerable 0.5 Ω thresholds.
Calculate resistor noise density using en = √(4kTR) where k is Boltzmann’s constant (1.38e-23 J/K) and T is temperature in Kelvin. At 25°C (298 K), a 10 kΩ resistor generates 12.8 nV/√Hz; double the resistance doubles the noise. Keep resistor values below 100 kΩ in high-impedance stages to minimize Johnson-Nyquist noise coupling into adjacent components.
- Verify capacitor ESR with an LCR meter at 1 kHz–values above 1 Ω indicate potential phase shifts.
- Match resistor temperature coefficients (TCR) within 50 ppm/°C for paired components.
- Use 1% tolerance caps in feedback loops to maintain consistent gain across temperature swings.
- Bypass electrolytic caps with 0.1 μF ceramics to suppress high-frequency noise spikes.
