DIY Guide to Designing a Precision Weighing Scale PCB Circuit Schematic

Begin with a 24-bit delta-sigma ADC like the HX711 for accurate signal processing. Connect strain gauges in a Wheatstone bridge configuration–excitation voltage should be 5V±10mV with a low-noise LDO (e.g., TPS7A47) to minimize ripple. Place decoupling capacitors (0.1μF and 10μF) within 2mm of the ADC and microcontroller power pins.

Isolate analog and digital grounds–use a star grounding topology with a single tie-point near the power source. Keep high-impedance traces (<1mm wide) short to reduce noise pickup. For EMI-sensitive applications, add ferrite beads (e.g., BLM18PG121SN1) on supply lines to the ADC and load cell amplifier.

Route clock signals and SPI/I2C lines (1.6mm trace spacing) away from high-current paths. Use guard rings around analog inputs if board density exceeds 100 traces/cm². For temperature drift compensation, position the thermistor (10kΩ NTC) adjacent to the strain gauge attachment points with a separate Kelvin connection.

Include test points for calibration–expose the bridge’s excitation, signal, and ground nodes near the edge connector. For firmware, store offset values in EEPROM (e.g., AT24C02) rather than flash to avoid wear. Power sequencing must prioritize the ADC before the microcontroller–use a P-channel MOSFET (e.g., DMG2302L) for delayed enable.

Avoid vias under the bridge resistors–thermal expansion causes drift. Copper weights should follow 1oz/ft² for signal layers and 2oz/ft² for power planes. For multi-cell systems, use differential signaling between boards with RS-485 transceivers (e.g., MAX485) to prevent ground loops over distances >50cm.

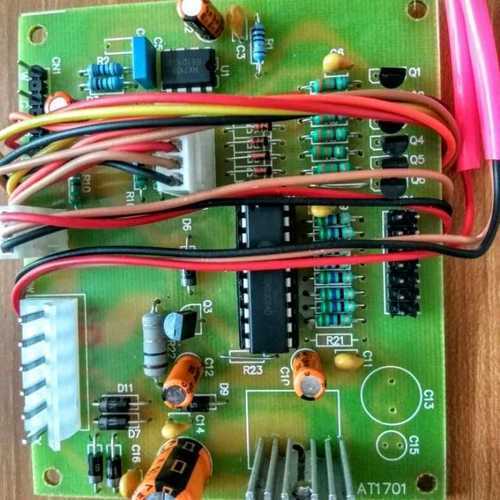

Key Components of a Precision Measurement Board Layout

Begin with a high-precision load cell interface, selecting a strain gauge amplifier like the HX711 or ADS1231. These ICs handle low-level signals, offering 24-bit ADC resolution critical for detecting microvolt changes. Place the amplifier as close as possible to the sensor to minimize noise pickup, using a star grounding topology to prevent ground loops.

Use a regulated power supply with a low-dropout linear regulator (LDO) like the MCP1700 for stable 3.3V or 5V output. Avoid switching regulators near sensitive analog sections due to high-frequency noise. For battery-operated devices, add a supervisor IC such as the MAX809 to ensure clean power-on resets and prevent erratic readings during voltage fluctuations.

Incorporate ESD protection diodes (e.g., BAV99) on all input/output lines, especially those connected to the load cell. A 100nF decoupling capacitor should be placed within 2mm of each IC’s power pin, while bulk capacitors (10µF tantalum or ceramic) manage supply variations. For EMI reduction, route high-impedance traces as short as possible and avoid parallel paths with digital signals.

Include a microcontroller with sufficient resources for signal processing, such as the STM32F103 or ATmega328P. Ensure the MCU has a dedicated ADC channel for the amplifier output, avoiding shared pins with digital I/O to prevent cross-talk. Use a crystal oscillator (8MHz to 16MHz) with 12pF load capacitors for stable timing, critical for consistent sampling rates.

Design the board with a four-layer stack-up if possible: signal, ground, power, and signal. The ground plane should be uninterrupted beneath analog components to provide a low-impedance return path. Split analog and digital grounds at the power source, connecting them at a single point near the ADC to avoid ground bounce. Use 0.254mm (10 mil) trace widths for signal lines carrying sensor data to maintain low resistance.

The following table outlines critical component placements for noise mitigation:

Component	Placement Guideline	Trace Width/Spacing
Load Cell Amplifier	Adjacent to sensor, <3cm from connector	0.5mm/0.254mm
LDO Regulator	Within 5cm of amplifier, away from high-speed digital	1mm/0.5mm
Decoupling Capacitors	Directly across power/ground pins, <1mm from IC	N/A
Microcontroller	Centered between analog front-end and digital I/O	0.254mm/0.2mm
Crystal Oscillator	Close to MCU clock pins, shielded with ground pour	0.3mm/0.15mm

For calibration, reserve flash memory space for baseline offsets and span adjustments. Implement a shunt resistor (e.g., 10Ω) in series with the load cell for self-test routines. Use a via stitching technique for ground planes at 2.54mm spacing to enhance thermal dissipation and reduce EMI. Validate the layout with a spectrum analyzer to identify and suppress parasitic frequencies above 1MHz.

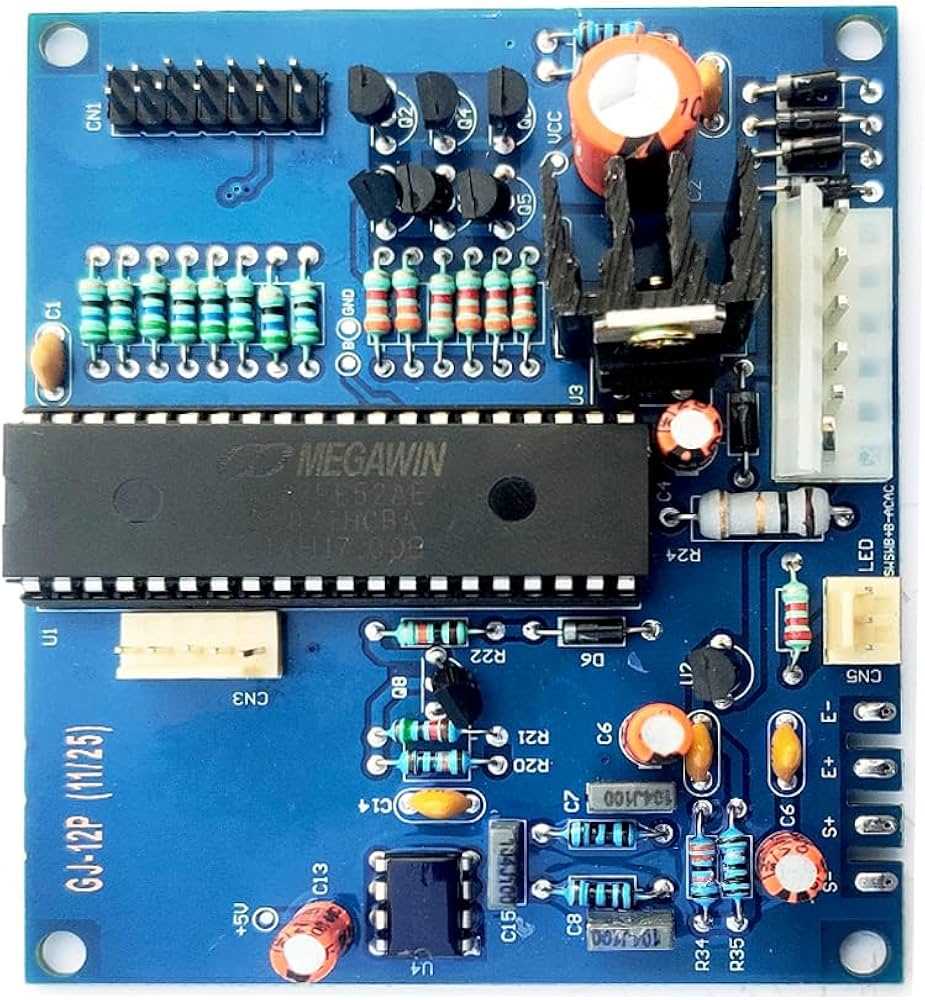

Critical Elements in a Precision Measurement Board for Load Cells

Prioritize a high-resolution analog-to-digital converter (ADC) with at least 24-bit depth to capture minute variations in strain gauge output. The AD7190 or HX711 modules offer built-in signal amplification and noise filtering, reducing external component dependency while improving signal integrity. Ensure the ADC sampling rate aligns with your application–static systems can use 10-80 SPS, while dynamic applications may require 1 kSPS or higher to avoid aliasing.

Signal Conditioning Amplifiers

Select instrumentation amplifiers with low input offset voltage (<10 µV) and high common-mode rejection ratio (CMRR > 120 dB) to isolate weak differential signals from noise. The INA125 or AD620 provide stabilized excitation voltage for load cells while maintaining temperature stability. For multi-sensor setups, incorporate multiplexers like the CD4051 to switch between channels without degrading accuracy.

Stabilized excitation voltage within ±0.1% of the nominal value is non-negotiable for load cell accuracy. Dedicated voltage references like the REF195 (±2 ppm/°C drift) or discrete designs using low-dropout regulators (LDOs) with Kelvin sensing compensate for lead resistance. Avoid linear regulators if current draw exceeds 20 mA–switching regulators introduce ripple that distorts measurements.

Decoupling capacitors (0.1 µF ceramic + 10 µF tantalum) must be placed within 2 mm of ADC and amplifier VCC pins to suppress high-frequency noise. Ground planes should separate analog and digital sections, with a single-star connection near the ADC to minimize ground loops. Traces carrying sensitive signals require guarded routing or differential pair design to reduce electromagnetic interference (EMI).

Temperature compensation is critical–implement either hardware (thermistors) or firmware (polynomial correction) to adjust readings. For environments with rapid thermal shifts, use load cells with built-in compensation or perform calibration cycles every 10°C. Store calibration coefficients in EEPROM with error-checking (CRC) to prevent corruption during write operations.

Microcontroller selection determines processing latency–ARM Cortex-M0+ handles basic tasks, while Cortex-M4/M7 cores enable real-time filtering (Kalman, FIR) for vibrating platforms. Floating-point units (FPUs) accelerate math-intensive operations like tare compensation and unit conversion. Avoid interrupts during ADC sampling to prevent jitter in measurements.

Peripheral interfaces dictate data logging flexibility–UART suits local debugging, while I2C or SPI connects to displays or wireless modules. For industrial applications, opt for RS-485 or CAN FD for robust communication over long distances. Implement watchdog timers to recover from firmware crashes, and use brown-out detectors to prevent erroneous readings during power instability.

Step-by-Step Guide to Crafting a Precision Load Cell Board Layout

Begin by selecting a high-resolution analog-to-digital converter (ADC) with a minimum 24-bit resolution, such as the ADS1232 from Texas Instruments, to ensure accurate force measurements. Place the ADC within 2 cm of the strain gauge bridge to minimize noise pickup–use a solid ground plane beneath both components and route differential signals with matched trace lengths (max ±5% deviation). For power stability, incorporate a low-dropout regulator (LDO) like the TPS7A4700, filtering output with a 10 µF tantalum capacitor and 100 nF ceramic capacitor in parallel, positioned no farther than 5 mm from the ADC’s VCC pin.

Implement Kelvin sensing for the bridge excitation lines by separating force and sense traces–use 0.5 mm wide traces for excitation and 0.2 mm for sense, keeping them at least 1 mm apart to prevent cross-talk. Add a 1 Hz low-pass RC filter (1 MΩ resistor + 1 µF capacitor) at the ADC input to reject 50/60 Hz interference, and include a 100 Ω series resistor to dampen oscillations. Validate the layout by simulating load conditions in SPICE, verifying less than 0.1% full-scale error before fabrication.

Amplifier and ADC Selection for Precision Load Cell Readings

Use an instrumentation amplifier with a CMRR above 120 dB and input noise below 10 nV/√Hz. The INA333 or AD8221 reject power-line interference while amplifying differential signals from 4-20 mV to 2 V full-scale. Decouple each amplifier pin with 0.1 µF X7R capacitors within 5 mm of the package to prevent noise coupling from switching regulators. Match the amplifier’s input impedance to the load cell’s output impedance–typically 350 Ω–with a 1:1 ratio to avoid signal attenuation.

Select a 24-bit delta-sigma ADC like the AD7799 or LTC2485 for sub-microvolt resolution. Ensure the ADC’s sampling rate matches the settling time of the amplifier: 10 Hz for static measurements, up to 1 kHz for dynamic tracking. Use a low-pass filter with a cutoff frequency at least 5× below the sampling rate to eliminate aliasing; a 4th-order Sallen-Key filter with fc = 4 Hz and Q = 0.707 suits most static applications. Power the ADC from a separate LDO with

Ground the analog front end with a star topology, connecting all return paths to a single point near the ADC’s ground pin. Route digital signals–including SPI lines–on a separate layer, shielded by uninterrupted ground planes. Keep trace lengths under 20 mm between the amplifier and ADC to reduce parasitic capacitance; use differential pairs with 100 Ω impedance for clocks and data lines. For temperature drift compensation, integrate an RTD or thermistor (e.g., PT100 or NTC) near the load cell and amplifier, feeding its output into a secondary ADC channel for software linearization.

Test the setup with a known 1 kg reference mass at 25°C. Verify the output code spans the expected range (e.g., 0x800000–0xFFFFFF for a 2 V full-scale input) with
