Identifying a Fuse Symbol in Electrical Circuit Diagrams
Schematic symbols for overcurrent safeguards appear as a straight line interrupted by a narrow gap, often placed between two perpendicular marks. This minimalist design represents the weak link in a protective device, intentionally drawn to rupture when current exceeds its calibrated threshold. Professional engineers rely on this universally accepted notation to identify points in a wiring layout where failure is engineered to occur predictably.
Standardized depictions use either ANSI or IEC conventions. ANSI diagrams typically show a slightly thicker line segment bisected by a slim break, while IEC symbols incorporate a symmetrical zigzag spanning the gap. Both variants clearly separate conductors while maintaining easy readability across multi-page schematics. Locate this glyph between power sources and sensitive downstream components to ensure downstream safety.
Symbols adjacent to numerical ratings denote capacity limits expressed in milliamps, amperes, or fractions thereof. A tiny “5A” next to the interrupted line confirms a safeguard rated for five amperes–any sustained current beyond this value triggers immediate disconnection before collateral damage propagates. Always verify the marked value matches expected load parameters; undersized ratings risk nuisance trips, whereas oversized ones fail catastrophically.
Modern digital drafting tools like KiCad, Altium Designer, and EAGLE include native libraries containing pre-configured symbols for immediate placement. Replace generic placeholders with precise vendor-specific part numbers whenever available, ensuring schematic accuracy aligns with physical device tolerances specified by datasheets.
Identifying Overcurrent Protection Symbols on Schematics
Standard schematics represent overcurrent protection devices with a straight line interrupted by a thin horizontal bar–this bar symbolizes the fusible element. The symbol appears directly in series with current paths to indicate where the safety component breaks under excess amperage.
Recognize the two primary variants: the closed rectangle (IEC 60617) and the zigzag line (ANSI Y32.2). Both variants share the same core structure: a continuous conductor with a single interruption mark. IEC’s version uses a filled rectangle, while ANSI’s opts for a sharp zigzag pattern within the gap.
| Standard | Base Symbol | Variations | Common Use Cases |
|---|---|---|---|
| IEC 60617 | ▯│▯ | Rectangular block, dashed rectangle | Industrial control panels, power distribution boards |
| ANSI Y32.2 | ───⚡─── | Zigzag within gap, slanted bar | Residential wiring diagrams, consumer electronics |
Check for adjacent annotations–most schematics label the safety element’s current rating next to the symbol, expressed in amperes (A). A “5A” marker beside the interruption indicates the threshold at which the element melts. High-current installations may also include voltage ratings.
Avoid confusing the safety component with a resistor–while resistors display zigzag patterns too, they lack the single interruption bar and usually carry ohm values instead of current ratings. Switches, meanwhile, feature movable contacts, not fixed breaks.
Trace the path: the protection device sits between the power source and load, never parallel. If the symbol appears off the main current line, it typically denotes a thermal cut-out or polyswitch, not a traditional fusible link.
Modern digital schematics often pair the basic symbol with a rectangle surrounding it–this denotes resettable versions like PTC thermistors. The rectangle differentiates self-recovering devices from single-use elements.
For precise identification, cross-reference the symbol with the bill of materials or the legend. Manufacturers occasionally customize symbols, but the core interruption mark remains consistent across all variants.
Standard Symbol for a Protective Element in Schematic Representations
Use a horizontal rectangle with a straight line passing through its center to denote a protective component in electrical blueprints. This symbol adheres to IEC 60617 and ANSI Y32.2 standards, ensuring universal recognition across technical documentation.
Key specifications:
- Dimensions: 6 mm length × 3 mm height (IEC), 0.25 inches × 0.125 inches (ANSI)
- Line thickness: 0.25 mm (IEC), 0.01 inches (ANSI)
- Center gap: 0.5 mm (IEC), 0.02 inches (ANSI) between the line ends
For variants, append a tilted “S” or “F” inside the rectangle to indicate slow-blow or fast-acting types, respectively. Military schematics (MIL-STD-15-1) require a smaller, 4 mm × 2 mm shape with identical proportions.
Alternative Regional Notations
North American diagrams may include a zigzag line instead of the central bar, though this is less common in modern practice. Japanese JIS C 0301 standard mirrors IEC but allows a slightly narrower rectangle (5.5 mm × 3 mm). Always verify the project’s required standard before finalizing symbols.
Place the symbol in series with the current path, typically near the power source or critical branches. For clarity, label with the rated current (e.g., “250 V, 10 A”) directly above or beside the element. Avoid overlapping adjacent components to prevent misinterpretation.
When drafting by hand, use a 0.5 mm technical pen for consistent line weight. Digital CAD tools (AutoCAD Electrical, Altium) offer pre-configured libraries with exact dimensions–prefer these over manual recreation to eliminate errors. Always cross-reference with official standards if customizing symbols.
Error-Prone Practices
Do not substitute the rectangle with a simple gap or jagged line, as these confuse it with breakers or resistors. Omitting the center line entirely renders the symbol invalid. Ensure the element is distinguishable from capacitors or inductors, which use closed shapes or arcs.

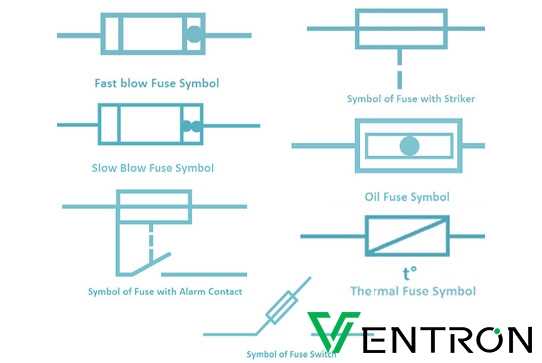

Identifying Thermal and Slow-Blow Protective Elements in Schematics
Symbols for resettable thermal protectors often include a zigzag line intersecting a straight conductor, sometimes paired with a thermistor notation (typically a “T” label or dotted enclosure). In high-current layouts, search for a rectangular outline with a diagonal slash–this denotes a self-resetting device, frequently seen in motor-driven systems where cyclic overheating occurs. Slow-blow variants appear with a time-delay identifier: a small clock icon adjacent to the standard breaker symbol or a “T” suffix in component labels, alerting to intentional lag before interruption.
Key Markers in Electronic Blueprints
Schematics designate thermal cutoffs with a distinct “PTC” label near the symbol, indicating Positive Temperature Coefficient behavior, critical in battery management or inductive load circuits. Slow-acting elements display an hourglass glyph beside the line-break icon, emphasizing intentional delayed response to transient surges. For enclosed components, look for a dashed box encapsulating the symbol–common in integrated modules like power supplies where physical separation isn’t feasible.
Industry-specific shorthand varies: PCB layouts may use “F” (fast), “M” (medium), or “T” (thermal) prefixes, while industrial wiring diagrams adopt IEC 60617 standards, substituting text labels with graphic modifiers (e.g., a wavy line beneath the breaker symbol for slow-blow). Always cross-reference the schematic’s legend–alternate notation exists for glass-tube, blade-style, and surface-mount variants, each requiring distinct trace routing or auxiliary cooling provisions.
Verify context against neighboring components: thermal units cluster near heat sources (transistors, transformers), while slow-blow devices sit downstream of inrush-prone stages (capacitors, startup circuits). Misidentification risks improper derating–thermal elements fail prematurely in pulse-width applications, whereas slow-blow units won’t trip during legitimate transient loads, compromising protective integrity.
Common Mistakes When Sketching or Interpreting Protective Component Symbols
Mixing up the zigzag pattern of a resistor with the straight-line-and-gap representation of overcurrent safeguards causes confusion, especially in dense schematics. The standard IEC 60617 shows a straight conductor interrupted by a narrow gap–never a wavy line. Verify the symbol matches this exact form before finalizing the drawing; even minor deviations mislead technicians during assembly or troubleshooting.
Avoid placing the protective element symbol next to active components like transistors or ICs without clear separation. Crowded diagrams often obscure the intended function, making it seem the safeguard is part of another device. Leave at least 5 mm of space around the symbol to maintain visibility and prevent misreading.
Incorrect Orientation and Missing Ratings
Rotating the symbol 90 degrees disrupts consistency, especially in multi-sheet designs where orientation must align with signal flow. Always draw the gap horizontally or vertically, never diagonally. Omitting current or voltage ratings next to the symbol risks improper selection during repairs–always label with precise values, e.g., “5A” or “250V AC.”
Using non-standard symbols, such as adding arrows or extra lines, violates schematic conventions. Stick to the minimalist IEC or ANSI format: a single straight line with a single gap. Deviations complicate team collaboration and increase the chance of errors during PCB layout or field service.

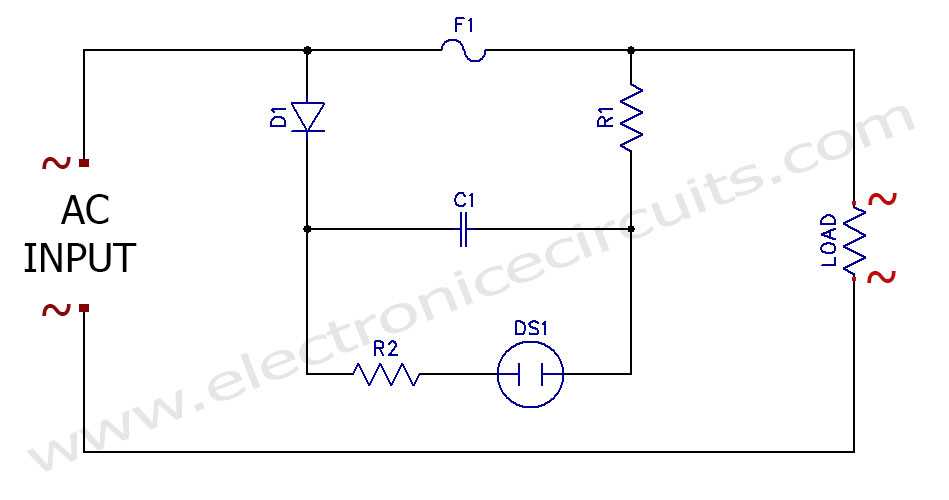

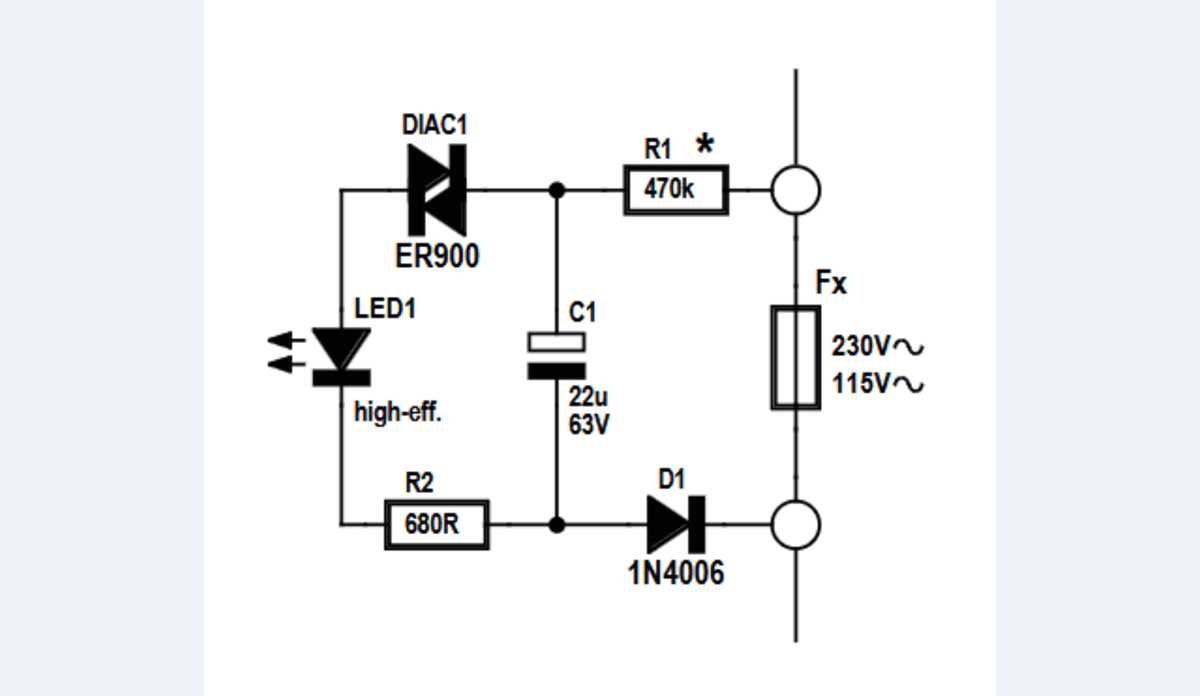

Optimal Placement of Overcurrent Protection in Schematic Layouts
Place the safety component directly after the power source in series configurations to ensure all downstream components receive immediate protection. For DC supplies, position it within 5–10 mm of the input terminal in the schematic to mirror physical PCB routing constraints. In AC mains-fed designs, integrate it between the transformer primary and any surge suppression elements to prevent cascading failures before voltage regulation stages.
Use a dedicated branch for overcurrent devices in parallel setups, separating them from functional paths. Align symbols adjacent to the main conductor line with a 45° offset for clarity without cluttering high-density schematics. For multi-load systems, insert individual protection upstream of each branch bifurcation rather than relying on a single central device–this isolates failures without disrupting unrelated circuits.
In switched-mode power topologies, embed the symbol immediately after the input capacitor and before the switching element (e.g., MOSFET/IGBT). This placement intercepts transient spikes from both incoming supply noise and inductive flyback, preventing damage to the semiconductor. For precision analog circuits, avoid placement near sensitive nodes (op-amps, ADCs); instead, locate it at the module’s power entry point to contain faults without degrading signal integrity.
For motor drivers and inductive loads, position the component between the switching transistor and the load to capture energy released during coil de-energization. In battery-powered devices, place it closest to the positive terminal–never after a charge controller without additional redundancy–to circumvent internal short risks during charging cycles. Verify clearance in the symbol’s annotation (e.g., “500mA Slow-Blow”) matches the schematic’s BOM and PCB silkscreen coordinates.
During hierarchical block design, propagate the symbol through all subcircuits it protects, maintaining consistent reference designators (e.g., F1) across pages. For mixed-signal designs, keep analog and digital protection separate unless a shared return path explicitly connects grounds; in such cases, use a single device at the ground merge point with sufficient current rating for combined loads.
