Understanding Circuit Diagram Branches Key Components and Their Functions
Identify each parallel path as a distinct segment in your schematic–this is where voltage remains constant while current divides. Use standardized symbols like resistors (R), capacitors (C), or inductors (L) to mark these divides, ensuring clarity for troubleshooting and modifications. For example, in a split containing two resistors of equal value, the current through each will be half the total, while the voltage across both matches the source.
Label every segment with precise values or designations–ambiguity leads to errors during assembly or analysis. Apply consistent naming (e.g., Branch_A, Branch_B) to avoid confusion between similar-looking paths. Highlight critical segments with bold lines or contrasting colors if the diagram is digital, drawing attention to areas requiring extra scrutiny, such as high-current routes or safety-critical redundancies.
Simulate behavior before physical implementation. Tools like SPICE or LTspice calculate current distribution, voltage drops, and power dissipation across each segment, revealing potential faults like overloading or unexpected resistance. For instance, a segment with a 1kΩ resistor will draw significantly less current than one with 10Ω–verify these calculations against your schematic’s requirements.
Physically trace segments during prototyping. Use a multimeter to confirm voltages align with the schematic’s predictions. Discrepancies often point to misplaced components, incorrect values, or overlooked connections. Mark confirmed segments with tape or labels on the breadboard to simplify future revisions.
Understanding Path Segments in Electrical Schematics
Identify a single route between nodes as a distinct segment–one uninterrupted conductor or component chain carrying current independently. Each such segment operates under the same potential difference, forming a foundational unit in schematic analysis.
Trace segments visually by following connections from a power source through resistors, capacitors, or other elements before merging at a junction. Avoid mistaking parallel routes for a single segment; separate paths, even if connected to the same endpoints, qualify as individual entities in the layout.
Label segments systematically when documenting–use identifiers like *L1*, *S2*, or *Path_A* to differentiate them in complex diagrams. Consistency in notation prevents confusion during troubleshooting or when cross-referencing with physical wiring.
Behavior Under Load
Measure current within a segment using Ohm’s law: divide the voltage across its endpoints by the total resistance along the route. This calculation reveals the actual electron flow, critical for sizing conductors or selecting components.
Recognize that segments sharing a common node exhibit identical voltage at that node but may differ in current if resistances vary. This principle explains why parallel paths in a layout split current proportionally–critical for distributing power evenly across multiple devices.
Isolate segments for failure analysis by checking continuity with a multimeter. A break in the route disrupts the entire loop, while a short may reroute current unpredictably, requiring segmentation checks to pinpoint faults.
Practical Applications
Apply segmentation to simplify modular design–group related components into discrete routes for easier testing. For example, split a power rail into separate paths for lighting, sensors, and actuators to diagnose faults without dismantling the full system.
Use segmentation to optimize heat dissipation in high-current applications. Distribute load across multiple routes to reduce thermal stress on individual traces or wires, extending component lifespan.
Document segment purposes in the schematic’s notes–for instance, *”Path_B: 12V logic supply”* or *”L3: Signal return ground.”* This clarity aids collaboration and future modifications.
Locating Path Segments in Combined Electrical Networks
Trace each conductive route independently from the power source’s positive terminal back to its negative counterpart. In setups where elements share both connection points (like resistors strung between identical nodes), these form discrete lanes operating simultaneously. Such lanes visibly split the current flow without converging until reconnecting to the main supply lines.
Examine voltage behavior across individual lanes–identical voltage readings confirm parallel lanes. Use a multimeter set to DC voltage; probe both ends of each suspected lane while the network is energized. Consistent readings matching the supply voltage eliminate series configurations, which instead show proportional drops aligned with resistance ratios.
| Network Type | Voltage Behavior | Current Path |
|---|---|---|
| Simultaneous lanes | Uniform across all lanes | Splits inversely with impedance |
| Sequential arrangement | Drops proportionally | Single unbroken route |
For sequential arrangements, follow a single continuous trace where components connect end-to-end. No alternative lanes exist–disconnecting any element interrupts the entire route. Ohm’s Law applies directly here: total resistance sums all impedances, and current remains identical at every point.

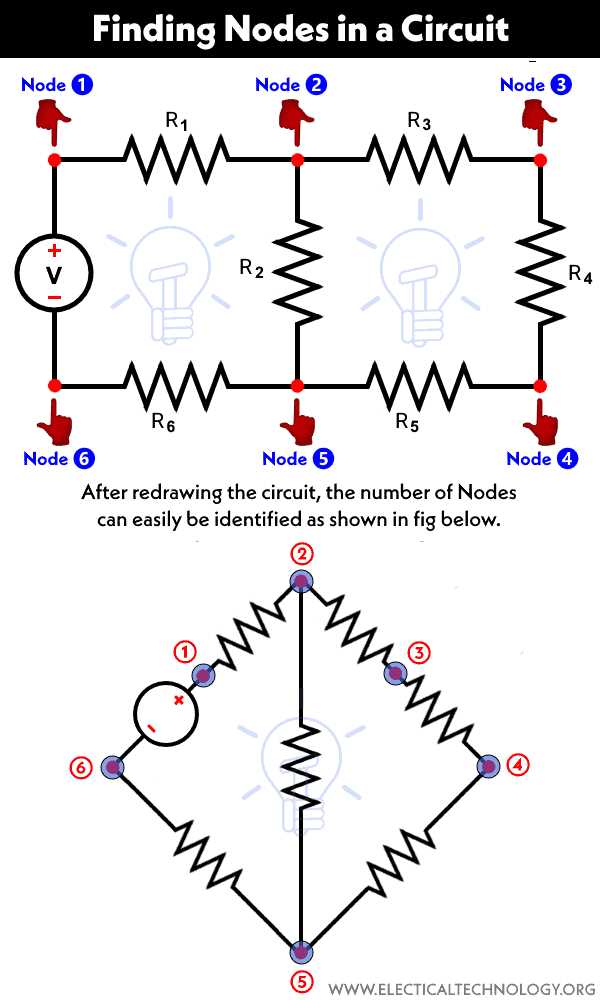

Identify junction nodes where multiple lanes converge or diverge. Parallel lanes always reconnect at common endpoints, while sequential components lack such bifurcations. Scratch lightly on a printed schematics to highlight these nodes–physical separation from parallel lanes becomes immediately obvious.
Practical Steps for Distinction
1. Power down and discharge capacitors before analysis to prevent erroneous readings.
2. Label each conductive route with masking tape adhered near components.
3. Measure resistance between labeled points–low resistance paths in parallel lanes contrast with high cumulative resistance in sequential ones.
4. Re-energize incrementally, observing current splits with a clamp meter.
Hybrid networks require isolating each segment type. Treat parallel sections as a single equivalent impedance when analyzing sequential portions upstream. Reverse the approach when downstream parallel sections rely on calculated upstream values.
Key Distinctions Between Path Segments and Connection Points in Schematic Review
Prioritize identifying current paths by their functional role: series or parallel segments define how components interact, while junction points mark redistribution zones. A single line carrying distinct current values between two nodes forms an independent path, whereas a node consolidates or divides flows–never altering voltage unless resistance is present. Trace voltage drops along segments; nodes maintain equal potential unless bridging non-ideal conductors. Use Kirchhoff’s laws to verify: sum currents at nodes, confirm segment voltage differences align with component ratings.
Practical Guidelines for Schematic Interpretation
- Label paths uniquely (e.g., “L1,” “L2”) to track loops during mesh analysis.
- Highlight nodes with circles; distinguish ground symbols from floating junctions.
- Cross-reference segment currents against node equations–mismatches reveal drafting or calculation errors.
- For multi-terminal devices (transistors, op-amps), treat each pin as a discrete node with defined constraints.
- Simplify redundant nodes: merge adjacent connection points sharing identical voltage in idealized networks.
Validate schematics by counting closed loops: each requires at least one segment not shared with other meshes. Failed checks indicate missing paths or mislabeled junctions.
Common Mistakes When Tracing Current Through Parallel Paths
Avoid assuming equal current splits in unequal resistances–Ohm’s law dictates the exact division, yet many overlook resistance values smaller than 10 ohms or larger than 100 kilohms, skewing calculations. Measure twice: confirm component ratings with a multimeter before applying formulas. Virtual simulations often normalize these inconsistencies, masking real-world deviations.
Skipping voltage drops across connectors is another frequent error. A seemingly negligible 0.1-volt loss on a breadboard junction can cascade into a 15% calculation discrepancy in low-power designs. Always trace the physical layout: hidden traces, corroded terminals, or suboptimal solder joints reroute charge unintentionally. Use a thermal camera to spot resistive hotspots–cold joints often mislead continuity tests.
Overlooking Dynamic Behavior in Transient States
Treating inductive or capacitive elements as static loads invites phase-shift miscalculations. A 10 µF capacitor discharging through a 1 kΩ resistor reaches 63% of its final voltage in 10 ms, not instantaneously. Capture oscilloscope waveforms at switching edges–ringing, overshoot, or slew-rate limitations distort expected steady-state assumptions. Ignoring these transients risks undersizing protection diodes or misinterpreting sensor readings.
Ground loops misdirect current flow predictions. A 1 mA leakage through a shared return path can induce 100 mV offsets in high-precision analog networks. Always use star grounding for mixed-signal sections. Kelvin sensing compensates for lead resistance but requires explicit test-point placement–omitting it introduces ±5% error in 4-wire measurements. Verify ground continuity at every node with a milliohm meter.
Labeling errors propagate confusion. A mislabeled node in a schematic forces misapplied Kirchhoff’s laws, turning a valid 12 mA path into an invisible 3 mA phantom loop. Color-code current directions in red/blue during design reviews and cross-check with annotated printouts–never rely solely on CAD netlists. Real boards often reroute traces to avoid vias; capture these deviations in an as-built document to reconcile simulation versus reality.
