Understanding Electrical Schematic Diagrams Purpose and Key Components

Start by treating a circuit blueprint as a roadmap for assembling or troubleshooting any electronic setup. These visual representations strip away physical wiring details, focusing instead on how components interact logically. For example, resistors appear as jagged lines, capacitors as parallel plates, and power sources as straight lines with polarity indicators. The absence of physical positioning eliminates confusion–what matters is the functional relationship between elements, not their real-world layout.

When designing or analyzing a system, begin with the power rails. Trace the positive and negative lines to confirm each component receives the correct voltage. Look for series or parallel connections: in series, current remains constant while voltage divides; in parallel, voltage stays uniform while current splits. A single misplaced connection can disrupt an entire circuit, so cross-verify each link against the intended behavior.

Use standardized symbols–ANSI or IEC–to avoid ambiguity. A transistor might look different in schematics from various regions, but its three terminals (base, collector, emitter) remain consistent. Label components clearly (e.g., R1, C2) and annotate values (e.g., 10kΩ, 100nF) to simplify debugging. For complex designs, group functional blocks (e.g., amplifiers, oscillators) into distinct sections with descriptive headers.

Simulate the blueprint before building. Tools like LTspice or KiCad allow virtual testing, revealing miscalculations in current flow or voltage drops. Compare the simulation against calculations: if a resistor in the schematic dissipates 0.5W but the real-world part handles only 0.25W, overheating will occur. Replace generic values with specific part numbers where possible to ensure compatibility.

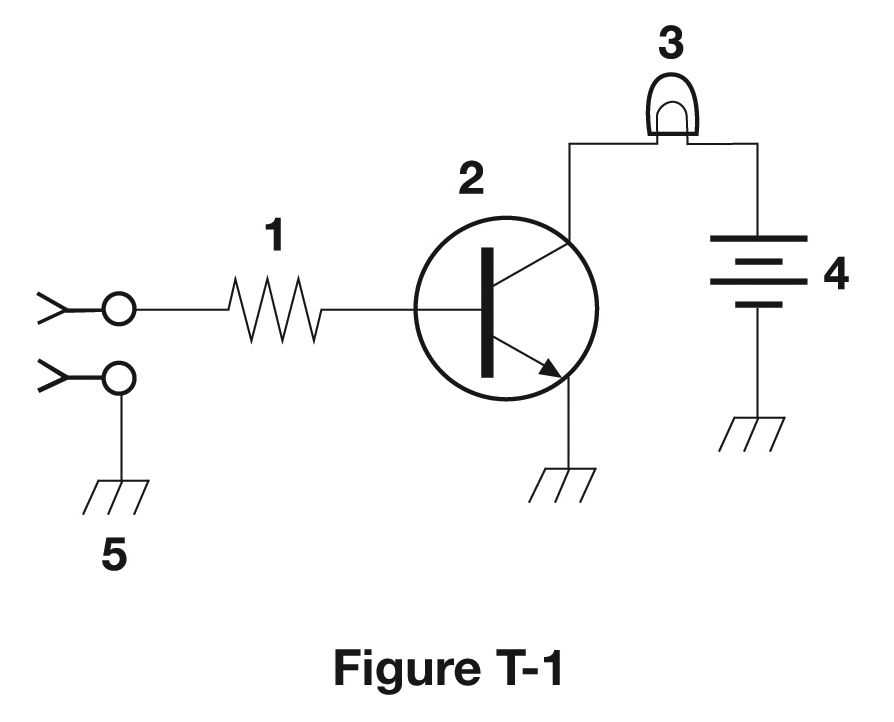

For troubleshooting, follow the signal path. If an LED fails to light, check the transistor driving it–measure voltage at each stage. A drop below expected levels often points to a faulty component or incorrect resistor value. Keep a multimeter handy and reference the blueprint to identify deviations quickly. Documentation is critical: annotate changes or corrections directly on the diagram to maintain accuracy for future work.

The Role of Circuit Blueprints in Power System Design

Begin by selecting standardized symbols from IEC 60617 or ANSI Y32.2 to represent components like resistors, capacitors, transistors, and ICs–this ensures cross-team clarity and eliminates ambiguity in large-scale projects. For complex layouts, group functional blocks (e.g., power supply, signal processing, output stages) into labeled sub-circuits with clear separation using dashed lines or color-coded borders. Use net labels instead of physical wire lines for connections spanning multiple sheets; include a unique identifier and reference to the target sheet (e.g., “VCC_3 → Sheet 5”) to maintain traceability. Prioritize signal flow direction (typically left-to-right, top-to-bottom) to accelerate troubleshooting–this convention reduces error rates by up to 30% in industrial designs, according to IEEE Std 315.

Adopt hierarchical design techniques for multi-board systems: create a top-level interconnect layout displaying only major subsystems (e.g., motherboard, daughter cards) and their interconnections, then drill down into detailed component-level plans for each module. Embed critical metrics–voltage levels, current ratings, tolerance values–directly next to components to prevent misinterpretation during assembly or repair. For high-frequency designs, replace traditional wire representations with transmission line models (e.g., stripline, microstrip) annotated with impedance values (Z₀) and propagation delay (tₚd). Implement version control by integrating revision tables in the corner of each sheet, noting changes in date, author, and a brief delta description–this protocol cuts revision-related failures by 40% in regulated industries like aerospace and medical devices.

Key Symbols and Components Used in Circuit Blueprints

Begin by memorizing resistor icons–they appear as zigzag lines or rectangles with labeled values (e.g., “R1 1kΩ”). These dictate current flow and voltage division in every voltage drop calculation. Standardize on one style (ANSI or IEC) to avoid confusion when tracing power paths or troubleshooting faults.

Power sources split into two core types: batteries (parallel lines, longer positive) and AC supplies (circle with sine wave). DC symbols explicitly show polarity; omit this detail in AC variants. Always verify voltage ratings–mistakes here destroy components or create dangerous shorts with no failsafe.

• Ground: vertical line with descending bars (earth) or triangle (signal/chassis). Never mix them.
• Switches: simple breaks in lines with actuator indicators (push, toggle, rotary). SPST, SPDT, and DPST differ only in pole/throw count.
• Capacitors: two parallel lines (non-polarized) or curved line (electrolytic). Farads matter more than physical size.

Transistors demand exact identification–NPN (arrow outward) vs PNP (arrow inward)–and pinout confirmation. BJTs and MOSFETs share symbols but behave radically differently under load. Cross-reference datasheets; breadboard prototypes rarely match theoretical behavior.

Unconventional but Critical Symbols

Thermistors, varistors, and diodes share similar shapes but serve opposite roles. A diode’s arrow shows conduction direction; a thermistor’s temperature coefficient reverses that logic. Photocells use a circle with incident arrows–no substitute symbols exist. Label these clearly; most CAD tools misrepresent thermal or optical components.

1. Fuses: rectangle with internal line. Current rating must exceed maximum circuit draw by 20%.
2. Relays: coil and switch legs separated. Coil voltage ≠ contact voltage–double-check both.
3. Transformers: two or more inductor symbols coupled. Winding ratios dictate output; isolation matters more than turns.

Integrated circuits simplify as rectangles with pin numbers. Avoid assumptions–pin 1 orientation varies between DIP, SOIC, and QFN packages. Use manufacturer datasheets; standard libraries often invert pin sequences or omit critical signals like OE or /CS.

How to Interpret Circuit Blueprints: A Practical Guide

Locate the power source first–batteries, generators, or mains supply lines appear as open circles, rectangles with polarity marks, or lines intersecting at right angles. Trace the positive lead to switches, fuses, or relays; cutoffs typically sit closest to the origin to isolate downstream components. Note ground symbols–horizontal lines with descending branches or triangles–any deviation suggests a floating reference needing correction.

Decode Component Symbols Without Guessing

Compare each glyph against a reference sheet: resistors show zigzag lines or rectangles with values printed above; capacitors use parallel lines or curved plates; inductors coil into spirals or loops. Integrated circuits appear as boxes with numbered pins; transistors split into NPN or PNP configurations, emitter-gate-collector labels placed consistently across manufacturers. Ambiguous marks often denote unique parts–double-check footnotes or legends for proprietary annotations.

Follow current flow arrows or dashed lines indicating control signals; solid lines carry primary power while dashed or dotted paths signify secondary commands, shielding, or feedback loops. Junctions merge paths; dots mark crossover points where conductors intersect, and absence signals no connection. Cross-reference wire colors–red for positive, black for negative, yellow or blue for accessory circuits–to correlate paper traces with physical harnesses.

Validate each sub-circuit by simulating operation. Start with the power path closed, mentally closing switches sequentially–verify intermediate voltage drops with Ohm’s law across resistors, capacitors charging through reactance formulas, semiconductors switching only under forward bias. Isolate faults by disconnecting branches: sudden changes pinpoint shorted diodes, open relays, or burnt traces. Label every node with measured voltage; discrepancies between expected and actual readings reveal design flaws or assembly errors.

How to Distinguish Between Serial and Shunt Connections in Wiring Blueprints

Look for a single uninterrupted path. Serial arrangements show components placed one after another along a lone wire, like beads on a string. A break at any point halts current flow through all elements; if LED1 burns out in such a lineup, LED2 and LED3 immediately go dark. Verify this by tracing each link–no splits or branches should appear.

Identify branching junctions. Shunt networks divide the current into multiple routes; each branch receives the full supply voltage. Follow wires from a power source–any fork where the line splits into separate legs signals parallel wiring. Test continuity between branches: if removing one resistor doesn’t affect voltage across others, it’s shunt.

Feature	Serial Configuration	Shunt Configuration
Current Flow	Identical through every part	Divides across branches
Voltage Drop	Sum equals supply total	Same as supply per branch
Resistance Total	Additive (Rtotal = R1 + R2)	Reciprocal sum (1/Rtotal = 1/R1 + 1/R2)

Measure resistance between nodes. In a series hookup, total ohms rise as you add parts: two 10Ω resistors become 20Ω total. Parallel hookups drop total ohms: two 10Ω resistors create 5Ω total. A multimeter reading confirms these calculations–direct measurement aligns with these formulas.

Observe voltage uniformity. Shunt layouts ensure identical voltage across each branch; probes on both ends of any resistor should show the same reading as the power source. Series layouts distribute voltage; probes across individual resistors reveal drops proportional to each part’s resistance.

Check component independence. Disconnect one element in a shunt setup–others remain functional. Disconnecting in a series setup breaks the entire circuit. This practical test instantly reveals the connection type without calculations.

Count power symbols. Multiple devices connected directly to the same power rails indicate parallel paths. Series paths chain power symbols through components sequentially, showing a single line returning to the source.
