Whirlpool Cabrio Dryer Electrical Wiring Schematic and Troubleshooting Guide
Check the thermal fuse first–it’s the most common failure point in these models. Locate it on the blower housing or exhaust duct, typically held by a single screw. Use a multimeter set to continuity mode; zero resistance means the fuse is intact. If blown, verify the vent path is clear before replacement–restricted airflow overheats the system and repeats the issue.
Examine the motor relay next. Found on the control board, it’s a square component labeled K1 or K2. Weak solder joints cause intermittent operation or complete shutdown. Reflow connections with a 30W soldering iron, focusing on the relay’s four pins. If the board shows burn marks, replace it entirely–repairs are rarely cost-effective.
For heating element issues, measure resistance at the terminals. Expect 20–50 ohms; readings outside this range indicate a short or open circuit. Access the coil by removing the rear panel–secure the two screws at the base and two at the top. Disconnect power and discharge capacitors by shorting terminals with an insulated screwdriver before handling terminals.
Door switch testing requires a meter probe inserted into the latch assembly’s harness connector while the door is closed. A functional switch shows continuity. No reading? Replace the switch assembly–adjustments won’t fix internal breakage. Ensure the drum rotates freely before reassembly; belt tension shouldn’t exceed 1/8″ deflection.
Control board failures manifest as erratic cycles or unresponsive controls. Compare the board’s numbers against the model’s service manual–firmware revisions differ even within series. Swap the board only after confirming power supply output (5V DC at J19) and checking for corrosion on the 12-pin connector. Dry any moisture immediately; prolonged exposure corrodes traces within 48 hours.
Electrical Schematic for Advanced Laundry Appliance Models

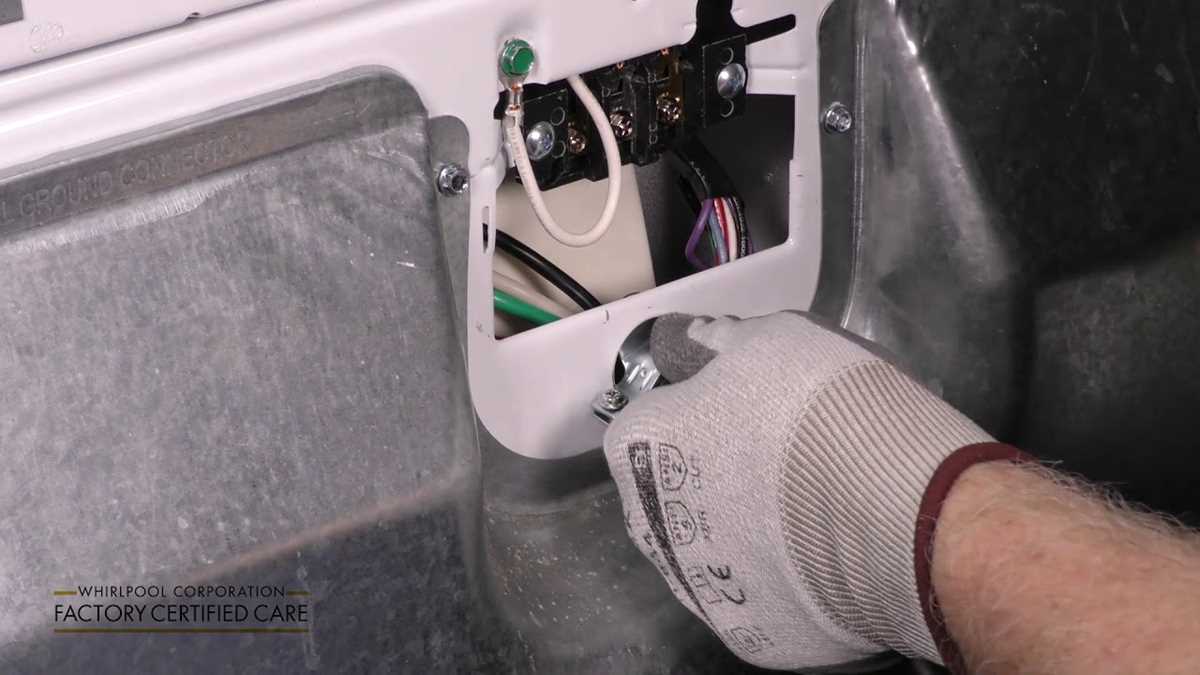

Begin by locating the terminal block behind the lower access panel–securely mounted near the motor assembly. This block houses critical connections: L1 (black), L2 (red), neutral (white), and ground (green or bare). Verify each wire’s insulation integrity before proceeding; frayed strands at the crimp points often cause overheating or intermittent failures.
Trace the power cord’s path to the thermal fuse, typically positioned adjacent to the blower housing. If continuity tests fail here, replace the fuse immediately–this safety device interrupts current at 185°F (85°C), preventing combustion. Adjacent components include the door switch and start switch, both requiring a 120VAC signal to engage the drum’s rotation.
Examine the centrifugal switch integrated into the drive motor’s rear. This mechanism disengages during startup, redirecting voltage to the heater circuit once the drum reaches 60 RPM. A malfunction here manifests as either no heat or prolonged heating cycles. Use a multimeter in resistance mode (Rx1) to confirm the switch toggles from closed to open at operating speed.
Identify the thermistor attached to the exhaust vent–this NTC sensor modulates heater output based on temperature readings. Standard resistance values range from 5k ohms at 77°F (25°C) to 1k ohms at 392°F (200°C). Deviations suggest sensor drift, necessitating recalibration or replacement. Wire colors for this component usually follow: red (signal), gray (ground).
Refer to the control board’s labeled outputs for auxiliary circuits. The user interface ribbon cable, for example, employs a 16-pin JST connector with designated lanes for the digital display, keypad matrix, and internal LED indicators. Backfeed voltage here should never exceed 5VDC; higher readings indicate a compromised voltage regulator on the main PCB.

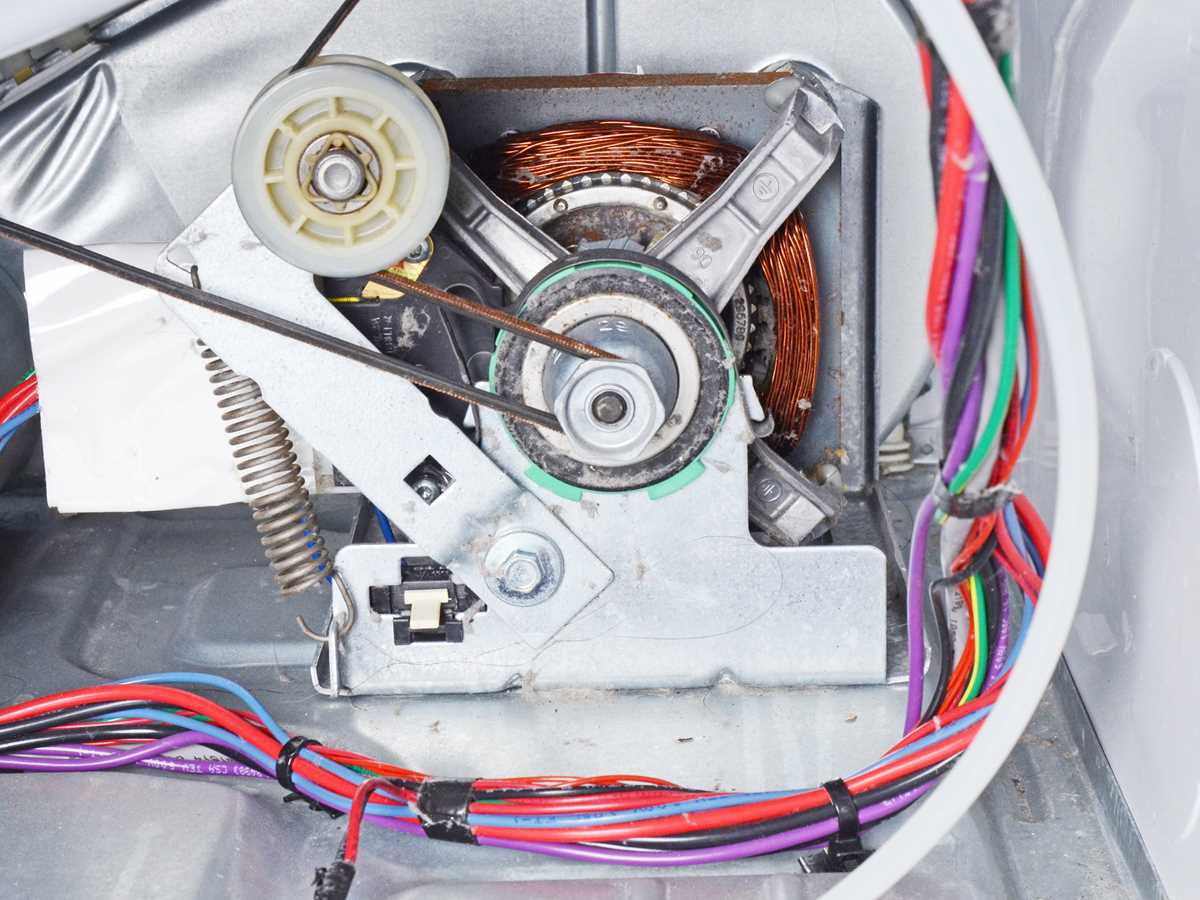

For troubleshooting, isolate the drum’s belt-driven pulley system from the motor’s electrical feed. The idler pulley maintains 50–70 lbs of tension; slack causes insufficient torque transmission, mimicking motor failure. Check the rear bearing assembly for lubricant degradation–sealed bearings failing audibly under load often exhibit axial play exceeding 0.005 inches (0.127mm).
Locating Authorized Electrical Schematic Sources for Your Laundry Appliance
Begin with the manufacturer’s support portal. Visit their official service hub and enter your model number–typically found on a sticker inside the door frame or along the machine’s rear panel. The portal filters relevant technical documents, including circuit layouts, within seconds of submission. Models produced after 2015 often include these schematics as downloadable PDFs, while older units may require contact with customer support for direct email delivery.
Check the original product manual if still available. During initial purchase, retailers usually bundle a printed or CD-based document containing critical details–schematics, component placement, and safety protocols. Locate this resource in the appliance’s storage compartment or adjacent utility area where manuals are kept. If misplaced, digital duplicates exist on third-party aggregators like ManualsLib, though verify file versions against the official model number to ensure compatibility.
| Source | Access Method | File Format | Verification Required |
|---|---|---|---|
| Manufacturer Portal | Model number search | Yes (serial cross-check) | |
| Product Manual | Physical/CD storage | Print/CD | No |
| Third-Party Sites | Model number search | PDF/JPG | Yes (source credibility) |
| Authorized Service Centers | In-person/phone request | Print/digital transfer | Yes (proof of ownership) |
Local repair technicians affiliated with the brand can provide schematics. These centers maintain access to proprietary databases and often share documents upon request with proof of purchase or service appointment confirmation. Call ahead to confirm availability–some branches require on-site visits, while others transmit files via secure email. A list of authorized centers is available through the manufacturer’s regional directory.
Online forums dedicated to home appliance maintenance frequently host user-uploaded schematics. Platforms like ApplianceBlog or Reddit’s r/appliancerepair archive years of discussions where members attach verified circuit maps. Exercise caution–cross-reference any downloaded files with official documents, as community-shared versions may contain errors or outdated revisions.
Social media groups for appliance repair professionals occasionally share resource links. Facebook groups like “Appliance Repair Technicians” or LinkedIn communities often pin thread guides with direct links to manufacturer-approved schematics. Ensure the group is moderated by certified technicians to avoid misinformation, and always confirm file authenticity before application.
Interpreting Color Standards in Appliance Electrical Blueprints
Locate the legend or key adjacent to the schematic–most manufacturers mark it with a small box or table. Match each color abbreviation to its full designation: “BLK” denotes black (hot lead), “WHT” indicates white (neutral), and “RED” signals red (secondary live line). Ground connections almost always appear in green or bare copper.
- BLU: Blue lines carry low-voltage controls for timers or sensors.
- ORN: Orange wires link thermal switches or safety cutoffs.
- YEL: Yellow marks input feeds from power entry points.
- GRY: Gray typically connects neutral bars or terminal blocks.
Trace each colored path sequentially–begin at the power source, follow through switches, heating coils, and motors, then return to neutral or ground. Discrepancies between the schematic’s color and the physical harness often mean splices or factory modifications; compare terminal numbers if colors mismatch.
Cross-reference against an ohmmeter reading when ambiguity persists: set the meter to continuity mode, touch probes to corresponding endpoints in the schematic–audible confirmation ensures correct mapping.
Step-by-Step Guide to Testing Continuity in Home Appliance Electrical Parts
Unplug the machine immediately and discharge any capacitors using a 20,000-ohm resistor to prevent shock. Set a multimeter to the lowest resistance range–typically 200 ohms–to detect even slight breaks. Probe the terminals of the thermal fuse: readings above 0.5 ohms indicate failure; replace if continuity is absent. Repeat this for door switches, heating elements, and motor coils, noting that a functioning motor should show 5-20 ohms across its windings.
Isolate and Label Components Before Testing
Disconnect the power cord and remove the back panel using a T20 Torx driver. Identify each part by tracing the schematic: the thermal cut-off mounts near the blower housing, while the cycling thermostat sits adjacent to the exhaust duct. Label wires with masking tape to avoid confusion during reassembly. Test the high-limit thermostat first–it should register near 0 ohms; a reading over 1 ohm suggests a faulty unit needing replacement.
Measure resistance across the heater assembly by attaching probes to the element’s terminals. Expect values between 7 and 15 ohms; deviations signal a compromised filament. For belt-driven models, spin the drum pulley manually while checking the motor’s start winding–resistance should drop momentarily. If readings stabilize above 30 ohms, the centrifugal switch may be defective.
After verifying all components, reassemble with 8-10 inch-pounds of torque on screws to prevent rattling. Reconnect power and run a 10-minute air-fluff cycle to confirm no shorts remain. If error codes persist, retest the control board’s solder joints for micro-fractures–common in units older than five years.
