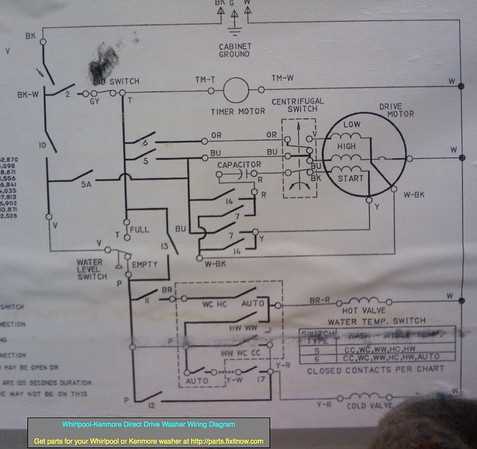

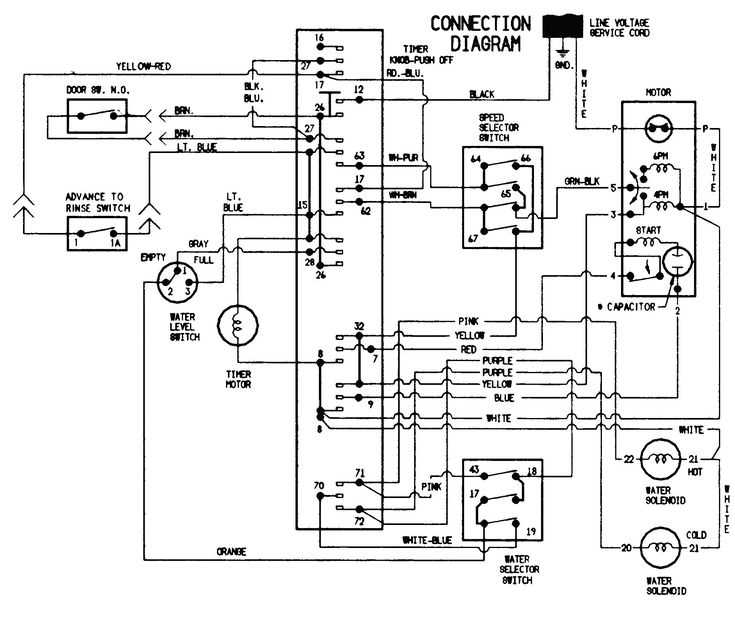

How to Read and Interpret Whirlpool Washer Electrical Wiring Diagrams
Locate the service manual specific to your model–this is the most reliable source for accurate schematics. If unavailable, check the inner panel of the unit, where manufacturers often print condensed versions of the circuit path. For most mid-tier spinning machines, the primary power feed enters through a black or red wire connected to a terminal block; verify this first before proceeding.
Trace the current flow from the main switch assembly to the motor windings. A common failure point occurs at the start capacitor, typically labeled in the technical schematic–look for a cylindrical component with two leads. If resistance readings exceed 5 ohms between these points, the capacitor likely requires replacement. Avoid improvising with generic parts; match the microfarad rating and voltage tolerance precisely.
Examine the control board connections next. Most modern units use quick-connect terminals, fragile under stress–inspect for corrosion or loose fits. A multi-meter in continuity mode will confirm proper linkage between the board and door latch sensor. If voltage drops below 105V at any point, investigate the household fuse box or power cord for partial shorts.
For high-efficiency models, pay special attention to the inverter circuit. Miswiring here can trigger thermal protection, leading to intermittent shutdowns. Refer to the color-coded leads in the service documentation–mismatched wires (e.g., swapping blue and white) often cause erratic spin cycles.
Understanding the Internal Circuit Layout of Modern Laundry Appliances

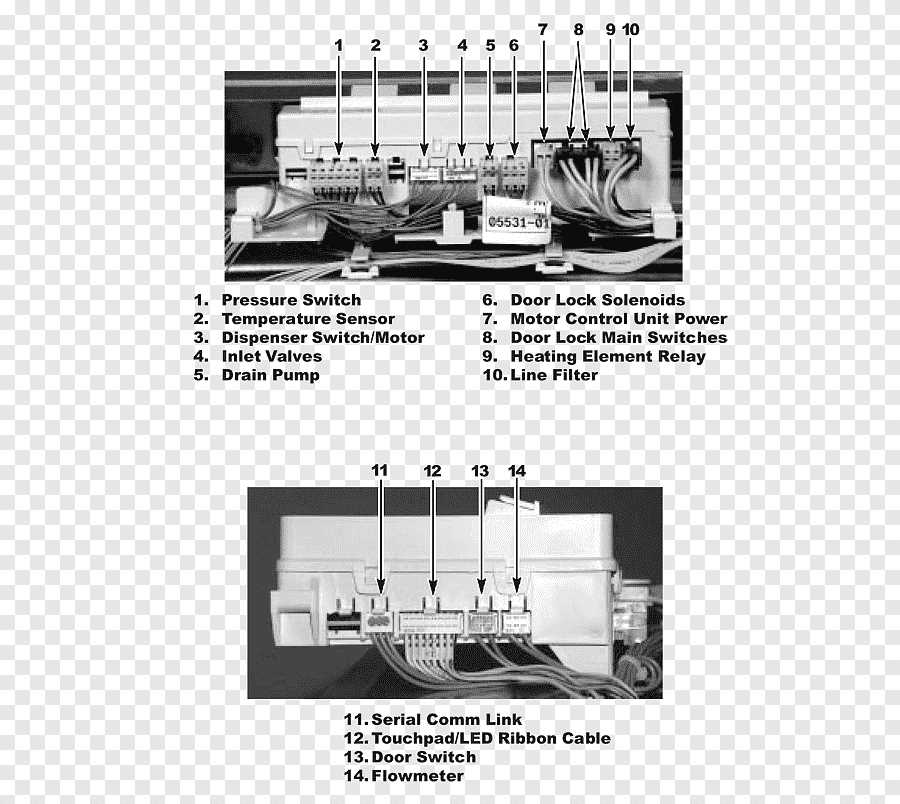

Begin by locating the main control board, typically positioned behind the lower access panel at the front of the unit. Identify the two primary connectors: one supplies power from the outlet, while the other distributes current to the motor, heater, and valve solenoids. Label each wire before disassembly–red and black generally indicate hot and neutral, but brown, blue, or yellow may denote secondary circuits or sensor feedback lines.
Trace the power cord leads to the interference suppression filter, then to the thermal fuse (usually rated 15–20A). This fuse protects against overheating caused by clogged vents or faulty motors. If testing reveals an open circuit here, inspect the drainage pump and motor windings for shorts before replacing–failure often stems from downstream issues rather than the fuse itself.
Component-Specific Connections
The motor harness splits into three or four wires: two for AC power, one for the start capacitor, and possibly a ground. Spin coils and agitation coils share a common neutral but rely on a centrifugal switch to alternate activation. Measure resistance across windings–spin coils should read 2–5 ohms, agitation 10–15 ohms. Readings outside this range indicate internal wear or moisture damage.
Door locks, often overlooked, receive 120V AC to engage the solenoid. A secondary low-voltage line (3–6V) provides feedback to the control module. Use a multimeter to verify both circuits while simulating door closure–absence of either signal prevents the cycle from advancing. Check for oxidation on the striker plate or misalignment of the latch mechanism if voltage is present but the lock fails to engage.
Water level sensors connect via a thin wiring loom, usually white or clear insulation. These lines carry a 5V DC reference signal from the control board; any interference (e.g., detergent residue on contacts) disrupts fill cycles. Clean connectors with isopropyl alcohol and ensure the pressure tube is free of kinks or blockages–partial fills or overfills typically originate here, not from the sensor itself.
Heating elements in models with internal water heaters operate at 220V, drawing 9–12A. The element’s terminal block often corrodes due to calcium buildup; clean it with a wire brush or replace gaskets if leaks are detected. Verify continuity through the element first–open circuits may require full replacement, but intermittent failures often stem from loose connections at the thermostat or control relay.
Always recheck harness routing after repairs–pinched wires near the drum suspension or behind the rear panel are common failure points, especially in units with vibration issues. Secure loose strands with nylon clips, not electrical tape, to prevent wear from movement.
Locating Critical Elements in Appliance Circuit Schematics
Begin by isolating the main power inlet–typically marked with “L” (line), “N” (neutral), and “G” (ground) terminals. Verify voltage ratings adjacent to these connectors, as models vary between 120V and 240V configurations. A missing or mismatched ground connection poses immediate hazards, so cross-reference with the unit’s rating plate before proceeding.
Trace the motor assembly leads next. Most schematics denote the drive motor with thick, red or black conductors splitting into start and run windings. The start winding usually connects to a centrifugal switch or relay, identifiable by a smaller auxiliary wire looping back. If continuity tests reveal infinite resistance here, suspect a faulty switch or burnt coil.
Examine the control module–often a centralized PCB with labeled pinouts. Common symbols include “T” for timer circuits, “C” for capacitor links, and numerical sequences matching sensor inputs (e.g., water level, temperature). Use the schematic’s legend to decode these abbreviations, as some manufacturers reuse “PC” for both pressure sensors and power capacitors.
| Component | Typical Symbol | Potential Failure Indicators |
|---|---|---|
| Thermal fuse | TF or zigzag line with arrow | Open circuit after overheating; test with multimeter in continuity mode |
| Water inlet valve | Coil symbol with two terminals | No continuity at 120V coil; visual check for corroded solenoid contacts |
| Door lock mechanism | Switch icon with “PTC” label | Delayed or failed engagement; measure resistance across PTC terminals |
Locate auxiliary devices like the drain pump. Its representation typically features a simple coil with two terminals, often paired with a “DP” or “PUMP” label. Check for 120V across these terminals during active cycles–absence of voltage suggests a tripped breaker or faulty relay on the control board.
For models with electronic controls, identify the user interface connections. These appear as ribbon cables or individual wires linking the console to the main board, labeled “UI” or “KEYPAD.” If buttons respond erratically, inspect for loose connectors or oxidized contacts beneath the panel.
Finally, validate all safety interlocks. The lid switch (or door latch) should register a closed state via a normally open contact. Test by manually depressing the switch while measuring continuity–absence of a “click” or continuity suggests replacement is needed. Always disconnect power before handling these components to prevent accidental shorts.
Locating Current Pathways in Appliance Circuit Layouts
Begin by identifying the main power inlet on the schematic–typically marked as L1, L2, and neutral. Follow the bold lines leading from the terminal block to the primary components: motor, control board, and heating element. Use a multimeter set to continuity mode to verify each trace; probe the corresponding connectors at the appliance’s rear panel while cross-referencing with the schematic labels. If a segment lacks continuity, inspect for corroded contacts or frayed conductors near stress points like door seals or vibration zones.
Next, isolate the control circuit by tracing finer lines branching from the power supply to relays, thermal fuses, and switches. Note color codes on the physical harness–red for live, white for neutral, yellow or blue for secondary circuits–and match them to the diagram’s annotations. Test relay coils by measuring voltage drop across their terminals during active cycles; expected values range from 110–120VAC for standard models. Interruptions often occur at interlock switches or temperature sensors, so prioritize these nodes during diagnostics.
Common Fault Points and How to Test Them Using a Multimeter
Begin by checking the door latch switch for continuity. Set the multimeter to the ohms setting (200Ω range) and probe the switch terminals. A reading of 0Ω indicates a closed circuit; infinite resistance means the switch is faulty. Replace if defective, as this component ensures the appliance cycles properly when the door is secured.
Inspect the thermal fuse next. Locate it on the control board or heating element assembly and test for continuity. Disconnect the wires, then probe the fuse ends. If the meter displays no reading (OL or infinite resistance), the fuse has blown due to overheating–replace it immediately. Ensure the power source meets the machine’s voltage requirements before reconnecting.
- Motor capacitor: Discharge the capacitor first by shorting its terminals with an insulated screwdriver. Set the multimeter to capacitance mode (μF) and attach probes to the capacitor terminals. A reading within ±10% of the rated value confirms functionality; lower or zero values indicate failure. Replace if defective to prevent motor strain or startup issues.
- Water inlet valve: Measure coil resistance across the solenoid terminals (usually 500–1500Ω). Infinite resistance means an open coil–replace the valve. If resistance is normal but water flow is erratic, check for debris blocking the screen or faulty water pressure (minimum 20 psi required).
- Pressure switch: Blow gently into the pressure tube while testing continuity between the switch terminals. The meter should toggle between 0Ω and OL as pressure changes. If it remains static, the switch is stuck–clean the tube or replace the switch to restore proper water level detection.
Test the timer or control module by probing its designated pins for voltage during active cycles. Use the multimeter’s AC voltage setting (20V range) and compare readings to the schematic’s expected values. For example, during spin mode, the timer should output 120V to the motor; inconsistent voltages point to a faulty control. If digital, bypass with a manual timer test or replace the module if internal relays fail. Always disconnect power before handling live circuits to prevent shock or further damage.
