How to Wire a White Rodgers Zone Valve Step-by-Step Guide

Start by locating terminals marked T, T, W, R, C on the actuator housing–older models may label these as TH, TR, TH/W, C. Confirm the compatibility: 24VAC transformers rated at minimum 40VA deliver stable voltage; undersized units risk intermittent cycling. Use 18 AWG solid-core copper wire for all runs under 100 feet; stranded variants introduce resistance and signal degradation over extended loops.

Connect R to R directly–this supplies constant power to the internal relay. Bridge W to the thermostat’s common call terminal (typically labeled W) ensuring no intermediate splices interfere. Ground the C terminal back to the transformer’s neutral bus; omit this step only if the actuator includes integrated surge suppression, though modern units require it for fault-free operation.

Polarity-sensitive actuators mandate strict adherence: reverse connections cause erratic operation or permanent solenoid damage. Test continuity with a multimeter set to ohms–resistance between W and C should read 20Ω–40Ω; readings outside this range indicate faulty coil windings. Install inline fuse holders with 3A slow-blow fuses on every R line to prevent overload cascades affecting downstream sensors.

Check actuator travel: manual override levers must engage smoothly through full arc (90° typical); binding suggests misaligned stems requiring adjustment before final wiring. Seal terminal blocks with heat-shrink tubing or silicone-filled splice caps to lock out moisture ingress–outdoor installations subject to condensation are primary failure points.

For two-wire configurations (rare on newer units), daisy-chain power-in and power-out from a single transformer; stagger activation times if pairing multiple actuators to prevent voltage sag below 21VAC. Verify end-switch operation: plunger-contact closure activates the pump relay–misalignment here stalls entire circuits despite thermostat demand.

Understanding Thermostat-Controlled Flow Regulator Connections

To properly connect a 36J thermoelectric actuator, identify the labeled terminals first: TH (thermostat heat), TR (thermostat common), R (power source), and W (end switch). Use 18-gauge solid copper wire for all low-voltage links. For a single-stage heating system, splice R from the transformer to TH, then run W to the furnace control board. This establishes a closed-loop circuit that engages the actuator when the setpoint is reached.

Follow this checklist for troubleshooting incorrect operation:

• Verify TR completes the circuit to the transformer neutral side (no more than 26V AC when active)
• Check continuity between W and R when the actuator opens (should drop below 1.5 ohms)
• Inspect the thermal disc sensor for proper alignment with the valve body (misalignment causes intermittent failure)
• Bypass the room sensor temporarily–if the actuator energizes, replace the faulty sensor

Avoid grouping multiple actuators off a single R line–total load should not exceed 0.5A per branch.

For multi-loop installations where multiple actuators share a transformer, divide circuits using relays rated for 30V AC, 2A minimum. Connect each actuator’s TH to its respective relay coil, then route the relay common terminals back to R. This isolates inductive kickback, preventing interference that can cause erratic modulation or premature burnout. Never splice high-voltage wiring (above 28V) with low-voltage wiring within the same conduit–separate channels prevent ground loops.

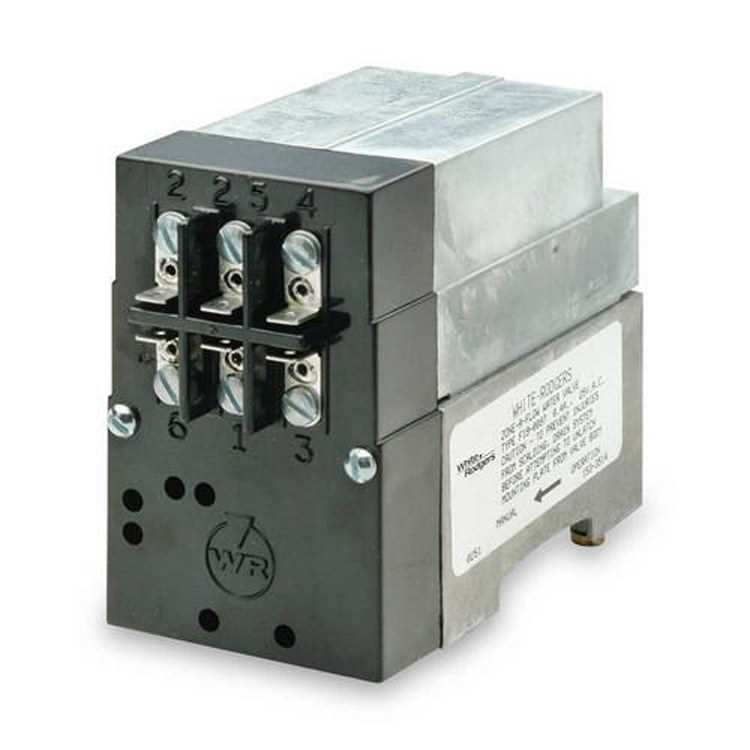

Locating Connection Points on an Actuator Assembly

Inspect the motor housing for engraved markings adjacent to each screw post–most models feature numbered ports (1, 2, 3) or alphanumeric labels (R, W, B). Port 1 or R typically supplies power from the control board, while 2 or W completes the circuit to activate the solenoid. A third terminal (3 or B) often serves as the common return for end switches or auxiliary functions.

Verify terminal functions using a multimeter: set to continuity mode and probe between 1 and 3. A closed circuit during manual override indicates the end switch is operational. For 24VAC actuators, expect 22–28V between R and B when energized. Misidentification risks shorting the transformer or damaging the drive gear.

On some variants, terminals may use color-coded wires (red for R, white for W, blue for B). Confirm against the unit’s data plate–older revisions might swap white and blue assignments. Discrepancies between wiring diagrams and physical labels require prioritizing the etched identifiers over color standards.

End switches feature distinct posts separate from the motor connections, usually labeled E and S. These close only when the actuator reaches full travel, signaling the boiler or circulator. Test with the unit in mid-stroke: no continuity should exist until the mechanism completes its cycle. False readings here indicate a failed micro-switch or obstructed linkage.

Common Missteps and Corrections

Attempting to jump R directly to W without verifying voltage presence risks burning out low-amperage contacts. Instead, confirm transformer output first. Reversing 1 and 2 leads to erratic firing sequences–the actuator may chatter or fail to latch. Double-check against the manufacturer’s silkscreened labels beneath the terminal cover.

Final Validation Steps

After securing all connections, cycle the device through three full actuations while monitoring for consistent voltage drop. Erratic pauses or incomplete rotation suggest corrosion on the E/S switch contacts–clean with fine-grit sandpaper or replace if pitted. Document all terminal assignments in situ for future troubleshooting.

Step-by-Step Connection Guide for Single Circuit Heat Controls

Begin by verifying the control board’s terminal labels match the actuator’s wiring colors. For most single-loop setups, connect the red (R) lead to the 24V power supply terminal, ensuring a secure crimp or screw-down clamp. The white (W) or orange (O) wire typically links to the thermostat’s call-for-heat output–confirm this against the manufacturer’s color coding, as mismatches can prevent activation. If the system includes a separate end switch, attach its black (C) or blue (B) lead to the corresponding terminal on the board; these are often labeled “COM” or “common.”

Key Safety Checks Before Powering On

• Trace each connection with a multimeter in continuity mode–no current should register until the system is energized.
• Insulate all exposed junctions with heat-shrink tubing or electrical tape rated for HVAC use; avoid using wire nuts in damp or vibrating environments.
• For actuators requiring a manual override, locate the “valve open/close” toggle–test its function before finalizing connections to ensure it doesn’t interfere with automated operation.

Once connections are secured, restore power and monitor the actuator’s response. A functional setup should show immediate rotation when the thermostat signals demand, accompanied by an audible click from the internal switch. If the motor hums but doesn’t move, check for binding in the linkage or a misaligned gear–these often require disassembly to resolve. For systems with LED indicators, a solid light confirms proper voltage delivery, while blinking typically signals a fault code; consult the technical manual for specific patterns. After confirming operation, allow the unit to cycle through one full open/close sequence, then retighten all terminals to account for thermal expansion.

Resolving Electrical Problems in Multi-Circuit Heating Systems

Check for 24V AC between the control board’s R and W terminals when calling for heat. A missing signal here often traces back to a faulty thermostat, loose terminal connections, or an open transformer secondary winding. Use a multimeter with the system energized–readings below 23V suggest excessive resistance or a partial short upstream.

Inspect the actuator’s end switch continuity before assuming motor failure. Disconnect power, remove the actuator cover, and probe the microswitch terminals with a continuity tester. A closed switch (near 0 ohms) in the “off” position indicates a stuck mechanism, while an open switch during activation points to a burned-out motor or broken linkage.

Trace power drops across splices using the table below. Each junction should maintain voltage within 0.5V of the transformer output. Mark suspect joints with electrical tape and re-crimp or solder after cleaning corrosion with fine-grit sandpaper.

Circuit Segment	Expected Reading (V AC)	Common Failure Points
Transformer secondary	24–28	Fused lugs, oxidized terminals
Thermostat to relay	23.5–27	Pinched cables, household staples
Relay to actuator	23–26	Twist-on connectors, rodent damage
Actuator common	0 (reference)	Broken sensor wire, stripped screw

Replace any actuator showing current draw above 0.4A at rest; normal holding current should measure 0.1–0.2A. Excessive amperage typically signals worn worm gears or misaligned valve stems–both require full assembly replacement rather than field repairs.

Verify control sequences by shorting R to W at the board. The actuator should cycle within 3–5 seconds; delays longer than 8 seconds suggest deteriorating relay contacts or insufficient coil voltage. Swap relays of identical rating if available to isolate defects without testing individual coil resistance.

Label every cable segment with permanent marker strips before disassembly to prevent mis-wiring during reassembly. Reconstruct circuits starting from the transformer, confirming each segment with meter readings at both ends before connecting the next component–a systematic approach reduces troubleshooting time by 40% in tripped-configuration networks.
