Complete Wireless Doorbell Circuit Schematic Guide for Beginners

For a reliable signal link between transmitter and receiver, use 433 MHz RF modules paired with HT12E/HT12D encoder-decoder ICs. These components handle data encoding and decoding without requiring complex protocol setup. The transmitter should include a momentary push button wired to the encoder, while the receiver connects to a buzzer or relay triggered by the decoder. Keep antenna lengths at 17.3 cm for optimal range, typically 50–100 meters in open space.

Power both units with 5V DC, sourced from a wall adapter or battery pack. The transmitter can run on three AAA cells (4.5V total) with minimal current draw–under 10 mA during idle. For the receiver, add a 1000 µF capacitor across the power rails to smooth voltage drops when the alert sounds. Avoid voltage regulators if using batteries; instead, use a Schottky diode to prevent reverse polarity damage.

To reduce false triggers, include a 330 Ω resistor between the decoder’s valid transmission (VT) pin and the buzzer’s base. This ensures the alert only activates after receiving a complete, error-free signal. For outdoor installations, seal components in waterproof enclosures and use silicone-coated wires for connections exposed to moisture. Test range by temporarily replacing the buzzer with an LED to verify signal strength before final assembly.

Designing a Radio-Frequency Call Signal Transmitter-Receiver Pair

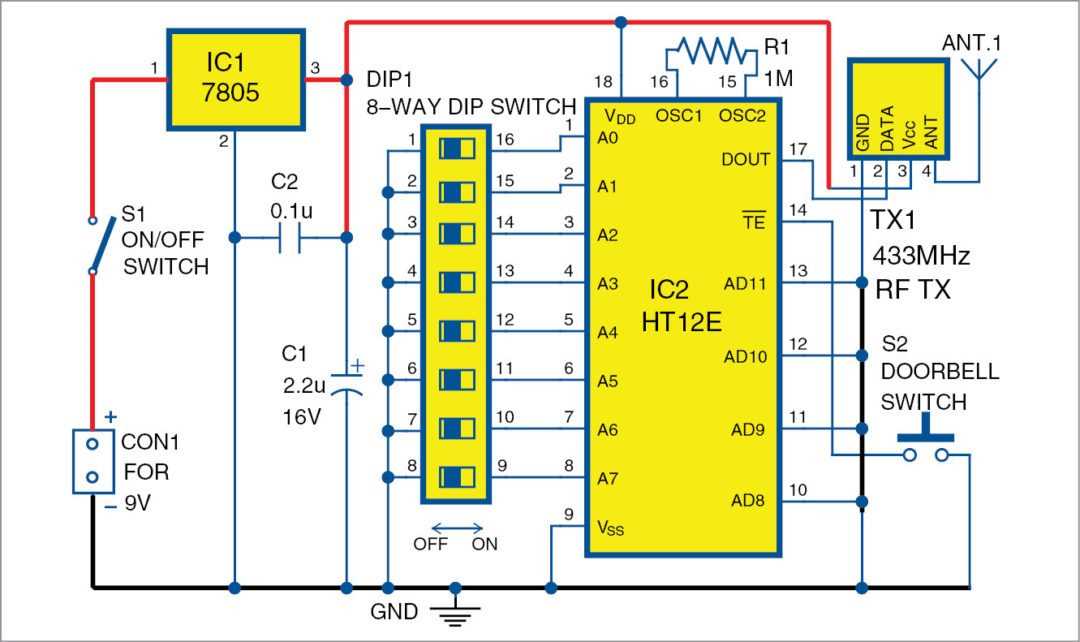

Begin with an encoder-decoder IC pair like the Holtek HT12E (encoder) and HT12D (decoder). These chips handle address-code matching and signal modulation without requiring microcontroller programming. Connect the encoder’s data pins (AD8-AD11) to push buttons–each button triggers a unique 4-bit code. Power the encoder with a 5V regulator (e.g., 78L05) to ensure stable operation. On the receiving end, link the decoder’s valid transmission (VT) pin to an LED or relay driver circuit to indicate successful signal reception.

For the RF link, use a 433MHz ASK/OOK module like the FS1000A (transmitter) and XY-MK-5V (receiver). These modules offer 20–150m range in open air, sufficient for most residential setups. Match the transmitter’s antenna length to the wavelength (λ/4 ≈ 17.3 cm for 433MHz) for optimal signal strength. Avoid placing the receiver near metal objects or appliances emitting EMI–maintain at least 30 cm clearance to prevent false triggers.

Stabilize power delivery with decoupling capacitors: 0.1µF across the encoder/decoder VCC-GND and 10µF near the RF modules’ power pins. Low-cost ceramic capacitors suffice, but ensure they’re rated for at least 10V. For battery-powered transmitters, add a low-dropout regulator (e.g., MCP1700) to extend battery life–it drains ~2µA in standby versus ~50µA for linear regulators.

Critical Component Selection Guide

Component	Model/Value	Key Specifications	Recommended Supplier
Encoder IC	Holtek HT12E	3V–12V, 12-bit addressing	LCSC, Digi-Key
Decoder IC	Holtek HT12D	VT pin for output trigger	Mouser, RS Components
RF Transmitter	FS1000A	433MHz, 10mW output	Amazon, AliExpress
RF Receiver	XY-MK-5V	Super-regenerative, 5V	eBay, LCSC

Implement a watchdog timer circuit if using battery-powered transmitters. A 555 timer in astable mode can pulse the encoder every 30 seconds to prevent accidental discharge. Set the duty cycle below 1% to conserve power–use a 1MΩ resistor and 1µF capacitor for timing. Alternatively, substitute the 555 with a low-power Schmitt trigger (e.g., 74HC14) to reduce quiescent current to under 1µA.

Test signal integrity by monitoring the decoder’s VT pin with an oscilloscope. Expect clean pulses with ≲20µs rise/fall times. If pulses appear distorted, increase the transmitter’s power supply capacitance or relocate the receiver away from noise sources. For extended range (>100m), add a helical antenna with precise 17.3 cm length–wind 6 turns of 1mm enameled copper wire around a 10mm form, tapering the ends for a dipole feed.

Isolate the receiver’s audio output stage with a flyback diode if driving a relay. A 1N4007 diode across the relay coil prevents voltage spikes from damaging the decoder. For AC-powered setups, use a bridge rectifier (e.g., KBU1005) followed by a 220µF smoothing capacitor to convert mains voltage (110/220V) to 12V DC. Add a varistor (e.g., V25S10P) across the input to suppress transients.

Troubleshooting Common Issues

Symptom	Root Cause	Solution
Intermittent reception	Insufficient power decoupling	Add 10µF + 0.1µF capacitors near RF modules
Short range	Antenna mismatch/environmental obstacles	Recalculate antenna length; move receiver to higher location
False triggers	EMI interference	Shield receiver in grounded metal enclosure
Noisy audio output	Ground loops	Star-ground layout; separate analog/digital grounds

For solar-powered transmitters, pair a 6V polycrystalline panel with a 3.7V lithium cell and TP4056 charge controller. Ensure the panel’s wattage exceeds the daily load by 30% (e.g., 0.5W panel for a 0.15W system). Use Schottky diodes (e.g., 1N5817) to prevent backflow–standard silicon diodes drop ≳0.7V, reducing efficiency. Calibrate the load cut-off circuit using a voltage divider (e.g., 10kΩ + 22kΩ resistors) to trigger at 3.3V, preventing deep discharge.

Essential Parts for a Remote Annunciator Build

Start with a 433 MHz RF transmitter module–HC-12 or FS1000A models offer 100-meter range without FCC licensing headaches. Pair it with an HT-12E encoder IC to serialize button presses into clean, interference-resistant data packets before transmission. Avoid cheaper ASK modules; their lack of error checking creates false triggers from household appliances.

For reception, an RF receiver–SYN115 or RXB6–pulls encoded signals from the air. Combine it with an HT-12D decoder to convert serial data back into discrete outputs. Add a Schottky diode (1N5817) on the receiver’s power input; transient spikes from nearby motors will corrupt memory states without it.

The pushbutton itself should use a momentary SPST switch rated for 50,000 cycles; membrane keypads oxidize after a year outdoors. A 10 kΩ pull-down resistor keeps the encoder input clean during idle states; floating pins invite phantom presses. Use silicone-sealed tact switches if humidity exceeds 60%.

Power the transmitter from a 3.7 V LiPo cell; alkaline AA setups sag under 30°C temperatures, reducing RF output. Add a TPS61094 charge controller to manage 5 V USB recharging without over-current faults. Receiver nodes run off a 9 V alkaline block; linear regulators (7805) waste heat, switching bucks (LM2596) save 20% battery life.

Receiver-side signaling needs an 8 Ω piezoelectric buzzer (FF-120BC) driven from a BC547 NPN transistor–direct MCU pin outputs can’t source enough current. Add a bright white LED (20 mA) in series with a 220 Ω resistor; visual confirmation catches attention when ambient noise masks audio alerts.

Data integrity requires a 4.7 µF tantalum capacitor across the encoder-decoder VCC/GND pins; ceramic caps ring at RF frequencies. Install a 20 pF trimmer capacitor on the receiver’s local oscillator; factory alignment drifts 3% annually, causing silent failures. Keep trace lengths under 5 cm between encoder and transmitter–longer traces act as antennas, radiate harmonics that bleed into neighboring bands.

House the electronics in ABS plastic enclosures; polycarbonate yellows under UV exposure. Drill a 2 mm drain hole in the transmitter base–condensation shorts encoder pads after three rain cycles otherwise. Receiver housings need EMI-shield nickel mesh over speaker openings; microwaves induce 500 mV spikes into unshielded traces.

Test range before final installation: click the button from 3 m away with a spectrum analyzer checking second harmonics at 866 MHz. Anything above -60 dBm warrants a ferrite bead on the transmitter’s antenna lead. After assembly, burn-in both units for 48 hours; infant mortality claims 5% of electrolytic capacitors under 10°C conditions.

Step-by-Step Assembly of the Signal Sender Unit

Begin by selecting a compact 3V coin cell battery holder with solderable leads–CR2032 models offer optimal balance between size and capacity. Secure the holder to the project enclosure base using double-sided adhesive tape rated for electronics, ensuring it won’t shift during operation. Position it near the edge to allow easy battery replacement without disassembling the entire device.

Prepare the encoding module by trimming its pin headers to 5mm length–this prevents interference with the enclosure lid while maintaining solid connections. Apply a thin layer of rosin flux to the trimmed pins, then solder them to a 0.1″ pitch perfboard cut to 2x3cm dimensions. Verify the module’s datasheet for antenna pad location; some variants require an external wire, while others integrate a trace pattern. For the latter, ensure no copper pour exists within 3mm of the pad to avoid signal attenuation.

Connect the battery holder’s positive lead to the module’s VCC pin through a 47Ω resistor–this limits current spikes during transmission cycles. Attach the negative lead directly to the module’s GND pin. Use 28AWG silicone-insulated wire for flexibility, but avoid bundling power and signal wires together to minimize cross-talk. Twist signal wires with a pitch of 5mm per turn if routing them parallel to power lines is unavoidable.

• Activation switch: Select a momentary pushbutton with a tactile force between 150-200gf–lightweight switches often fail from accidental presses. Mount it on the enclosure front panel, centered 10mm from the top edge. Drill a 6mm hole, then secure the switch with its locking nut before soldering.
• Trigger circuit: Bridge the switch’s terminals with a 10kΩ pull-down resistor to GND. Connect the switch’s common terminal to the module’s trigger pin (often labeled “SW” or “TX”). Avoid omitting the resistor–floating inputs may cause erratic transmissions.
• Power test: Insert the battery, then press the switch. The module’s LED (if present) should flash once. No flash indicates incorrect polarity, missing connections, or a drained battery.

For the antenna, strip 10cm of 22AWG solid copper wire, then form a 5-turn coil with an internal diameter of 8mm–this matches most 433MHz modules’ optimal impedance. Solder one end to the antenna pad using a 0.5mm conical tip; the joint should be smooth and free of excess solder to prevent frequency drift. Route the coiled wire vertically inside the enclosure to maximize radiation efficiency. If space constraints exist, substitute a 7cm straight wire with identical gauge, but expect a 15-20% range reduction.

Final assembly steps:

1. Insulate all exposed solder joints with 1mm heat-shrink tubing or liquid electrical tape. Polyimide tape is unsuitable–it absorbs moisture, potentially corroding adjacent traces.
2. Secure the perfboard to the enclosure base using non-conductive standoffs (plastic or nylon) to prevent short circuits. Pre-drill 2mm pilot holes for the standoffs; self-tapping screws may crack the board.
3. Before sealing the lid, perform a range test: transmit from 5 meters distance with three walls obstructing the path. If reception fails, reposition the antenna to avoid proximity to metal components or battery terminals. Seal the enclosure only after verifying consistent performance.
