How to Wire a Relay Switch Step-by-Step Circuit Guide

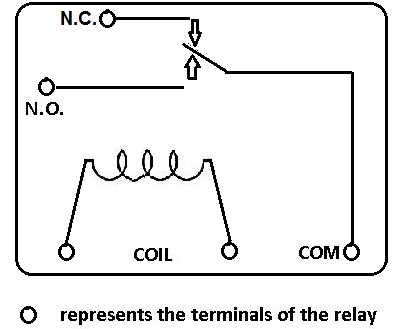

Start by identifying the power source terminals–typically labeled 85 and 86 on most industrial units. Connect 85 to the positive side of your battery or an auxiliary circuit, ensuring a fuse rated for 10-15 amps is placed within 15 cm of the connection to prevent overloads. The 86 terminal should link to the triggering signal, such as a toggle button or sensor output. Verify the control voltage matches the module’s specifications; common ratings include 12VDC for automotive use or 24VDC for industrial equipment.

Attach the load wires to terminals 30 and 87, where 30 receives the main power input (e.g., from a battery or generator), and 87 outputs to the device being controlled–motors, lights, or solenoid valves. For high-current applications (above 20 amps), use a module with a built-in suppression diode or add an external one across 85 and 86 to protect against voltage spikes. Test continuity with a multimeter before applying power; resistance between 30 and 87 should read open (OL) when inactive and near-zero ohms when triggered.

Ground the system securely–attach a dedicated wire from the module’s metal housing or designated ground pin (often 85 or a separate terminal) to the chassis or a large metal surface, avoiding thin wires that may overheat. For timed or pulse-triggered setups, integrate a delay control box or microcontroller between the signal source and terminal 86, ensuring compatibility with the module’s coil resistance (usually 50-150 ohms). Document each connection with heat-shrink tubing labels or colored wires for troubleshooting.

For alternating current (AC) loads, opt for a solid-state variant instead of mechanical contacts to eliminate arcing and extend lifespan. Keep high-voltage and low-voltage lines separated by at least 2 cm to prevent interference, and route wires through conduit if operating in environments with moisture or dust. Always disconnect the power source before adjustments to avoid accidental activation or short circuits.

Connecting Electrical Control Circuits: A Practical Guide

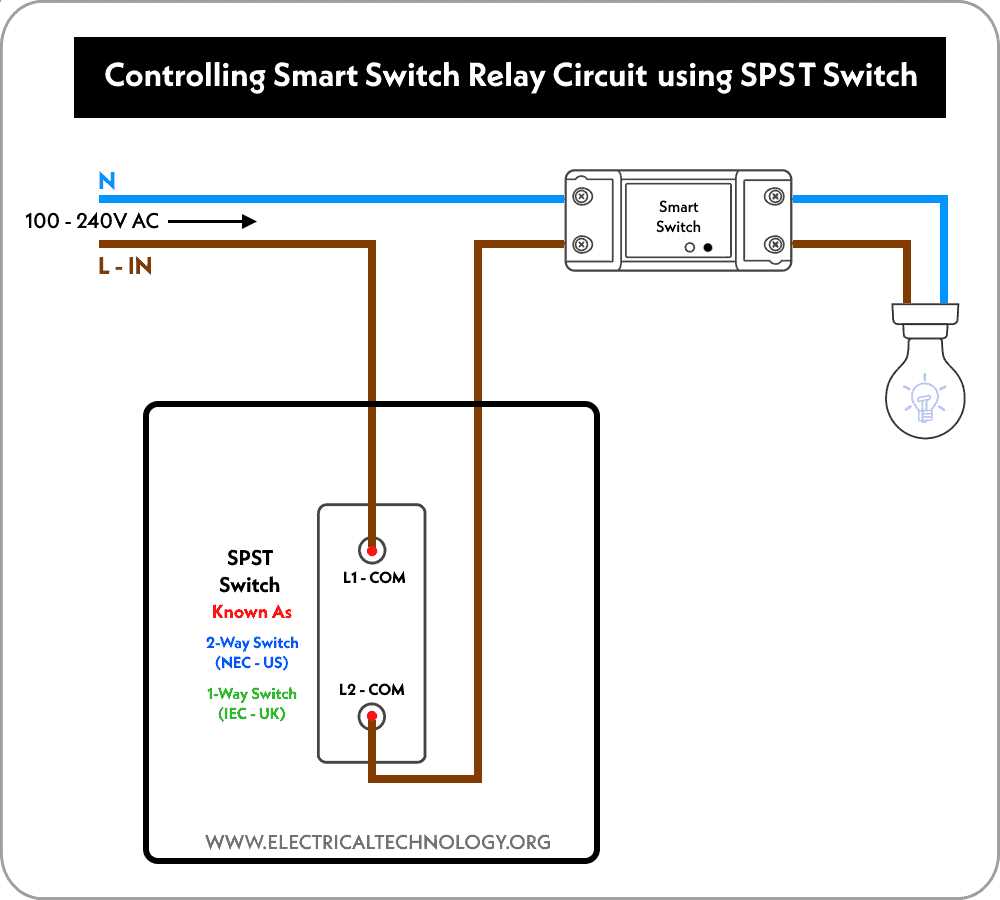

Begin by identifying the power source’s voltage–typically 12V or 24V in automotive and industrial setups. Match this to the coil rating of the electromagnetic actuator to prevent burnout. Use a multimeter to verify the live and neutral terminals on the supply side before attaching any leads. Secure connections with crimp connectors or solder for durability, avoiding loose wires that cause intermittent failures.

Route the control signal through a low-current trigger, such as a push-button or microcontroller output. Ensure the trigger voltage matches the coil requirement; a mismatched voltage risks damage or erratic operation. For safety, insert a diode across the coil terminals to suppress voltage spikes–an often-overlooked step that prolongs component life. Polarity matters: the diode’s cathode aligns with the positive side of the power input.

Test the setup with a load no larger than the actuator’s contact rating. An incandescent bulb or resistive heater serves well for initial checks, but avoid inductive loads like motors until proper arc suppression is confirmed. If contacts weld shut or fail to close, inspect for adequate coil voltage, clean contact surfaces, or replace the actuator–symptoms of underpowered or overstressed components.

In systems requiring multiple triggers, use a latching configuration with momentary switches to hold state. Wire a second switch to reset by interrupting the holding path. For timed activation, pair the actuator with a monostable timer IC like the 555, setting delay via resistor-capacitor values. Always label each wire at both ends to simplify troubleshooting in complex installations.

Selecting the Optimal Electromagnetic Component for Your Setup

Begin by evaluating the coil voltage and current ratings of available modules. A 12V coil requires 30-50mA, while a 24V variant demands 15-25mA–match these precisely to your power source to prevent overheating or insufficient activation. For low-power DC applications under 10A, SPDT or DPDT configurations suffice; beyond this threshold, 4PDT types with silver alloy contacts handle up to 30A at 250V AC. Industrial setups with inductive loads (motors, solenoids) mandate arc-resistant models–check for enclosed contacts or gas-filled chambers to extend lifecycle beyond 100,000 cycles.

• Coil Sensitivity: Bistable variants retain state without continuous power, ideal for battery-driven systems–consume
• Contact Material: Gold-flashed contacts resist corrosion up to 1,000 operations but fail above 2A. Rhodium-plated alternatives handle 10-15A with minimal voltage drop (≤100mV) but cost 3-5x more per unit.
• Response Time: Reed variants activate in 0.5-1ms but limit current to 0.5A. Solid-state types (SSR) switch in 5-10ms with zero mechanical wear but introduce leakage current (1-10mA) and require heat sinks for loads >5A.

For high-frequency toggling (>10Hz), prioritize mercury-wetted or hybrid devices to avoid contact bounce. In environments with electrical noise (e.g., PWM-driven loads), opt for modules with built-in snubber circuits or flyback diodes–these reduce voltage spikes by 40-60%. Always verify creepage distances: ≥8mm for 400V applications to comply with IEC 61810-1 standards. For automotive use, select components with vibration resistance rated to 20G (IEC 60068-2-6) and temperature tolerance from -40°C to +125°C.

Step-by-Step Connection of an Electromagnetic Control Unit to Power Supply

Identify the power source terminals immediately. Most automotive batteries provide 12V DC, industrial setups may offer 24V or 48V, while mains-fed configurations typically run on 110V or 230V AC. Verify voltage polarity–positive (+) and negative (-) terminals must match the control unit’s specifications to prevent irreversible damage. Label wires with heat-shrink tubing or colored tape for clarity during later stages.

1. Disconnect all power sources before initiating connections. Failure to do so risks short circuits, component burns, or electric shock.
2. Attach the input power lines–red for positive, black or brown for negative–to the designated high-current contacts on the control module. Use 14-16 AWG wire for currents up to 10A; opt for 12 AWG or thicker for loads exceeding 15A.
3. Secure connections with ring terminals or spade connectors, crimped tightly and soldered if vibration is a concern. Avoid loose terminals, which cause arcing and overheating.

Integrate a fuse between the power source and the control unit’s input. Select a fuse rating 20-30% above the expected load current–for example, a 15A fuse for a 12A load. Install the fuse holder as close to the battery or power supply as possible to protect the entire circuit. Test continuity with a multimeter before re-energizing.

For low-voltage DC sources, add a flyback diode across the coil terminals if the control unit drives inductive loads (motors, solenoids). Use a 1N4007 diode, cathode (striped end) connected to the positive coil terminal. In AC systems, replace the diode with a varistor or RC snubber to suppress voltage spikes. Verify suppression components under load with an oscilloscope if precision matters.

• Reconnect power and measure voltage at the control unit’s input terminals with a multimeter. Expected readings: 12V ±0.5V for automotive, 230V ±10V for mains.
• Activate the control module and monitor current draw with a clamp meter. Abnormal spikes indicate miswiring; reconnect immediately.
• Insulate all exposed terminals with electrical tape or heat-shrink tubing. For high-voltage setups, enclose the assembly in a non-conductive housing rated for the environment (IP65 for outdoor use).

Connecting Electromagnetic Contacts to Power and Command Circuits

Identify the coil terminals first–typically marked 85 and 86 on automotive-grade units. Apply a control voltage (12V DC for standard setups) across these points to energize the internal mechanism. Ensure the power source matches the coil’s resistance rating; excessive current risks overheating, while insufficient voltage prevents proper engagement. Use a multimeter to verify continuity before finalizing connections.

Load Path Setup

Attach the high-current terminals (commonly 30 and 87) to the powered device and supply line. Terminal 30 connects directly to the battery or fused circuit, while 87 routes to the load’s positive input. For inductive loads (motors, solenoids), include a flyback diode (1N4007) across the coil to suppress voltage spikes. Polarity matters: reverse connection may damage sensitive electronics.

Separate control and load circuits using sufficiently rated cables–18 AWG for signal paths, 10 AWG or thicker for currents above 10A. Twist paired wires (control + ground) to minimize electromagnetic interference, especially near high-frequency components. Avoid daisy-chaining ground returns; route each circuit independently to a common chassis point to prevent voltage drops.

Test functionality in stages: verify coil activation with a test light, then progress to load engagement. Monitor voltage levels at the load’s input during operation–a 0.5V drop under full current indicates undersized conductors or corroded terminals. Label all connections with heat-shrink tubing or adhesive tags to simplify future diagnostics.

Common Pitfalls During Automated Control Circuit Assembly

Always verify the coil voltage rating before energizing. A mismatch between the controlling signal (e.g., 5 V) and the module’s requirement (e.g., 12 V) will either fail to actuate the contacts or damage the internal solenoid. Check the datasheet–most units print the rating directly on the body or include a label.

Skipping flyback diode protection guarantees premature failure. When the coil de-energizes, the collapsing magnetic field generates a high-voltage spike that can destroy output transistors in microcontrollers or power supplies. Place a diode (e.g., 1N4007) reverse-biased across the coil terminals–anode to negative, cathode to positive.

Overloading the contact current capacity is a frequent oversight. Mechanical ratings (typically 10 A or 30 A) are specified for resistive loads. Inductive loads–motors, solenoids, transformers–cause arcing during switching, reducing lifespan. Use the derated value (often 50% of stated capacity) or add a snubber circuit (RC network: 0.1 μF + 100 Ω) across the contacts.

Ignore polarity on bipolar modules only if explicitly stated. Many solid-state variants and latching types require strict adherence to input polarity. Swapping leads may not activate the module or can trigger unintended retention in latching units. Double-check the schematic against the footprint orientation before soldering.

Typical Fault Scenarios and Correction Steps

Symptom	Root Cause	Immediate Fix
Coil does not pull in	Insufficient driving voltage	Measure input voltage with multimeter; use appropriate supply
Buzzing noise under load	Contact bounce or chatter	Add pull-up resistor (1 kΩ–10 kΩ) or RC filter (10 kΩ + 10 μF)
Overheating	Exceeding contact rating	Substitute with higher-rated unit; use flyback suppression
False triggers	Noise on control line	Twist control wires; separate signal and power traces

Misaligned pin assignments during PCB mounting introduces risk. A DPDT unit’s common terminal might coincide with a normally open pad instead of the intended contact, causing the circuit to fail closed. Print the pinout on a label, cross-reference with the board footprint, and confirm continuity with a meter before applying power.

Assuming dry contacts tolerate moisture leads to corrosion. While sealed industrial variants resist humidity, most hobby-grade versions will fail if exposed. Apply conformal coating or encapsulate the assembly in silicone for outdoor or high-humidity installations. Regularly inspect for oxidation on terminals–clean with isopropyl alcohol and a brass brush if discolored.

Critical Torque and Termination Practices

Loose screw terminals create resistive hotspots that melt insulation. Crimp connectors with a ratchet crimper and torque screws to manufacturer specs (usually 0.5–0.7 Nm). Check each termination after initial tightening–vibration can loosen connections over time. Use star washers under screws to maintain pressure as metals expand and contract.
