Step-by-Step Alternator Wiring Guide with Clear Diagrams for Auto Repair

Start by locating the terminal posts on the generator unit–typically marked with BAT, IGN, and SENSE. These labels correspond to the battery, ignition, and voltage sensing connections respectively. Verify the color codes against the manufacturer’s specifications: BAT usually uses red or brown wires, IGN often pairs with yellow or purple, while SENSE may require a thinner blue or black lead. Confusing these can lead to voltage regulation failure or electrical overload.

Disconnect the battery’s negative terminal before attaching any leads to prevent short circuits. Use crimped connectors (ring or spade types) rated for at least 10 AWG wire for the main power paths. For high-output models (90+ amps), upgrade to 8 AWG to handle increased current without overheating. Secure all connections with heat-shrink tubing or dielectric grease to prevent corrosion–especially in humid or coastal environments.

The ignition input (IGN) requires a switched 12V source from the vehicle’s fuse panel. Connect this to a terminal that only energizes when the key is in the ON or RUN position. Skipping this step risks draining the battery when the engine is off. For voltage sensing, route the wire directly to the battery’s positive terminal–or an auxiliary fuse block–never to the alternator’s output post. Incorrect sensing can cause erratic charging or battery damage.

After completing the hookup, test the setup with a multimeter. Check for 13.8–14.4V at the battery terminals while the engine runs at 2000 RPM. Voltages outside this range indicate regulator issues or improper connections. If flickering lights or dim output occurs, inspect the ground path: ensure the generator’s case and engine block have a clean, direct connection to the chassis or negative battery post. Loose grounds create phantom electrical problems.

Connecting Your Vehicle’s Charging System Correctly

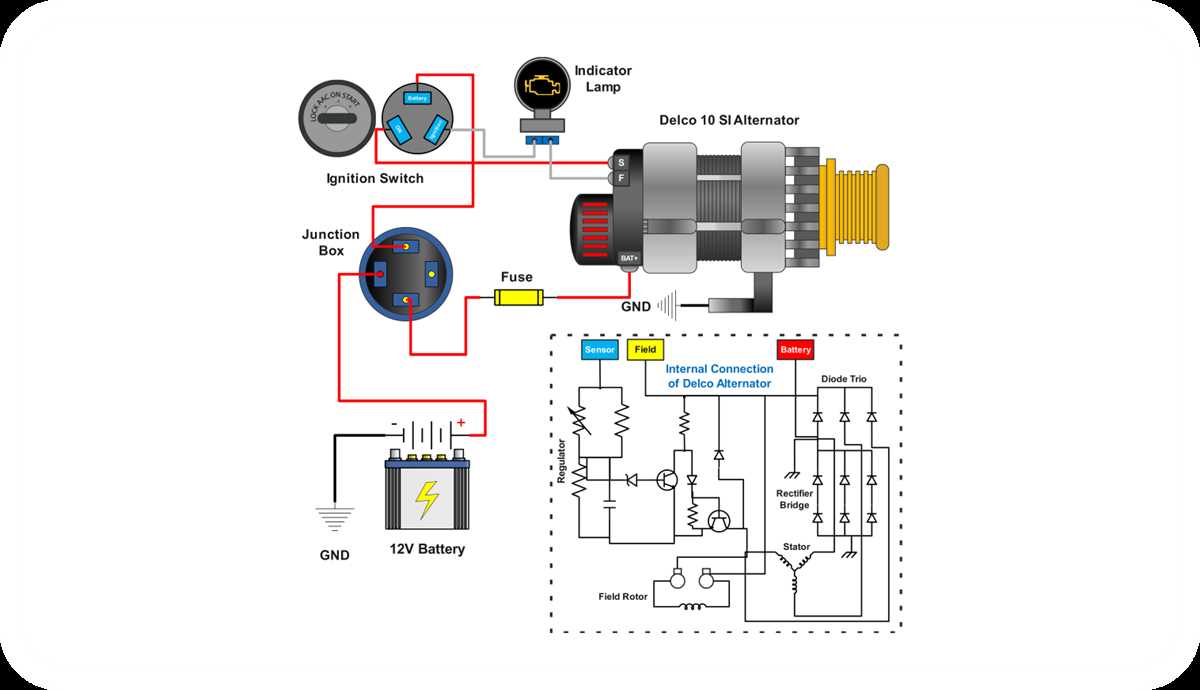

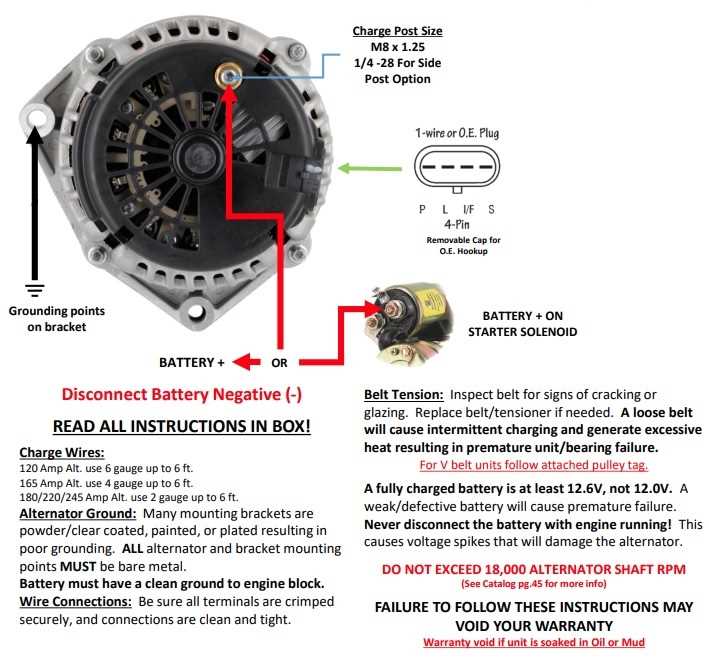

Begin by identifying the three critical terminals on the generator: the output post (marked “B+” or “Bat”), the excitation terminal (“F” or “Field”), and the grounding stud. Use 10-gauge wire for the main power line, ensuring it runs directly to the battery’s positive terminal without intermediate connectors that could introduce resistance. The excitation circuit requires 12-gauge wire, linking the F terminal to the ignition switch or a dedicated voltage regulator if equipped–verify polarity before securing connections to prevent damage to internal diodes.

Grounding demands meticulous attention: attach the generator’s case to the engine block using a braided strap or #4 AWG cable, avoiding reliance on painted surfaces or rubber mounts. Confirm the circuit’s integrity with a multimeter–expect 13.8–14.4V at idle when the system operates correctly. If voltage exceeds 15V, inspect the regulator; readings below 13V suggest a weak field circuit or deteriorated brushes. Tighten all terminals to 12–15 in-lbs torque to prevent corrosion-induced voltage drops.

Label each wire with heat-shrink sleeves or color-coded tape to simplify future diagnostics: red for power, blue for excitation, and black for ground. Route wires away from moving parts and exhaust manifolds, securing them every 12 inches with nylon ties. Test the setup before final assembly by starting the engine and monitoring voltage stabilization within 10–15 seconds–delayed response indicates potential issues in the field circuit or regulator bypass.

Decoding Generator Terminals: Key Connections and Roles

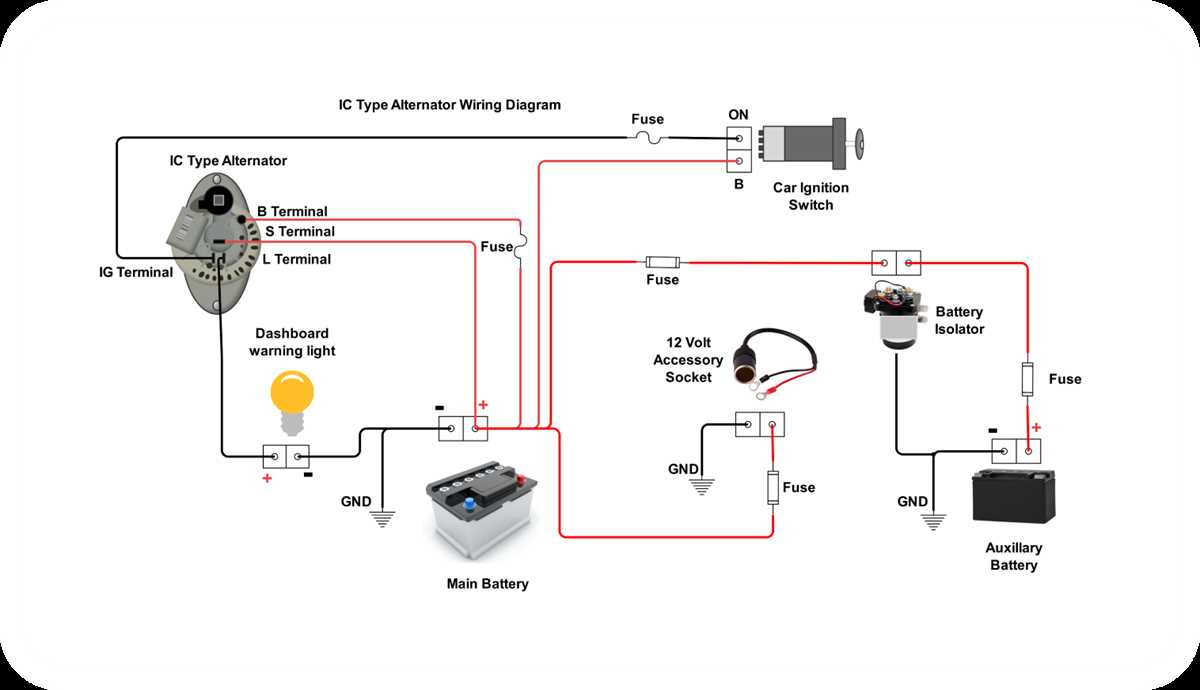

Start by locating the B+ (battery positive) terminal–typically a thick stud labeled “+” or “BAT.” This is the primary output feeding the vehicle’s electrical system and battery. Ensure it’s torqued to 12-15 Nm to prevent resistance or voltage drop. Loose connections here cause intermittent charging, dim lights, or battery drain.

The D+ (excitation) terminal, often marked “D+” or “IG,” is critical for initial field activation. This smaller post connects to the ignition or a dedicated relay, signaling the voltage regulator to engage. Without this input, the unit won’t generate output–test for 13.5-14.8V across B+ and ground when the engine runs. If voltage is low, inspect the D+ circuit for corrosion or broken wires.

Examine the S (sense) terminal, if present, usually a thin wire leading to the battery’s positive side. Its role is monitoring battery voltage to adjust regulation. Faulty S-wires cause overcharging (above 15V) or undercharging (below 13V). Use a multimeter to verify continuity; resistance should read under 0.5 ohms. Replace frayed or melted insulation immediately.

• L (lamp): Powers the charge indicator light (e.g., dashboard warning). Disconnect and measure between L and ground–expect battery voltage (+12V) with the key off. A failed light may indicate a bad diode or open circuit.
• Ground: Usually the case itself or a separate stud. Corrosion here mimics charging issues. Sand to bare metal and apply dielectric grease to prevent oxidation.
• F (field): Rare on modern units; older models use this for direct field control. Check for 1-2 ohms resistance between F and ground.

Always disconnect the battery before probing terminals. Reversal of any polarity can fry the regulator or diodes instantly.

Step-by-Step Guide to Linking Power Source to Generator

First, ensure the vehicle’s ignition is off to prevent electrical surges. Use a multimeter set to 20V DC to verify the battery’s charge–readings below 12.4V indicate insufficient power for safe connection. If necessary, charge the battery externally before proceeding.

Prepare the Terminals

Clean both the battery posts and generator output terminal with a wire brush to remove corrosion. Apply a thin layer of dielectric grease to inhibit future oxidation. Identify the thick positive cable (often red) from the generator’s output stud–this must connect directly to the battery’s positive terminal. Secure it with a 10mm wrench, tightening to 12–15 Nm to avoid loosening under vibration.

Locate the smaller exciter wire (typically blue or brown) attached to the generator’s voltage regulator. Route this wire to the ignition switch’s “IGN” or “ALT” terminal, ensuring it avoids moving parts like pulleys or belts. Use a 14-gauge fuse holder inline, positioned no more than 15 cm from the battery, to protect against shorts. Confirm the fuse rating matches the generator’s specifications (usually 5–10A).

Ground the generator’s casing by bolting it to the engine block with a 6mm or larger stainless-steel fastener. Scrape paint or rust at the contact point to ensure a low-resistance path. Recheck all connections for frayed insulation or exposed strands–wrap them with electrical tape or heat-shrink tubing if damaged. Start the engine and monitor voltage at the battery: a steady 13.8–14.4V at 2,000 RPM confirms proper operation.

If voltage deviates, test the exciter circuit continuity with the multimeter. Unplug the connector at the voltage regulator and probe the pins while the ignition is on–one pin should show battery voltage. If absent, trace the wire to the ignition switch, checking for breaks or incorrect routing. Replace the fuse if blown, and re-test. Persistent issues may require regulator replacement or professional diagnosis.

How to Properly Ground a Vehicle’s Charging System

Connect the negative terminal of the battery directly to the engine block using a minimum 6-gauge copper cable. Avoid relying solely on the chassis as an intermediate path–corrosion or loose connections at body mounts can introduce resistance, reducing charging efficiency. Attach the cable to a clean, unpainted surface on the block, preferably near the starter motor, where current demand is highest. Secure all connections with stainless steel bolts and star washers to maintain conductivity despite vibration.

Key Grounding Points for Stability

Use a secondary ground strap between the engine and chassis to supplement the primary path. Choose a location away from heat sources like exhaust manifolds, which can accelerate oxidation. For V6 and V8 engines, add a third ground from the transmission bellhousing to the frame–this stabilizes voltage readings and prevents erratic behavior in electronic fuel injection systems. Replace factory ground straps if they show signs of fraying, discoloration, or reduced flexibility.

Test ground integrity with a multimeter: measure voltage drop between the battery’s negative post and the alternator’s case while the engine is running. A drop exceeding 0.2V indicates resistance problems–clean or replace the connection. For vehicles with isolated return systems (e.g., dual-battery setups), ensure the charging unit’s case is bonded to the block via a dedicated 4-gauge cable, not just the mounting bolts, to avoid ground loops.

Recheck all grounds after modifying the electrical system, including aftermarket amplifiers or auxiliary lights. A single poor connection can force excess current through sensor wires, causing false error codes or irregular operation of the ECU. Use dielectric grease on connections to prevent moisture ingress–this extends the lifespan of the bond by inhibiting corrosion, especially in humid or coastal environments.

Optimizing Voltage Regulator Connection for Peak Efficiency

Match the regulator’s rated current capacity to the charging system’s output within a 5-10% tolerance. Overloading a 50-amp regulator with a 60-amp generator output accelerates thermal degradation, reducing lifespan by up to 40%. Use a multimeter to verify input voltage at the regulator’s terminal before finalizing connections–fluctuations beyond ±0.5V indicate poor grounding or corroded cables.

Isolate the regulator’s ground path from shared chassis points. A dedicated 8AWG or thicker wire running directly to the battery’s negative terminal eliminates voltage drop, which can exceed 0.3V in standard setups. Test ground integrity by measuring resistance: values above 0.1Ω suggest oxidation or loose terminals, requiring immediate cleaning with a wire brush and dielectric grease application.

Position the regulator within 12 inches of the generator’s output terminal to minimize inductive losses. Copper conductors lose approximately 0.01V per foot at 30-amp loads; a 3-foot run can introduce a 0.03V drop, enough to trigger erratic regulation in sensitive electronic components. Secure connections with M6 or larger stainless steel bolts–torque to 8-10 Nm to prevent loosening from vibration.

Compatibility Parameters for Voltage Regulation

Component	Voltage Range (V)	Current Rating (A)	Temperature Limit (°C)
Internal regulator	13.8–14.4	40–70	125
External solid-state	14.0–14.8	60–100	150
Hybrid voltage stabilizer	14.2–14.6	50–80	130

Select relays with a pull-in voltage 1V below the system’s nominal output. A 13.5V relay prevents false triggers during cold starts, reducing wear on alternator slip rings by 25%. For high-vibration environments, use a sealed relay with gold-plated contacts–standard silver contacts oxidize within 6 months, increasing resistance by 0.2Ω.

Avoid mounting the regulator near exhaust manifolds or radiators. Ambient temperatures above 80°C degrade internal capacitors, causing voltage spikes during load transitions. If relocation isn’t possible, install a heat sink with thermal adhesive–paste alone provides insufficient dissipation, failing within 1,000 operating hours.

Troubleshooting Voltage Instability

Check diode trio functionality before assuming regulator failure. A single faulty diode reduces charging efficiency by 12-18%, mimicking regulator issues. Use an ohmmeter in diode mode: forward resistance should read 0.3–0.7Ω, reverse infinity. Replace the entire rectifier assembly if any diode deviates–individual replacements risk unbalanced current flow, leading to premature belt wear.

Fuse the regulator’s field circuit with a 5-amp slow-blow fuse. Standard fuses fail under transient surges, stalling the generator’s rotor excitation. Test fuse integrity under load: voltage across the fuse should match system voltage (±0.1V). If drops exceed 0.2V, upgrade to a time-delay fuse rated for 20% above nominal current draw.
