How to Install and Read a 220V Outlet Wiring Diagram Step by Step
Begin by verifying your circuit’s ampacity matches the appliance’s requirements. For most high-power appliances like dryers, ovens, or compressors, a dual-pole breaker rated at 30–50 amps is standard. Check the equipment’s nameplate for exact specs–oversized or undersized wiring risks overheating or failure.
Select wire gauges strictly per NEC (or local codes) tables. For 30-amp circuits, 10 AWG copper is standard; 50-amp circuits demand 6 AWG. Use THHN/THWN insulation for conduit runs or NM-B (Romex) for direct burial where permitted. Never substitute aluminum unless the terminals and connectors are explicitly rated for it–oxidation at connection points causes dangerous resistance.
Strip each conductor precisely to the manufacturer’s specifications–typically 0.5–0.75 inches for receptacle screws. Tighten terminal screws to 12–15 inch-pounds; loose connections arc and ignite. Grounding is non-negotiable: attach the bare or green wire to the receptacle’s ground screw, then run a continuous path back to the service panel’s grounding bus. Split-phase setups (common in North America) require the neutral (white) wire connected to the center lug–double-check polarity with a multimeter before energizing.
After securing all wires, wrap the receptacle box with UL-listed electrical tape to seal unused knockouts. Energize the circuit and test with a non-contact voltage detector first–then use a load tester to confirm proper voltage (240V between hots, 120V from each hot to neutral). If readings deviate by more than 5%, revisit connections or breaker functionality.
Installing a High-Power Socket: Step-by-Step Electrical Guide

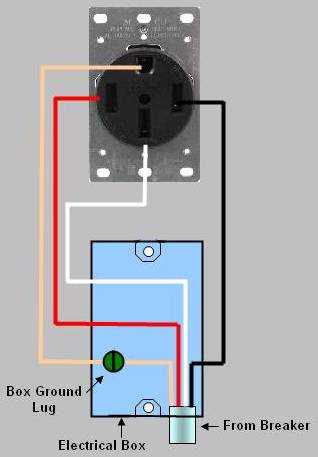

Start by shutting off the circuit breaker controlling the target line to prevent shock hazards. Use a non-contact voltage tester to confirm the cables are dead before handling. For a standard 4-wire setup (two hot legs, one neutral, and one ground), strip ¾ inch of insulation from each conductor. Secure the wires to the terminal screws in this order: red and black (phase conductors) to the brass screws, white (neutral) to the silver screw, and bare/green (ground) to the green screw. Torque screws to 12–15 inch-pounds to avoid loose connections that cause arcing.
- Red and black wires: 240V potential between them
- White wire: Carries return current for 120V loads
- Ground: Must be bonded to the outlet’s metal frame
- Use 10 AWG copper wire for 30-amp circuits, 8 AWG for 50-amp
For NEMA 14-50 or 6-50 receptacles, match the plug configuration to the appliance requirements. NEMA 14-50 includes neutral; NEMA 6-50 omits it. When connecting to a subpanel, ensure the grounding conductor is separately routed to the main panel’s ground bus–never bond neutral and ground in the same box. Verify polarity with a multimeter: measure 240V between hot terminals and 120V from each hot to neutral.
Troubleshooting Common Issues
If the breaker trips immediately, check for shorted wires by disconnecting the outlet and testing continuity between conductors. Overheating at terminals indicates loose connections–retighten screws or replace the outlet if melted. Flickering voltage suggests a shared neutral problem; isolate the circuit or upgrade to thicker wire (e.g., 6 AWG for 60-amp loads). Always label the breaker panel clearly with the outlet’s purpose and amperage.
- Double-check wire gauge matches breaker rating
- Avoid backstabs; use side screws for reliability
- Coil excess wire neatly but leave slack for repairs
- Test GFCI protection for dedicated circuits (e.g., kitchens, garages)
Selecting the Proper Conductor Size for High-Amperage Appliance Circuits
For 15-amp circuits handling heavy-duty equipment, use 14 AWG copper conductors as the minimum acceptable thickness. This gauge supports continuous loads up to 12 amperes while allowing transient spikes during startup. Exceeding this amperage risks overheating insulation and violating NEC 210.20(A) requirements for 125% overcurrent protection.
Circuits rated for 20 amperes demand 12 AWG copper conductors to prevent voltage drop over standard 50-foot runs. Below this thickness, resistance increases exponentially–10 AWG reduces drop by 37% compared to 12 AWG at identical current draw. Verify local amendments; some jurisdictions mandate 10 AWG for all 20-amp feeds regardless of distance.
10 AWG copper becomes necessary for 30-amp circuits powering large motors or compressors. The National Electrical Code permits 30-amp protection only with conductors sized to handle 125% of full-load current. For dual-voltage installations (e.g., 240V split-phase), pair with 30-amp two-pole breakers–never substitute with two 15-amp single-pole devices.
For 40-amp circuits, 8 AWG copper is the absolute minimum. Oversized conductors improve efficiency: 6 AWG reduces line loss by 40% compared to 8 AWG at 40 amperes. At this gauge, terminate with copper-only lugs–aluminum requires anti-oxidant paste (NEC 110.14) and torque specifications per manufacturer data sheets. Ignoring this risks junction failure within 6–12 months.
Industrial or shop circuits drawing 50 amperes require 6 AWG copper or equivalent aluminum (4 AWG). Beyond 50 amperes, shift to parallel conductors sized per NEC Table 310.16. For example, a 60-amp feed needs two 6 AWG copper conductors in parallel, each protected by a 60-amp breaker. Never bundle conductors smaller than 1/0 AWG–derating applies (NEC 310.15(B)(3)(a)).
Extension runs longer than 100 feet mandate calculation of voltage drop. Use the formula VD = (2 × K × L × I) / CM, where K = 12.9 for copper, L = length (feet), I = current (amperes), and CM = circular mils. A 75-foot run at 40 amperes with 8 AWG yields a 3.8% drop–acceptable per NEC guidance (≤5%). For 5%+ drops, upsize to 6 AWG or larger.
Aluminum conductors must be two sizes larger than copper for equivalent ampacity. A 20-amp circuit requires 10 AWG aluminum, but termination rules differ: Use CO/ALR-rated devices or piston lugs with zinc-based antioxidant. Avoid aluminum in damp locations (NEC 310.10(G)) or where vibration is present–copper-clad aluminum (CCA) is not a valid substitute.
Step-by-Step Guide to Installing a High-Power Receptacle
Shut off the main circuit breaker supplying the target circuit to eliminate any risk of electric shock. Verify the absence of current using a non-contact voltage tester on both incoming conductors and the grounding wire. Double-check the breaker position in the panel–most modern installations use a double-pole switch rated for at least 30 amperes, though heavier appliances may require 40 or 50-ampere variants.
Route the heavy-duty cables (typically 10 AWG for 30A or 8 AWG for 40A service) through the wall cavity, leaving an extra 12 inches of slack at the box location. Secure the non-metallic box to the stud with nails or screws, ensuring it sits flush with the finished wall surface. Strip the outer sheathing back 6 inches, then expose ¾ inch of conductor insulation on each individual wire–black and red for the hot legs, white for neutral, and bare or green for ground.
| Circuit Rating | Minimum Conductor Size | Maximum Overcurrent Device | Recommended Terminal Torque |
|---|---|---|---|
| 30A | 10 AWG copper | 30A | 15 lb-in |
| 40A | 8 AWG copper | 40A | 20 lb-in |
| 50A | 6 AWG copper | 50A | 25 lb-in |
Attach each conductor to the corresponding terminal on the receptacle: black to brass, red to the second brass, white to silver, and ground to the green screw. Use a calibrated torque screwdriver–many building codes now mandate precise tightening to prevent loose connections that can lead to arcing. Fold the wires neatly behind the device, then secure the receptacle to the box with screws provided. Install the cover plate, ensuring no gaps that could allow dust or moisture ingress.
Restore power at the panel and verify functionality with a plug-in tester. Confirm both hot legs read approximately 240 VAC between them and 120 VAC to neutral on each leg. Label the circuit at the panel for future maintenance. If the appliance comes with a cord, match its plug configuration–most North American high-power plugs use NEMA 6-30 or NEMA 14-30 configurations, depending on whether neutral is required.
Safety Precautions for High-Power Electrical Installations
Isolate the circuit at the breaker panel before handling any live components. Use a non-contact voltage tester to confirm power is completely cut–even a residual charge can deliver a lethal shock at these energy levels. Verify all conductors by testing between each wire and ground, not just between phases, as faulty insulation may leave a path to ground undetected by single-phase checks.
Protective Gear Requirements
Wear insulated gloves rated for at least 1,000 volts, even if the panel is off. Arc-resistant clothing is mandatory; synthetic fabrics melt under heat, increasing burn risk. Safety goggles must be shatterproof, as high-current faults can eject hot metal fragments. A face shield adds extra protection during breaker operations, where sudden arcs may occur without warning.
Ground all tools and test equipment before use. A floating probe can induce voltage when ungrounded, creating false readings or dangerous backfeed. Use only tools with insulated handles–metal pliers or screwdrivers can bridge live parts accidentally. Keep a fiberglass or plastic toolkit nearby for adjustments in tight spaces where conductivity risks are higher.
Work with a partner when handling circuits above 40 amperes. High-energy faults can cause immediate loss of consciousness, making solo work potentially fatal. Agree on an emergency shutdown procedure: a visual signal or verbal command if verbal communication becomes unreliable under stress. Maintain a charged phone within reach to call emergency services without leaving the workspace.
After installation, recheck torques on terminal screws with a torque screwdriver–loose connections create hot spots, degrading insulation over time. Inspect for physical damage: nicks, cuts, or crushing in cables mandate replacement, not repair. Seal all conduit entries with approved duct seal to prevent moisture ingress, which reduces dielectric strength and accelerates corrosion in high-amperage environments.
