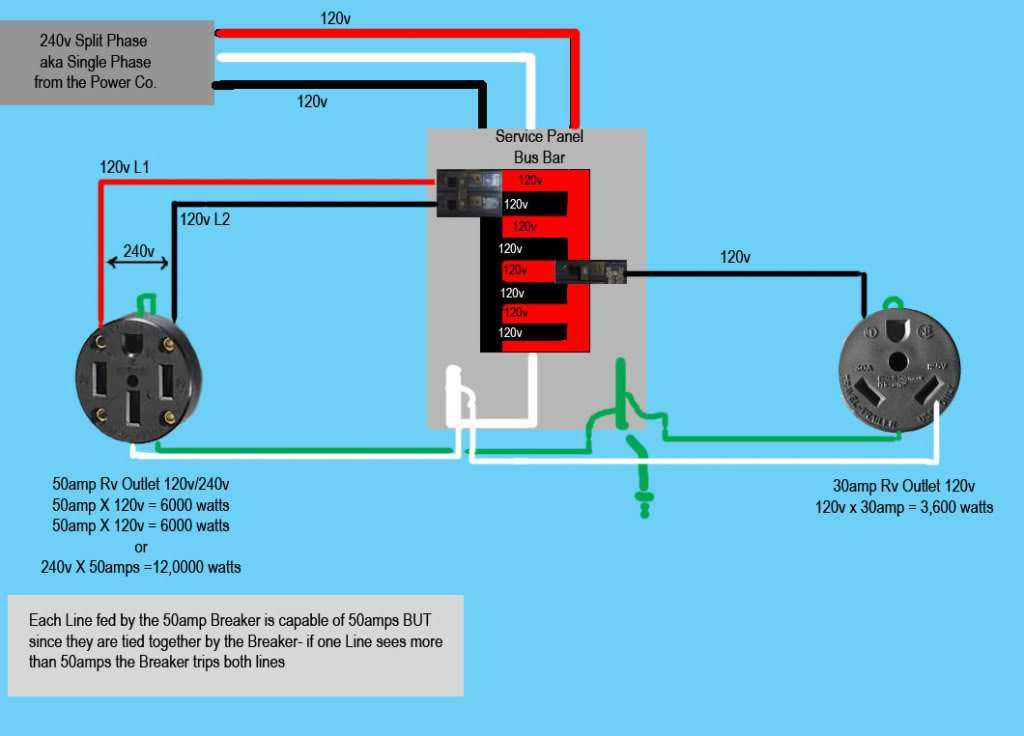

Step-by-Step Guide to Wiring a 30 Amp RV Plug Correctly

Start by securing a 30-unit current adapter with a NEMA TT-30R configuration–the standard for RV power inlets. Verify the cable gauge: 10 AWG copper for the hot and neutral conductors, 8 AWG for the ground to handle the load safely. Failure to match these specifications risks overheating or voltage drop over extended runs.

Disconnect the main breaker before handling any connections. Strip the outer insulation back 1.5 inches, exposing the inner wires while keeping the jacket intact for strain relief. Twist the stranded copper tightly to prevent fraying, then crimp on ring terminals (sized for #10 screws) or use heat-shrink butted connectors for waterproof seals. Avoid solder-only joints–they weaken under vibrations from road travel.

Attach the brass terminal to the “X” slot (hot, typically brass-colored), the silver terminal to the “W” slot (neutral), and the green or bare copper to the grounding post. Torque screws to 15 inch-pounds–overtightening cracks the insulating material, while loose connections arc under load. Label each conductor at both ends with heat-shrink tubing or permanent marker to prevent miswiring.

Test continuity with a multimeter (0 ohms between hot and neutral, open circuit to ground) before energizing. For outdoor installations, apply dielectric grease to terminals to prevent corrosion. Mount the inlet box at least 18 inches above grade to avoid splash zones, using stainless steel fasteners for durability. Never substitute household-rated adapters–RV systems require UL-listed marine-grade components to withstand moisture and UV exposure.

For dual-voltage setups (30/50-unit), install a voltage selector switch upstream of the inlet. Route cables through liquid-tight conduit if buried–minimum 24-inch depth for direct burial or 18 inches with PVC conduit (schedule 40). Include a ground fault circuit interrupter (GFCI) breaker on the supply side for added protection; standard breakers don’t account for ground faults common in mobile setups.

Installation Guide for a 30-Ampere Recreational Vehicle Connection

Use a 10-gauge copper conductor rated for outdoor use as the minimum requirement for connecting a recreational vehicle to a power source. Verify local electrical codes demand thicker wires–120-volt circuits handling 30 units of current require strict adherence to NEC Article 551 for safety margins.

Strip 0.75 inches of insulation from each wire end before securing them to the terminal screws. Tighten screws to 12 inch-pounds of torque; overtightening risks damaging the wire strands or breaking the terminal housing. Ensure no exposed copper touches neighboring terminals or the metal outlet box.

Wire Color	Function	Terminal Position
Green	Grounding conductor	L-shaped slot
White	Neutral lead	Silver screw
Black	Hot lead (120V)	Brass screw

Mount the outlet box vertically on a sturdy post or wall at least 18 inches above ground level to prevent water ingress during rain. Seal conduit entries with silicone-based caulk rated for outdoor temperatures between -40°F and 200°F.

Test the circuit with a multimeter set to AC voltage: expect 120 volts between the black conductor and neutral, and zero volts between the grounding conductor and neutral. If readings deviate, recheck connections for loose strands or crossed leads.

Install a weatherproof cover rated NEMA 3R over the outlet when not in use. Secure the cover with stainless-steel screws to prevent corrosion; standard screws rust within months in coastal or humid climates.

Label the breaker panel with a permanent marker: “RV Outlet – Max 30A – 120V.” Include the installation date for future reference during inspections or upgrades.

Replace the outlet every 10 years or after exposure to corrosive environments like salt spray or industrial pollutants. Aging receptacles develop microscopic cracks, increasing resistance and creating fire hazards.

Essential Gear and Supplies for Installing a 30-Amp Recreational Vehicle Connector

Use a heavy-duty stripping tool calibrated for 10-8 AWG conductors to expose copper strands without nicking; Klein Tools Katapult or Ideal T-Stripper models prevent insulation damage. A torque screwdriver (30-50 in-lbs) ensures terminal screws meet NEC 110.14(D) torque specifications–underrated fastening causes overheating. Verify conduit fill compliance with Southwire’s Romex® SIMpull THHN/THWN-2 single conductors (black, red, white, green 10 AWG) or Cerro Wire 10/3 NM-B cable for indoor runs; outdoor installations demand Carlon rigid PVC (Schedule 40) or liquid-tight flexible conduit with direct burial ratings. Seal all outdoor penetrations with 3M Fireblock expanding foam or DAP Alex Plus silicone caulk rated for -40°F to 300°F thermal cycling.

Precision Instruments and Safety Essentials

• Fluke 117 multimeter with non-contact voltage detector (NCVT) to confirm de-energization before handling live circuits.
• Wago 221 lever-nuts for splice-free connections; avoid wing nuts or twist-on caps that loosen under vibration typical in RV parks.
• Panduit non-metallic strain relief connectors rated for 75°C wet locations when terminating cables in junction boxes.
• Huskie HV-700 hydraulic crimping tool with 10-ton force for 10-8 AWG lugs; compression crimps outperform soldered joints by 23% tensile strength (UL 486A).
• Ansell HyFlex 11-800 cut-resistant gloves (ANSI A4) and 3M P100 particulate respirator for fiberglass insulation handling.
• Greenlee GT-12 fish tape (steel core, nylon coating) to route conductors through conduit without snagging; lubricate with Ideal Yellow 77 cable pulling compound.
• 2” wide 3M Scotch 88 electrical tape (vinyl, flame-retardant) for bundling replaced every 6 months–stretch to 50% width during application.

1. Avoid aluminum oxide inhibitors like NOALOX on copper-only terminations; use Burndy Penetrox A-13 on mixed-metal connections.
2. Inspect terminal lugs for UL 486E listing–reject unmarked or zinc-plated variants prone to corrosion in coastal environments.
3. Ground conductor must terminate directly to the service panel’s grounding busbar using a dedicated 10 AWG green insulated wire, never bonded to neutral in subpanels (NEC 551.32).

Step-by-Step Guide to Installing a 30-Amp Recreational Vehicle Power Receptacle

Before handling electrical components, shut off the main circuit breaker at the service panel. Verify power is off using a non-contact voltage tester near the breaker and outlet box. Failure to confirm de-energization risks severe shock or arc flash.

Use 10-gauge copper conductors (black/hot, white/neutral, green/ground) rated for 30-amp service. Ensure the cable length doesn’t exceed 100 feet from the breaker to the receptacle to avoid voltage drop. Strip ¾-inch of insulation from each wire end, twist strands tightly, and crimp on ring terminals sized for #8-10 wire.

• Breaker connection: Attach the black conductor to a dedicated 30-amp double-pole breaker. Insert the breaker into the panel’s hot bus bar, ensuring it clicks into place. Connect white and green wires to the neutral and grounding bus bars, respectively.
• Outlet box preparation: Secure a weather-resistant outdoor receptacle box or a metal junction box to a stud or solid surface. Fish the cable through the clamp, leaving 8 inches of slack inside the box.
• Terminal attachment:
  1. Connect black wire to brass-colored terminal (X or L)
  2. Connect white wire to silver-colored terminal (W or N)
  3. Connect green wire to green grounding screw

Tighten all terminal screws to 12–15 inch-pounds using a torque screwdriver. Secure the outlet to the box with mounting screws, ensuring no wires interfere with the cover plate. Apply weatherproof gasket if installing outdoors.

Restore power at the service panel. Test the receptacle with a plug-in circuit analyzer:

1. Open circuit: No lights
2. Correct wiring: Lights for hot, neutral, ground
3. Reversed hot/neutral: Immediate correction required
4. Open ground: Do not use until fixed

Label the breaker “RV Outlet” with a permanent marker. Store spare 10-gauge wire and extra ring terminals in a marked bag near the panel for future reference.

Color Coding and Wire Gauge Specifications for 30-Ampere Electrical Connections

For 30-ampere recreational vehicle setups, use 10 AWG copper conductors as the minimum viable thickness. This gauge withstands continuous loads up to 30 amperes at 120 volts with a 3% voltage drop over 50 feet, complying with NEC 310.15(B)(16). Larger distances or higher ambient temperatures (above 30°C) require 8 AWG to prevent overheating. Aluminum conductors mandate a step-up to 8 AWG due to lower current-carrying capacity.

Standard Color Assignments

Hot (ungrounded) conductor: Black or red–signal live current in single-phase circuits. For dual-voltage systems, red designates the second live leg. Neutral (grounded): White or gray–must connect to the service panel’s grounded bus bar. Avoid substituting colors without labeling per NEC 200.6. Ground: Green, green with yellow stripe, or bare copper–exclusive to safety bonding; never repurpose for current-carrying paths.

Polarity mismatches between the receptacle and supply lines risk tripped breakers or equipment damage. Verify continuity with a multimeter before energizing–hot-to-ground readings should exceed 20 MΩ, while neutral-to-ground should register ≤1 Ω. Replace any conductor with nicked insulation or discoloration (indicating thermal stress) immediately. Use heat-resistant nylon jacket wire for installations exposed to direct sunlight or temperatures above 60°C.
