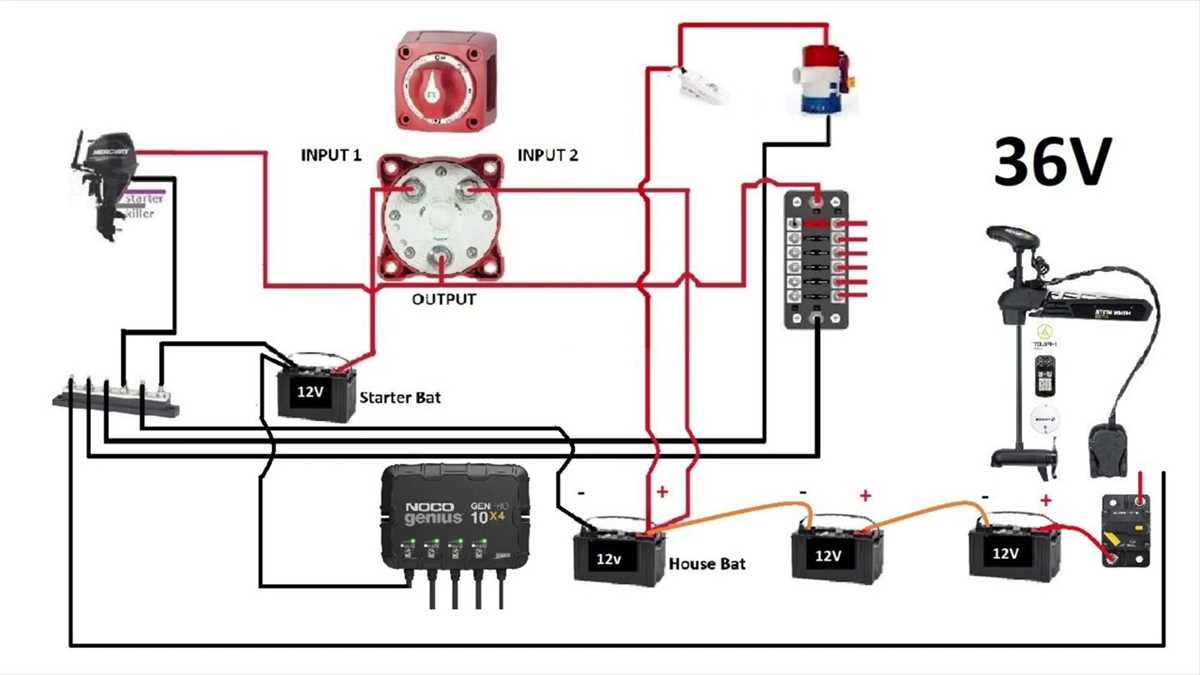

Step-by-Step Guide to Creating a Car Battery Wiring Diagram
Start by identifying the voltage requirements of your system–most standard automotive applications operate at 12V, while marine or heavy-duty setups may demand 24V or 48V. Misalignment here leads to inefficiency or damage. Use tinned copper cables with a cross-section of at least 4 AWG for currents exceeding 100A; undersizing risks overheating and voltage drop. For solar arrays or backup power grids, factor in a 3% maximum voltage loss over the cable run–use calculators like Blue Sea Systems’ Circuit Wizard for precise sizing.
Isolate ground paths for sensitive electronics. A dedicated negative busbar prevents interference in audio systems or microcontroller circuits. For lithium-ion setups, integrate a battery management system (BMS) with thermal sensors; bypass this step, and you risk thermal runaway. Connectors matter: Anderson SB50 handles 50A continuously, while XT90 suits high-vibration environments like racing or off-road vehicles. Avoid cheap terminal blocks–they corrode faster than marine-grade tin-plated brass.
Label every circuit with heat-shrink tubing marked with a permanent marker or laser-engraved tags. For complex setups (e.g., dual banks or inverter-charger combos), draft a visual layout using Fritzing or KiCad before cutting wires. Test continuity with a digital multimeter set to low-resistance mode (<0.1Ω); anything higher implies poor contact. Fuse every positive lead–ANL fuses for high-current branches, blade fuses for accessories–sized at 125% of expected load.
For vehicles with start-stop systems, add a DC-DC converter to maintain auxiliary voltages during engine cranking. Solar charge controllers must pair with the chemistry–MPPT for lithium, PWM for AGM–mismatching shortens lifespan. When retrofitting older systems, replace corroded ground straps with braided copper; even minor resistance here causes erratic behavior. Finally, secure all cables with nylon spiral wrap or adhesive-lined conduits–loose wires chafe against sharp edges, leading to shorts.

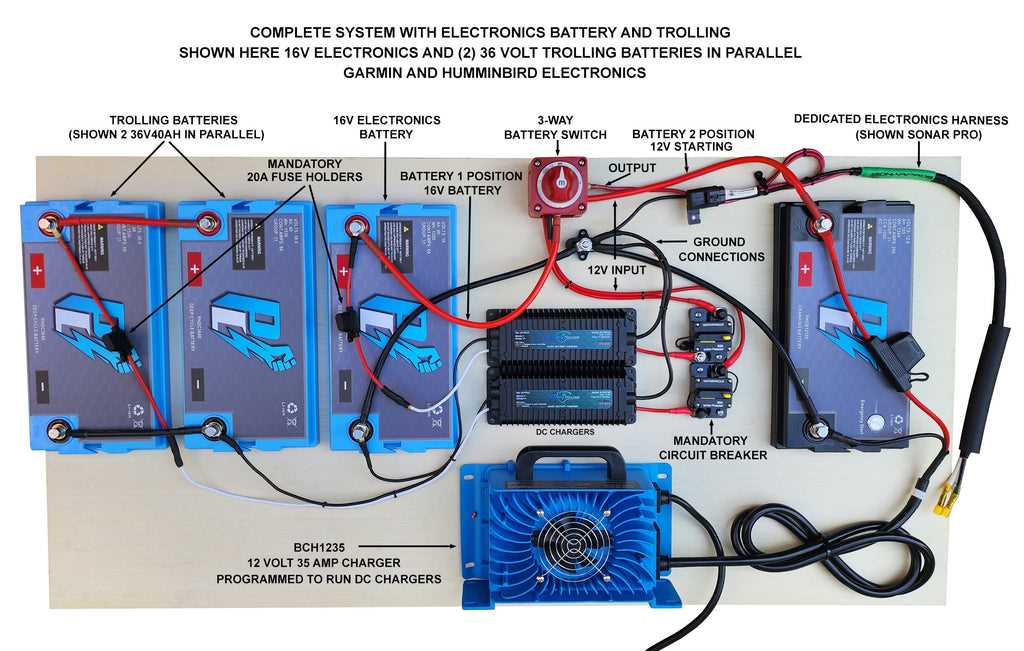

Schematic Layouts for Energy Storage Configurations
Always start by mapping power flow paths with color-coded conductors: red for positive connections, black for negative, and blue or yellow for auxiliary circuits like alternators or solar inputs. Each cable must be sized according to its expected load–1/0 AWG for 200A+ systems, 4 AWG for 50A, and 8 AWG for 20A. Label both ends of every conductor with heat-shrink tubing showing voltage, amperage rating, and source/destination identifiers.
For dual-cell setups, deploy a common busbar configuration rather than daisy-chaining components. Copper busbars (99.9% pure) should have a cross-sectional area no less than 1.2 times the total system current. Use stainless-steel hardware and star washers to prevent loosening under vibration. Torque terminals to manufacturer specs–typically 10-12 Nm for M8 bolts.
Incorporate a primary disconnection switch rated for 150% of the peak system load. Position it within 30 cm of the storage pack’s positive terminal. Add a fuse or circuit breaker upstream of all components–slow-blow fuses for inductive loads (e.g., inverters), fast-acting for sensitive electronics. For lithium chemistries, include a battery management system (BMS) with individual cell monitoring, balancing thresholds at ±10 mV, and overcurrent protection at 1.2× continuous rating.
Grounding must follow a dedicated low-resistance path. Connect the negative terminal to a chassis ground via a 2/0 AWG copper strap, bonding all metallic enclosures to this reference with 0.2 Ω max impedance. Avoid shared grounds between high-power devices (e.g., motors) and low-voltage systems (e.g., sensors) to prevent noise interference. Test continuity before energizing.
For parallel arrangements exceeding four storage units, introduce a main contactor with a pre-charge resistor (50-100 Ω) to limit inrush current. The contactor’s coil should be triggered by a manual override and an automatic signal from the BMS, ensuring it opens during faults or undervoltage conditions (below 10.5V for 12V systems).
Isolate sensitive electronics with DC-DC converters. A 12V to 5V buck converter with galvanic isolation (2 kV) eliminates ground loops. Place ferrite beads on data lines to suppress high-frequency noise from switching regulators. Use twisted-pair wiring for all low-voltage signals, maintaining a 90° angle to high-current paths to reduce electromagnetic coupling.
Thermal management requires forced-air cooling for loads above 1 kW. Mount blowers at least 5 cm from heat-generating components, oriented to expel hot air away from the system. For sealed enclosures, use graphite pads or phase-change material (PCM) instead of fans. Monitor temperatures with NTC thermistors–trigger alarms at 50°C and shut down at 60°C.
Document every connection in a master reference chart: conductor gauge, component specs (make/model), torque values, and fuse ratings. Store a physical copy inside the enclosure and save a digital version with timestamped revisions. Perform load tests after assembly: apply 125% of rated current for 10 minutes, verifying voltage stability and thermal performance before deployment.

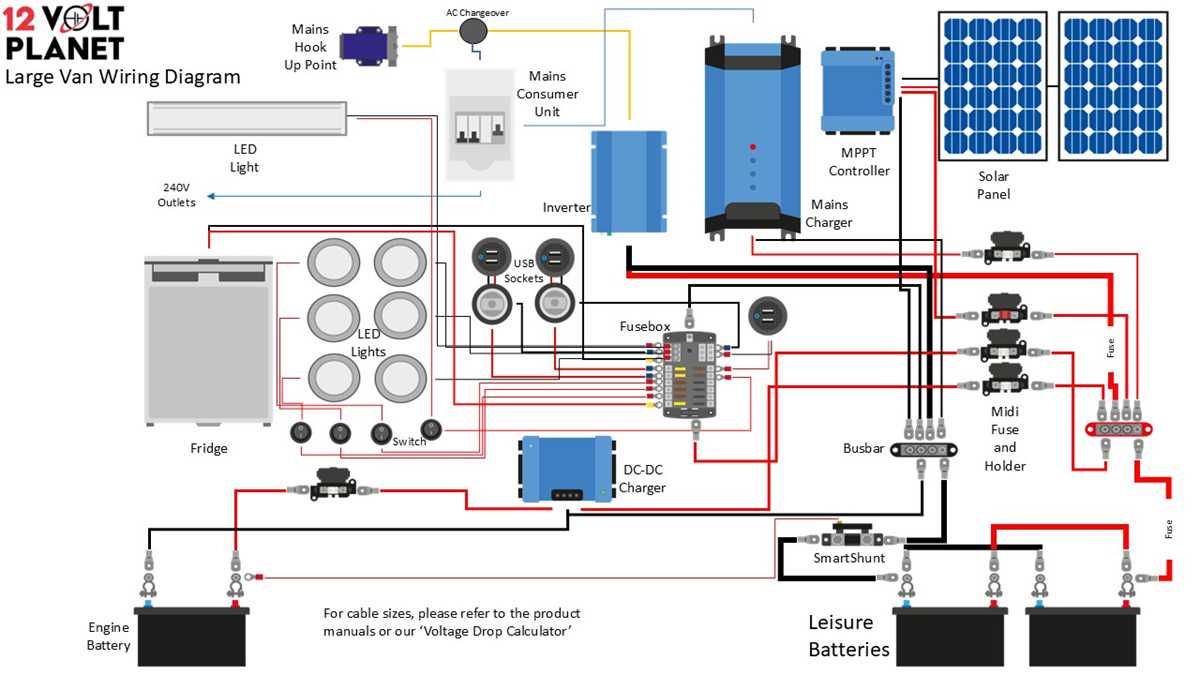

Critical Elements for Your Power Source Connection Schematic
Start by clearly labeling every terminal and junction point. Include voltage ratings, polarity indicators, and connector types–such as Anderson SB, XT90, or terminal blocks–to eliminate ambiguity during installation or troubleshooting. Each contact should be annotated with its function (e.g., main input, parallel link, or fuse connection) and the expected current load in amperes.
Specify the gauge and insulation type of all conductive paths, whether copper, aluminum, or hybrid materials. Note the temperature rating of the insulation–common options include PVC (60°C), XLPE (90°C), or silicone (200°C)–and any protective sleeves like heat shrink or conduit. For high-current setups, detail the length of each segment to account for voltage drop, using Ohm’s Law calculations for precision.
- Fuses or circuit breakers positioned at every branch, sized 10-20% above the maximum continuous current of the segment.
- Isolators or disconnect switches near the energy storage unit and load entry points to enable safe maintenance.
- Surge protection devices for sensitive electronics, with clamping voltage and response time clearly stated.
- Grounding points with the size and type of bonding material–copper busbars or braided straps–specified.
Highlight the arrangement type–series, parallel, or series-parallel–with total voltage and capacity outcomes. For parallel configurations, mark balancing resistors or active management devices if used. In multi-cell systems, denote cell count and individual specifications, including cutoff voltages (e.g., 3.0V/4.2V for lithium) and balancing thresholds. Include shunt-based or Hall-effect current sensors if monitoring is required.
Add color-coding for conductors: red for positive, black for negative, blue or green for grounds, and yellow for control signals. Use standardized symbols from IEC or ANSI libraries, avoiding custom icons. If the setup includes relays, solenoids, or contactors, diagram their coil voltage, contact configuration (SPST, SPDT), and current rating. For automated systems, tag microcontroller interfacing points with pin numbers and communication protocols (CAN, I2C, PWM).
- Verify every path’s continuity with a multimeter before powering the system.
- Recheck torque specifications for terminal connections (typically 6-10 in-lbs for M8 bolts).
- Inspect crimp quality on connectors using a pull test; aim for a minimum of 20 lbs resistance.
- Document thermal management components, such as heat sinks or cooling fans, with target operating temperatures.
- Include failsafe measures like redundant paths or automatic disconnects for critical loads.
Step-by-Step Guide to Creating a Parallel Power Cell Configuration
Start by sketching two identical rectangular shapes side by side, spaced at least 20mm apart to ensure clarity–these represent individual energy storage units. Use a ruler for straight edges and maintain uniform dimensions (e.g., 50mm × 30mm) to avoid visual confusion. Label each cell with “+” on the right and “–” on the left using neat, uniform 3mm-high text to denote polarity.
Connecting Terminals Correctly
Align the positive terminals horizontally with a bold, unbroken line–this ensures current flows equally. Repeat for the negative terminals, using the same line weight (0.7mm minimum) to maintain consistency. Avoid crossing lines; if unavoidable, introduce a small half-circle arch (2mm radius) at intersections to prevent short-circuit misinterpretation.
Add arrows along the connections pointing outward from each cell to illustrate voltage maintenance–identical potential remains across all units in this setup. Use terminal blocks symbolized by small rectangles (10mm × 5mm) if integrating switches or loads; position them mid-connection to imply real-world constraints. Verify every link terminates cleanly at designated nodes.
Finalize by cross-checking: measure all line lengths–parallel setup demands equal distances between like terminals. Annotate the combined output capacity (e.g., “Total: 12V, 40Ah”) beneath the schematic in 4mm-high text, ensuring it reflects the sum of all connected power sources’ ratings.
How to Identify and Label Conductor Sizes in Energy Storage Systems
Begin by measuring the cross-sectional area of each cable using a caliper or micrometer. For stranded conductors, compress the strands lightly to get an accurate diameter reading. Convert the diameter to American Wire Gauge (AWG) using the formula: AWG = (46.32 / D1.555) – 10, where D is the diameter in millimeters. Round the result to the nearest standard AWG value. For metric-based projects, reference the table below to match conductor diameters with their corresponding cross-sectional areas in square millimeters.
| Conductor Diameter (mm) | AWG Equivalent | Cross-Sectional Area (mm²) | Maximum Continuous Current (A) |
|---|---|---|---|
| 0.81 | 18 | 0.52 | 9 |
| 1.02 | 16 | 0.82 | 13 |
| 1.30 | 14 | 1.31 | 18 |
| 1.63 | 12 | 2.08 | 25 |
| 2.05 | 10 | 3.31 | 35 |
| 2.59 | 8 | 5.26 | 50 |
| 3.26 | 6 | 8.37 | 65 |
Label each conductor immediately after measurement to prevent misidentification. Use heat-shrink tubing or adhesive tags with printed AWG values and polarity markings. For high-current paths (6 AWG and thicker), apply colored sleeves: red for positive, black for negative, and green or yellow for grounding. Include additional identifiers for multi-terminal systems, such as “BMS+,” “Charge Port,” or “Load Out,” to simplify troubleshooting. Store a permanent record of conductor sizes alongside system schematics for future reference.
Verify conductor size against current load requirements using the table’s maximum ratings as a baseline. Reduce ampacity by 20% for conductors bundled in conduit or exposed to ambient temperatures above 30°C. Replace undersized conductors immediately–voltage drop over long runs (e.g., 12 AWG at 3% drop over 5 meters) can degrade performance. For lithium storage, prioritize conductors one size larger than calculated to accommodate surge currents during charging or regenerative braking cycles.
