Complete Guide to Creating and Reading Boat Electrical Wiring Schematics

Start by isolating the primary power sources before drafting any connection plans. For most recreational crafts under 40 feet, a dual-battery system with a 1-2-BOTH selector switch prevents parasitic drain and ensures reliable ignition. Use tinned copper wire–minimum 10 AWG for 30A circuits and 16 AWG for navigation lights–to resist corrosion in saline environments. Always fuse within 7 inches of the battery terminal to comply with ABYC standards.

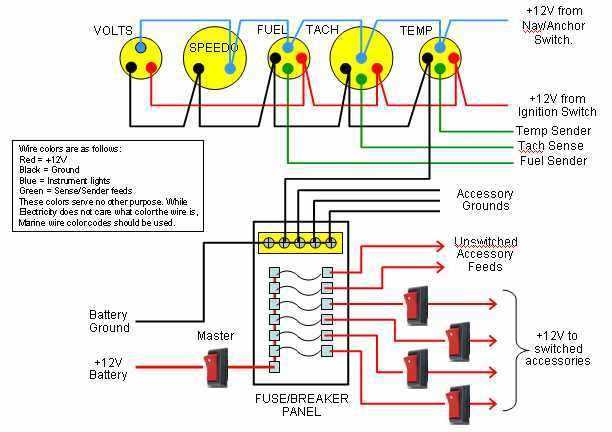

Group circuits by function: engine, navigation, lighting, accessories, and house loads. Label each breaker or fuse block with a waterproof laminator sheet and use heat-shrink terminals for all connections. Avoid daisy-chaining multiple devices on a single circuit; instead, run individual feeds back to a central distribution panel. For twin-engine vessels, mirror the starboard and port wiring harnesses to simplify troubleshooting.

Incorporate galvanic isolators or isolation transformers if the craft remains docked for extended periods. Ground all metallic components–including through-hull fittings–to a single bonding bus bar to prevent stray current corrosion. Test continuity with a multimeter after completion; resistance should not exceed 1 ohm between any grounded point and the negative bus.

Store digital copies of your schematic in cloud-based marine engineering software and print a laminated A3 reference for quick access. Update the plan after any modifications, noting wire gauge changes, fuse ratings, and component locations. Keep a spare circuit breaker, fuse assortment, and 10 feet of each wire gauge aboard for emergency repairs.

Electrical Schematics for Marine Vessels: Key Insights

Start with a master fuse block rated for 20% above your total system amperage. Place it within 18 inches of the battery bank to minimize voltage drop. Use tinned copper cable–never aluminum–and match wire gauge to the American Boat and Yacht Council (ABYC) E-11 standards for transient loads.

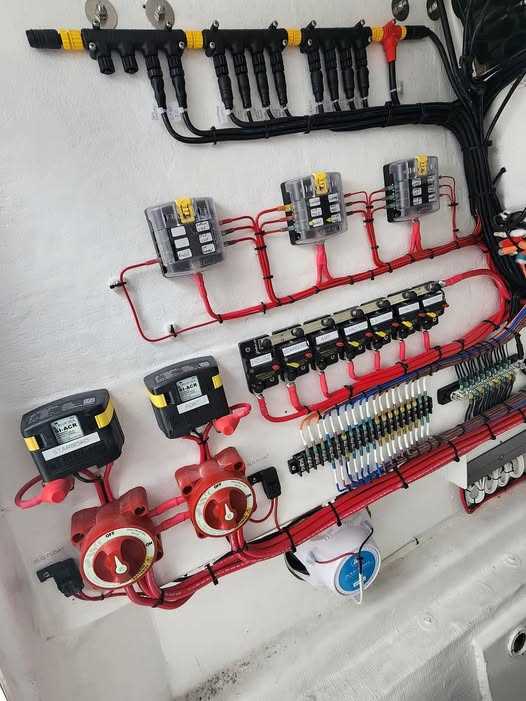

Separate power circuits into dedicated buses: one for navigation lights, another for bilge pumps, and a third for electronics. Each bus should have its own thermal breaker, sized at 125% of the expected continuous current. Label every terminal with marine-grade shrink tubing, including voltage and function.

Ground all panels to a single central point near the battery negative to prevent stray current corrosion. Use 316 stainless steel star washers under terminals, and apply dielectric grease before tightening. Never rely on chassis ground–marine environments require isolated returns.

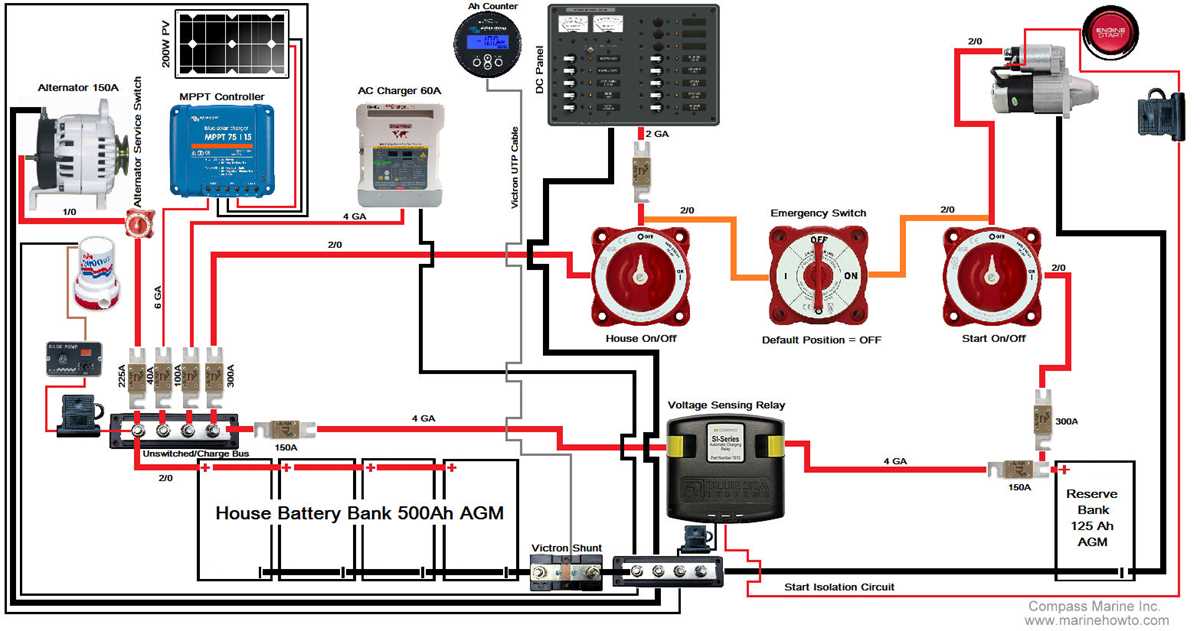

Install a battery monitor with a shunt on the negative side of the main battery bank. Configure it to track amp-hours, not just voltage, to detect sulfation early. Pair it with a solar charge controller set to absorb 14.4V for flooded lead-acid, or 14.1V for AGM.

For 24V systems, use two 12V batteries in series, not a dedicated 24V unit. Add a battery equalizer between banks to prevent imbalance during charging. Test polarity with a multimeter before connecting–reverse voltage destroys electronics instantly.

Run critical circuits (bilge pumps, nav lights) through a dual-switch setup: one manual switch, one float switch. Use waterproof boots on all connections below the waterline. ABYC mandates automatic bilge pumps to activate when water reaches 2 inches; adjust float switches accordingly.

Cable Routing Best Practices

Avoid sharp bends–radius should be at least 10x the cable diameter. Route cables above bilge areas, secured every 18 inches with UV-resistant straps. For through-hull passages, use nylon conduit with watertight glands. Never bundle power and signal lines together without shielding.

Color-code wires per a standardized system: red for positive, black for negative, green for grounding, blue for lighting, and yellow for instrumentation. Mark each circuit’s amperage on the cable jacket with a label maker. Test continuity after routing–abrasions cause shorts months later.

Testing and Maintenance

Inspect connections monthly for corrosion–white powder indicates oxidation; clean with baking soda and rinse with freshwater. Use a megohmmeter to test insulation resistance; readings below 1MΩ signal moisture ingress. Replace any cable with cracked jacketing immediately.

Load-test batteries annually. For lead-acid, charge to 14.8V for 2 hours, then discharge at 50% of C20 rate. AGM batteries require a three-stage charger with temperature compensation. Lithium systems need a BMS with low-voltage disconnect set to 10.5V.

Selecting Optimal Conductor Size for Vessel Power Networks

For 12V systems, use the American Wire Gauge (AWG) chart with a 3% voltage drop limit over distances under 10 meters. A 1/0 AWG cable carries 150A efficiently, while 4 AWG handles 35A–match currents precisely to device specifications. Strand count matters: 19+ strands prevent fatigue in marine vibrations.

• 24–12 AWG: 5–20A (signal, lighting circuits)
• 10–8 AWG: 30–50A (pumps, small inverters)
• 6–4 AWG: 55–85A (windlasses, winches)
• 2–1/0 AWG: 95–150A (battery banks, thrusters)

Tinned copper reduces corrosion in saltwater by 70% compared to bare copper–non-negotiable for submerged or wet applications. Heat shrink terminals rated for 600V and adhesive-lined sleeves seal connections against moisture ingress. Polyolefin insulation withstands UV and oils better than PVC variants.

Calculate exact lengths with Vdrop = (I × L × 2) ÷ (K × CM) where I = amperage, L = one-way length (feet), K = 10.75 for copper, CM = circular mils. For 24V systems, halve the voltage drop percentage–6 AWG replaces 4 AWG in equivalent circuits.

Dual-circuit breakers (e.g., Blue Sea ST Blade) separate live and neutral wires; each should handle 125% of peak loads. Anchor connections in terminal blocks rated IP67; solderless lugs crimp at 1,000–1,500 psi with ratcheting tools. Test integrity at 500V megohmmeter resistance (≥1MΩ) after installation.

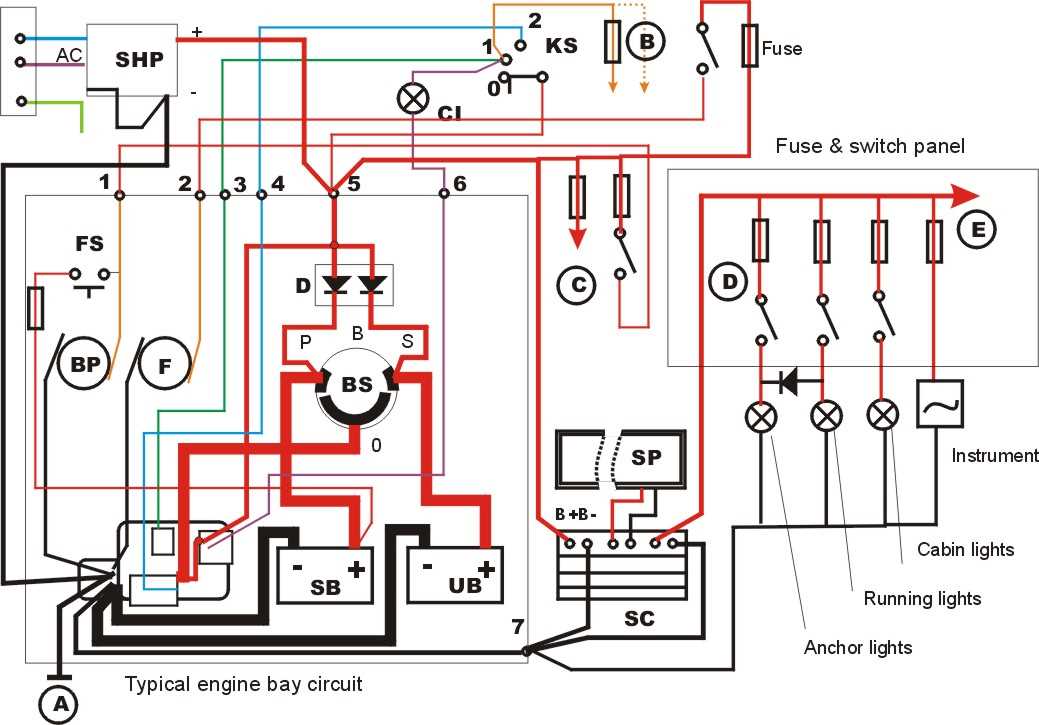

Building an Electrical Schematic for Marine Vessels

Begin by listing all power sources, components, and devices on the vessel, including batteries, panels, switches, lights, pumps, and navigation systems. Assign each element a unique identifier (e.g., “BAT-1,” “SW-3,” “LIGHT-FWD”) and note their voltage, current ratings, and physical locations. Use a multimeter to verify existing connections if retrofitting; discrepancies often hide corroded terminals or incorrect gauges. Group devices by function–e.g., lighting, bilge systems, helm controls–to simplify later steps.

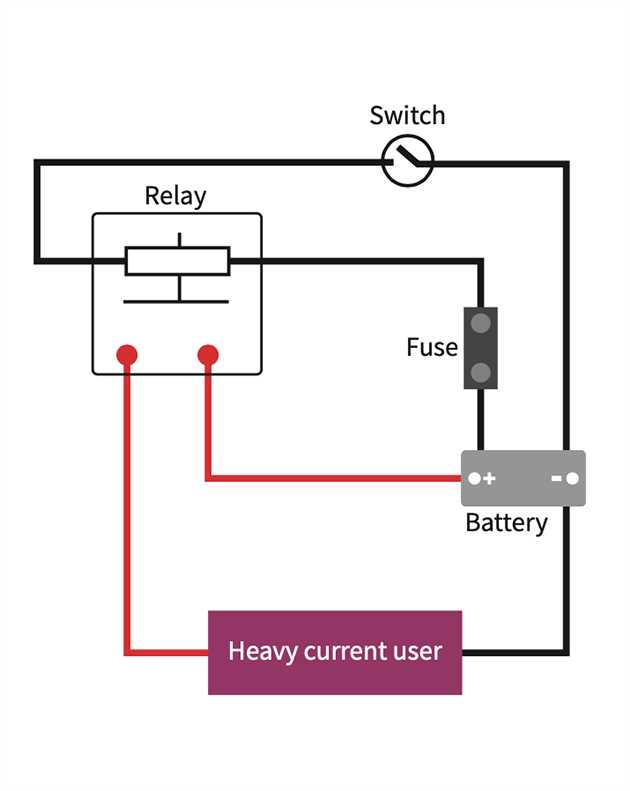

Mapping Connections

Sketch a rough draft on grid paper or digital software (e.g., Circuit Diagram, Draw.io) with these rules:

• Place power sources (batteries, alternators) at the top; arrange downstream components in descending order of priority.
• Use straight lines for positive conductors, dashed for negative, and distinct colors for high-current (red), low-current (blue), and ground (black) paths.
• Label every fuse, breaker, and terminal block with amperage ratings to prevent overloads–e.g., a 10A fuse for cabin lights, 30A for bilge pumps.
• Mark wire gauge next to each conductor (e.g., “10 AWG” for starter motors, “16 AWG” for LED strips).

Cross-check each path against ABYC standards, particularly for bilge pumps (must be on a dedicated circuit) and navigation lights (require failsafe switches).

Finalizing and Testing

Transfer the draft to a clean, scalable format. Add a legend with symbols (e.g., “↯” for breakers, “█” for terminals) and a revision table to track changes. Before installation:

1. Print two copies–one for onboard reference, one for the workshop.
2. Physically trace each conductor from source to device, verifying labels and connections with a continuity tester.
3. Use zip ties and conduit to secure wires away from sharp edges, heat sources, and moving parts.
4. Power up circuits sequentially, measuring voltage drops at endpoints (acceptable: <0.2V for 12V systems).
5. Update the schematic immediately if modifications occur during testing (e.g., rerouted wires, added relays).

Store digital files in multiple locations–USB drive, cloud storage, and emailed to co-owners–to ensure redundancy.

Critical Errors in Marine Electrical Schematics

Neglecting voltage drop calculations for circuits exceeding 10 meters guarantees performance losses. Copper conductors rated for 10A at 12V will lose 3% voltage over 5 meters; install heavier gauge cables (minimum 8 AWG for 20A) or shorten runs. Twisting positive and negative pairs reduces electromagnetic interference–twists should not exceed 25mm in pitch.

Ground loops form when multiple return paths create unintended circuits. Isolate sensitive electronics (VHF radios, GPS) using dedicated negative busbars instead of chassis grounds. Corrosion at terminals accelerates with dissimilar metals–use tin-plated copper lugs and dielectric grease for aluminum connections.

Overloading fuse panels by ignoring continuous vs. intermittent loads leads to nuisance blown fuses. A 15A circuit drawing 12A continuous requires a fuse no larger than 18A, yet 20A is often mistakenly installed. Mark each fuse with actual load current during testing.

Routing power cables alongside data/communication lines within 15cm causes signal degradation. Separate high-current (battery, starter) and low-level (NMEA 2000, audio) harnesses by at least 30cm, preferably shielded in metal conduits. Avoid sharp bends (

Splicing without proper crimping or heat-shrink tubing invites moisture ingress. Use dual-wall adhesive-lined sleeves for underwater connections–solely wrapping with electrical tape fails within months. Test every joint with a megohmmeter at 500V before submersion; anything below 1MOhm indicates compromise.

Disregarding battery bank balancing in multi-battery systems shortens lifespan. Lithium (LiFePO4) requires active monitoring–parallel connections without a battery management system (BMS) risk thermal runaway. AGM batteries demand charge voltages of 14.4-14.8V; overcharging by 0.5V reduces capacity by 30% after 50 cycles.
