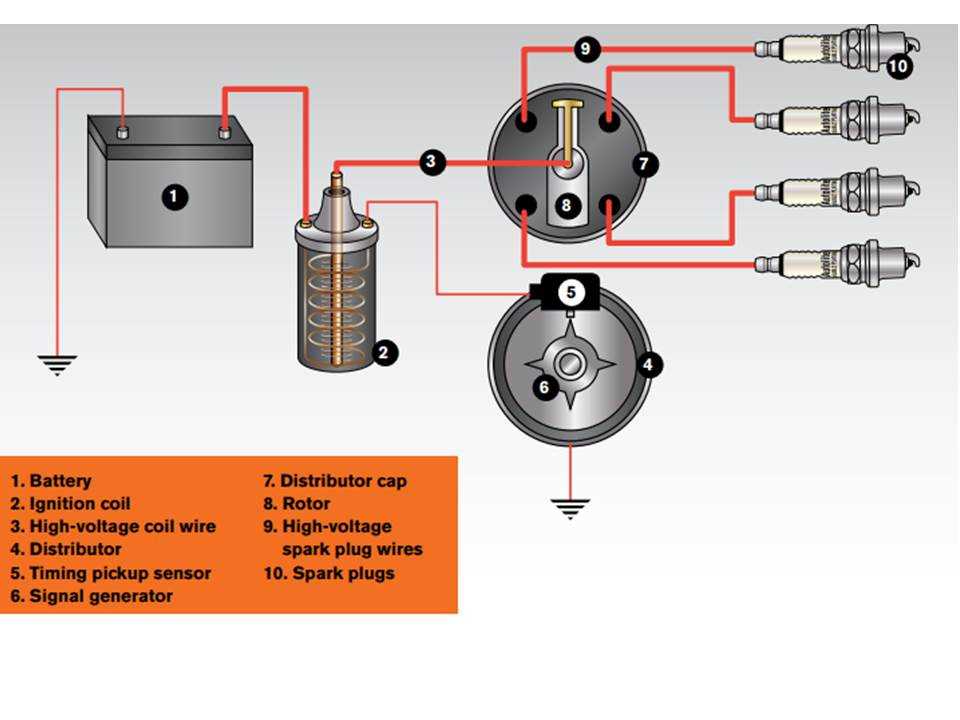

How to Wire a Classic Car Distributor Coil Step-by-Step Guide
Start by locating the primary circuit terminals on the ignition module–most models use a four-pin connector. Pin A (battery feed) should link directly to the 12V power source via a 10-amp fuse, while Pin B (ground) must connect to the engine block or chassis ground with a 6-gauge wire. Avoid daisy-chaining grounds; a dedicated path reduces voltage drop and misfires.
Trace the signal wire from Pin C to the control unit. This path requires a shielded 18-gauge cable to prevent interference from the alternator or spark plugs. Twist the wire pairs and maintain at least 1 inch of separation from high-current lines. Verify continuity with a multimeter–resistance should read below 0.5 ohms.
The secondary circuit demands special attention. The tower terminal on the ignition component must bond to the spark plug lead using a high-quality silicone boot rated for 40kV. Insert a 1k-ohm resistor inline to suppress radio frequency noise; failure here accelerates lead erosion. Secure the connection with a torque of 12-15 lb-ft to prevent arcing.
For rotor alignment, set the engine to top dead center (TDC) on cylinder #1. The pickup assembly should trigger at 10° before TDC–adjust the base plate if timing marks deviate by more than 2°. Replace condenser capacitors if dwell time fluctuates; a 0.22µF unit stabilizes current flow during switching.
Test the entire assembly under load. With the engine at 2,500 RPM, use an oscilloscope to check the dwell angle–it should hold 35°±3° regardless of RPM. If voltage spikes exceed 300V, install a snubber diode across the primary terminals to protect sensitive electronics.
Connecting the Ignition System Core Components
Locate the primary terminal on the magnetic pulse generator (often marked “+” or “15”) and attach the thicker cable from the ignition switch–this ensures a direct power supply when the key is turned. The secondary terminal (typically “-” or “1”) should connect to the points or electronic control unit via a low-resistance path, ideally 18-20 AWG wire with heat-resistant insulation. For optimal signal integrity, ground the engine block or chassis no more than 15 cm from the pulse generator using a dedicated 10 AWG braided strap, avoiding common ground points shared with high-current accessories like starters.
- Test resistance between the primary and secondary terminals–values between 0.3 and 1.0 ohms indicate a properly functioning core unit. Readings outside this range suggest internal shorting or corrosion.
- Avoid routing signal cables parallel to high-voltage leads; maintain a minimum 10 cm separation to prevent induced voltage spikes.
- Use dielectric grease on all connections to prevent oxidation, especially in humid or coastal environments.
- For electronic systems, verify the ECU’s dwell time settings match the core’s specifications (consult manufacturer data for exact microsecond values).
- If retrofitting to a points-based setup, ensure the condenser’s capacitance aligns with the core’s voltage rating (typically 250–500V AC).
How to Determine Your Ignition Module Connector Layout
Start by locating the ignition module on the engine block–usually a small black or metal box near the spark plug assembly. Examine the connector pins for markings: most OEM setups use a numbered or lettered scheme like “1-4” or “A-D” for cylinder sequencing. If absent, pull the plug and check for internal labeling on the harness side. American V8 engines (Chevy, Ford) often follow a clockwise pattern when viewed from above, while 4-cylinder European models (Volvo, Saab) typically use a linear 1-3-4-2 firing order with pins arranged sequentially.
Use a multimeter set to continuity mode to trace connections between the module terminals and spark plugs. Probe each terminal while observing the corresponding plug wire–if continuity exists, note the cylinder number. Ground wires often attach to a dedicated terminal (marked “-” or “GND”), while power feeds (12V) connect to a separate pin, usually thicker in gauge. For HEI (High Energy Ignition) systems, the primary feed is a single heavy-gauge wire, often red or pink, entering the module’s center terminal.
Compare findings against service manuals for your engine type. Chrysler 2.2L engines, for example, use a two-pin module with a dual ballast resistor setup, while Toyota 22R models employ a three-pin connector with a dedicated ignition switch feed. If manuals are unavailable, sketch the pin layout during testing and cross-reference with online forums for your specific make–engine code and year are critical for accuracy.
Step-by-Step Guide to Verifying Ignition Module Terminals
Disconnect the battery’s negative terminal before handling any electrical components. Use a multimeter set to 20K ohms resistance to check for internal shorts. Probe the primary terminal and the iron core–a reading below 0.5 ohms indicates a fault, while infinite resistance confirms an open circuit.
Measure the secondary output by attaching one multimeter lead to the tower connector and the other to a grounded engine block point. Crank the engine briefly while observing readings: healthy systems should show 15–30KV; outputs below 10KV suggest insulation breakdown or terminal corrosion. Clean contacts with 600-grit sandpaper if resistance exceeds 500 ohms.
| Component | Expected Resistance | Diagnosis if Outside Range |
|---|---|---|
| Primary Circuit | 0.5–1.5 Ω | Internal short/open |
| Secondary Circuit | 6–15 KΩ | Insulation failure |
| Ground Path | Corroded mountings |
Inspect the high-voltage lead for cracks by flexing it under a bright light–tiny fissures appear as hairline fractures. Replace the cable if resistance exceeds 10K ohms per foot. Ensure the boot seats fully over the tower connector; gaps allow moisture ingress, causing misfire codes.
Test the ignition control unit by back-probing the trigger signal pin with an oscilloscope. A clean 5V square wave confirms proper signal, while distortion or amplitude below 3V indicates sensor or module failure. Replace defective parts only after verifying power supply voltages exceed 11.5V at key-on.
Reassemble connections using dielectric grease on all terminals. Start the engine and monitor for smooth idle–roughness often stems from unaddressed resistance issues. Log all readings for baseline comparisons during future diagnostics.
Frequent Errors in Ignition System Connections
Reversing positive and negative terminals during installation instantly damages the component. Most modern electronic modules use semiconductor devices that tolerate zero polarity reversal–even momentary–leading to immediate failure. Check the manufacturer’s schematic or embossed markings on the housing before securing contacts. For aftermarket replacements, verify the terminal arrangement matches the original part; mismatched configurations often lack thermal protection and overheat within seconds of startup.
Loose or corroded terminal screws cause intermittent spark loss, misfires at specific RPM ranges, and accelerated wear on ignition points. Torque each screw to 8–12 inch-pounds; overtightening strips threads, while undertightening allows vibration-induced disconnections. Clean mating surfaces with electrical contact cleaner and apply dielectric grease to prevent oxidation. Replace 12-gauge primary leads if insulation shows cracks or wires measure resistance above 0.5 ohms per foot.
Key Instruments for Precise Ignition Component Installation
Begin with a multimeter capable of measuring resistance, voltage, and continuity. Models like the Fluke 87V or Klein MM700 offer 0.1% accuracy, critical for verifying primary/secondary circuit paths. Avoid auto-ranging meters–manual selection prevents misreads during low-resistance tests (ideal: 0.2-20 Ω range).
Include insulated crimp connectors rated for 16-14 AWG, specifically tin-plated copper variants to resist corrosion in high-vibration engines. Heat-shrink tubing with adhesive lining (3:1 shrink ratio) provides strain relief; polyolefin types withstand temperatures up to 125°C. Verify compatibility with silicone wire jackets to prevent cracking.
A spark plug gap tool with stepped gauge increments ensures proper electrode alignment (0.025–0.045 inches). For older systems, a dwell meter with analog display (0–60° range) diagnoses cam lobe wear–digital alternatives lack responsiveness during cranking tests.
Use non-marring nylon picks or brass brushes to clean terminal contact points. Steel wool risks embedding conductive fragments, while silicone-based contact cleaner (e.g., CRC QD) removes oxidation without leaving residue. Avoid aerosol sprays near oxygen sensors.
Opt for tinned copper braided ground straps (4–6 AWG) to replace factory straps prone to fatigue. Measure installed length to match OEM specs within ±0.5 inches–excessive slack induces radio-frequency interference in electronically timed systems.
For securing connections, employ torque-limiting drivers (8–12 in-lbs range). Over-tightening brass terminals distorts threads; under-tightening causes intermittent faults. Dual-durometer screwdrivers prevent cam-out on tamper-resistant screws.
Store tools in a foam-lined organizer with silicone moisture absorbers–environmental humidity accelerates surface corrosion on precision instruments. Replace multimeter probes annually; nickel-plated tips degrade after 200 contact cycles. Keep a soldering station (60W minimum) with rosin-core lead-free solder for permanent repairs.
