Complete Guide to Wiring Diagrams for Electric Trailer Brakes
Begin by connecting the power source directly to the control module–typically a 12-volt battery–using 10-gauge stranded copper wire for reliable current delivery. Avoid thinner wires, as they risk voltage drop under load, leading to inconsistent performance. Secure each connection with heat-shrink terminals or crimp connectors; soldering alone is insufficient for vibration resistance. Confirm polarity before final attachment–reversing leads can permanently damage the controller.
The brake actuator’s feed wire (often blue) must run uninterrupted from the module to the trailer’s coupling, with no splices or sharp bends that could compromise signal integrity. Route this wire through a protective conduit if exposed to road debris or pinch points. Ground the actuator at the trailer’s frame, not the hitch, using a dedicated 8-gauge wire attached to a bare metal surface free of paint or corrosion. A poor ground is the most common cause of erratic operation.

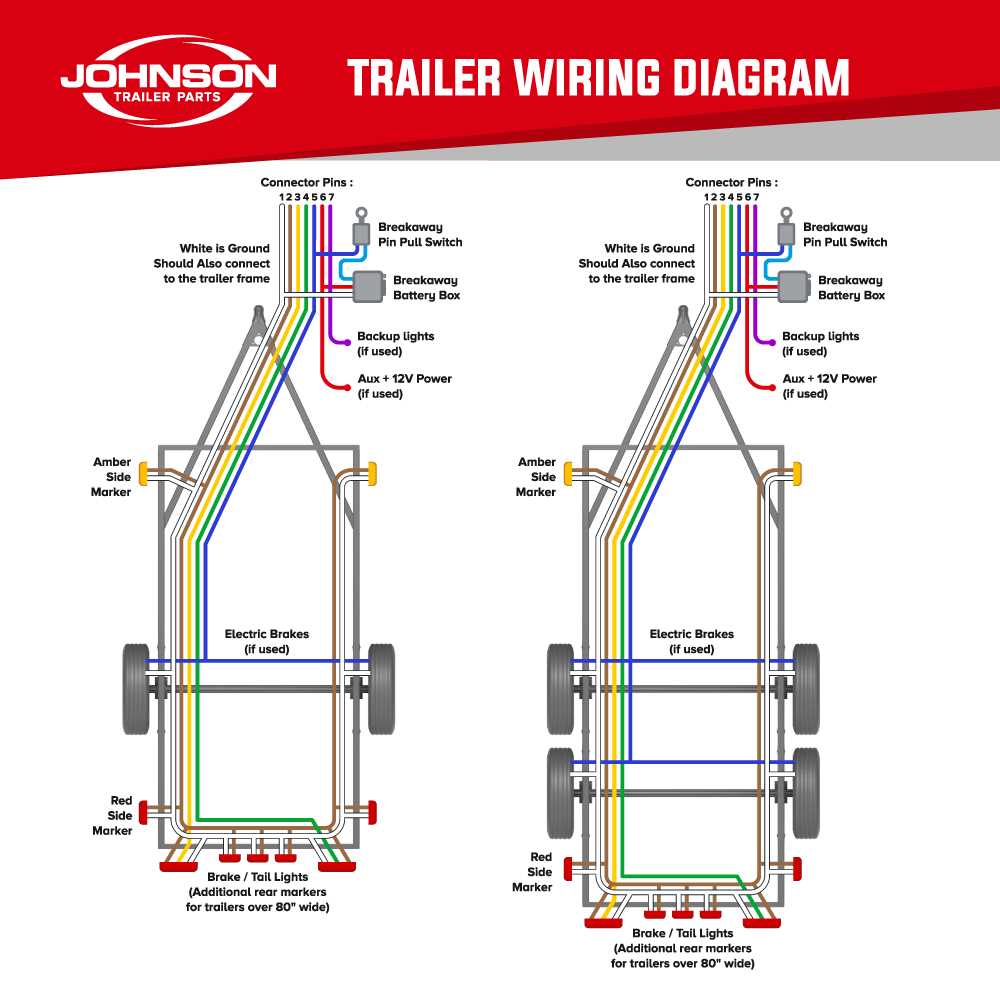

For towing loads exceeding 2,000 lbs, install a breakaway switch wired in series with the actuator. This requires a separate 12-volt battery (minimum 4Ah capacity) connected via a short, heavy-duty cable–no longer than 6 feet–to the switch. The circuit must engage automatically if the trailer detaches, locking the wheels. Test this function before each trip by simulating a breakaway event; a malfunction here negates the system’s safety purpose.
Adjust the controller’s gain based on trailer weight: start at 50% for loads under 3,500 lbs and increase in 10% increments until the trailer decelerates smoothly without chatter. Excessive gain causes wheel lockup; too little results in delayed response. For vehicles with ABS, ensure the controller’s output doesn’t interfere with the tow vehicle’s stability systems–consult the manufacturer’s voltage limits to avoid conflicts.
Use a multimeter to verify voltage at the actuator under load: with the system engaged, measurements should match the controller’s output (typically 0–12 volts). Voltage below 9V at full engagement indicates a weak battery, undersized wires, or a failing ground. Replace any corroded connectors immediately–even minor oxidation increases resistance, reducing efficiency. Waterproof all exposed connections with dielectric grease or self-fusing silicone tape to prevent moisture ingress.
Connecting Trailer Stopping Systems: Key Schematics and Best Practices
Start with a 12V power source directly from the tow vehicle’s battery through a dedicated 20A circuit breaker. Avoid tapping into existing circuits–this prevents voltage drops under load, especially critical for heavy trailers over 3,500 lbs. Confirm the wire gauge matches the trailer’s weight: 10 AWG for loads under 4,000 lbs, 8 AWG for 4,000–7,000 lbs, and 6 AWG for anything above.
Route the positive lead through the brake control unit first, not the reverse lights. The controller acts as a fail-safe, cutting power if the trailer disconnects. Use a 5-pin connector (not 4-pin) to isolate the stop system feed–pin assignments should follow SAE J560 standards (pin 5 for stop/control power, pin 4 for ground). Label every connection with heat-shrink tubing marked in indelible ink to avoid miswiring later.
| Component | Wire Color (Typical) | Minimum Gauge (AWG) | Max Load (Amps) |
|---|---|---|---|
| Controller Input | Blue | 10 | 15 |
| Ground Return | White | 8 | 30 |
| Auxiliary Power | Red | 12 | 10 |
Ground the system at the trailer’s frame, not the hitch. Use a star washer to penetrate paint and ensure conductivity. Avoid aluminum frames–corrosion resistance is poor, and oxidation builds fast. For steel, coat connections with dielectric grease after crimping but before insulating. Soldering isn’t recommended–vibration breaks joints over time. Instead, use double-crimp connectors rated for 25% above expected amperage.
Test conductivity with a multimeter set to ohms before connecting the trailer. Between the controller output and the first actuator solenoid, resistance should read 3.5–4.5 ohms. Anything below 3.0 ohms signals a short; above 5.0 ohms, corrosion or loose connections. Replace actuators if readings exceed 6.0 ohms–internal coils degrade from heat cycling.
For dual-axle setups, wire actuators in parallel, not series. Series connections reduce voltage to each coil, causing uneven stopping. Parallel ensures both axles engage simultaneously–critical for trailers over 5,000 lbs. Use a junction box mounted near the coupler to split the feed; this simplifies troubleshooting and future upgrades.
Protect all exposed runs with split-loom tubing or conduit. UV-resistant cable jackets (SOOW or SJOOW type) last longer than standard PVC. Secure runs every 18 inches with clamps or zip ties–vibration wears through insulation fast. Avoid sharp edges; route around suspension components, not over them. If bending wire sharply, use a 1-inch radius to prevent internal conductor damage.
Controller Adjustments for Different Loads
Set the proportional controller’s gain based on trailer weight and road conditions. Start at 60% gain for dry pavement, 80% for wet. For empty trailers, reduce gain to 40%–over-braking causes skidding. Time-delay models need manual presets: 0.3 seconds for small trailers (7,000 lbs). Always test at low speeds (under 25 mph) before highway use.
Recheck connections after every 500 miles or three months. Corrosion builds quickly in humid climates–spray terminals with contact cleaner before storage. If stopping feels sluggish, measure voltage at the actuators while engaging; anything below 11.5V indicates a weak feed or corroded ground. Replace frayed or nicked wires immediately–exposed copper invites shorts under dash conditions.
Core Elements for a Trailer Stopping System Installation
Begin with a controller unit rated for 10-12 volts DC output. Models like the Tekonsha Prodigy P3 or Curt Echo allow precise adjustment of braking force via proportional voltage control, preventing wheel lock-up on slick surfaces. Verify compatibility with your vehicle’s fuse box–most modern trucks and SUVs support direct splice-in; older models may require a dedicated circuit breaker.
Select a 7-way round connector with a dedicated pin for the stop signal (typically pin 2 or 3, marked blue). Use marine-grade copper wire with a minimum 12 AWG gauge for the brake circuit to handle 30 amps continuous load. Avoid aluminum wiring–it corrodes faster under vibration and moisture. For trailer-side connectors, opt for sealed units like Bargman 85150 with spring-loaded doors to block debris.
Power Supply and Safety Measures
Install a time-delay relay to prevent voltage spikes when disengaging. A 30-second delay protects solenoid coils from overheating. Ground the system at the trailer frame using a stainless-steel bolt, star washer, and dielectric grease to reduce resistance–never rely on chain or ball mount grounding. For tow vehicles over 10,000 lbs GVWR, add a hydraulic proportional valve to sync braking effort between axle assemblies.

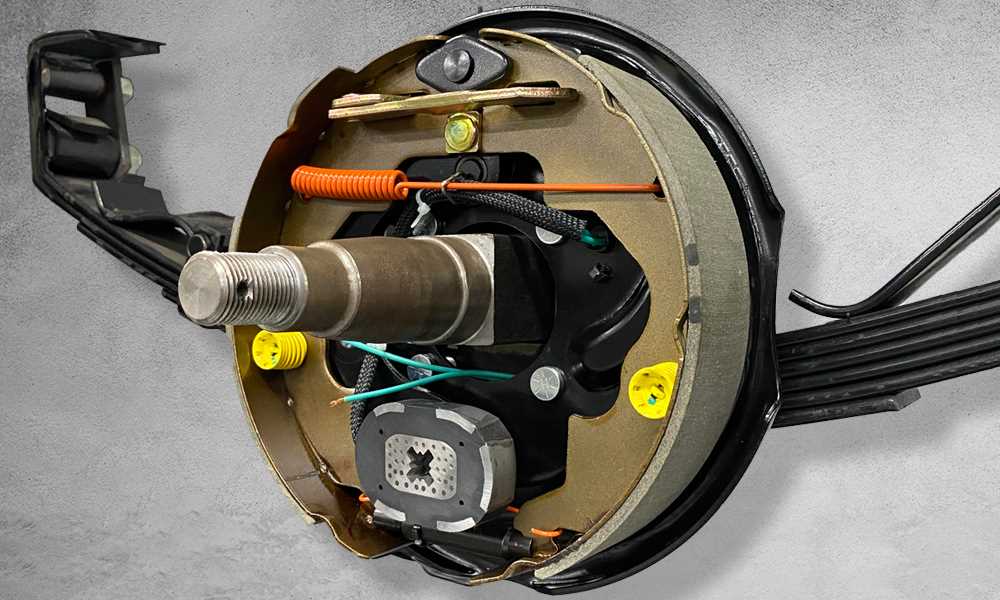

Use heat-shrink butt connectors for all splices–generic crimp connectors fail under 15% of highway vibration tests. Route wires through flex-loom tubing near suspension components to avoid chafing. Test all brake magnets with a multimeter: resistance should read 3.8–4.5 ohms at 50°F. Replace any magnet showing infinite resistance or continuity to chassis ground–this indicates internal shorting.
Step-by-Step Guide to Connecting Trailer Brake Actuators
Disconnect the tow vehicle’s battery to eliminate voltage risks before handling any components. Strip 5mm of insulation from the ends of the 12-gauge copper wires using precision wire strippers–avoid nicking the strands to maintain conductivity. Twist the exposed strands tightly and apply a thin layer of corrosion-resistant solder or use crimp connectors rated for 20A to ensure a secure bond under vibration.
Locate the brake controller output terminal on the tow vehicle’s harness–typically marked with a label or color-coded blue in standard 7-way connectors. Attach one wire from the actuator directly to this terminal, securing it with a stainless-steel ring terminal sized for an M6 bolt. Route the second wire to the trailer’s ground busbar, ensuring it connects to the frame at a rust-free spot with a star washer to prevent loosening over time. Test continuity with a multimeter before re-energizing the system; resistance should read below 3 ohms.
Securing Connections Under Load

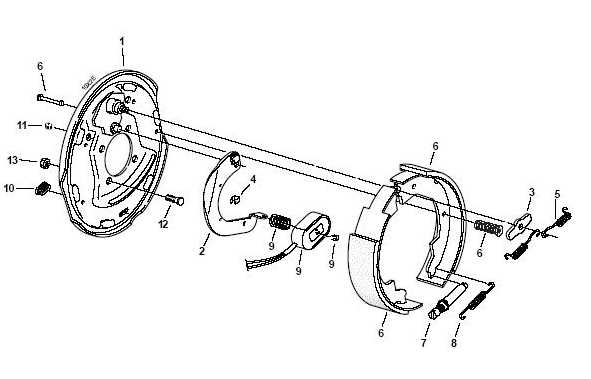

Apply dielectric grease to all terminals to prevent oxidation, then wrap each connection with self-fusing silicone tape–stretch it to 50% tension for a waterproof seal. Mount the brake actuator’s magnet assembly to the backing plate using grade-8 bolts torqued to 45 Nm; misalignment exceeding 0.5mm will cause uneven wear. Reconnect the battery and verify actuator engagement by slowly increasing voltage from 0V to 12V while observing smooth, noise-free movement–audible clicking or hesitation indicates faulty installation.
Key Conductor Sizes and Terminal Options for Trailer Stopping Systems
For most standard towing setups, 10 AWG copper conductors handle peak currents of 30–50 A without excessive voltage drop, ideal for single-axle units under 3,500 kg. Heavy-duty trailers exceeding this weight require 8 AWG–minimum–with temperature-rated insulation to prevent heat-induced resistance spikes during prolonged braking.
- 12 AWG: Light-duty, short runs <3 m; risk of overheating if sustained braking exceeds 20 A.
- 10 AWG: Standard for axle counts ≤2, loop length ≤6 m; verify ampacity tables for ambient temps >30°C.
- 8 AWG/6 AWG: Mandatory for triple-axle rigs or mountainous routes; fuses must match conductor rating.
- 4 AWG: Only for >7,500 kg GVWR or auxiliary battery charging circuits.
Crimp-style butt connectors (insulated, red/blue color-coded) are baseline for modular repairs, but solder-and-heat-shrink joints outlast vibration-heavy environments like off-road trailers. Avoid uninsulated terminals–corrosion begins at 0.5 V potential difference, measurable with a multimeter before visible oxidation.
Termination Best Practices
- Ring terminals (stud sizes #10, 1/4”, 5/16”): Secure under split washers; torque specs 8–12 Nm to prevent loosening.
- Spade terminals (male/female 0.25”): Use fork-style for pull-apart service points; female ends must resist >50 N pull force.
- Bullet connectors: Limit to unregulated circuits; dielectric grease essential to block moisture ingress.
Replace any terminal exhibiting >0.1 Ω resistance at connection points–measured with a calibrated micro-ohmmeter. Aluminum conductors demand anti-oxidant paste (e.g., NOALOX) at copper junctions; absence accelerates pitting by 400%.
For envelope cables (multi-strand bundled), specify tinned copper conductors with cross-linked polyethylene (XLPE) jacketing–minimum 300 V rating–to withstand flex cycles >100,000 at -40°C. Shielded variants (STOOW designation) prevent electromagnetic interference with ABS sensors.
Never splice conductors across trailer joints; use IP67-rated bulkhead connectors (e.g., Deutsch DT series) when transitioning between suspended and static segments. Test continuity post-installation under loaded conditions (50% duty cycle)–transient spikes often reveal weak connections invisible at idle.
