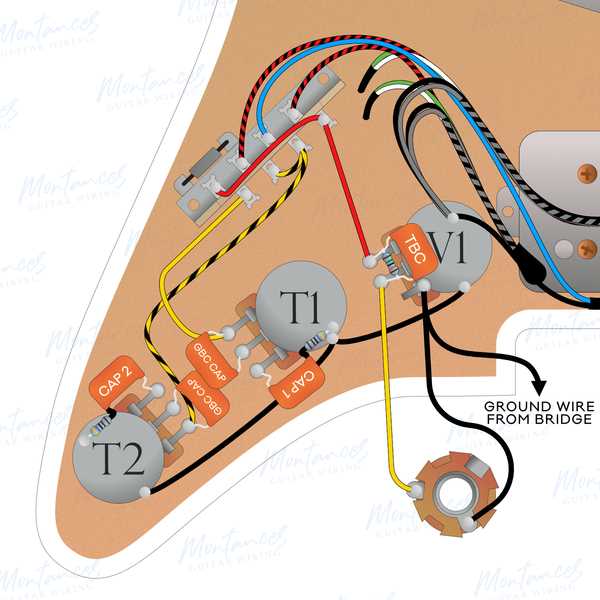

How to Read and Modify Fender Stratocaster Wiring Diagrams Step by Step

Begin with a 0.047µF tone capacitor for the bridge pickup–not the usual 0.022µF–to soften high frequencies while preserving midrange clarity. Avoid ceramic capacitors; polyfilm or orange drop types deliver consistent tonal response. Replace the stock 500K pots with 250K audio-taper units for neck and middle pickups to enhance bass response without muddiness. The bridge position works best with a linear taper to retain articulate highs during volume adjustments. Wire the middle pickup selector lugs in reverse phase for hum cancellation when combining neck and middle positions.

Use shielded coaxial cable for all control-to-pot connections, especially when routing near tremolo springs or pickguard screws that act as RF antennas. Braided copper shielding around the main harness reduces buzz during volume swells. Ground the tremolo claw directly to the bridge plate, bypassing the control cavity; this stabilizes string resonance and eliminates grounding loops. For active circuits, run a dedicated star ground wire from each component to a central point on the output jack, not daisy-chained through pots.

Test continuity between potentiometer lugs before soldering–expect 0Ω between input and ground lugs when fully depressed. Add a treble bleed circuit (220pF capacitor + 150K resistor in parallel) across the volume pot’s outer lugs to prevent tone loss at lower settings. For push-pull pots, wire the coil-split function to engage only the north coil for single-coil clarity or both coils in series for humbucker punch. Always use rosin-core solder; 60/40 Sn-Pb alloy melts at 370°F–lower temperatures preserve wire insulation integrity.

Verify phase alignment by plucking the low E string with all pickups engaged; correct phase produces a louder, fuller sound than any individual pickup. If anomalies persist, reverse the hot and ground wires on one pickup. Keep solder joints smaller than 2mm to avoid shorting adjacent lugs. After assembly, seal conductive components with double-sided adhesive copper foil to block electrostatic interference.

Custom Electrical Layout for Classic S-Type Guitars

For a versatile 5-way switch configuration with independent tone controls, connect the bridge pickup’s hot lead to the first lug of the selector and the middle position to the second lug – this preserves the traditional quack in positions 2 and 4 while allowing individual tone shaping. Use a 0.047µF capacitor for the neck and middle pickups, but drop the bridge pickup’s capacitor to 0.022µF to retain high-end clarity without excessive treble loss. Solder the ground wires from each pickup directly to the back of the volume pot casing, ensuring no shared ground paths to prevent unwanted hum.

Avoid stock push-pull pots if prioritizing reliability; opt for high-quality CTS or Bourns with a 250K value for humbucker-like pickups or 500K for single-coil brightness. Wire the output jack with the sleeve lug connected to the volume pot’s ground tab and the tip lug to the volume pot’s wiper for consistent signal integrity. For out-of-phase sounds in positions 2 and 4, reverse the polarity of one pickup’s magnet – flip the middle pickup’s magnet orientation by 180 degrees during installation to achieve this without additional switches.

Advanced Modifications for Specific Tones

Series/Parallel switching requires a mini-toggle installed between the neck and bridge pickups, using a DPDT on-on switch: connect the neck pickup’s start to one pole, the bridge’s finish to the opposite pole, and join the remaining two lugs to create a series path in the down position and parallel in the up position. For noiseless operation, replace vintage-style alnico pickups with stacked-coil alternatives or add a 1MΩ resistor in parallel with each pickup’s ground to reduce 60-cycle hum without sacrificing output. Test continuity with a multimeter before final assembly – resistance between the output jack’s tip and ground should read 6-10KΩ with each pickup engaged.

Locating Critical Parts in Your Guitar’s Electrical Layout

Begin by isolating the pickup selector switch–typically a five-way blade type–mounted near the control cavity. This component routes signal from the neck, middle, and bridge pickups to the volume and tone controls. Verify its wiring color codes: white (bridge), red/orange (middle), and yellow/black (neck) wires attach to specific lugs. Misalignment here causes silent positions or weak output.

Examine the potentiometers (pots) next. A standard setup includes a 250k ohm volume pot and two 250k tone pots. Check the schematic for grounding: the outer casing connects to the shield, while the central lug carries the hot signal. Replace any pot showing scratchiness or inconsistent resistance–the 25k-50k range at full rotation indicates failure.

• Volume pot: controls overall output; center lug links to input jack.
• Tone pots: regulate high-frequency cut; first lug attaches to pickup, third lug grounds via capacitor.
• Capacitors (usually 0.047µF): connect between tone pots and ground; ceramic types preferred for tonal clarity.

Trace the output jack’s connections. The tip contact (hot) receives signal from the volume pot’s center lug, while the sleeve (ground) wires to the shielding and bridge ground. Loose or corroded contacts here produce buzzing or intermittent signal loss. Toggle the jack while plugged in–noise indicates a faulty connection.

The shielding plays a crucial role in noise reduction. Copper foil or conductive paint lines the control cavity, connected to the bridge ground. Ensure all wires and components touch this shield; a single break creates hum. Test continuity with a multimeter–resistance should read near zero ohms between shield and bridge.

Identify pickup wiring variations. Single-coil setups use simple two-wire leads: one hot, one ground. Humbucker-ready models include four-conductor wiring–red/white (hot), black (ground), green/blue (coil splits). Incorrect phase alignment causes thin, weak tones. Swap pickup wires if out-of-phase symptoms appear.

Troubleshooting Common Issues

Silent switch positions often stem from broken selector lugs or cold solder joints. Resolder connections with rosin-core solder–avoid acid-flux types. Weak volume suggests a failing pot or capacitor; replace both if scratchy. Excessive hum points to poor shielding or ground loops–recheck all connections to the bridge.

1. Disconnect all components before testing.
2. Test pots individually with an ohmmeter.
3. Inspect solder joints under magnification.
4. Reassemble incrementally, testing after each step.

For HSS (humbucker-single-single) configurations, note the additional wiring complexity. The humbucker’s four-conductor wire requires careful routing to avoid signal cancellation. Use a wiring chart specific to your pickup brand–DiMarzio, Seymour Duncan, and EMG each use distinct color codes. Always isolate unused wires with heat-shrink tubing to prevent shorts.

Step-by-Step Guide to Installing a 5-Position Blade Selector

Begin by securing the guitar electronics cavity with masking tape to prevent debris from entering during soldering. Use a multimeter to verify continuity on all pickup leads–measure from the ground wire to each signal wire before disconnecting anything. This step avoids chasing faulty connections later.

Desolder the existing selector if present, leaving the volume and tone potentiometers intact. Label each wire with painter’s tape: bridge pickup (hot), middle (hot), neck (hot), and ground. Mark the 5-position switch terminals clearly–positions 1, 3, and 5 correspond to bridge, middle, and neck pickups alone; positions 2 and 4 blend adjacent pickups.

Solder the bridge pickup’s hot lead to terminal 1 of the switch. Connect the middle pickup’s hot lead to terminal 3, ensuring the wire sits flush against the terminal lug without excess slack. The neck pickup’s hot lead attaches to terminal 5. Avoid overheating the switch lugs–use a 30-watt iron with a chisel tip for precise heat transfer.

For positions 2 and 4, bridge the adjacent terminals: solder a jumper wire between terminal 2 and terminal 3 for the middle/bridge blend; do the same between terminal 4 and terminal 5 for the neck/middle blend. Use 22-gauge tinned copper wire for jumpers–clipping the ends flush prevents shorting against the control cavity walls.

Attach all ground wires to a single lug on the volume potentiometer’s casing–this includes pickup grounds, the switch’s ground lug, and the shielding. Twist strands tightly before soldering to prevent cold joints. Heat-shrink tubing over each connection isolates them from touching the metal cavity or other wires.

Test each switch position with an audio probe or amplifier before reassembling the pickguard. Plug in, set the selector to position 1–only the bridge pickup should produce signal. Position 2 must blend bridge and middle without hum or dropouts; position 3 isolates the middle. Repeat verification for positions 4 and 5.

Reinstall the pickguard, securing it with screws finger-tight before final torque. Adjust pickup heights individually–bridge pickup 3/32” from strings on bass side, middle 5/64”, neck 1/16”. Tighten potentiometer knobs snugly to prevent rotation during play.

Connecting Single-Coil Pickups to Volume and Tone Controls

Solder the hot wire from the pickup’s coil directly to the middle lug of a 250k or 500k audio-taper volume potentiometer. This ensures the signal retains clarity when lowering output, avoiding the muddy attenuation typical of linear-taper pots. Position the pot as close as possible to the pickup cavity to minimize cable length, reducing high-frequency loss and interference pickup.

Route the ground wire from the pickup’s base plate or shielding to the back of the potentiometer casing. This connection must be solid–use a star grounding configuration if multiple components share the same reference point. For shielding braid or foil, strip 5mm of insulation, twist tightly, and solder to the pot’s metal housing before attaching to the main ground path.

Connect the output lug of the volume pot to either the switch’s corresponding selector terminal or, for a simplified setup, directly to the jack’s tip contact. If using a push-pull pot for coil splitting or phase switching, ensure the additional lugs are isolated from the main signal path unless actively engaged. Test continuity with a multimeter before final assembly to avoid silent spots.

• For tone controls, use a 250k logarithmic pot paired with a 0.022µF or 0.047µF capacitor.
• The capacitor should bridge the middle lug and the wiper lug of the pot.
• Polarity does not matter–ceramic or polyester film capacitors both work.
• Solder the tone pot’s input lug to the volume pot’s output lug for standard operation.

When wiring a bridge pickup with a metal cover, ground the cover by soldering a short wire from its underside to the grounding braid or base plate. This prevents unwanted microphonic feedback and hum. For neck or middle pickups with plastic covers, ensure the cover is seated flush to avoid rattling–secure with a dab of lacquer or wax if necessary.

For noise reduction in high-gain settings, add a 1MΩ resistor between the volume pot’s input lug and ground. This bleeds off excess charge when rolling back the volume, reducing pops and crackles. If using a treble-bleed circuit, combine a 220pF capacitor with the 1MΩ resistor in parallel for balanced high-frequency retention.

1. Strip and tin all connection wires before soldering to prevent cold joints.
2. Use 22-gauge hookup wire for signal paths; 18-gauge for grounding.
3. Keep solder joints small and clean; excess solder increases capacitance.
4. Avoid crossing signal wires over power wires to minimize interference.

After assembly, test each pickup individually with the tone and volume controls at maximum. Listen for clarity, hum, and consistency across all positions. If noise persists, recheck grounding–ensure the bridge is connected to the same ground path as the potentiometers. For pickup height adjustment, start with 3/32″ clearance and fine-tune based on output and tonal balance.
