Step-by-Step Guide to Wiring a 2-Wire Thermostat in HVAC Systems
Use 24V AC power supply as the baseline for installation. Identify the transformer secondary terminals–typically marked “R” (hot) and “C” (common)–on the heating or cooling system’s control board. Route the first conductor from the “R” terminal directly to the climate control’s active contact. The second conductor connects the “W” (heat call) or “Y” (cooling call) terminal back to the corresponding relay on the equipment. Verify voltage with a multimeter before energizing the circuit.
For baseboard heaters or single-stage furnaces, link the second lead to the heating relay’s “W” terminal only. Electric resistance systems require no additional relays; connect the return conductor straight to the load contactor coil. Ensure the insulation is rated for at least 300V and the conductor gauge matches the system’s current draw–20AWG suffices for most residential setups.
Avoid crossing conductors with high-voltage lines. Maintain a separation of at least 1 inch from 120V or 240V circuits within junction boxes. If the system includes a fan, locate the “G” terminal on the control board; the second conductor can branch to this point for manual fan operation, but ensure the climate control unit supports this configuration before making the connection.
Label each conductor at both ends immediately after installation. Use heat-resistant sleeves where wires pass near heating elements or motors. Test continuity between terminals with the power off to confirm no accidental shorts exist. If the system fails to respond, check for reversed polarity–swap the connections at the climate control’s contacts if necessary.
For smart-enabled variants, confirm compatibility with the existing 24V setup. Many modern units require a dedicated “C” wire for constant power; if absent, consider installing a power-stealing module or replacing the transformer with a 40VA unit to support the additional load. Never bridge the “R” and “C” terminals without a transformer upgrade–overloading will trip the circuit breaker.
Connecting a Dual-Cable Climate Control System: Key Steps
Begin by confirming the system uses low-voltage power (typically 24V AC). Identify the transformer’s secondary terminals–these feed current to the control device. Older furnace setups often label them “R” (hot) and “W” (heat call). Modern heat pumps may use “Rc” and “Rh” for separate cooling/heating power sources, but dual-cable units bypass this complexity.
Switch off the main power at the circuit breaker before touching any connections. Use a multimeter to verify voltage absence–probe the terminals where the cables attach. Unexpected live circuits pose serious hazards, especially in older installations where insulation may degrade.
Strip 1/4 inch of insulation from each cable end. Securely fasten the hot lead (usually red or white marked with red tape) to the terminal providing energy–most setups label this “R” or “Rh.” The second lead (often white or unmarked) connects to the heating demand terminal, marked “W” in gas furnaces or “Y” in heat pumps. Twist copper strands tightly before inserting into terminal screws.
Test the setup before finalizing. Restore power and observe the system’s behavior when adjusting the control device. A properly linked setup will trigger the heating source within 30–60 seconds. If no response occurs, recheck terminals for loose strands or incorrect labeling–some manufacturers invert color coding.
For systems with backup power or emergency heat modes, dual-cable setups require additional relays. The table below outlines compatibility with common configurations:
| System Type | First Lead (Hot) | Second Lead (Demand) | Required Adjustments |
|---|---|---|---|
| Standard Gas Furnace | R | W | None |
| Electric Heat Strips | R | W2 | Verify amperage rating |
| Heat Pump (Primary) | Rh | Y | Disable auxiliary heat |
| Dual-Fuel System | Rc | W | Install jumper between Rc/Rh |
When linking to smart or programmable devices, ensure compatibility with simple on/off signals. Some advanced models demand additional neutrals or common wires, which dual-cable units lack. If the system fails to maintain temperature, verify internal jumpers–certain setups bridge Rc/Rh internally for dual-cable operation.
Secure all connections with screw terminals or crimp connectors rated for 18–22 AWG wire. Avoid soldering–vibration from HVAC equipment can weaken joints over time. Route cables away from moving parts or hot surfaces, and use conduit in exposed areas prone to physical damage.
Understanding the Basic Components of a Dual-Conductor Climate Control System

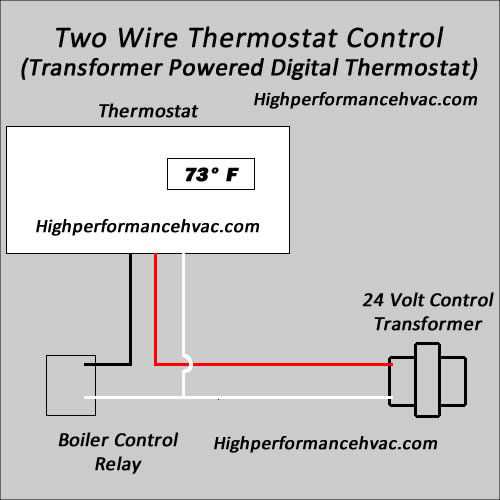

Begin by identifying the power source–typically a low-voltage transformer supplying 24 volts AC to the heating or cooling unit. The red conductor, often labeled “R,” carries the control voltage from the transformer, while the second lead, commonly white or marked “W,” connects to the heating appliance’s relay or valve. Verify compatibility between the control device and the appliance: most modern baseboard heaters, radiant floors, or gas furnaces require simple on-off signaling without intermediate staging. Check the appliance’s technical specifications for polarity sensitivity; some older models mandate strict adherence to terminal designations.
Install a jumper between “R” and “W” terminals if testing the appliance’s response–this bypasses the control device entirely. Use a multimeter to confirm the circuit’s integrity: measure AC voltage between “R” and “W” under load (expect 22–28 volts); if voltage drops significantly, inspect the transformer’s capacity or look for loose connections. Replace faulty transformers with matching VA ratings to avoid overheating. Ensure the control device’s subbase or mounting plate supports dual-conductor applications–some programmable models require additional wires for features like power stealing, which won’t function in this configuration.
Step-by-Step Guide to Energizing a Dual-Conductor Climate Control System
Switch off the main electrical supply at the circuit breaker before handling any connections. Confirm power is cut using a non-contact voltage tester near the existing control unit’s mounting plate. Failure to verify zero current risks severe electrical shock.
Locate the two distinct terminals on the backplate marked R (power input) and W (heating call). Strip 5/16 inch of insulation from each conductor end, ensuring no frayed strands remain. Twist copper tightly to prevent loose connections that can cause intermittent operation or overheating.
Preparing the Low-Voltage Circuit
Identify the transformer’s secondary side in the furnace or air handler–typically labeled 24VAC or C (common). Attach one conductor from your climate control device to the R terminal on the transformer and the second to the W terminal. Secure connections with screwdriver torque of 4–5 inch-pounds to avoid loosening under thermal expansion.
- Never splice conductors outside an approved junction box.
- Use 18-gauge solid copper wire for all runs under 50 feet; opt for 16-gauge if longer distances exist.
- Avoid aluminum conductors; they require specialized connectors and antioxidant compound to prevent oxidation.
Finalizing the Installation
Snap the control unit onto the backplate, aligning the pins precisely. Restore power at the breaker and observe the display panel–it should illuminate within 3–5 seconds. If no power appears, recheck each connection with a multimeter set to AC voltage, probing between R and C terminals. A reading of 22–28 volts confirms proper energization.
Test heating operation by adjusting the setpoint 5–10 degrees above ambient. The furnace should activate within 30–60 seconds if the furnace board relays operate correctly. If delays occur, inspect the safety switch sequence–flame rollout, pressure, or limit switches may trip under abnormal conditions. Log all voltages and response times for future troubleshooting.
Identifying and Marking Conductors in a Dual-Lead Heating Setup
Begin by locating the control board of your heating unit–typically a furnace or boiler. Trace the two leads extending from it; these are the only conductors you’ll handle. One should terminate at the low-voltage terminal block, often marked “R” (power) or “W” (heat). The second will connect to the opposing terminal, completing the circuit. Verify their paths with a multimeter set to continuity mode: probe each lead against its terminal to confirm uninterrupted flow before proceeding.
Labeling demands precision to prevent short circuits. Use heat-resistant adhesive tags or colored shrink tubing to distinguish roles. Assign red to the power-carrying conductor (R) and white to the heating call lead (W). Apply the labels within 2 inches of the stripped ends to ensure visibility during future adjustments. Avoid relying on color coding alone–older systems may deviate from standard schemes. Document the assignments in a schematic sketch for reference.
Common missteps involve confusing low-voltage leads with high-voltage lines. High-voltage conductors (typically 120V+) are thicker, often encased in heavier insulation, and connected to a separate breaker. Dual-lead heating systems operate on 24V AC–never exceed this voltage when testing. If unsure, power off the system at the breaker and test for residual current with a non-contact voltage detector before handling.
- Furnace-mounted terminals:
- “R” (red): Supplies 24V power from the transformer.
- “W” (white): Sends the heating demand signal to the unit.
- Boiler-specific variations:
- European models may use “L” (live) and “N” (neutral) designations.
- Check the manufacturer’s plate for voltage specs–some use 24V DC.
After labeling, recheck connections for secure fastening. Loose terminals cause erratic cycling or system failure. Tighten screws to manufacturer-specified torque (usually 6-8 inch-pounds). If corrosion is present, clean contact points with fine-grit sandpaper and apply dielectric grease to prevent oxidation. Store spare labels and a multimeter near the unit for future troubleshooting sessions.
