Step-by-Step 7-Pin Trailer Plug Wiring Guide with Color Code and Diagram
Use a multimeter to verify continuity on each pin before installation. The standard color-coding for a 7-pin connector follows a strict sequence: yellow (left turn/brake), green (right turn/brake), brown (tail lights), white (ground), blue (electric brakes), black (12V power), and red (auxiliary or reverse light). Crossed wires will cause malfunctions–double-check every connection against this reference.
Grounding the white wire directly to the chassis with a 10-gauge wire prevents voltage drops. Avoid daisy-chaining grounds; corrosion at the connection point will degrade performance. For electric brakes (blue wire), use 12-gauge wire rated for at least 20 amps–undersized wiring will overheat under load. The black (12V) wire powers accessories like winches or LED strips; fuse it with a 20-amp breaker at the battery to prevent shorts.
For auxiliary functions (red wire), match the voltage to the attached device–some reverse lights require only 5W, while others need 21W. Use waterproof heat-shrink connectors for all outdoor connections; standard electrical tape will fail in moisture. If the vehicle’s taillight system runs on PWM, install a dedicated relay to isolate the connector’s circuits–this prevents flickering or erratic signals.
Always test circuits under load. A static continuity check won’t reveal issues like poor crimps or oxidized terminals. For heavy-duty trailers, add a separate battery disconnect switch to isolate the socket when not in use. Replace worn sockets immediately–compromised contacts cause intermittent failures, often at the worst moment.
Electrical Connection Guide for 7-Pin Towing Connector
Match pin positions precisely with vehicle standards: position 1 (yellow) carries left turn/brake signal, position 4 (green) handles right turn/brake, and position 7 (white) serves as ground. Verify voltage between pins 2 (blue) for electric brakes and 5 (brown) for tail/running lights using a multimeter before installation–readings should stabilize at 12V DC. Australian and European variants reverse pin 2 and 5 functions; cross-check manufacturer specifications if towing internationally.
Use 12-gauge copper wire for circuits handling brake controllers and auxiliary power (pin 3, red) but downgrade to 14-gauge for lighting-only connections to reduce weight. Crimp terminals with a ratcheting tool, then apply heat-shrink tubing over each joint–exposed strands risk corrosion and short circuits within 18 months. Route cables through a flexible conduit if passing near sharp chassis edges; secure every 30 cm with UV-resistant zip ties to prevent chafing.
Install a diode array at the towing vehicle’s fuse box to isolate trailer lighting from reverse polarity spikes–schottky diodes with 40V PIV rating suffice for standard 12V systems. Test reverse light functionality (pin 6, black) by engaging drive gear; modern vehicles often combine this with 12V auxiliary charging, so confirm voltage drops below 0.5V when brakes activate to prevent conflicts.
For heavy trailers over 3,500 kg, integrate a breakaway battery kit connected to pin 3, ensuring it delivers 10–15A continuous output. Position the battery within 1.2 m of the trailer’s emergency brake actuator and fuse it separately at 20A. Replace battery annually; lead-acid types lose 3% capacity monthly even when disconnected.
Label each cable end with heat-resistant tags showing pin numbers and functions–colour codes alone mislead after UV bleaching. Store a spare connector shell and pre-terminated wires (15 cm lengths) in the vehicle’s toolkit; corroded contacts replace in under 10 minutes using a Torx T15 screwdriver. Avoid dielectric grease on mating surfaces–it traps moisture; use zinc-rich contact cleaner instead.
After assembly, load-test with a 21W bulb array simulating 100% trailer lighting load (≈29A total). Monitor connector temperature with an infrared thermometer; temperatures exceeding 60°C indicate undersized wiring or poor crimping. For trailers parked longer than seven days, disconnect pin 2 to prevent parasitic draw from brake controllers.
If integrating aftermarket telematics, tap into pin 7 using a Y-splitter–never splice directly into the connector. Add a 1A inline fuse on the telematics line to isolate faults; most GPS trackers reset when power cycles, so stable grounding is critical. Document all custom modifications in the tow vehicle’s service log, including torque specs (7–9 Nm) for securing the connector shell to the mounting bracket.

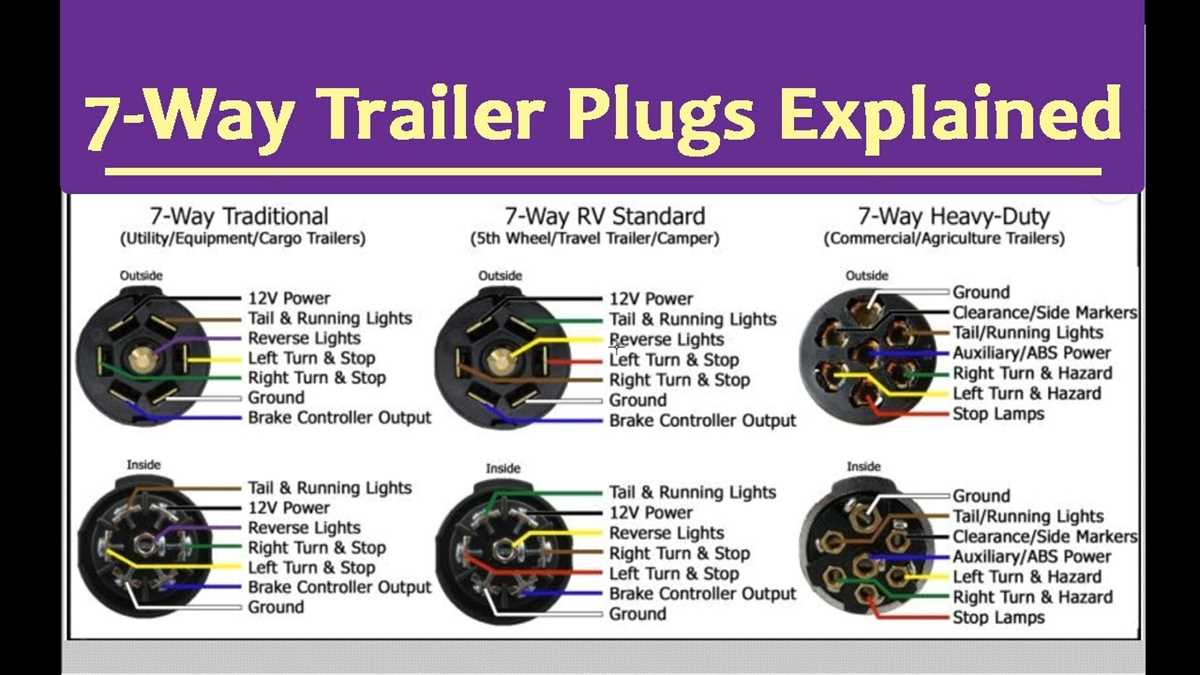

Pinout Configuration and Cable Color Standards for 7-Pin Vehicle Connectors
Connect the ground terminal (pin 1) to a thick white wire–minimum 12 AWG–directly to the tow vehicle’s chassis or battery negative post, avoiding daisy-chaining through lighter circuits. This prevents voltage drop and ensures stable brake operation.
Route the brown circuit (pin 2) for running lamps exclusively; split it into separate feeds for marker, tail, and side lights only after exiting the connector housing. Use a weatherproof splice near the trailer frame to eliminate corrosion points at the plug.
Dedicated Circuits and Polarity
Assign yellow (pin 5) for left turn and stop lights, green (pin 6) for right–polarity must match SAE J2863: ground returns through pin 1, not between lamps. Verify with a multimeter before energizing; reversed leads will destroy LED assemblies.
Blue auxiliary (pin 7) powers electric brakes; run it through a breakaway switch and a 30 A fuse within 7 inches of the battery. Twist blue with a red 10 AWG supply wire to minimize EMI interference with ABS modules.
Gray reverse lamp feed (pin 3) is optional; if unused, crimp the pin shut with dielectric grease to block moisture ingress. For trailers with backup cameras, route gray through a dedicated relay triggered only when transmission is in reverse gear.
Black 12 VDC (pin 4) serves battery charging or accessory circuits; limit current to 20 A continuous. Use red-black twisted pair (12 AWG) back to the tow vehicle’s alternator sense terminal, bypassing ignition switches to maintain constant voltage.
Step-by-Step Guide to Checking Circuit Integrity in a 7-Pin Towing Connector
Disconnect the harness from the vehicle’s electrical system and set a multimeter to continuity mode or the lowest ohms setting. Touch the probes to corresponding terminals on the male and female sides–ground (pin 1) should show near-zero resistance, while active circuits (pins 2–7) must read below 5 ohms. If resistance exceeds this threshold, inspect the cable for fraying, corrosion at terminals, or broken strands within the wire insulation. Replace any damaged sections with 12-gauge automotive-grade copper wire, ensuring soldered or crimped connections are fully sealed with heat-shrink tubing to prevent moisture ingress.
| Pin | Function | Expected Reading | Fault Indicator |
|---|---|---|---|
| 1 | Chassis return | 0.1–0.5 Ω | ≥1 Ω |
| 2 | Reverse lamps | 0.5–2 Ω | Open circuit |
| 3 | Brake signal | 0.5–1.5 Ω | ≥3 Ω |
| 4 | Left turn/stop | 0.5–1.2 Ω | No audible beep |
Test each circuit under load by activating the corresponding vehicle function (e.g., hazard lights, brake pedal). Verify voltage at the connector’s pins with the multimeter–12V DC should register on pins 3–7 when active, while pin 1 remains at 0V. If voltage drops below 11V, trace the harness for voltage drops across connectors, fusible links, or faulty fuses. Clean terminal contacts with a wire brush and dielectric grease to restore conductivity, ensuring no debris remains between mating surfaces.
Essential Equipment for Installing or Servicing a 7-Pin Vehicle Connector
The first tool any mechanic should reach for is a multimeter capable of measuring both voltage (DC) and continuity. Models with auto-ranging features, such as the Fluke 17B or Klein MM400, eliminate manual adjustments and deliver readings within ±1.5% accuracy. Ensure the device has a minimum 10A fuse rating to handle transient surges during brake controller tests. Probes with integrated clips free both hands for stabilizing connections while checking live circuits.
A wire stripper with adjustable jaws prevents damaging conductors during preparation. The Paladin Tools 1118 model includes marked slots for 10-22 AWG cables, crucial for matching trailer-side pigtails. Look for built-in crimping dies to compress 22-18 AWG terminals without requiring separate tools. Ratcheted designs avoid over-compression, preserving insulation integrity during repeated use.
Heat-shrink tubing in diameters from 2.4mm to 6mm ensures environmental sealing over splices. Dual-wall varieties containing adhesive layers bridge gaps in weather-exposed joints, stopping corrosion on towing harnesses. Raychem DR-25 and 3M FP-302 kits include a range of sizes, fitting both primary wiring and auxiliary circuits like reverse lamps. Use a heat gun with a 250°C nozzle temperature for uniform shrinkage without charring the tubing.
Terminal disconnects rated for 48V applications simplify troubleshooting aging connectors without cutting cables. TE Connectivity 3-1637278-3 female spades accept 14-18 AWG solid or stranded wire, ideal for tapping brake light or turn signal circuits. Avoid generic brass fittings lacking tin plating; verified suppliers test pull-force resistance to 10 lbs to prevent intermittent connections under vibration.
Insulated crimp connectors eliminate solder-related heat damage on PVC-coated wiring. Panduit CT-6251 terminals feature a flared entry design accommodating stripped ends up to 0.145″ diameter, while the nylon insulation withstands automotive-grade solvents. For replacing corroded ground studs, Gardner Bender GT-10 crimping pliers apply consistent pressure across 8-20 AWG sizes without deforming copper strands.
An axial torque screwdriver set with interchangeable bits tightens terminal screws to OE specifications. Wiha 311A models calibrated to 0.2–0.5 Nm prevent stripped threads on aluminum housings common in aftermarket receptacles. Phillips #2 bits must be magnetized to retain screws during overhead installations where visibility is limited; avoid flathead drivers to reduce slippage risk on wet surfaces.
