Complete Step-by-Step Guide to Ceiling Fan and Light Wiring Connection
The correct assembly of an overhead ventilation device combined with a luminous element begins with identifying the four critical wires: supply (hot), neutral, ground, and additional conductor for the lighting module. Use a multimeter to verify voltage on the primary feed wire–typically black or red–while the blue or striped wire often serves the integrated bulb assembly. Secure all joins with twist connectors rated for at least 15 amperes before concealing them within the junction enclosure.
Prior to attaching any components, ensure the circuit breaker is disengaged. Match the color-coded conductors from the unit’s motor housing and lamp fixture to their corresponding counterparts in the electrical box. If the existing setup lacks a grounding conductor–common in older installations–consult a certified electrician to retrofit a compliant safety bond. Avoid relying on metallic mounting brackets for grounding, as inconsistent conductivity may create hazardous conditions.

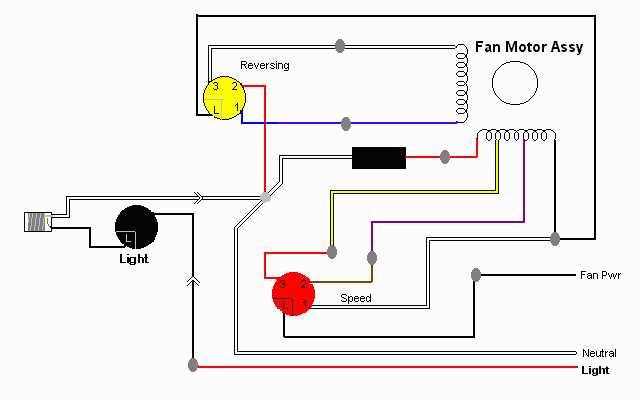

For installations featuring a dual-switch configuration–one controlling the airflow mechanism and another managing the illumination–route the secondary feed wire (often purple or brown) to the wall plate’s secondary terminal. Confirm proper functionality by engaging each switch independently after restoring power. Should the unit emit a faint hum without rotation, recheck the capacitor connection, typically located within the motor’s housing near the pull-chain assembly.
If the system includes a remote or wall-mounted regulator, align the receiver module’s wiring with the labeled ports on the unit’s control board. Most modern designs integrate a blue/slate pair for the light’s circuit and a black/red duo for the motor, though manufacturer specifications override general conventions. Document each connection with timestamped photographs before finalizing the housing cover to simplify future servicing.
Connecting a Rotary Air Circulator and Illumination Unit: Electrical Layout
Start by turning off power at the circuit breaker to prevent accidental shocks–verify absence of current using a non-contact voltage tester.
Most modern installations include three primary conductors: a black hot wire, a white neutral, and a green or bare copper ground. Some setups may add a red conductor for separate control of the airflow device and brightness source. Identify these by examining the junction box and the connector labels on the oscillating unit’s receiver:
- Black (hot) – supplies power to the motor
- Red (hot) – powers the illumination module when split control is desired
- White (neutral) – completes the circuit for both components
- Green/bare copper (ground) – safety path for excess current
If your existing junction box lacks a red wire but contains only black, white, and ground, both the motor and lamp will operate simultaneously from a single switch. For independent regulation, run an additional conductor from the wall control to the receiver or use a dual-switch configuration.
Step-by-Step Hookup Procedure
Secure the hanging bracket to the electrical box, ensuring it supports the combined weight–typically 15–25 kg for heavier models. Suspend the unit and thread the wires through the downrod. Match the conductors by color at the receiver:
- Attach the black wire from the box to the black terminal on the receiver.
- Connect the white neutral from the box to the corresponding white input.
- If present, link the red wire to the receiver’s red terminal.
- Fasten the green/bare ground wire to the grounding screw or green terminal.
Mount the unit to the bracket, tuck excess cable into the canopy, and secure the decorative cover. Restore power and test each function independently–oscillation, speed settings, and brightness–using the remote or wall switch.
For installations without a dedicated junction box, splice the incoming circuit wires–typically 14 or 12 AWG–directly to the unit’s leads using twist-on connectors. Reinforce connections with electrical tape to prevent loosening from vibration.
Essential Gear and Supplies for Installing a Rotating Airflow Unit
Use a voltage tester (non-contact type preferred) to verify circuit deactivation before handling any connections. A screwdriver set with insulated handles–Phillips #2 and flathead 3/16″–is critical for securing terminals and mounting brackets without risking short circuits. Include wire strippers (14-12 AWG gauge) to cleanly expose conductors without nicking copper strands, which can cause overheating.
Secure UL-listed twist-on connectors (yellow or red, depending on conductor count) for reliable splices, avoiding cheap alternatives that may loosen over time. For overhead assemblies, use adjustable pliers (8-inch locking type) to grip and bend outlet box braces when working in tight joist spaces. A fiberglass ladder (Type IA, 6-foot minimum) ensures stability on uneven surfaces or near live circuits.
Stock electrical tape (vinyl, 60-mil thickness) for secondary insulation on splices, but rely first on heat-shrink tubing (1/4-inch diameter, polyolefin) for permanent moisture-resistant seals. A spirit level (3-inch magnetic base) guarantees flush alignment of the hanging mechanism, preventing wobble during operation. For older installations, keep a multimeter (10A DC/AC range) to diagnose unexpected voltage drops across switches or dimmers.
Verify local code compliance with 12-gauge copper THHN/THWN wire for circuits exceeding 300W load capacity–aluminum conductors require specialized anti-oxidant paste. Use clamp-style romex connectors (1/2-inch trade size) when threading cables through steel junction boxes, ensuring knockouts are deburred to prevent sheathing damage. For outdoor-rated units, select silicone-filled wire nuts and weathertight conduit bodies (PVC Schedule 40) to prevent corrosion in humid climates.
How to Install an Overhead Rotating Fixture Combined with Illumination Controls
Turn off the circuit breaker supplying power to the existing junction box before handling any electrical components. Verify absence of voltage at the wires using a non-contact voltage detector–this step prevents accidental shocks.
Identify the wall control setup type: single-pole for one location, three-way for dual control points, or four-way for multiple switches. Confirm wire colors match local electrical codes (typically bare/green for grounding, white for neutral, black/red for live connections).
Secure the mounting bracket to the electrical box using screws provided with the kit. Ensure bracket stability–loose fittings can cause wobbling later. Align the downrod or direct-mount canopy according to manufacturer instructions for sloped or flat ceilings.
| Connection Type | Wire Pairings | Purpose |
|---|---|---|
| Single-Pole | Black → Black (live) / White → White (neutral) | Basic power feed |
| Three-Way | Black/Red → Travelers / White → Neutral | Multi-switch control |
| Illumination Circuit | Blue → Light Kit / Black → Motor | Separate circuits |
Attach the fixture’s ground wire to the box’s grounding screw or bare copper wire. Twist wires firmly using lineman’s pliers, then cap with a wire nut, tugging each connection afterward to confirm stability. Never rely on electrical tape alone.
For split functionality, connect the blue wire (illumination) to its designated switch terminal, ensuring the black wire (rotating mechanism) links to the primary switch feed. Misrouting here forces both components to operate in unison, defeating independent control.
Tuck assembled wires into the outlet box carefully, avoiding sharp edges that could damage insulation. Fasten the decorative canopy or cover plate–gaps allow dust and insects to infiltrate. Restore power at the breaker, then test each function separately using the wall controls. Address flickering lights or erratic spinning by rechecking connections.
Balance the blades by attaching the included balancing clips halfway along each blade’s outer edge. Run the apparatus at high speed; observe movement. Slide clips incrementally toward the center or tip until oscillation stops. Secure clips with a dab of thread-locking adhesive to prevent slippage.
Troubleshooting Common Issues
Unresponsive unit: confirm the circuit breaker is engaged and wall switches are operational. Humming without rotation: check capacitor functionality (located in the motor housing) or consult the product manual for replacement instructions. Delayed response: tighten all wire nuts and inspect for loose switch terminals.

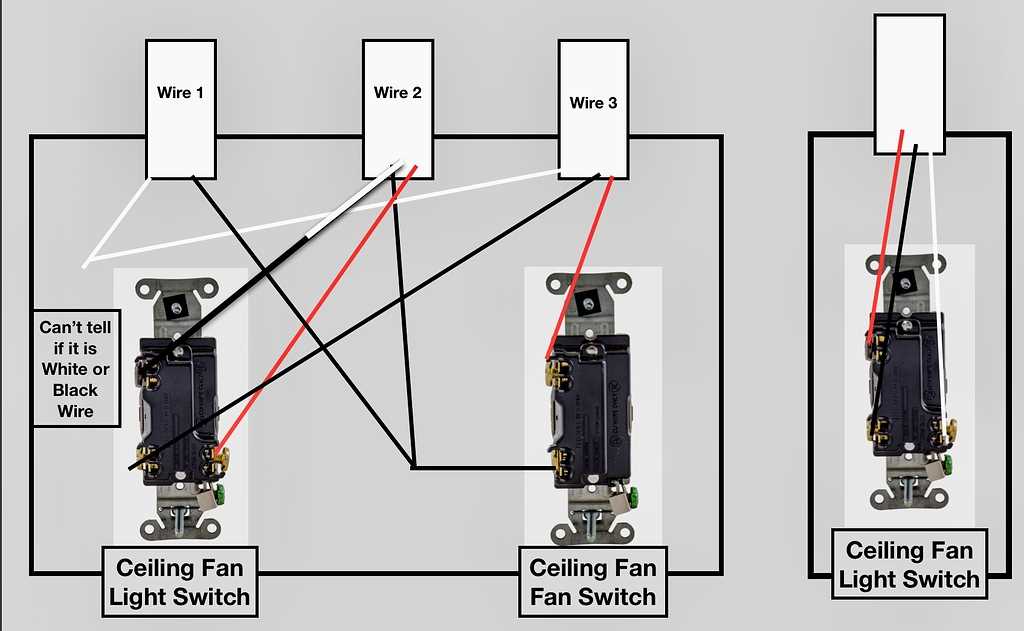

Standard Switch Setups for Dual-Function Overhead Fixtures

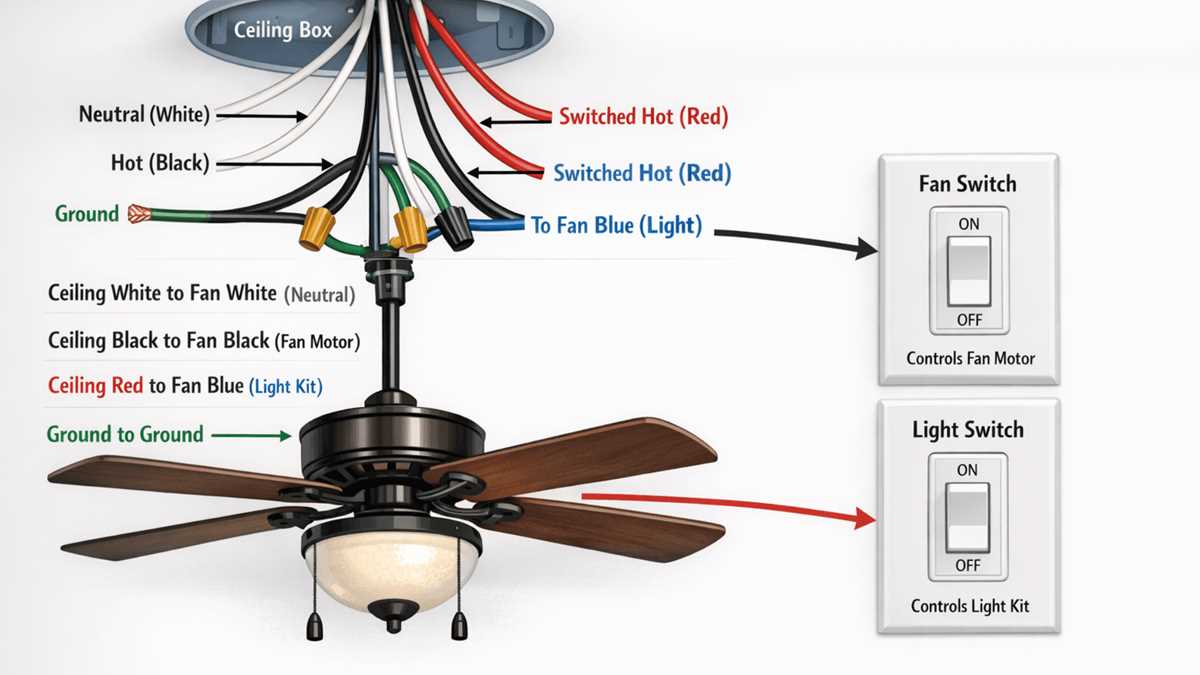

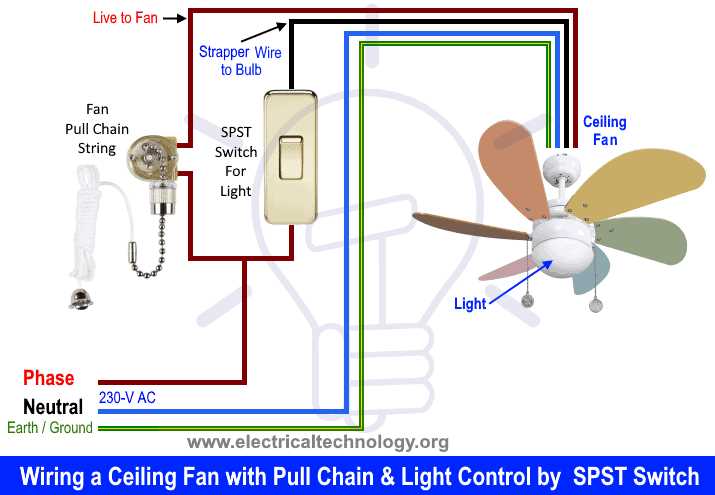

Install a separate pull-chain assembly if independent operation of the motor and illumination component is required. Use a three-wire cable (black, white, red) between the electrical box and the fixture: connect black to the fan motor, red to the light, and white as neutral. Attach both live wires (black and red) to distinct switches on a double-gang wall plate–this allows toggling each unit without affecting the other. Verify compatibility with existing circuit capacity; dual-load configurations often need 15-20 amp circuits, while single-switch setups may suffice with 12-gauge wiring.
For combined control via a single wall switch, splice both the fan motor lead and the light lead together at the fixture and connect them to a single live conductor (black). Ensure the corresponding switch interrupts the hot wire only–neutral must remain continuous to avoid flickering or improper function. When using speed-adjustable remotes or wall-mounted dimmers, match the correct voltage rating (typically 120VAC) and follow the manufacturer’s terminal designations to prevent overheating or premature failure.
