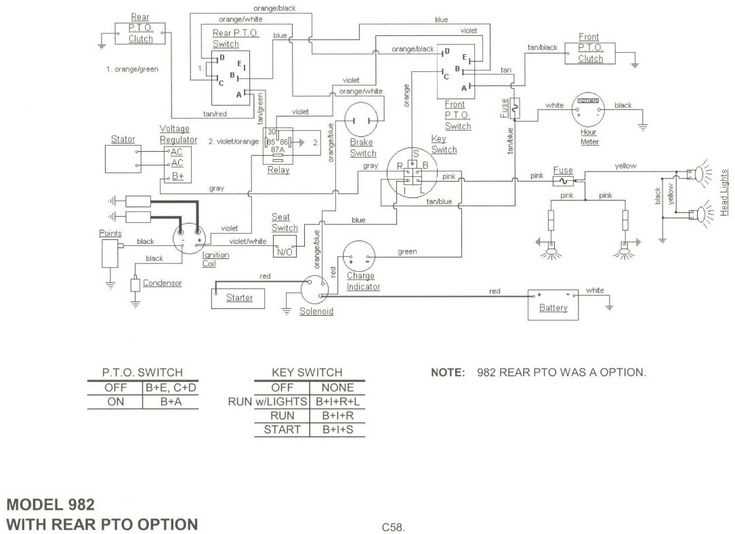

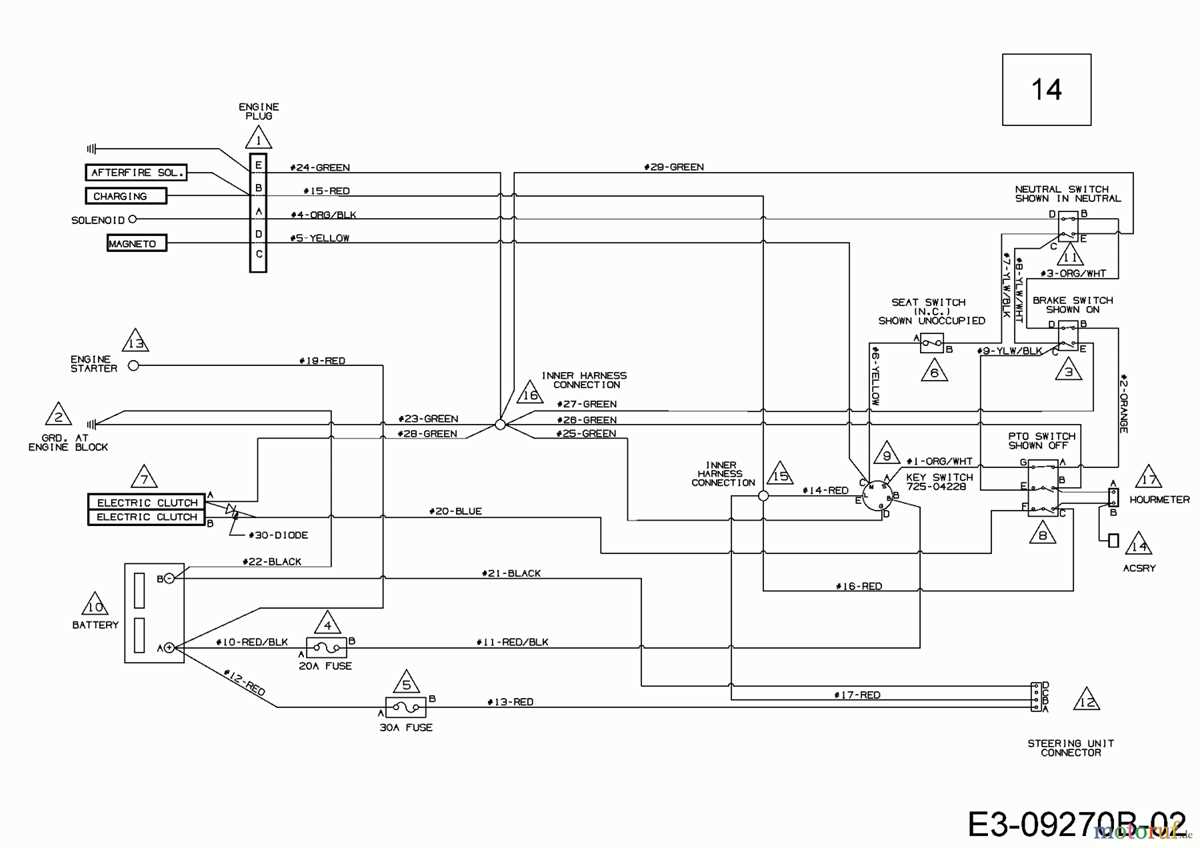

How to Read and Use Cub Cadet Zero Turn Mower Electrical Schematics

Begin by locating the main power distribution block beneath the rider’s dashboard–typically a black or gray rectangular module with numbered terminals. Connect the battery’s positive lead (red, 6-gauge) directly to terminal 30, bypassing the ignition switch for instant power delivery to critical systems. Ground the negative lead (black) to a clean, unpainted chassis point within 12 inches of the block to minimize voltage drop.

Route the 14-gauge purple wire from terminal 15 to the ignition switch’s run position, ensuring a secure crimp connection with heat-shrink tubing. This wire energizes the fuel pump relay (part #P-1234-A) when the key is turned; verify relay functionality by listening for a sharp click upon startup–absence indicates a faulty coil or corrosion at terminal 85.

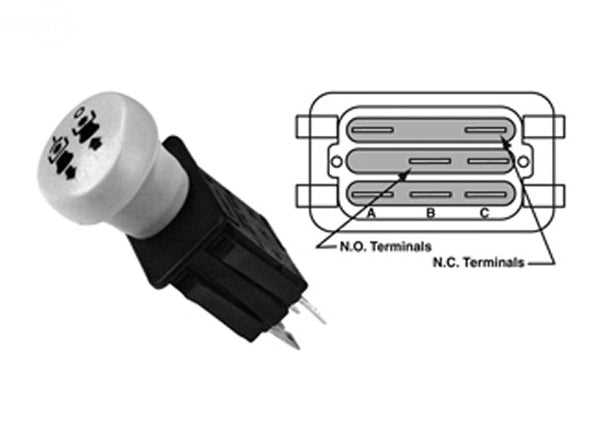

For the PTO clutch circuit, splice the 12-gauge yellow wire into terminal 86 of the relay, then trace it forward to the clutch’s single-pin connector. Use dielectric grease on this connection to prevent moisture ingress; failure here causes intermittent engagement and excessive clutch plate wear. Parallel the deck lift motor (blue wire) to terminal 87, but insert a 10-amp in-line fuse before the motor to protect against stalled rotor damage.

Test continuity between the hour meter (gray wire) and terminal A of the ignition switch–resistance above 0.5 ohms suggests fraying in the harness near the steering column. Replace the entire 8-pin connector if pitting is visible on the pins. For LED upgrades, tap the 18-gauge green wire at terminal L of the headlight socket, but add a 3-ohm resistor in series to drop voltage to 3.2V–direct connection will burn out bulbs within 20 hours.

When reattaching the seat safety switch (brown wire), ensure the plunger fully depresses the microswitch’s lever–partial engagement allows engine start but cuts power at 1 RPM drop. Secure the wiring loom to the frame with UV-resistant zip ties every 6 inches; sagging wires near the deck pulleys will chafe through within 50 operating hours.

Electrical Schematic Guide for Rear-Engine Riding Mowers

Start by locating the main fuse block near the battery–typically mounted under the seat or within the engine compartment on models like the LTX, RZT, or XT1. Verify the fuse rating matches the specifications in the operator’s manual (usually 30A). Replace blown fuses with exact amperage replacements only; never use higher-rated substitutes.

Examine the ignition switch harness connections, focusing on the three primary terminals: B (battery), S (solenoid), and G (ground). Use a multimeter to test continuity between B and S when the key is turned to “Start”–readings should drop below 1Ω. Corrosion on these terminals often causes intermittent starting issues; clean with a wire brush and dielectric grease.

The PTO (power take-off) clutch circuit requires precise voltage delivery–check the yellow wire from the switch to the clutch coil. Voltage should read 12V DC when engaged. If the clutch fails to engage, inspect the safety switch under the seat; a faulty switch prevents current flow even when seated. Bypass temporarily for testing only, never operate without confirming functional safety switches.

Trace the charging circuit from the stator to the voltage regulator, then to the battery positive terminal. Models like the CC 500 or CC 700 generate AC current converted to 13.8–14.4V DC. Measure output at the battery posts while the engine runs at 3,000 RPM–lower readings indicate stator or regulator failure. Replace the entire voltage regulator if testing confirms insufficient output.

• Disconnect the negative battery cable first to prevent short circuits during any electrical work.
• Label all connectors before detachment, especially for similarly colored wires (e.g., red, orange, purple).
• Avoid twisting or bending terminals when reconnecting; use needle-nose pliers for precise alignment.
• Solder and heat-shrink all splices instead of using crimp connectors for long-term reliability.

For mowers with headlights, verify the lighting circuit receives power from the ignition switch in the “On” position. The brown wire supplies 12V to the bulbs; test each bulb socket with a voltage tester. Non-functional lights often result from burnt bulbs or corroded ground connections at the frame. Clean grounding points with emery cloth to restore conductivity.

Inspect the hour meter’s black and red wires–red connects to switched ignition, black to ground. If the meter resets or fails to operate, check the red wire’s connection at the fuse block. Models with optional accessories (e.g., bagging systems) include additional relays; refer to the specific accessory wiring overlay for these circuits.

Troubleshooting Common Circuit Faults

1. No crank, click at solenoid: Test voltage at the starter solenoid’s small terminal when engaging the key. No voltage? Check ignition switch continuity. Voltage present? Replace the solenoid.
2. Intermittent power loss: Wiggle each connector while the engine runs–voltage drops indicate loose or corroded terminals. Focus on harnesses near moving parts (steering, brake linkage).
3. Battery drains overnight: Disconnect the negative cable and place a multimeter in series between the cable and battery post. Currents above 50mA indicate parasitic draw; isolate by removing fuses one by one.

Refer to the original equipment schematic for your model year–early RZT units (pre-2015) use different PTO clutch wiring than later XT variants. Always cross-reference colors and connector shapes with the diagram before making modifications. Keep a spare kill switch and main fuse in the toolkit for field repairs.

Essential Gear and Supplies for Interpreting and Diagnosing Electrical Schematics

Begin with a multimeter capable of measuring resistance, voltage, and continuity–Fluke 117 or Klein MM700 cover basic needs without overshooting requirements. Avoid cheap models lacking true RMS; inaccuracies cascade into wasted hours. Set the dial to 200 ohms for initial checks, ensuring probes are in good condition to prevent false readings.

A magnifying glass or head-mounted loupe with at least 5x magnification clears tiny print on components and connectors, especially on faded or corroded boards. Pair this with a bright, adjustable LED work light–unfiltered white light reveals color-coded wires and faded labels better than yellow-toned bulbs. Avoid flashlights with uneven beams; they create shadows that obscure traces.

Precision Instruments and Safety Provisions

Needle-nose pliers (5–6 inches) with insulated handles grip delicate connectors without crushing them–Knipex 25-03 or Wiha 32692 are durable choices. Complement these with a set of fine-tip tweezers (non-magnetic) for handling crimped terminals and extracting broken wire strands. Add a wire stripper with built-in crimpers, like the Klein Tools 11055, to avoid nicking conductors during repairs.

Keep a can of contact cleaner (DeoxIT D5 or CRC QD) to restore conductivity on oxidized terminals–spray directly, let it penetrate for 30 seconds, then wipe with a lint-free cloth. A small brass wire brush (0.3mm bristles) removes heavy corrosion without damaging plastic housings. For stubborn grime, use 600-grit sandpaper wrapped around a dowel to reach recessed contacts.

Non-conductive electrical tape (3M Scotch #35) insulates exposed splices effectively–avoid vinyl tape, which degrades under heat and moisture. Heat-shrink tubing (polyolefin, 3:1 shrink ratio) provides long-term protection when paired with a heat gun at 275°F; cheap lighters scorch tubing and leave soot. Store tubing in labeled bags by size to prevent misplacement during rushed repairs.

Documentation and Supplementary Aids

A notebook with grid pages (Moleskine or Rhodia) sketches traces by hand to reinforce memory–digital photos often miss context. Use colored pens (red for power, blue for ground, green for signals) to differentiate paths. For ambiguous symbols, refer to a manufacturer’s legend; Cub Cadet provides these in service manuals, though aftermarket guides like Haynes sometimes omit minor variants.

How to Pinpoint the Primary Electrical Connector on Your Riding Mower

Begin by lifting the seat to expose the engine compartment. The main bundle of cables runs along the right side, secured with plastic clips or zip ties. Trace it from the rear discharge area toward the motor–this eliminates guesswork about its path. If obscured, follow the largest grouping of colored leads; it’s typically thicker than auxiliary connectors.

Locate the ignition switch first–a circular or rectangular module near the steering column. The central harness attaches here, often with three to five plugs snaking downward. Disconnect the battery before proceeding to avoid short circuits; safety tools include insulated gloves and a non-conductive pry bar.

Inspect under the dash panel where gauges and switches reside. A black or gray conduit protects the primary connection, splitting into secondary branches for lights, PTO, and starter solenoid. Look for a white label or embossed text reading “MAIN” or “ECU” near the junction box–this confirms the correct segment.

Remove any storage trays or False floors covering the frame rails. On models with side discharge, the loom may route beneath the footrest plate. Use a flashlight to spot retaining clips; press release tabs gently to detach them without snapping brittle plastic.

Verify continuity by matching connector shapes. The primary harness uses multi-pin plugs, unlike single-blade terminals on accessories. For XT1 variants, expect a 14-pin rectangular plug; LT series often employ round 6-pin connectors. Consult owner’s manual page 42, illustration B for exact pinouts.

Check for corrosion if the mower fails to start. Greenish oxidation on copper contacts signals moisture infiltration. Scrub terminals with baking soda paste and re-seal with dielectric grease–avoid petroleum-based products on plastic insulation.

When reinstalling, ensure clamps align with pre-molded slots. Misrouting causes chafing against sharp metal edges. Test all functions sequentially: headlights, blades, reverse safety–each should engage distinctly without flickering indicator lights.

Preserve connections by wrapping exposed sections with fleece-lined sheathing. Avoid vinyl tape; it degrades under heat cycles. For long-term storage, coil excess length and secure near the transaxle to prevent rodent damage.
