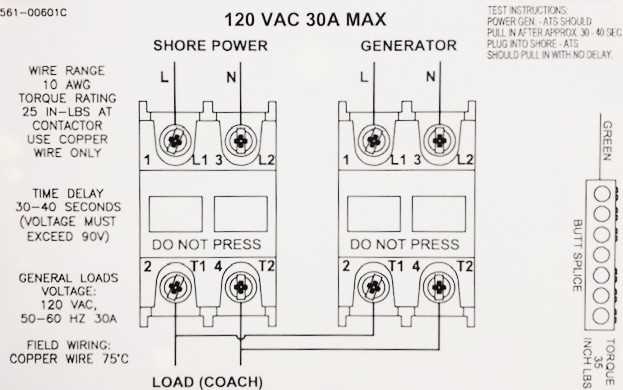

Step-by-Step Guide to Creating a Reliable Transfer Switch Wiring Layout

Start by locating the main service panel and installing a double-pole circuit breaker sized to match your generator’s output–typically 30A for residential units. Route 10-gauge copper conductors from the breaker to a subpanel dedicated solely to essential loads, ensuring no cross-connections with the utility feed. Label every wire at both ends with heat-shrink tubing: black for live, red (or white taped black) for the second hot leg, white for neutral, and green or bare for ground.

Mount the manual changeover device at least 18 inches away from combustible surfaces, following NEC 445.11. Use stainless steel hardware to secure the enclosure, and verify torque specs–12 in-lb for 10-32 screws–to prevent loose connections. Attach the utility input wires to the top lugs, then link the generator input to the lower lugs with identical gauge conductors to avoid voltage drop. For automatic units, integrate a 24V control circuit with relays rated for 30A inductive loads.

Test continuity with a multimeter after installation: measure resistance between neutral and ground (15 seconds on utility loss, 30 seconds on return–to protect compressors and motors. Ground the system with an 8-foot copper rod buried 6 feet deep, bonded to the panel with 6 AWG wire, and driven at least 8 feet from the building foundation to comply with NEC 250.52(A)(5).

Use arc-resistant switches–Silicon Nitride contacts handle 10,000 cycles–and enclose the assembly in a NEMA 3R-rated box if installed outdoors. Connect critical loads (fridge, sump pump, furnace) first, prioritizing circuits that draw

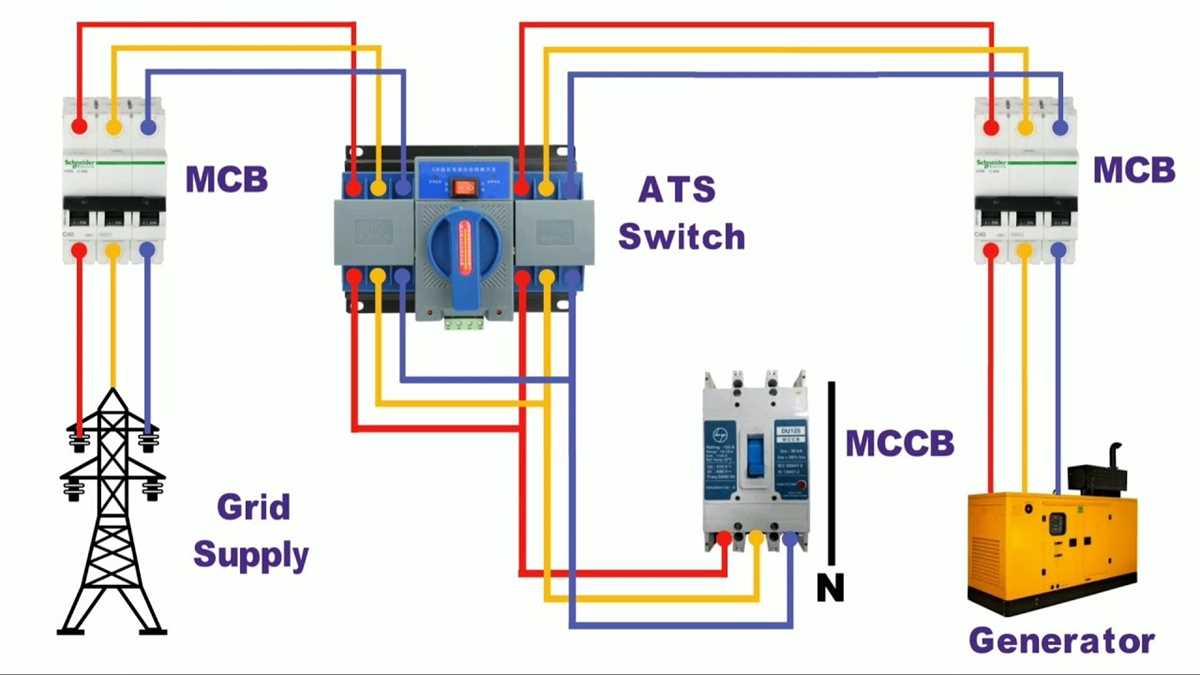

How to Connect an Automatic Power Transition Device

Begin by labeling every conductor before disconnecting anything. Use adhesive tags or permanent markers to note source terminals–utility, generator, and load points–on both the breaker panel and the transition unit. Misidentified connections risk overloads or backfeeding, which can damage appliances or injure line workers.

Install a subpanel if existing circuit capacity is tight. Dedicate separate breakers for critical loads like refrigeration, medical equipment, and lighting. Calculate amperage requirements–20A circuits cover most household needs, while 30–50A handles larger appliances like water heaters or HVAC. Match wire gauge: 12 AWG for 20A, 10 AWG for 30A, 8 AWG for 40–50A.

Mount the transition device within 3 feet of the main service panel. Use a rigid metal conduit (EMT or IMC) to protect cables between the unit and panel. Secure all connections with torque screwdrivers set to manufacturer specifications–loose terminals cause arcing, melting insulation, and potential fires.

For manual models, include a mechanical interlock to prevent simultaneous engagement of utility and backup power. Verify clearance: 30 inches wide, 36 inches deep, and 6.5 feet high around the panel. For automatic versions, confirm battery backup (typically 12V or 24V) can sustain control relays during extended outages.

Ground the system properly. Drive a copper-clad rod (minimum 8 feet) into moist soil, connect it to the transition unit with 6 AWG bare copper, and bond it to the service panel’s grounding bus. Avoid aluminum conductors for grounding–they corrode faster and violate NEC Section 250.52.

Test the setup by simulating an outage. Disconnect utility power at the meter base, then start the backup generator. Observe voltage with a multimeter: 120V between hot and neutral, 240V between hots. If readings drop below 115V or exceed 125V, check voltage regulator settings or generator load balance.

Program delay timers if the unit includes them. Utility-to-generator delay (30–60 seconds) prevents nuisance switching during brief grid fluctuations. Generator-to-utility delay (2–5 minutes) allows the generator to cool down before reconnecting to mains, reducing thermal stress on windings.

Document the setup. Sketch a schematic showing breaker assignments, wire colors, and torque values. Store it inside the panel door with emergency contact numbers (electrician, generator service, poison control). Include a checklist for monthly generator startup tests–run the unit under load for 10 minutes to lubricate engine parts and verify fuel stability.

Choosing an Automatic Cutover Device for Optimal Power Management

Begin by evaluating your load requirements–measure the total wattage of appliances and systems that must remain operational during outages. A residential setup with critical loads like refrigerators, medical equipment, or security systems typically needs a manual bypass isolation cutover unit rated for 30–100 amps. For commercial or industrial applications with sensitive electronics, opt for an automatic cutover panel with a 200+ amp capacity and built-in surge protection to prevent voltage fluctuations from damaging equipment.

Static cutover mechanisms rely on solid-state relays and respond in 4–12 milliseconds, making them ideal for data centers, hospitals, or manufacturing lines where even brief interruptions disrupt operations. Mechanical cutover devices, though slower at 200–500 milliseconds, are more durable and cost-effective for general use, such as backup generators powering homes or small offices. Prioritize units with UL 1008 certification to ensure compliance with safety and performance standards.

Assess installation constraints: enclosed cutover panels with integrated circuit breakers require 30–50% more space than open-transition models but simplify maintenance by eliminating external breaker panels. For environments with frequent power fluctuations, select a delayed transition cutover device to allow generator voltage stabilization before load transfer. Avoid closed-transition units unless parallel operation with utility power is necessary–these add complexity and require professional commissioning.

• Residential: 30–50 amp manual or automatic switch, weatherproof enclosure if outdoors.
• Commercial: 100–200 amp automatic switch with service disconnect and neutral bonding.
• Industrial: 400+ amp delayed transition unit with harmonic filtering for non-linear loads.

Examine control options: basic models include a single rotary switch for manual operation, while advanced units feature programmable logic controllers (PLCs) for customizable sequencing. Remote monitoring capabilities via Modbus, RS-485, or Ethernet are critical for facilities requiring real-time alerts and data logging. Verify compatibility with existing generators–some diesel units mandate specific control protocols like ASCII or Profibus for seamless integration.

Factor in maintenance needs–mechanical contacts require inspection every 6–12 months to prevent arcing, while static devices demand annual firmware updates and cooling system checks. Budget for accessories: emergency stop buttons, auxiliary contacts for external alarms, and bypass switches for servicing without downtime. For solar hybrid systems, ensure the cutover device supports battery bank integration and dual-input configurations to maximize uptime efficiency.

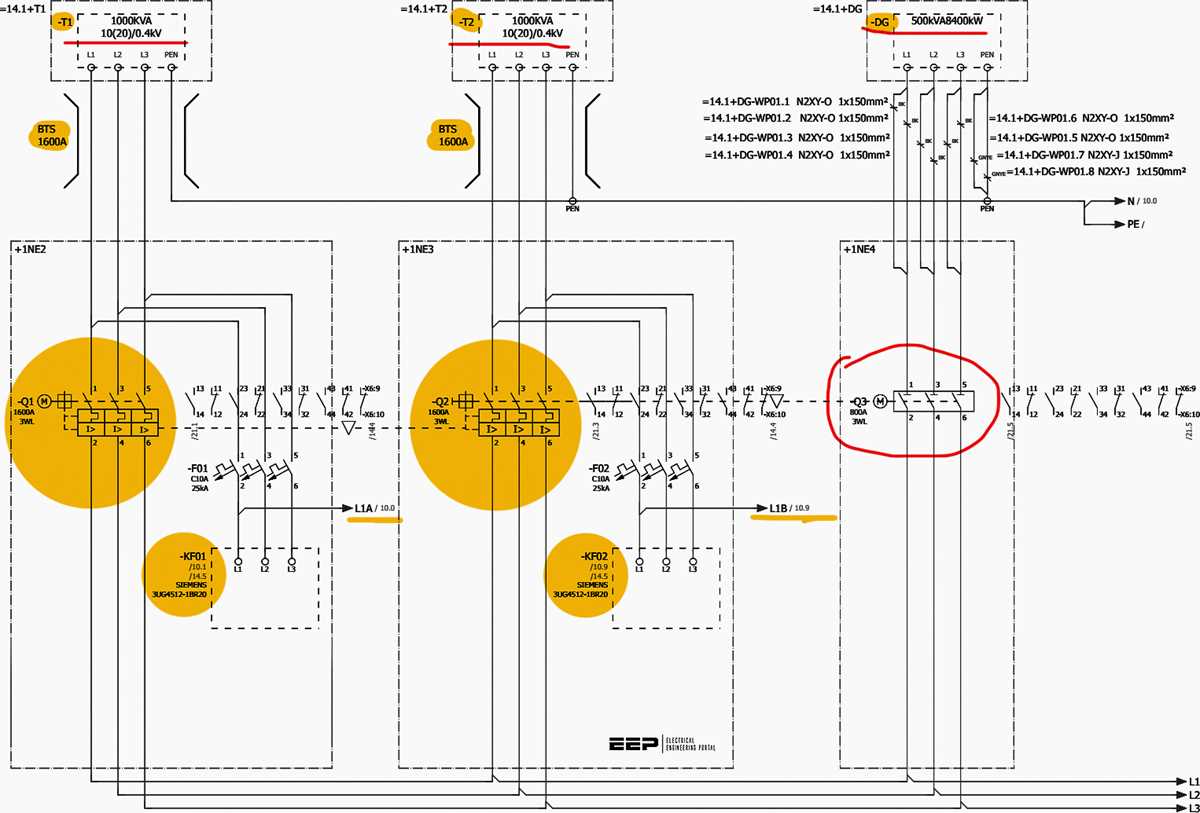

Step-by-Step Guide to Sketching a Fundamental Power Relocation Schematic

Start by identifying the primary components: the utility supply, generator inlet, and circuit panel. Mark their exact positions on paper, ensuring at least 12 inches of spacing between high-voltage elements to prevent arc flash hazards. Label each connection point with permanent markers–use red for live terminals, black for neutral, and green for grounding conductors.

Trace the main feed from the utility source to the load center. Use a ruler to draw straight, thick lines (minimum 1.5mm) representing 6 AWG or larger copper conductors, as specified in NEC Article 310. At the generator inlet, sketch a dedicated breaker sized to match the generator’s output–typically 30A for portable units or 50-100A for standby models. Include a double-pole disconnect switch between the generator and panel.

Critical Connection Details

Introduce a neutral-ground bond only at the primary service panel, never at the generator or secondary panel. For 240V applications, split the feed into two equal branches via a double-pole breaker rated for 25% more than the generator’s continuous current. Verify voltage drop calculations–limit to 3% for circuit lengths exceeding 100 feet, recalculating for aluminum conductors if necessary.

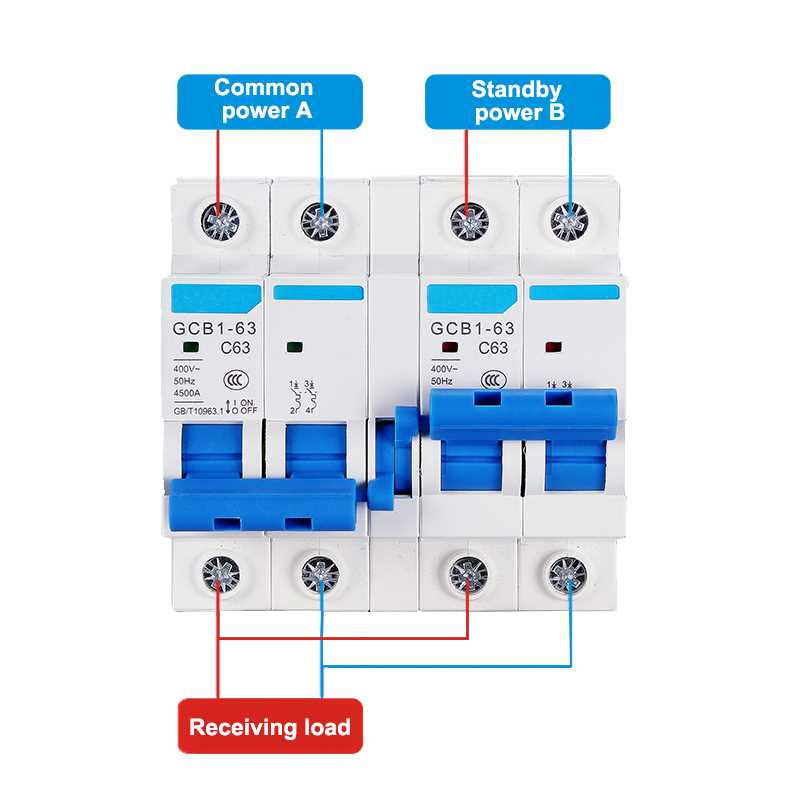

Add mechanical interlocks to prevent simultaneous utility and generator power engagement. The interlock kit must slide freely with less than 5 pounds of force and lock into place within 0.5 seconds of breaker activation. Test clearance distances: maintain 1-inch separation between exposed live parts and grounded surfaces for systems under 250V, increasing to 2 inches for 250-600V configurations.

Include surge protection devices (SPDs) rated for the generator’s peak pulse current–minimum 50kA for residential applications. Mount SPDs within 18 inches of the panel and connect using 10 AWG conductors or larger. For outdoor installations, enclose all connections in weatherproof NEMA 3R-rated boxes, applying dielectric grease to terminals exposed to moisture.

Finalize the schematic with a legend showing conductor amperage ratings, breaker types, and torque specifications for terminal screws–typically 12-18 lb-in for 10-30A connections and 24-36 lb-in for 40-100A. Cross-reference every element with the manufacturer’s data sheet, ensuring compliance with UL 1008 listing requirements for manual power transfer equipment.
