Complete Guide to Installing Aftermarket Car Stereo Wiring Diagrams
Begin by matching the speaker cables to their corresponding outputs on the head unit. Factory harness adapters simplify this process–use Metra 70-1761 or Scosche FM-CIC-ADSN2 for most modern vehicles. If adapting to an older model, strip the wires and solder connections directly, ensuring proper insulation with heat-shrink tubing. Verify polarity before powering the system: reverse connections will cancel audio output.

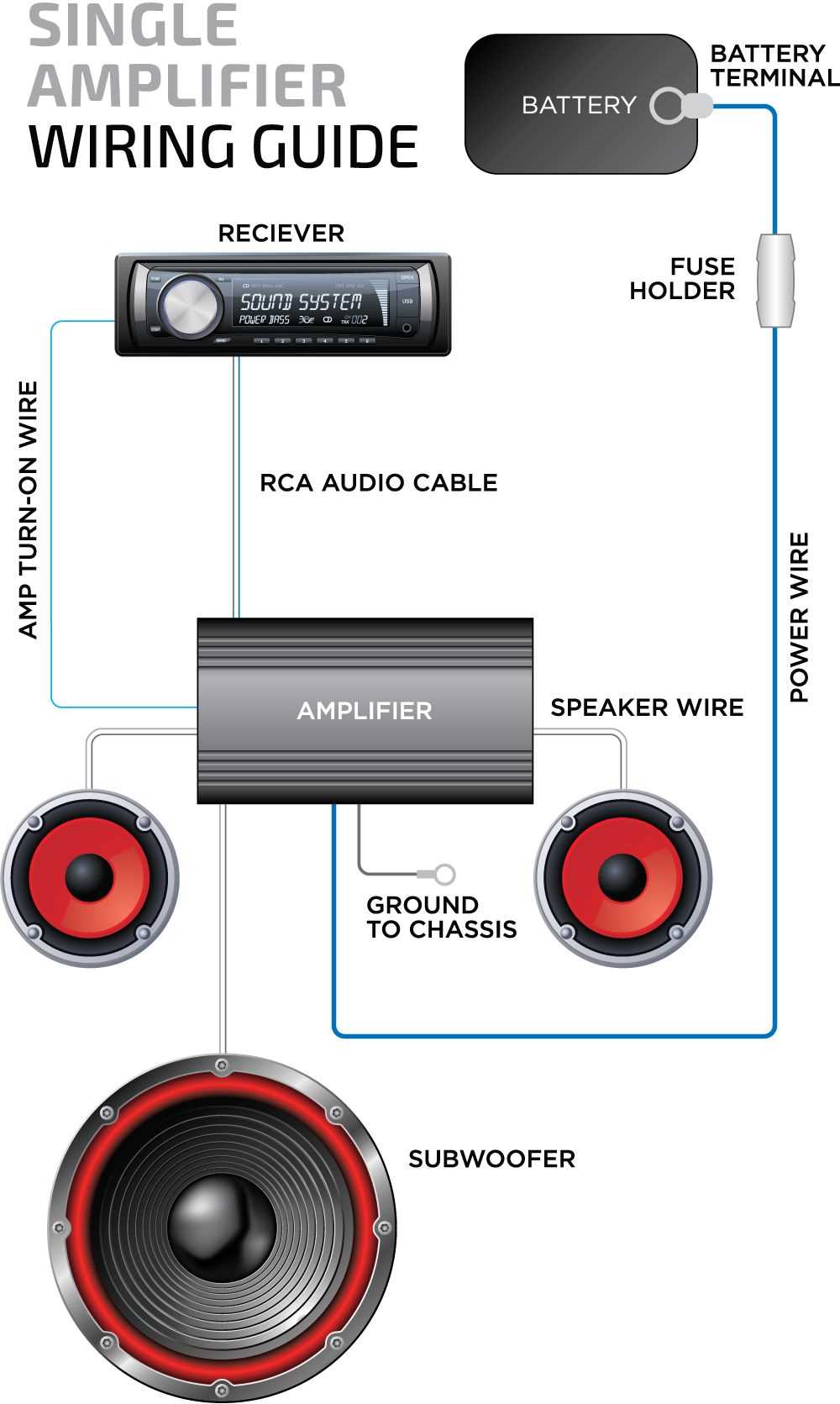

Critical power considerations: The amplifier’s remote turn-on lead (typically blue or blue/white) must connect to the head unit’s corresponding wire. Omitting this step prevents the system from activating. For vehicles with retained accessory power (RAP), additional relays may be necessary to prevent battery drain. A 10A fuse should be installed within 7 inches of the battery connection to protect the circuit.
Ground the system properly–this is non-negotiable. Use an uncoated, bare metal surface near the chassis. Sand the paint to expose clean metal, then secure the ground wire with a self-tapping screw no smaller than #10. Poor grounding causes engine noise, intermittent failures, or complete system shutdown. For noise-sensitive setups, add a ground loop isolator between the head unit and amplifier.
OEM integration varies by manufacturer. Subaru models (2015+) require the iDatalink Maestro RR to retain steering wheel controls and backup camera functionality. Ford and GM vehicles often need ASWC-1 adapters for steering wheel interface. Consult the Crutchfield Vehicle Selector Tool for exact compatibility–input your VIN for error-free results. Testing with a multimeter before finalizing connections prevents costly rework.
After installation, verify all functions: balance/fader, equalizer settings, media inputs, and phone pairing. If Bluetooth connectivity drops, check antenna placement (keep it away from the fuse box or ECU) and update the head unit firmware. For Android Auto/CarPlay issues, ensure the USB cable is high-quality and shielded–cheap cables cause frequent disconnections.
Backup camera wiring follows separate protocols depending on the camera type. Sony XAV-AX5500 requires a composite video connection (yellow RCA), while pioneer units often use a dedicated RCA input. Align the camera’s view angle before final mounting–misalignment obstructs rear visibility. For dynamic parking lines, confirm the vehicle’s CAN bus supports this feature; some aftermarket units simulate lines via software.
Connectivity Guide for Custom Car Audio Systems
Begin by identifying the color-coded connections on your vehicle’s OEM harness and match them to the aftermarket radio’s adapter. Standard pinouts typically include yellow (constant 12V), red (switched 12V), black (ground), blue/white (amplifier remote), and speaker wires (gray, white, purple, green, and their striped variants). Verify compatibility with a multimeter–voltages should read 12V on power lines with the ignition off (yellow) and on (red). If discrepancies arise, consult the vehicle’s service manual for factory-specific deviations, such as BMW’s MOST bus or Ford’s SYNC protocols, which may require additional interfaces.
Common Adapter Pinouts by Vehicle Brand
| Manufacturer | Key Wire Functions | Special Notes |
|---|---|---|
| Toyota/Lexus | Red (ACC), Yellow (Battery), Blue/White (Antenna), Pink (Illumination) | Retains amplifier settings only with factory amp present; bypass may cause low volume |
| Honda/Acura | Orange (Dimmer), Light Green (Mute), Brown (Security) | Disconnecting brown wire triggers immobilizer; use Metra ASWC-1 for steering controls |
| GM | Dark Green (OnStar), Purple (Reverse Signal), Tan (Speed Sensor) | RPO code UQA identifies Bose systems requiring LC3 adapter for equalizer retention |
For seamless integration without cutting original harnesses, utilize T-harness adapters–Metra 70-XX series covers most Asian/European models, while Scosche GMOS-04 addresses GM vehicles with data bus interfaces. Secure connections with soldered joints and heat-shrink tubing, avoiding twist-and-tape methods prone to corrosion. Test functionality before permanent installation: verify amplifier turn-on delay (should activate within 1-2 seconds of ignition), subwoofer output (usually RCA jacks or dedicated brown/black wires), and steering wheel controls (requires separate interface like iDatalink Maestro RR for CAN bus vehicles).
Decoding OEM Cable Color Codes for Audio System Upgrades
Start by locating your car’s original connector behind the dashboard–most vehicles group speaker, power, and ground lines in a single multi-pin plug. Japanese builds (Toyota, Honda, Subaru) often use yellow for constant 12V, red for switched ignition, black for chassis ground, and white/white-black for front left speaker leads. GM and Ford patterns differ: look for orange (constant), gray (switched), brown (illumination), and dark green/violet pairs for rear right channels.
European brands (Volkswagen, BMW, Mercedes) label feeds with alphanumeric tags molded into the harness sheath–30 denotes permanent battery input, 15 ignition-switched, 31 body earth, and L/R channels marked A+/A- or FR+/FR-. Porsche and Audi frequently splice twisted shielded pairs (CANbus)–never cut these; use adapter looms instead to avoid disabling steering wheel controls or warning systems.
Check for dual-purpose conductors: Hyundai/Kia often combine illumination dimmer and antenna motor signals on a single light blue wire–measure voltage with a multimeter (0-12V dimming range) to confirm function before splicing. Chrysler Dodge Jeep harnesses may include a pink line carrying 5V logic reference for steering wheel buttons–taping off this feed prevents erratic behavior in new head units.
Asian luxury models (Lexus, Acura, Infiniti) sometimes embed fiber-optic MOST networks for premium audio–identify these thin orange/blue cables by flexing the connector while observing the ring LED; never route copper conductors near them to prevent interference. Volvos built after 2015 may integrate all feeds into a single 54-pin quadlock socket–consult ISO 10487-4 pinout specs to map each slot (ground slots typically cluster at pins 8-10, 20-22).
Test every lead before connecting: set meter to DC volts, probe between candidate line and verified ground. Switched power should read 0V with ignition off, 11-14V when on; speaker outputs deliver 4-8V AC sine waves–audible hum confirms correct channel polarity. Avoid trusting faded color traces on aged insulation–use heat shrink labels or digital photos for reference.
Adapter kits simplify transitions but introduce resistance–match gauge sizes (18-20 AWG typical) or replace patch cables with thicker copper (16 AWG minimum) if attenuating bass response above 10 kHz. Always isolate RCA signal shields from chassis potentials; connect them exclusively at the amplifier input to prevent hum loops.
Document deviations immediately–jot color/voltage/function on masking tape strips applied to each cable before securing the loom with braided sleeve or split conduit. Maintain this map inside the glove box for future upgrades or warranty diagnostics.
Choosing the Correct Vehicle Audio Integration Harness
Pick a harness matching your car’s OEM connector layout–confirm the pin count and color coding against manufacturer specs before purchase. Universal adapters often fail due to mismatched power or signal grounds, leading to intermittent cutouts or component damage. Brands like Metra, Scosche, and Axxess offer vehicle-specific solutions with verified compatibility lists; consult these first.
Prioritize harnesses with built-in noise suppression if your setup includes amplifiers or subwoofers. Poor grounding can introduce alternator whine, especially in vehicles with sensitive CAN bus systems. Look for adapters featuring inline capacitors or ferrite chokes if you notice interference after installation.
Check for harnesses supporting steering wheel control retention if you want to keep factory button functionality. Not all adapters pass these signals; models like the Metra ASWC-1 or Axxess AX-ADBR require separate integration modules but maintain full compatibility with OEM climate and navigation interfaces.
Power and Data Signal Considerations
Verify the adapter handles your head unit’s current draw–most support 10-15A, but large touchscreen systems may need dedicated fused leads. Avoid splicing into existing wires; use the harness’s pre-terminated connectors to prevent voltage drops. For vehicles with factory amplifiers, ensure the adapter includes line-level outputs to avoid weak, distorted sound.
Test the harness’s data connections before finalizing installation. Some European models require single-DIN adapters that bridge complex fiber-optic or MOST bus systems. If the harness lacks these connectors, you’ll need a specialized interface like the iDatalink Maestro, which retains vehicle diagnostics and telematics.
Inspect the harness for durable insulation–thin or brittle wires risk short circuits, particularly in high-vibration areas like near the firewall. Heat-shrink tubing or loom protection extends longevity; apply it to splices even if the adapter includes basic shielding. For off-road vehicles, consider marine-grade connectors to resist moisture and corrosion.
Finally, cross-reference the harness with your vehicle’s fuse box diagram. Some adapters tap into ignition-controlled circuits, while others require direct battery connections to avoid draining the system. A fuse tap or relay installation may be necessary to protect sensitive electronics from transient voltage spikes during engine cranking.
