Begin with a multimeter set to continuity mode to verify ground connections before attaching any wires. A flawed chassis link disrupts the entire circuit, causing sporadic flickering or complete failure. Use heat-shrink tubing, not electrical tape, to insulate splices–deterioration from moisture and vibration is guaranteed otherwise.

Identify the fuse rating printed on the back of the original switch or relay. Exceeding this by even 20% risks overheating the harness or damaging the bulb filaments. For halogen bulbs, a 10-amp fuse suffices; LEDs require 5 amps or less due to lower current draw. Replace blown fuses with the exact same value–no improvisation.

Trace the power source to the battery’s positive terminal via a relay if the current exceeds 15 amps. Direct wiring from a switch to high-wattage bulbs without a relay will melt the contacts within weeks. A standard Bosch-style 4-pin relay costs under £5 and installs in minutes with crimp connectors–not solder alone.

Match wire gauge to load: 16 AWG for signal circuits, 12 AWG for headlamps, 10 AWG for auxiliary beams. Skimping on gauge size creates voltage drop; 0.5 volts lost over 3 meters dims LEDs noticeably. Measure with the multimeter–expect no more than 0.2 volts drop under full load for optimal performance.

Route wires away from sharp edges and moving parts. Secure every 20 cm with plastic ties or conduit–loose wiring abrades against metal, leading to shorts. Use dielectric grease on connectors exposed to the elements to prevent corrosion that raises resistance over time.

Label each wire at both ends before cutting. Misconnected circuits burn out bulbs or blow fuses instantly. A simple masking tape tag with “+,” “-,” or “trigger” prevents irreversible errors. Test each segment immediately after connection–fixing mistakes later requires dismantling the dashboard.

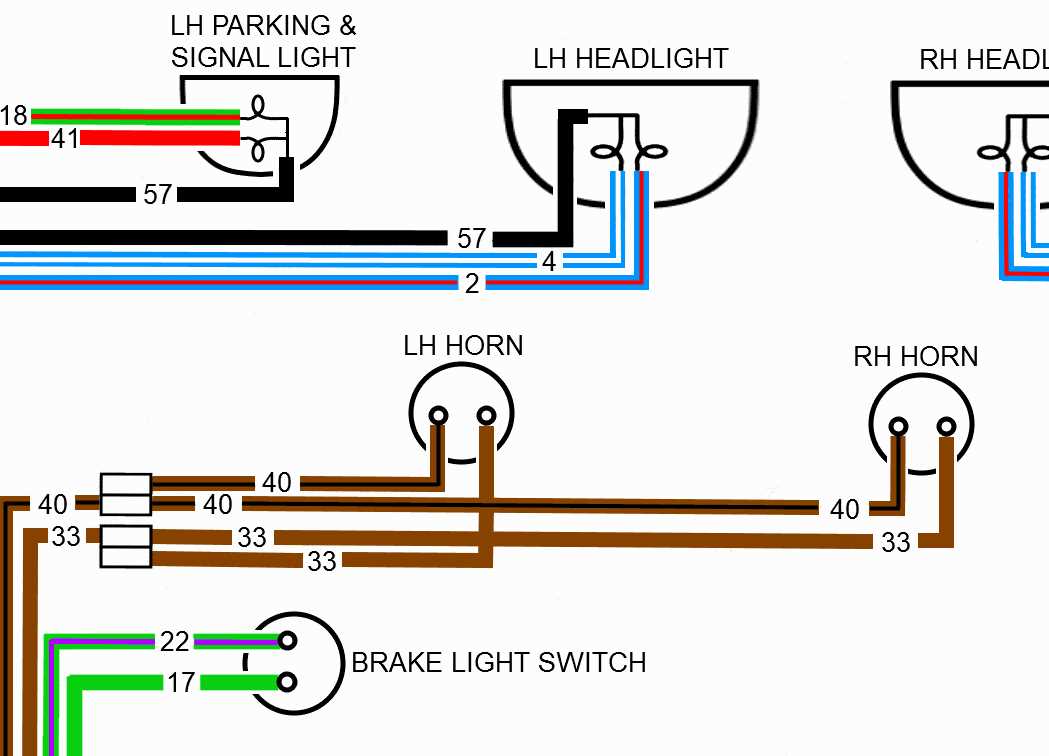

Electrical Schematics for Vehicle Illumination Systems

Start by identifying the power source–a 12V battery or fusebox–before mapping any connections. Use a multimeter to verify voltage at critical points: headlamp sockets, tail lamp terminals, and switch contacts. A typical low-beam circuit draws 5-7A, while high-beams may reach 10-12A; ensure wires gauge 14-12 AWG handle the load without overheating.

Standard relay configurations simplify troubleshooting:

• SPST relays control single functions like fog lamps, requiring terminals 85 (ground), 86 (trigger), 30 (power in), and 87 (power out).
• DPDT relays manage dual circuits (e.g., turn signals + brake lights) with additional terminals 87a (secondary output).
• Ground relays at chassis points near the lamp assembly to reduce voltage drop; never daisy-chain grounds.

Fuse placement matters–install inline fuses within 7 inches of the power source for each circuit. Use blade-style fuses rated 10-15A for lighting, 20A for auxiliary systems like LED bars. Label each fuse holder with circuit function (e.g., “L Low Beam”) to prevent cross-wiring during repairs. For European-spec vehicles, include a load-resistant diode in the flasher circuit to protect against reverse polarity.

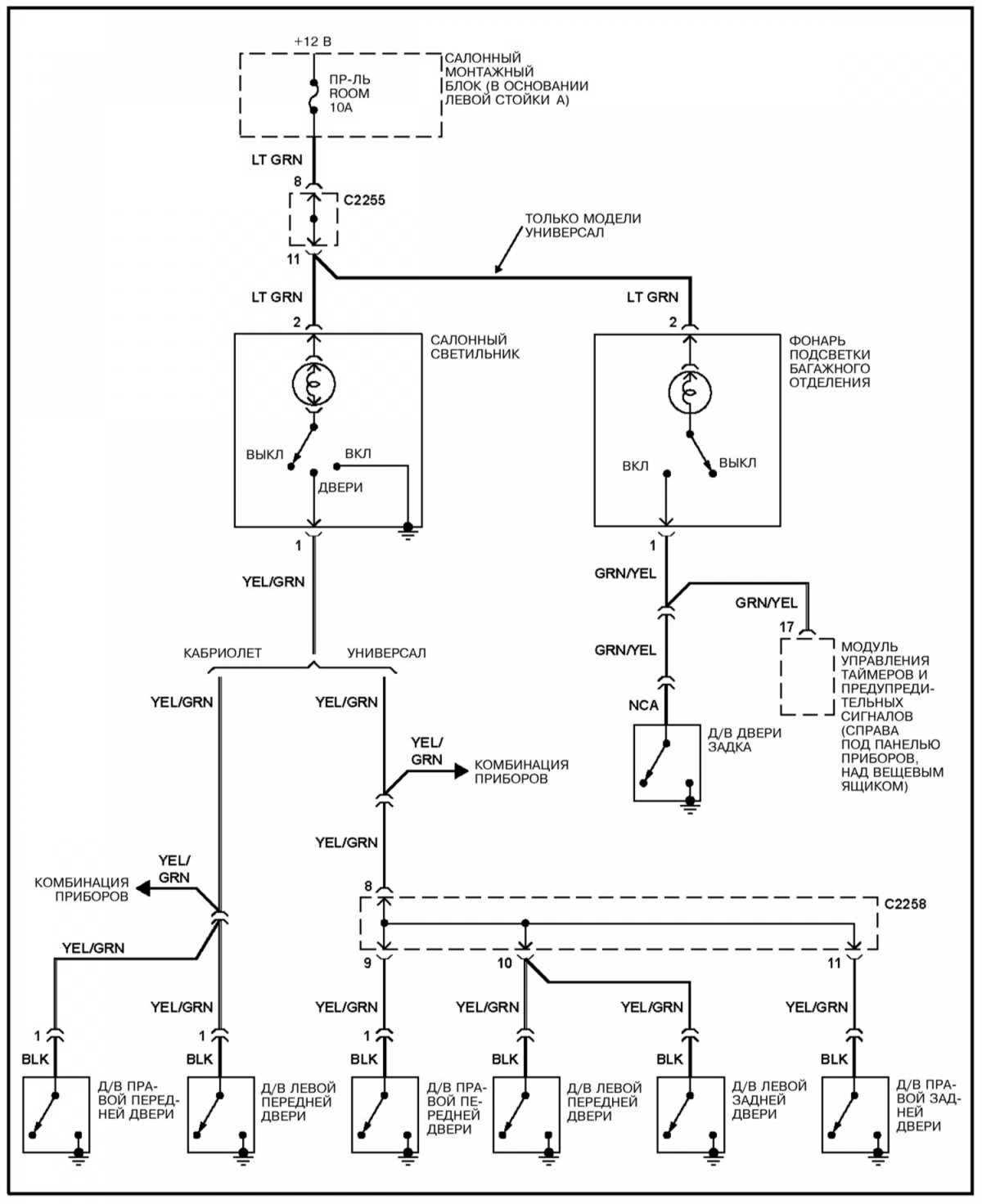

Color-code wires using ISO/DIN standards:

1. Black (ground) – Direct to chassis or common busbar.
2. Yellow/Black stripe – Low beam (switched power).
3. Green/Yellow stripe – High beam (switched power).
4. Brown/White stripe – Tail lamps (constant power).
5. Blue/Red stripe – Brake lights (separate wire from tail lamps).

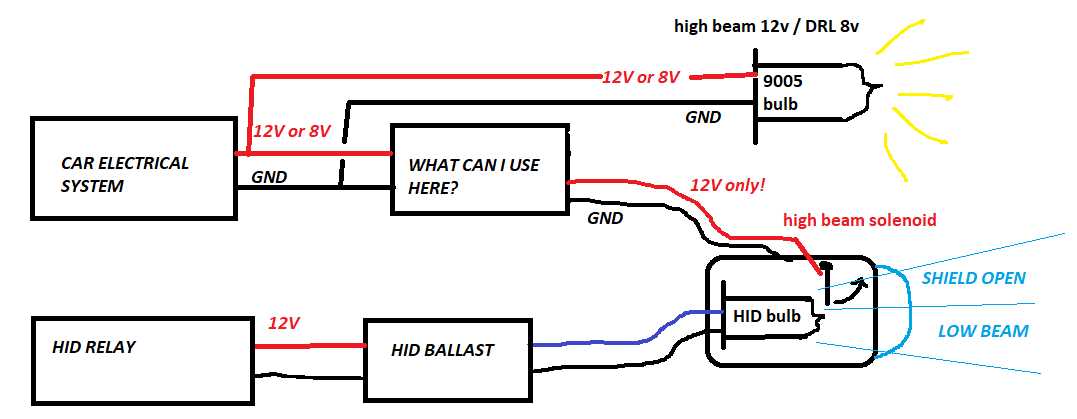

Strip 6-8mm of insulation, crimp terminals with heat-shrink tubing, and solder joints for HID or high-current applications. Test circuits with a 12V test light before finalizing connections–avoid relying on dash indicators alone.

Essential Gear for Automotive Illumination Circuit Assembly

Select a multimeter with a 10A current range to verify circuit integrity before applying power. Models like Fluke 87V or Klein Tools MM600 provide the necessary accuracy for both AC and DC readings critical in 12V systems. Avoid budget meters lacking fuse protection in high-current modes–failure risks damaging both tool and vehicle components.

Strippers rated for 10-22 AWG solid and stranded conductors are non-negotiable. Self-adjusting variants like Ideal T-Stripper eliminate guesswork, while cheap imitations often nick copper strands, weakening connections. For wire gauges below 18 AWG, a dedicated small-gauge stripper prevents insulation damage that leads to short circuits.

Crimping tools must match terminal types: insulated butt splices require a ratcheting crimper with dies for 0.5-6.0mm² cross-sections (e.g., IWISS SN-2549), while non-insulated lugs demand heavier-duty options like the Ancor 193200. Verify calibration by testing crimps on scrap wires–properly crimped joints resist a 5lb pull without slippage.

Lesser-Known but Critical Components

Heat-shrink tubing should be dual-walled with an adhesive-lined interior (3M 3126 or equivalent). Polyolefin variants melt at 90°C; vinyl alternatives fail under hood temperatures. Apply a heat gun with a 200°C nozzle–excessive heat causes uneven shrinkage or burns the adhesive layer.

Relays for auxiliary circuits demand 30/40A SPDT configurations (Bosch 0 332 019 150). Cheaper 10A relays cannot handle halogen bulbs’ inrush currents. Mount relays within 30cm of the battery using dielectric grease on terminals to prevent corrosion from road salt or moisture ingress.

Fuse holders must be blade-type mini or standard class (Littelfuse 5×20mm). For circuits exceeding 20A, surface-mount fuse blocks with busbars reduce voltage drop. Avoid glass tube fuses–they lack arc suppression, risking collateral damage during a short. Label each holder with the circuit’s amperage rating using UV-resistant adhesive tape.

Safety and Ancillary Items

Silicone dielectric grease (Permatex 22058) extends connector lifespan by preventing oxidation. Apply a thin layer to all terminals before mating–excess grease attracts dirt, creating resistive leaks. For outdoor components, use anti-seize on metal-to-metal joints to thwart galvanic corrosion.

Junction blocks with IP67 ratings (Blue Sea Systems 5026) centralize connections in high-vibration areas. Avoid plastic enclosures lacking flame-retardant certifications–polycarbonate melts at 140°C, turning latent shorts into fire hazards. Ground straps should be tinned copper braid (4 AWG minimum), not factory chassis paint that adds milliohms of unwanted resistance.

Step-by-Step Guide to Tracing Automotive Illumination Circuits

Begin by disconnecting the vehicle’s battery to prevent short circuits or accidental activation while inspecting. Locate the fuse box–typically beneath the dashboard or under the hood–and identify the fuse linked to the specific illumination system (headlamps, tail lamps, or indicators) using the owner’s manual. Remove the fuse with needle-nose pliers and check for a broken filament or discolored metal strip; a faulty fuse often signals a deeper circuit issue.

Inspecting Electrical Pathways

• Use a multimeter set to continuity mode to test connections at key junctions: the switch, relay, bulb socket, and grounding point. Probe the switch terminals while toggling it on/off–zero resistance confirms a closed circuit; infinite resistance indicates a break.
• Trace the harness from the bulb socket back to the relay. Look for frayed insulation, corrosion at connectors, or melted plastic, which pinpoint failure zones. Pay special attention to areas near heat sources (exhaust manifolds) or sharp edges.
• Ground connections must show direct continuity to the chassis. Test by clamping the multimeter’s black lead to the negative battery terminal and the red lead to the grounding screw–readings above 0.5 ohms suggest poor conductivity.

Isolating Faults with Precision

1. Replace the fuse temporarily and reconnect the battery. Power the circuit and observe voltage drop across live connections using the multimeter’s DC voltage setting. Readings below 12V at the bulb socket confirm voltage loss due to resistance or short circuits.
2. For intermittent failures, gently wiggle the harness while monitoring voltage. Sudden drops reveal loose or oxidized connections.
3. If the bulb illuminates but dims, swap it with a known-good unit. Persistent dimming indicates a weak ground, corroded socket, or insufficient alternator output.

Document each test result to systematically eliminate potential failure points. Replace or repair components only after confirming their failure–avoid unnecessary part swaps that could introduce new issues.

Common Electrical Errors in Vehicle Illumination Systems and Solutions

Incorrect fuse ratings rank among the most frequent oversights. Installing a 15-amp fuse where a 10-amp is specified leads to overheating and potential fire hazards. Replace mismatched fuses immediately using a multimeter to confirm circuit current before selection. Keep spares of correct amperage in the glove box for emergencies.

Reversed polarity connections at bulbs or relays cause immediate failure, often mistaken for defective components. Verify terminals against schematics before securing connections–ground (-) typically attaches to the casing or designated lug, while positive (+) links to the switch or distribution block. Use a test light or probe to confirm voltage direction before final tightening.

Poor Ground Connections

Corrosion or loose grounds manifest as flickering, dimming, or non-functioning beams. Clean contact surfaces with a wire brush, apply dielectric grease to prevent oxidation, and secure firmly to bare metal–avoid painted or coated areas. For trailer plugs, upgrade to heavy-duty connectors with weatherproof seals to eliminate moisture ingress.

Insufficient wire gauge for auxiliary circuits (e.g., LED bars or fog lamps) results in voltage drop and premature component burnout. Refer to a wire gauge chart: 14 AWG handles 15 amps, while 12 AWG supports 20 amps over 10 feet without loss. Crimp connections properly with heat-shrink tubing and solder for long-term reliability–twisting wires alone invites loose connections.
