Complete Guide to Ethernet Connector Wiring and Pinout Configuration
Begin by obtaining a CAT5e or higher twisted-pair cable and an 8P8C modular jack–commonly mislabeled as RJ45. Strip approximately 2 cm of the outer sheath without nicking the internal conductors. Untwist each pair just enough to separate them, ensuring no more than 12 mm of untwisted wire remains; excess length degrades signal integrity and invites crosstalk.

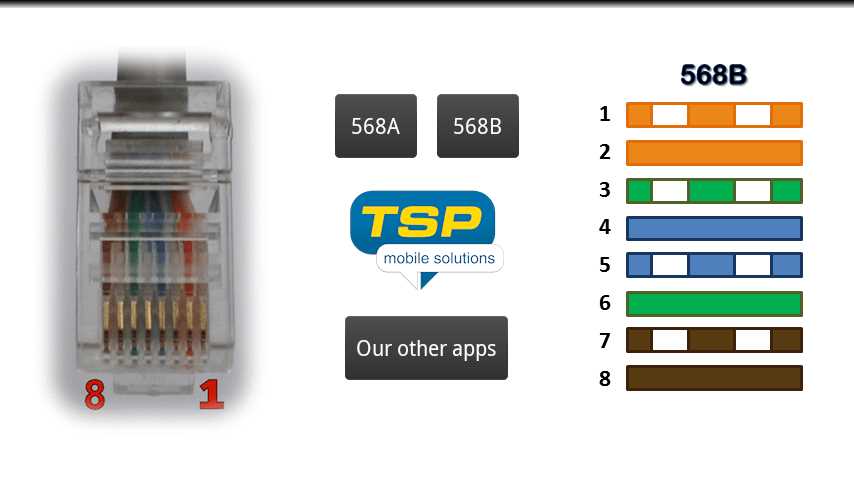

Arrange the conductors in the T568B standard sequence: orange-white, solid orange, green-white, solid blue, blue-white, solid green, brown-white, solid brown. T568A reverses the orange and green pairs and should only be used when interfacing with legacy equipment explicitly requiring it. Insert each wire into its corresponding slot on the connector, applying firm pressure until it clicks and seats fully against the internal insulation piercing contact.
Verify continuity before crimping: utilize a cable tester to confirm no shorts, open circuits, or miswired pairs exist. If initial testing fails, trim the exposed wires flush with the connector face, reseat, and recrimp–never reuse a compromised termination. Avoid bending or kinking the cable sharply near the connector; maintain a minimum 25 mm bend radius to prevent signal attenuation. Shielded variants (FTP, S/FTP) demand grounding at both ends–neglecting this introduces interference and negates shielding benefits.
For stranded conductors, select connectors rated for stranded wire; solid-core variants require solid-core rated jacks. Terminate patch cables at both ends identically (T568B-to-T568B). Vertical or backbone runs may use T568A-to-T568A–cross-pairs internally in hubs or switches eliminate the need for crossover cables, though modern auto-MDI/MDIX ports render this moot. Always label completed terminations with cable type, date, and certification standard.
Pinout Guide for RJ45 Connectors

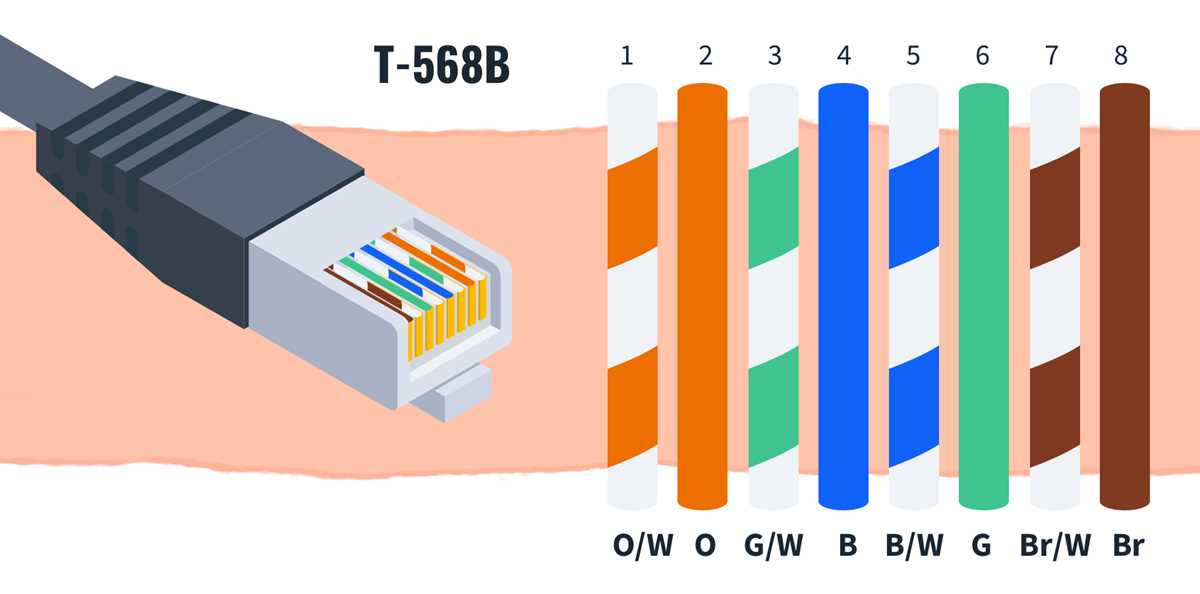

Use the T568B standard for terminating cables: pin 1 (white/orange), pin 2 (orange), pin 3 (white/green), pin 6 (green), with the remaining wires following the same color pairs. Ensure conductors are untwisted no more than 12.7 mm to maintain signal integrity, especially for Cat6 or higher categories. Crimp connectors with a ratcheting tool rated for the cable gauge–typically 23–24 AWG for solid core, 26 AWG for stranded.

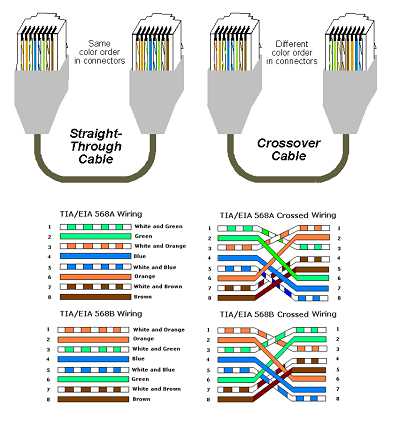

Test each connection with a cable analyzer set to check for opens, shorts, miswires, and split pairs. A straight-through configuration will show continuity on pins 1-1, 2-2, 3-3, and 6-6 when tested end-to-end. Crossed pairs will show swaps between pins 1-3 and 2-6. For PoE, use only the orange and green pairs (pins 1, 2, 3, 6) to avoid damaging legacy devices that rely on the blue/brown pairs.
Secure the boot snugly over the connector after crimping to prevent strain on the termination. Label cables with length, category, and installation date using heat-shrink or wrap-around tags.
Essential Gear and Supplies for Network Cable Assembly
Opt for bulk Cat6 solid copper cable with a polyethylene jacket–its 23 AWG conductors withstand tighter bends without signal degradation, critical for gigabit links lasting over 50 meters. Avoid CCA (copper-clad aluminum) variants; their higher resistance causes data loss under PoE loads exceeding 30W. Verify compliance with ANSI/TIA-568-C.2 standards for alien crosstalk suppression.
Precision Termination Hardware
Select an RJ45 modular connector rated for stranded or solid conductors–gold-plated contacts (50μm minimum) prevent oxidation during 10-year lifecycles. For field terminations, use a pass-through connector model; it simplifies alignment during crimping but requires trimming waste leads after assembly. When working with shielded S/FTP cable, pick fully shielded jacks with metal housing to maintain 360° EMI protection.
A ratcheting crimper with interchangeable dies ensures consistent pressure; a 10-inch leverage model applies 250 psi, sufficient for proper conductor compression without fracturing insulation. Pair it with a flush-cut wire stripper featuring a 10mm guide to remove outer jackets cleanly, exposing 20mm of twisted pairs–excessive untwisting beyond 13mm increases NEXT (near-end crosstalk).
Test continuity with a network analyzer capable of measuring time-domain reflectometry (TDR) to locate impedence mismatches within ±2Ω. For PoE validation, use a DC clamp meter rating 600V/60A to confirm voltage drop compliance with IEEE 802.3bt under 3% loss. Store cable in a moisture-resistant box, humidity ≤60%, to prevent jacket stretch that alters characteristic impedance over time.
Step-by-Step Guide to Stripping and Preparing Network Cable Conductors
Select a high-quality RJ45 crimping tool with built-in insulation strippers–avoid generic wire cutters, as they crush stranded copper. Hold the cable steady with the jacket facing the stripping slot, ensuring the blade depth matches the outer sheath thickness (typically 1.5–2mm for Cat5e/Cat6). Rotate the tool once around the cable without pressing inward; excessive force risks damaging internal twisted pairs.
- Cat5e: Cut 20–25mm of jacket to expose conductors
- Cat6: Limit to 18–22mm due to thicker shielding
- Cat6a/7: Requires partial shield removal–account for foil/mesh
Separate the pairs immediately after stripping. Grip each twisted pair at the base of the jacket and fan them outward in opposing directions. Pull gently–yanking can loosen the twists, degrading signal integrity. Maintain twist proximity: no more than 12mm of untwisting for Gigabit speeds (100mm for 100Mbps). Shop-bought cables often untwist exactly 13mm–match this precision.
Trim stray nylon threads (common in molded cables) flush with the jacket. These wick moisture and interfere with crimping. Use flame-resistant scissors; razors leave sharp ends that pierce insulation. For shielded cables, fold back the drain wire over the jacket and secure it with a single wrap of electrical tape to prevent shorts.
- Align conductors to T568A/B standard before cutting
- Cut at a 90° angle, leaving 14–16mm exposed copper
- Check for bent wires–flat copper is critical for proper contact
Slide the modular connector onto the cable with the retention tab facing downward. Push firmly until the wires bottom out in the connector channels–listen for a soft *click* as each conductor seats. Verify alignment through the clear housing; uneven lengths cause intermittent connections. Re-strip if any wire sits flush with the jacket edge; under-inserted conductors fail under tension.
Troubleshooting Poorly Prepared Conductors
Symptoms like weak signals or packet loss often trace to inadequate preparation. Test continuity with a multimeter: resistance should read
T568A vs. T568B: Selecting the Optimal Pinout Scheme
Use T568B as the default choice for new installations unless existing infrastructure mandates T568A–this standard dominates 90% of commercial and residential deployments worldwide, ensuring immediate compatibility with routers, switches, and patch panels from major manufacturers like Cisco, HP, and Ubiquiti. T568A, while functionally identical in performance, remains prevalent in older government and telecommunications networks due to historical ISO/IEC 11801 compliance requirements. For mixed environments, maintain consistency: crossovers between T568A and T568B cables will fail auto-MDI/MDIX negotiation on modern devices, forcing manual port configuration–a avoidable complexity.
Key Differences and Practical Impact
| Standard | Pin 1 | Pin 2 | Pin 3 | Pin 6 | Use Case Priority |
|---|---|---|---|---|---|
| T568A | White-Green | Green | White-Orange | Orange | Legacy telco/networks |
| T568B | White-Orange | Orange | White-Green | Green | Enterprise/home networks |
Opt for T568B when integrating with Power over Ethernet (PoE) systems–devices such as IP cameras, wireless access points, and VoIP phones are typically pre-configured for this pinout. The color swap (orange-green vs. green-orange pairs) has zero electrical impact on Category 5e/6/6A cables up to 10GBASE-T, but mismatched terminations create pairs that cross between differential pairs, violating gigabit Ethernet’s requirement for dedicated bi-directional channels on pins 1-2, 3-6. This results in crosstalk exceeding -35dB at 100MHz, degrading signal integrity.
Troubleshooting Mismatches
If link failures occur, verify both ends with a cable tester showing individual pair continuity–identify split pairs immediately; these manifest as gigabit links negotiating at 100Mbps or complete dropout. Replace cables with factory-terminated patch leads instead of field wiring for critical links, as hand-terminated connectors rarely achieve

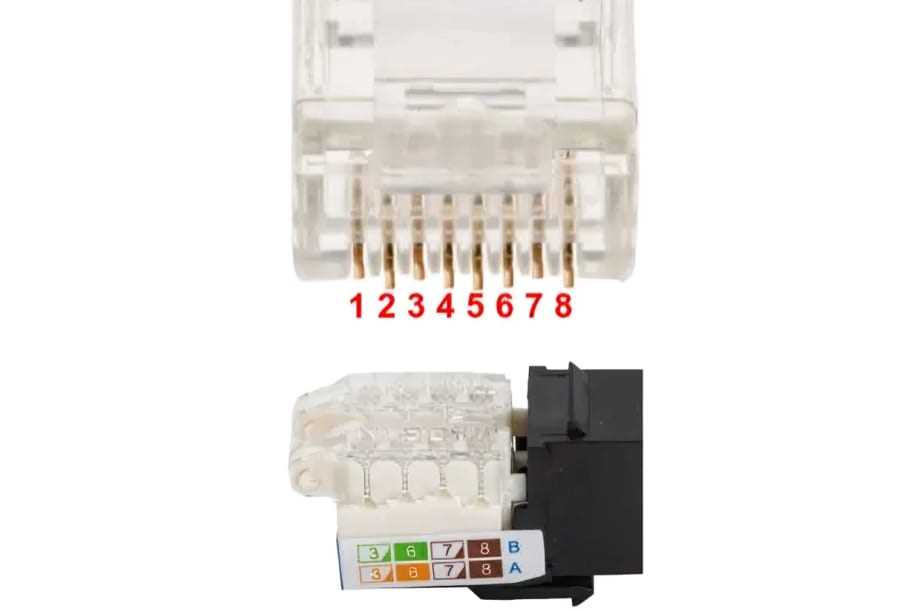

Proper Cable Termination in an 8P8C Modular Jack
Trim the outer sheath 20–25 mm from the cable end, ensuring pairs remain untwisted up to 12 mm from the cut. Twisted pairs beyond this point degrade signal integrity, increasing near-end crosstalk.
Arrange conductors by color sequence before insertion–strip, green/white, blue, orange/white, brown, green, brown/white, orange for T568B. Hold each wire at the sheath edge to prevent slipping during crimping.
- Verify conductor order with a magnifying lens or continuity tester before securing.
- Avoid bending wires beyond 1 mm radius; sharp angles crack copper strands.
- Leave no more than 3 mm of bare wire exposed beyond the connector ridge.
Use a ratcheting crimper with controlled force–300–500 psi prevents incomplete blade penetration through insulation. Check pin alignment after crimping; displaced conductors cause intermittent connectivity.
Apply strain relief by gently bending the cable 180° after termination. This prevents conductor pull-out under tension, which occurs at loads above 25 N.
Test each termination with a cable analyzer measuring insertion loss and return loss across 1–250 MHz. Values exceeding 20 dB at 100 MHz indicate improper termination.
For stranded cables, use connectors with piercing contacts; solid-core requires laminated blades. Mixing types causes signal reflections and physical failures within 500 mating cycles.
Store terminated cables in a controlled environment–temperature swings above 30°C accelerate oxidation of copper interfaces. Handle connectors by the housing, never the contact pins, to prevent contamination.
